Name: HT13V Mini Silicon Pressure Sensor for Non-Corrosive Gas and Liquid Pressure Measurement
Brand: Baoji Hengtong Electronics Co., LTD
SKU: HT13V
Price: 21.00 USD
Availability: InStock

Detail Information

Model NO.:	HT13V	Wiring Type:	Four-Wire
Range:	0-350kpa~35mpa	Supply:	5-10VDC
Keywords:	Mini Sensor	Transport Package:	Carton
Trademark:	HengTong	Origin:	Baoji China
Output Signal Type:	Analog Type Mv Signal	Material:	Stainless Steel
Highlight:	HT13V Mini Silicon Pressure Sensor , Non-Corrosive Silicon Pressure Sensor , Liquid Silicon Pressure Sensor 5-10VDC

Product Description

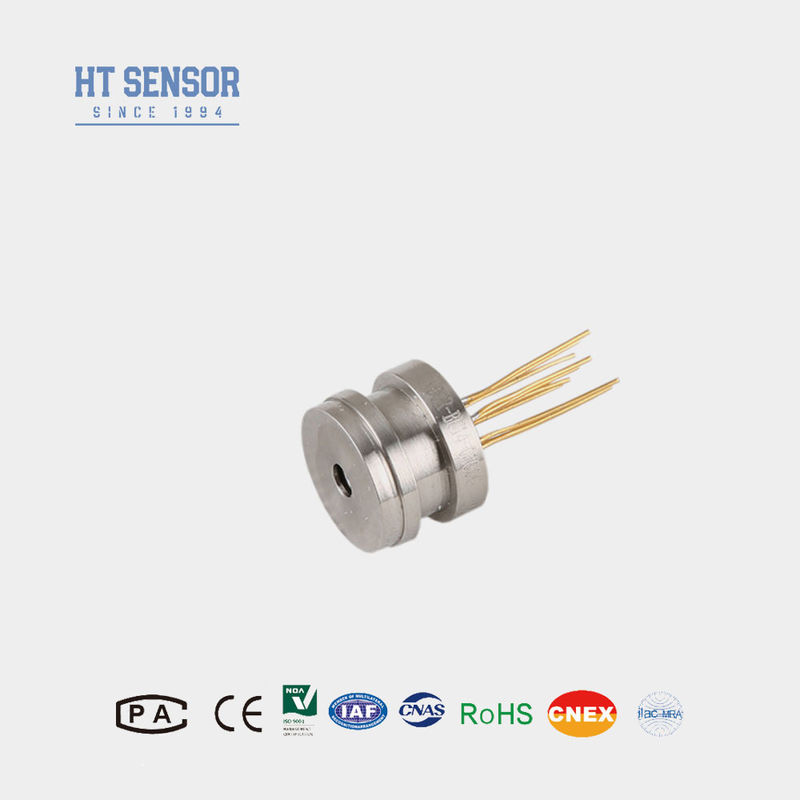

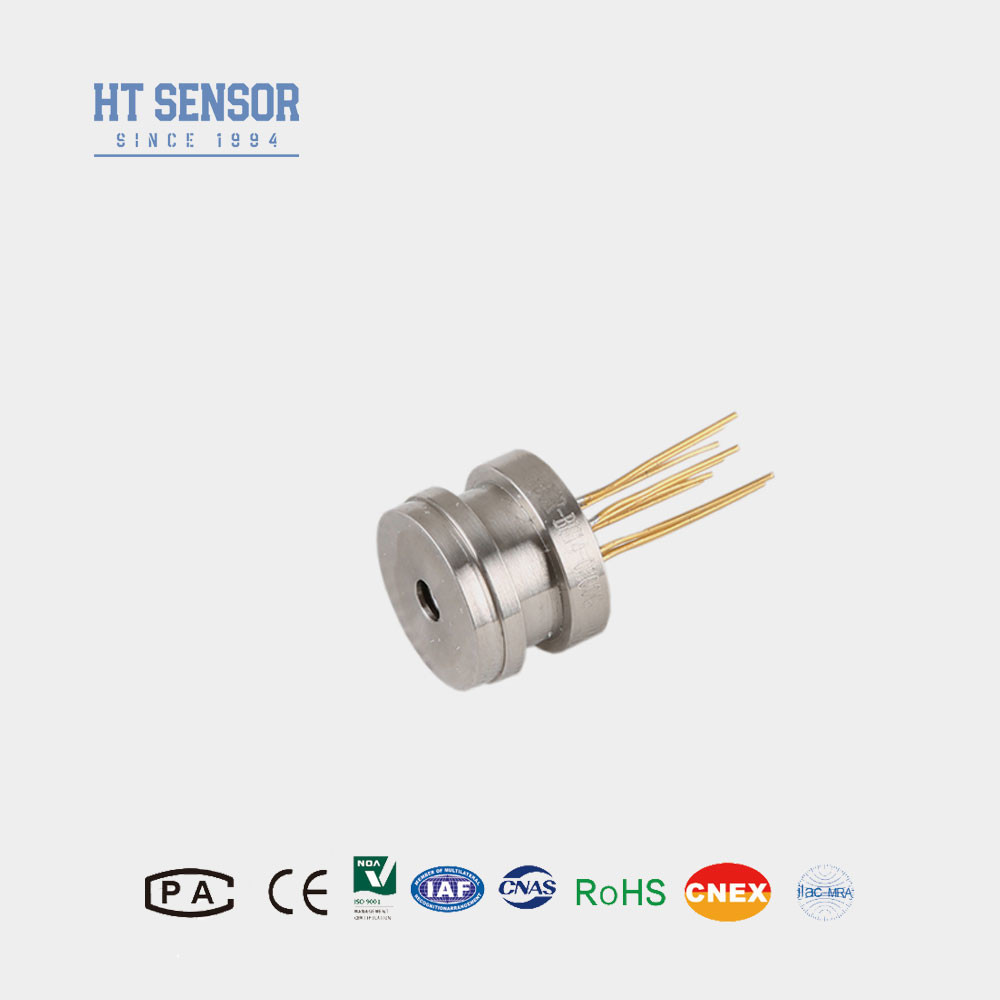

HT13V Mini Silicon Pressure Sensor for Non-Corrosive Gas and Liquid Pressure Measurement

HT13V Silicon Piezoresistive Pressure Sensor

Introduction of mini silicon pressure sensor:

HT13V is a silicon pressure sensor with international advanced high stability, high precision silicon pressure chip, stress optimized design of the sintered base, through the SMT, gold wire bonding, diaphragm welding, high vacuum oil injection, pressure cycle stress relief, high temperature aging, temperature compensation and other processes, the product stability is excellent, excellent performance.
The overall size is miniaturized to meet the design requirements of the user's overall size. Pressure detection for 316L stainless steel, NBR or fluoroprene compatible media.

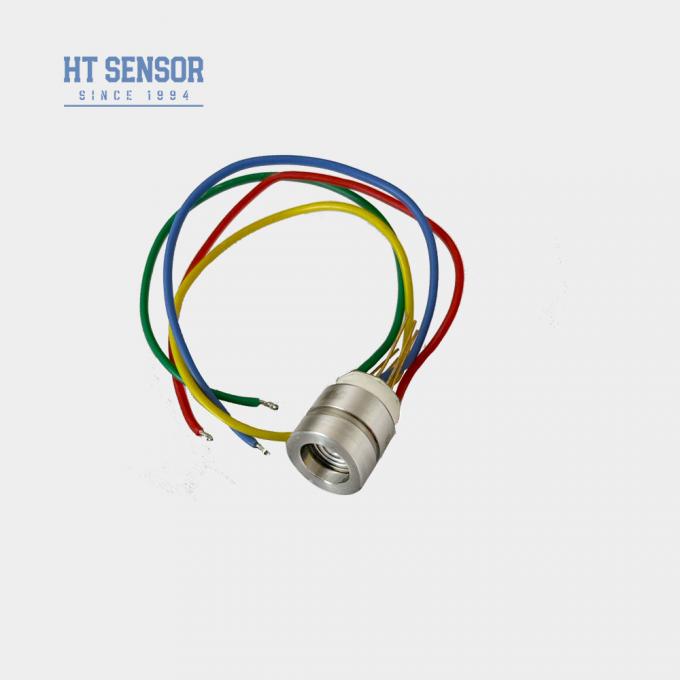

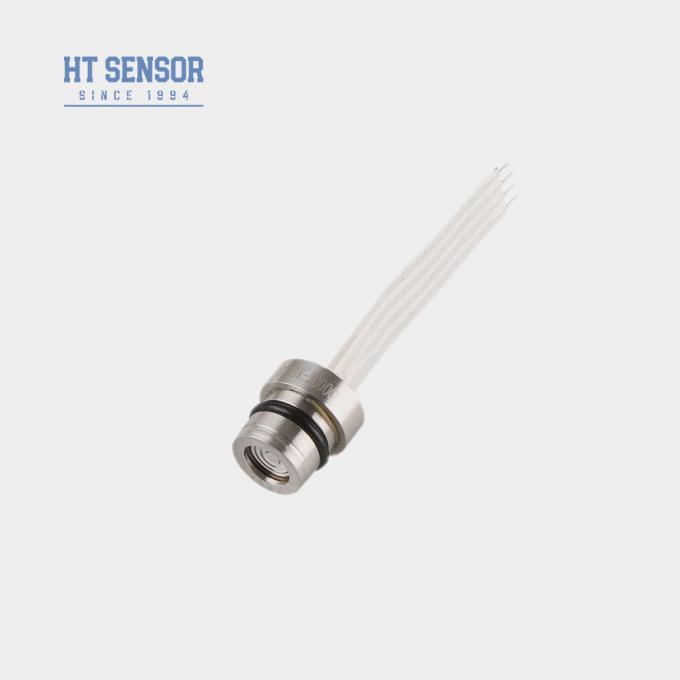

13mm Type Baoji Hengtong Level Sensor for Mini Transmitter

Product Features of mini silicon pressure sensor:

Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
Wide measuring range 0~350KPa~60MpaS
High reliability and excellent stability
Constant voltage supply

Applications of mini silicon pressure sensor:

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Compact design, ideal for applications with limited space
Used in process control systems for monitoring and controlling pressure
Commonly used in refrigeration systems and air compressors for pressure measurement

Electrical performance of mini silicon pressure sensor:

Power Supply: ≤10VDC (5-10VDC)
Common Mode Voltage Output: 50% of the input (typical)
Input Impedance:4KΩ~20KΩ
Output Impedance:2.5KΩ~6KΩ

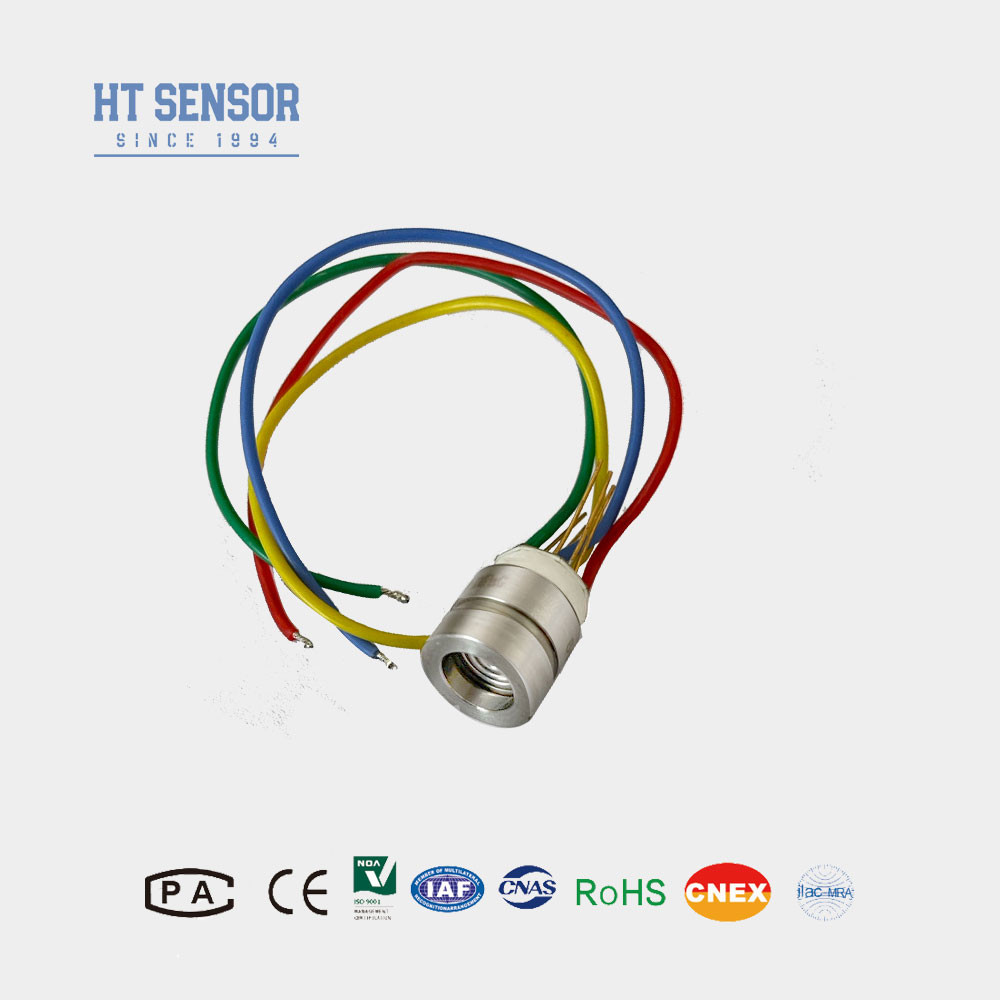

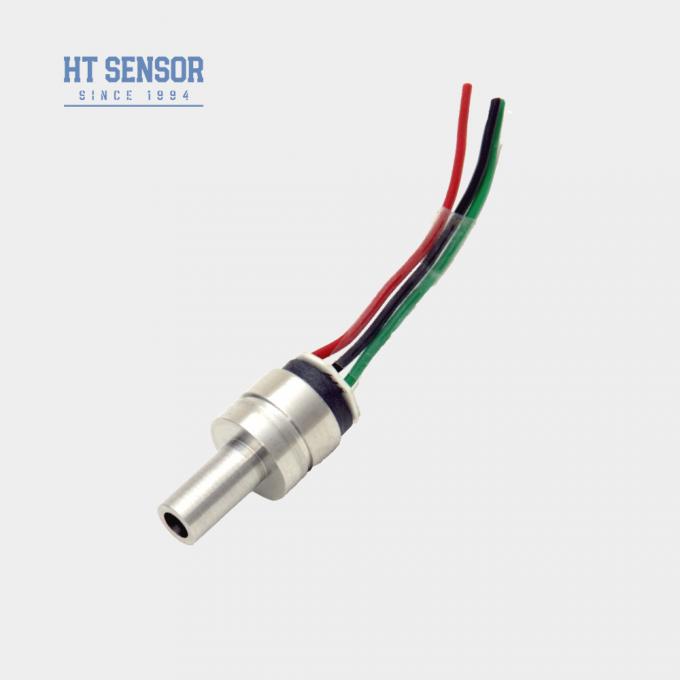

Electrical Connection:100mm high-temperature wire,ribbon cable

Performance Parameters of mini silicon pressure sensor:
Measurement Range	Gauge(G)	10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
	Absolute(A)	100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
	Sealed(S)	3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPa
	Typ		Max	Unit
Nonlinearity	±0.15		±0.3	%F.S
Repeatability	0.05		0.1	%F.S
Hysteresis	0.05		0.1	%F.S
Zero Offset Output	0±1		0±2	mV
Full Scale Output	100±10		100±30	mV
Zero Offset Temp. Drift	±0.5		±1	%F.S
Full Scale Temp. Drift	±0.5		±1	%F.S
Compensated Temp.	0~70			ºC
Operating Temperature	-20~80			ºC
Storage Temperature	-40~125			ºC
Allowable Overload	Take the smaller value between 3 times the full scale or 80MPa
Burst Pressure	5X the full scale
Long-term Stability	0.2 %			F.S/Year
Diaphragm Material	316L
Insulation Resistance	≥200MΩ 100VDC
Vibration	No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock	100g,11ms
Response Time	≤1ms
O-ring Seal	Nitrile rubber or Fluoro rubber
Filling Medium	Silicon Oil
Weight	~15g
The parameters are tested under the following conditions: 10V@ 25ºC

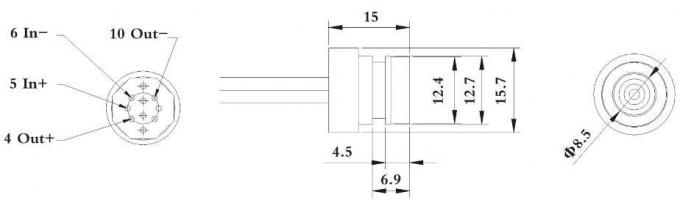

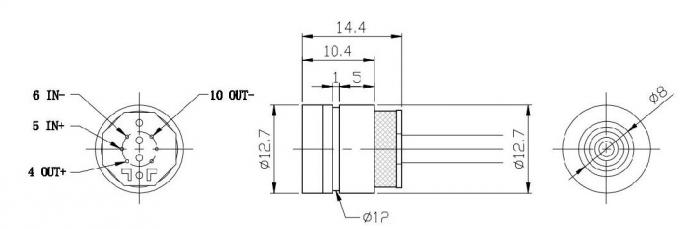

Outline Construction of mini silicon pressure sensor
type1
type2

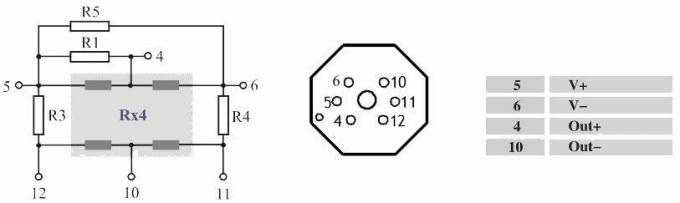

Electrical connection and compensation

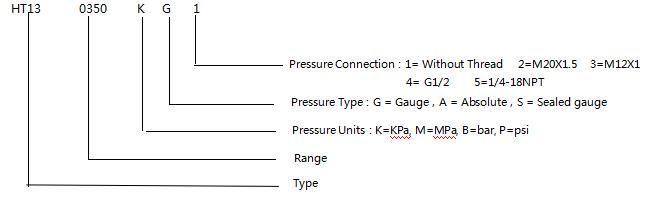

Selection Examples

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
