Name: LED Display Electronic Pressure Switch Digital Differential Pressure Transmitter
Brand: Baoji Hengtong Electronics Co., LTD
SKU: BPZK04-D
Price: 22.00 USD
Availability: InStock

Detail Information

Model NO.:	BPZK04-D	POWER:	24VAC /24VDC
Specification:	10kpa~100mpa	Trademark:	HT SENSOR
Origin:	Baoji China	HS Code:	80328100
Type:	Electronic	Number Of Switch:	Double Control Switch Transmitter
Usage:	Control Switch Transmitter	Customization:	Available
Highlight:	LED Display Differential Pressure Transmitter , Electronic Pressure Switch Differential Pressure Transmitter , Digital Differential Pressure Transmitter

Product Description

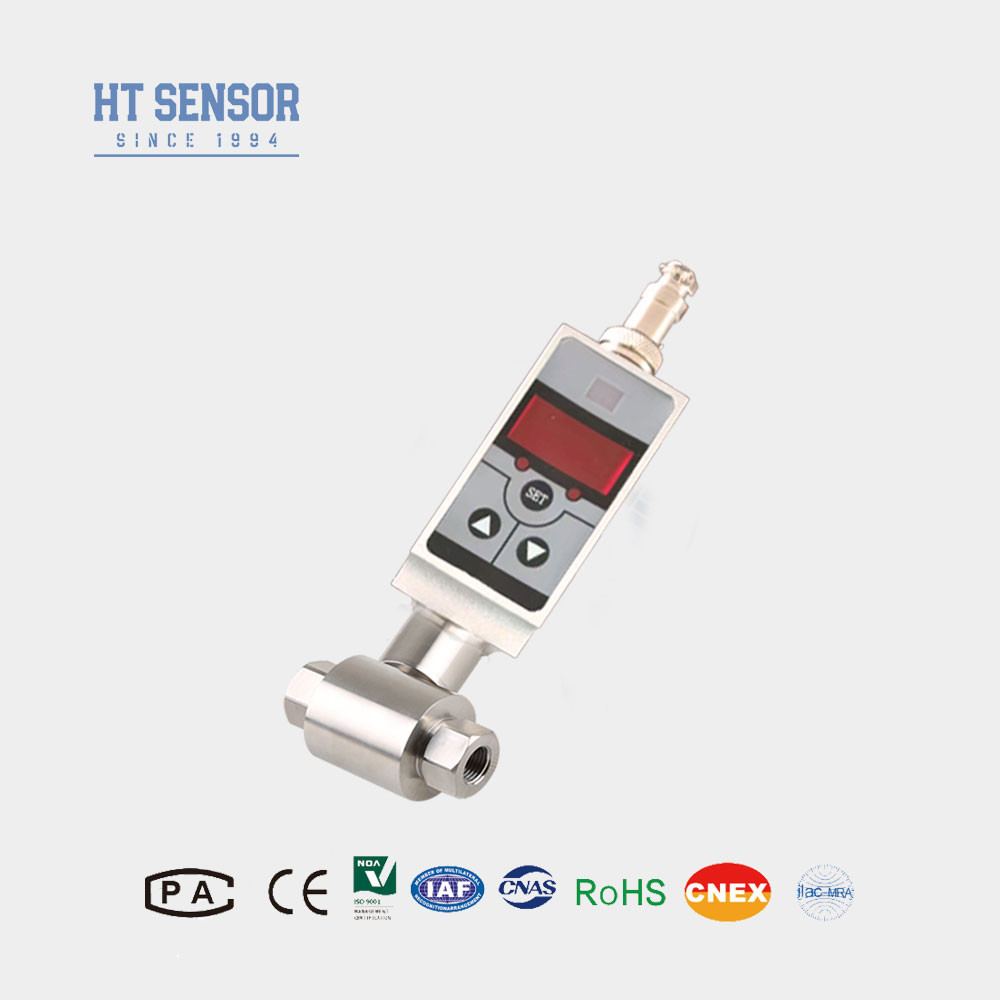

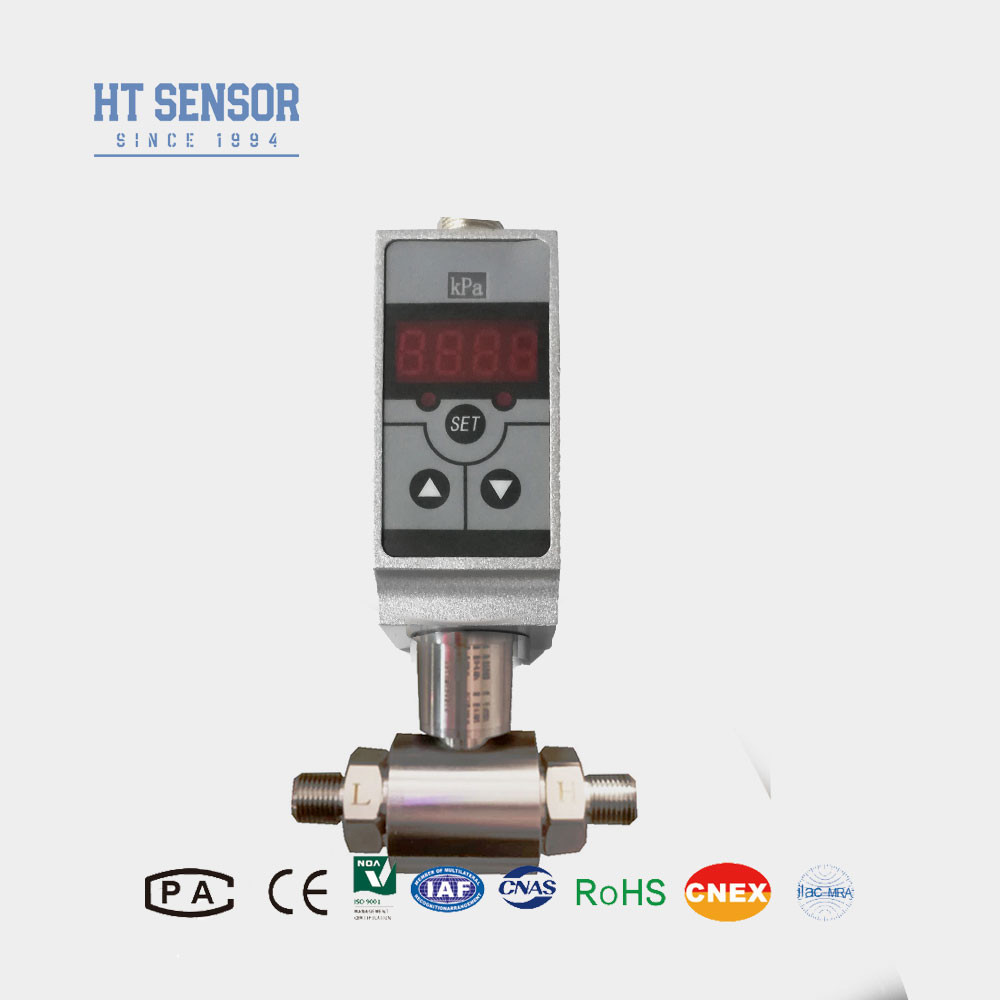

BPZK04-D LED Display Electronic Pressure Switch Differential Pressure Transmitter

BPZK04-D Electronic Pressure Switch

Introduction of differential electronic pressure switch Differential Pressure Transmitter:

BPZK04-D differential electronic pressure switch is a fully digital measurement and control product integrating pressure measurement, point control display and transmission output. The two pressure difference values are measured through the positive and negative pressure ends and fed back to the field. The output 4-20mA standard signal is displayed on the spot with two relays. When the pressure reaches the set value, the relay is closed or disconnected to control. Allows field use of keyboard to fine-tune parameters and differential pressure control points.

LED Display Electronic Pressure Switch Digital Differential Pressure Transmitter 0

Performance Parameters of differntial electronic pressure switch
Measurement Range	0-10KPa~2MPa(Differential Pressure)
Pressure Type	Differential Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability	±0.3%F.S/year
Zero Point Temperature Drift	±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Compensation Temperature	0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Housing Material	1Cr18Ni9Ti
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Relay Control	1-2 channels of control or electronic switch quantity control
Contact Life	Exceeds 100,000 cycles
Display Range	-1999~9999
Installation Method	vertical axis installation
Explosion-proof Rating	Intrinsically Safe
Protection Rating	IP65
Weight	~1.2kg

Product Features of differnetial electronic pressure switch:

Stainless steel structure design, with a variety of differential pressure interface options.
Equipped with high brightness LED or LCD pressure display.
Power supply: 24VDC 24VAC.
One 3-wire 4-20mA+ two control relay outputs are available, with the ability to set arbitrary relay values and states for accurate and reliable control.

Applications of differential electronic pressure switch:

Measurement and control of differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.

Outline Construction of electronic pressure switch
Dimension

LED Display Electronic Pressure Switch Digital Differential Pressure Transmitter 3

company

LED Display Electronic Pressure Switch Digital Differential Pressure Transmitter 4

LED Display Electronic Pressure Switch Digital Differential Pressure Transmitter 5

Q&A

1.Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.

4.Q: What's the typical delivery period?

A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners
.

6.Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
