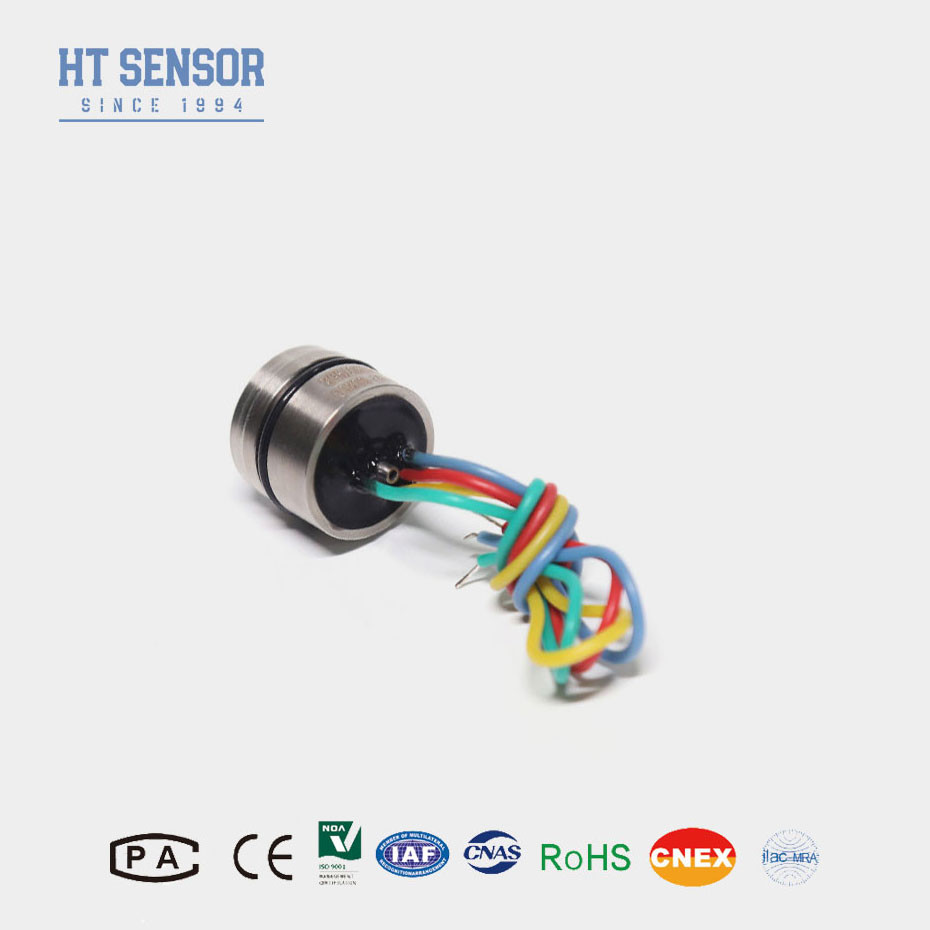

| Output: | 100mv+-30mv | Selectable: | Four-color Silicone Wire Or Gold-plated Pin |
| Model: | HT19 | High: | 12mm |
| Oil: | Diffusion Silicon | Thread: | No |
| Highlight |
Piezoresistive Silicon Pressure Sensor,19mm Silicon Pressure Sensor,1.5mA Silicon Pressure Sensor |
||
Product Description

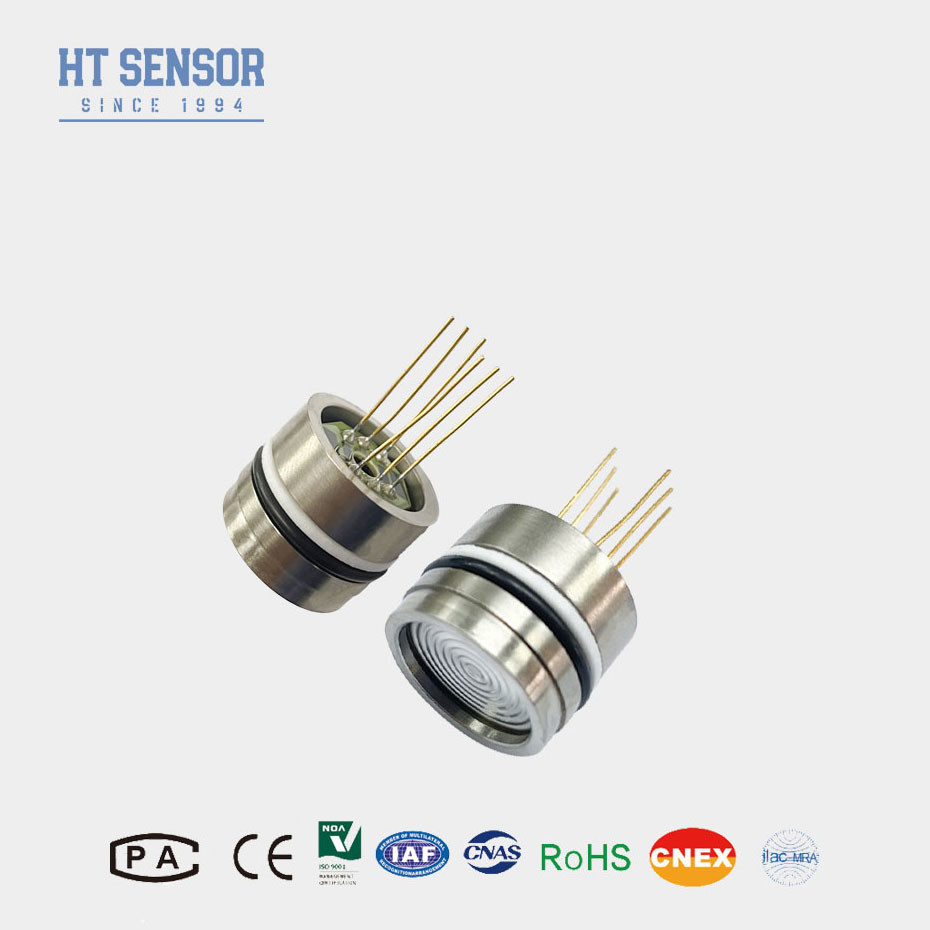

19mm Diffused Silicon Pressure Sensor Piezoresistive Pressure Sensor
Introduction of silicon pressure sensor:
HT19 piezoresistive silicon pressure sensor, the main component is a high stability diffuse silicon sensing element. The sensing package utilizes silicone oil to transfer pressure from a 316L stainless steel diaphragm to the sensing element. Piezoresistive pressure sensor adopts international advanced silicon pressure chip with high stability and high precision, adopts sintering base with optimized stress design, and is produced by SMT, gold wire bonding, diaphragm welding, high vacuum oiling, pressure cycle stress relief, high temperature aging, temperature compensation and other processes. With more than 30 years of development, production experience and technological innovation, the products have excellent stability and performance, and are widely recognized by users.
Product Features of silicon pressure sensor:
• Rugged, isolated stainless steel package
• Small size
• Reliable semiconductor technology
• Calibrated and temperature compensated
• Absolute and gage pressures
• Vacuum compatible, isolated sensors
• Low cost
Electrical Data of silicon Pressure sensor
Supply:1.5mADC Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
Performance Specification of silicon Pressure sensor
| Parameters | Range:0~10KPa,20KPa, 35 KPa,100 KPa,200 KPa,350 KPa, 700 KPa, 1MPa, 2MPa,3.5 MPa,7 MPa,10 MPa,20 MPa,40 MPa,60 MPa,100 MPa | |||
| Typical | Max. | Units | ||
| Pressure Non-linearity | ±0.15 | ±0.3 | %F.S | |
| Pressure Repeatability and Hysteresis | 0.02 | 0.05 | %F.S | |
| Zero Output | 0±1 | 0±2 | mV | |
| Span Output | ≤20KPa | 50±10 | 50±30 | mV |
| ≥35 KPa | 100±10 | 100±30 | mV | |
| Temperature Error-Zero | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1 | %F.S | |
| Temperature Error-Span | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1 | %F.S | |
| Proof Pressure | 3X Rated range or 120MPa, whichever is less | ------- | ||
| Operating Temperature Range | -20~80 | ℃ | ||
| Compensated Temperature Range | 0~70, 0~50(Range≤20KPa) | ℃ | ||
| Storage Temperature Range | -40~125 | ℃ | ||
Note :Above parameter under condition:Supply: 1.5mA Temperature: 25℃
