| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | ISO9001 |
| Model Number: | HT20 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | HT20 | Wiring Type: | Four-Wire |
|---|---|---|---|
| Measuring Medium: | Gas And Liquid | Range: | 0-10kpa~2Mpa |
| Power: | 1.5mA（0.4-2.0mA） | Transport Package: | Carton |
| Length: | 29.5mm | Origin: | Baoji. China |
| HS Code: | 9026209090 | Type: | Differential Pressure Sensor |
| For: | Differenial Pressure Transmitter | Material: | Stainless Steel |
| Customization: | Available | ||
| Highlight: | HT20 Silicon Pressure Sensor,Differential Silicon Pressure Sensor,Pressure Calibration Instruments Silicon Pressure Sensor |
||

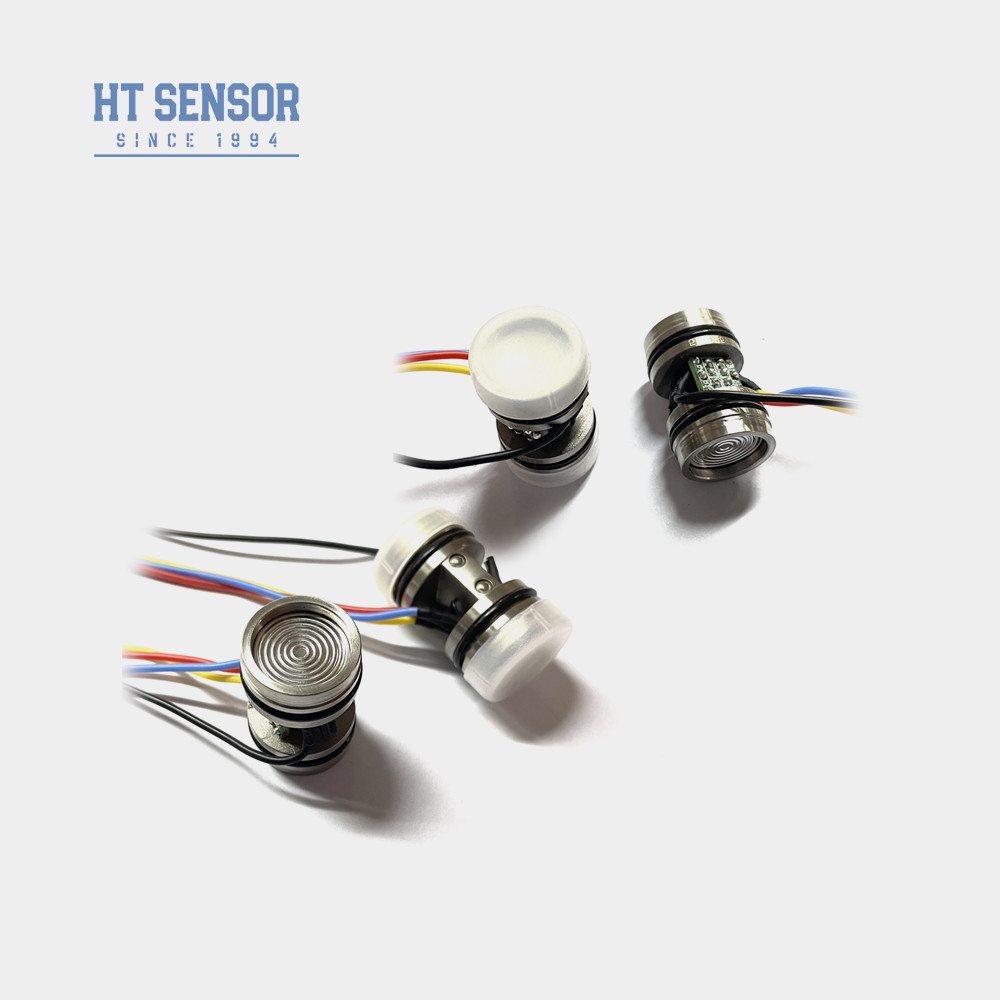

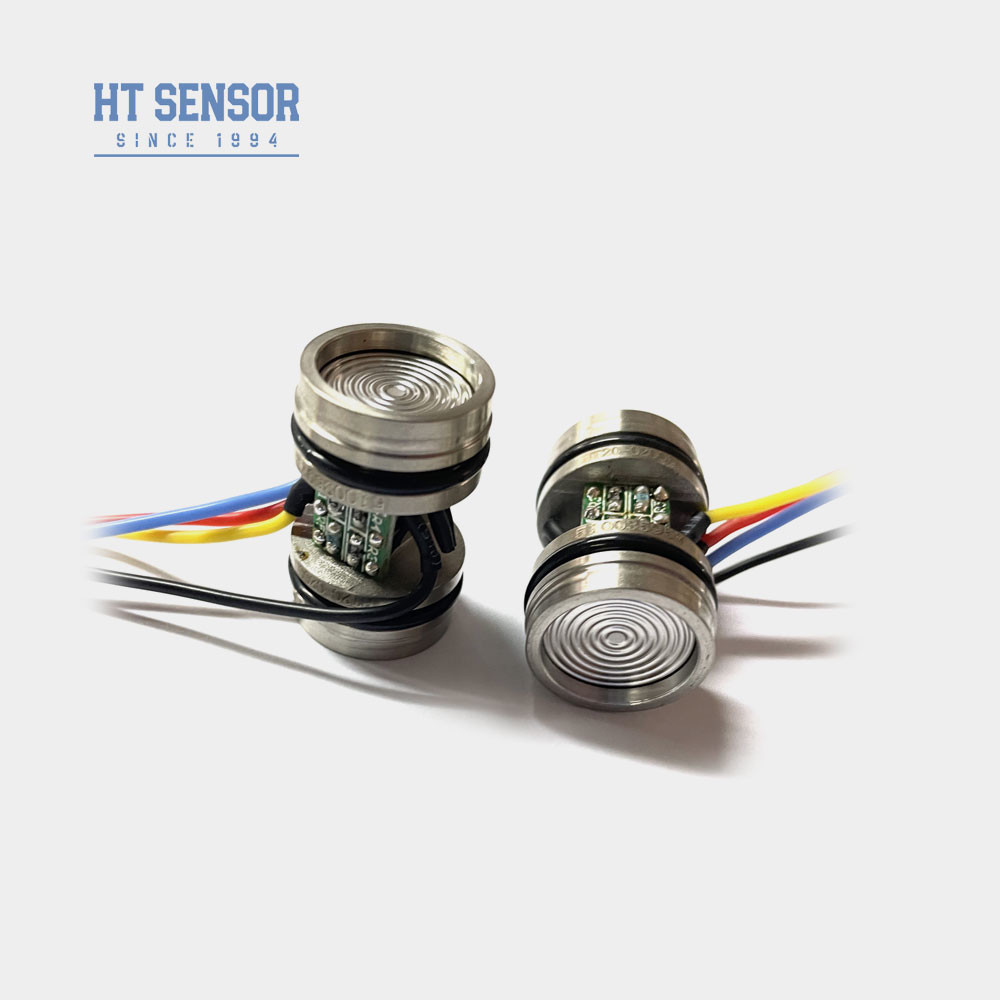

HT20 Differential Pressure Sensor
Introduction of differential silicon pressure sensor:
The HT20 differntial silicon pressure senor is a silicon piezoresistive differential pressure sensor with a core of highly stable diffused silicon element. The core is enclosed in a 316L stainless steel housing, and the pressure is transmitted through a stainless steel diaphragm and sealed silicon oil to the sensitive chip. The sensitive chip does not directly contact the measured medium, forming a fully solid-state structure for pressure measurement, enabling precise measurement of differential pressure. Therefore, this product can be applied in various scenarios that require differential pressure measurement, including harsh and corrosive environments.
Product Features of differential silicon pressure sensor:
| Performance Parameters of differential silicon pressure sensor: | |||||
| Measurement Range | 10KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | ||||
| Typ | Max | Unit | |||
| Linearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | |
| ≥35kPa | 100±10 | 100±30 | mV | ||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | ||
| ≥35kPa | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 4MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~45g | ||||
| The parameters are tested under the following conditions: 1.5mA @ 25°C | |||||

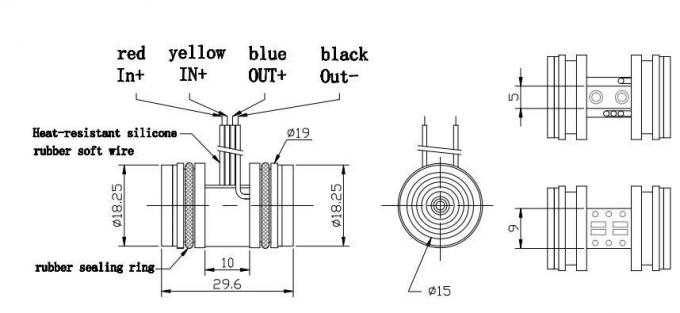

| Outline Construction | |
| Dimension |  |
| Notes:The outgoing end is the positive terminal. If there are any changes in the wire colors, please refer to the label attached to the sensor for accurate information | |

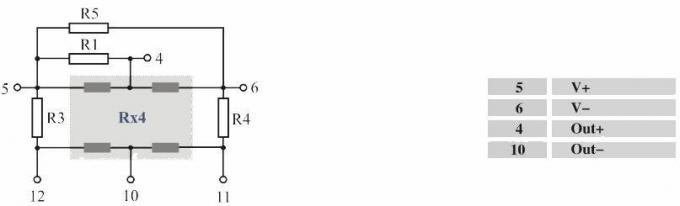

| Electrical connection and compensation of differential silicon pressure sensor |
 |

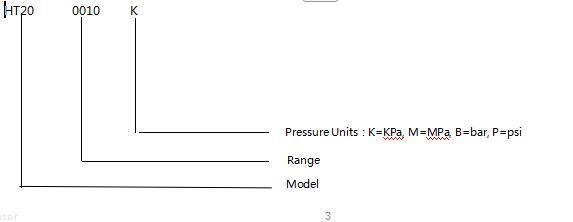

| Selection Examples |

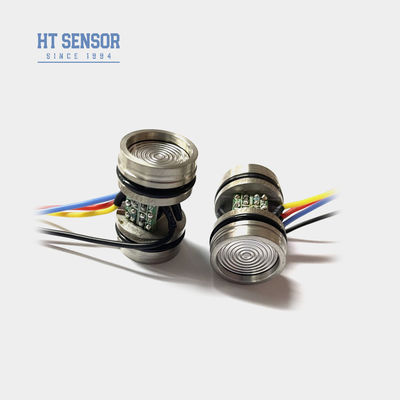

| Products |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
