Wireless Temperature & Pressure Transmitter For Industrial Applications With High Precision
Product Details
| Length And Thread: | OEM | Operating Temperature: | -20-85℃ |
|---|---|---|---|
| Accuracy: | 0.25%FS 0.5%FS | Power Supply: | 3.6V Batty |
| Sensor: | PT100 PT1000 | Measuring Range: | -40-200℃ |
| Communication Protocol: | Zigbee | Model: | BT-W06 |
| Pressure: | -100kpa～0～10kpa～40Mpa | ||
| Highlight |
High Precision Wireless Pressure Transmitter,Industrial Wireless Pressure Transmitter,Industrial Applications Wireless Pressure Transmitter |
||
Product Description
Wireless Temperature & Pressure Transmitter For Industrial Applications With High Precision
Product Description of Wireless Pressure & temperature transmitter:

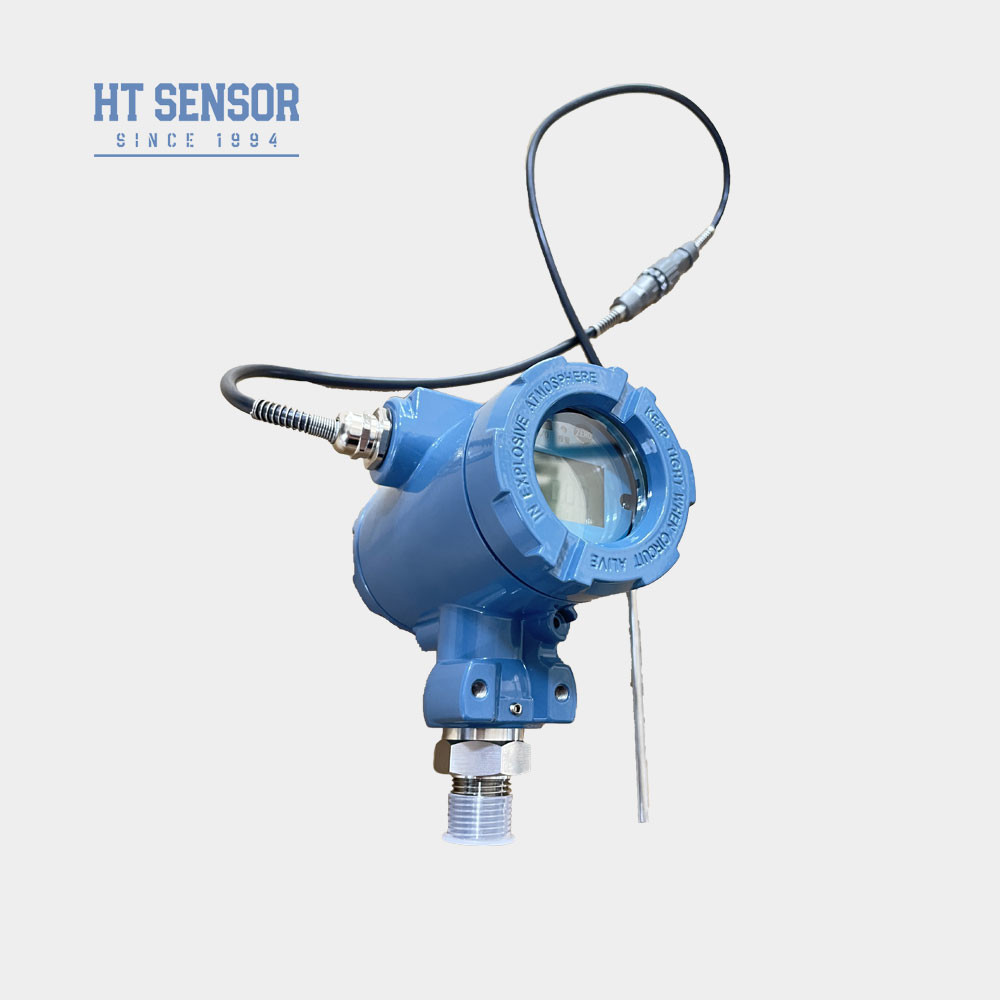

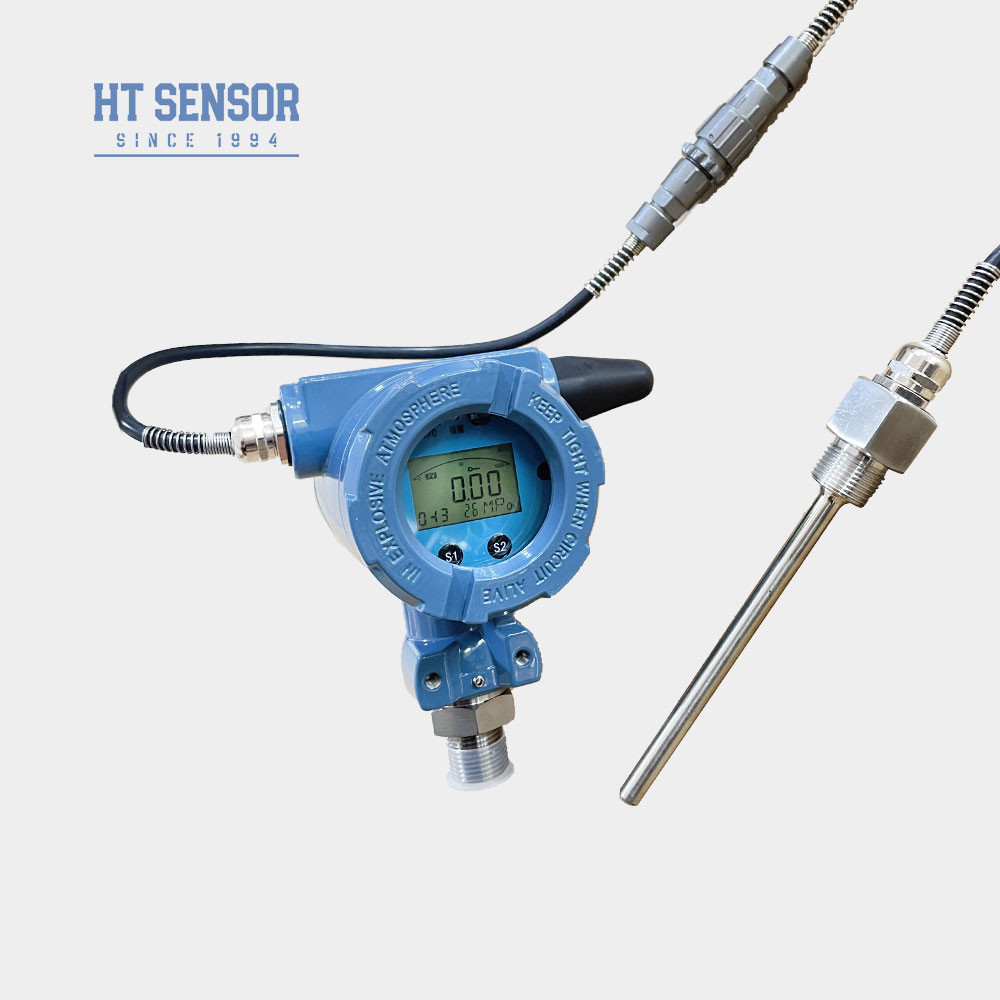

The BT-W06 Zigbee split wireless Pressure and Temperature Transmitter is a device utilized for measuring and wirelessly transmitting temperature signals to a receiver or monitoring system. It typically comprises a temperature sensor, a pressure module, and a wireless transmitter, which convert the temperature and pressure signals into wireless signals and subsequently transmit them. The split structure is more conducive to the accuracy of the medium's temperature and pressure. Wireless temperature and pressure transmitters offer flexible installation options and can be readily employed in remote or hard-to-wire environments. They are widely utilized in industrial automation, energy management, environmental monitoring, and other fields, providing convenient and reliable temperature monitoring solutions.
Features of Wireless Pressure & temperature transmitter:
- Wireless test of pipeline pressure and temperature, typically used in oil wellhead pressure and temperature monitoring;
- explosion-proof design: flameproof aluminum shell, circuit board system intrinsically safe;
- Protection grade: IP65, fully sealed waterproof design;
- ZigBee communication, which can be configured and tested by hand copy;
- LCD display: -40~75℃ wide temperature range, can display pressure data, temperature data, battery voltage, wireless channel and other information;
- Adjustable installation direction: Connect to the onsite pipeline valve through a loose connector or adapter and adjust the direction.
- 38Ah high energy lithium sub-battery, long working life;
- high-gain antenna, wireless transmission distance of more than 90m;
- Temperature sensor head customized cable jacket to prevent cable connector breakage;
Applications of wireless pressure transmitter temperture transmitter:
- Compatible with stainless steel, non-corrosive liquids.
- Monitor temperature in various applications, such as water temperature.
- Industrial and municipal water, tanks, Wells, rivers, sea water,The temperature of lakes, etc.
Technical Parameters of Wireless Pressure & temperature transmitter:
| Measured Medium | liquid/ gas |
| Pressure Range | 0~4MPa/ 0-150℃ other ranges can be customized |
| Accuracy | 0.5 level |
| Overload Pressure | 150% F.S |
| Reporting Cycle | 1 minute ~12 hours can be set |
| Decimal Places | pressure display 2/temperature display 2 |
| Signal Transmission | ZigBee wireless |
| Transmission Power | ≤40mW |
| Communication Distance | ≥90m |
| Working Power Supply | 3.6V lithium battery |
| Explosion-Proof Grade | Ex ib IIB T3 Gb / IP65 |
| Process Interface | pressure sensing head 1/2NPT customers can make. |
| Working Environment Temperature | -40~75℃ |
| Working Environment Humidity | ≤ 97%RH |
| Product Weight | 2000g |
FAQ:
Q1:Areyou manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
