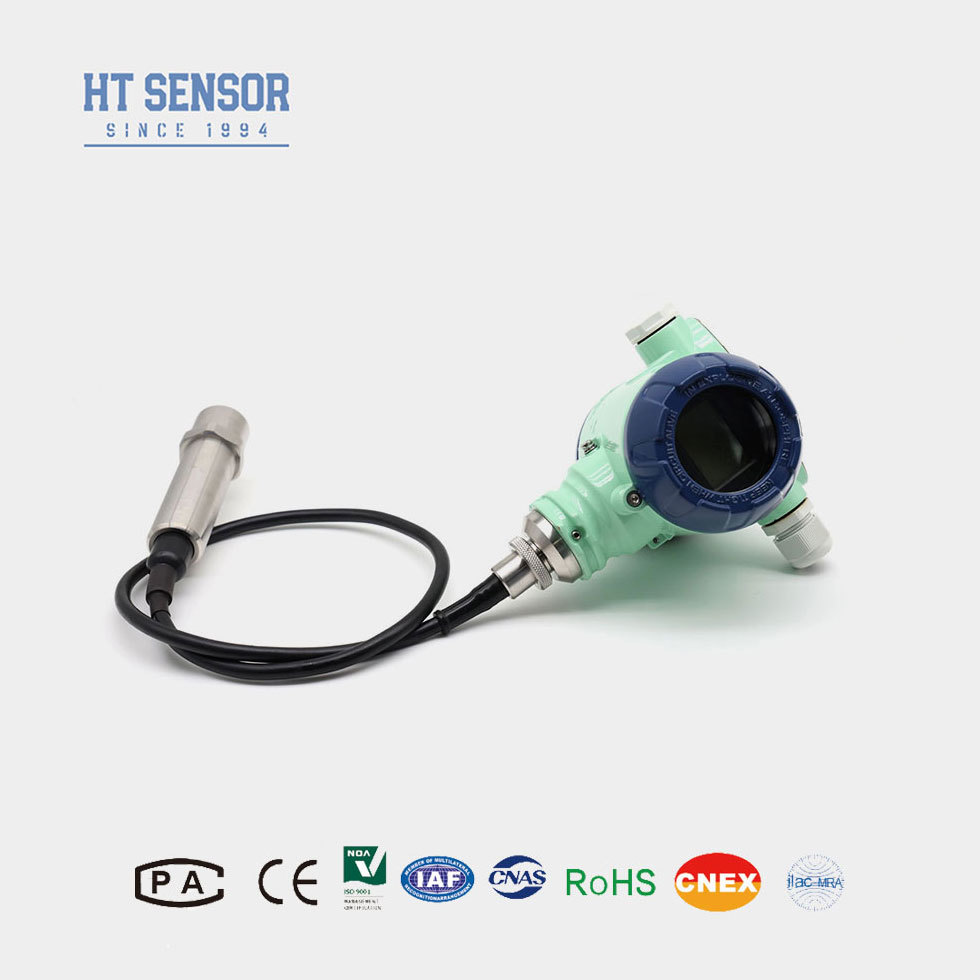

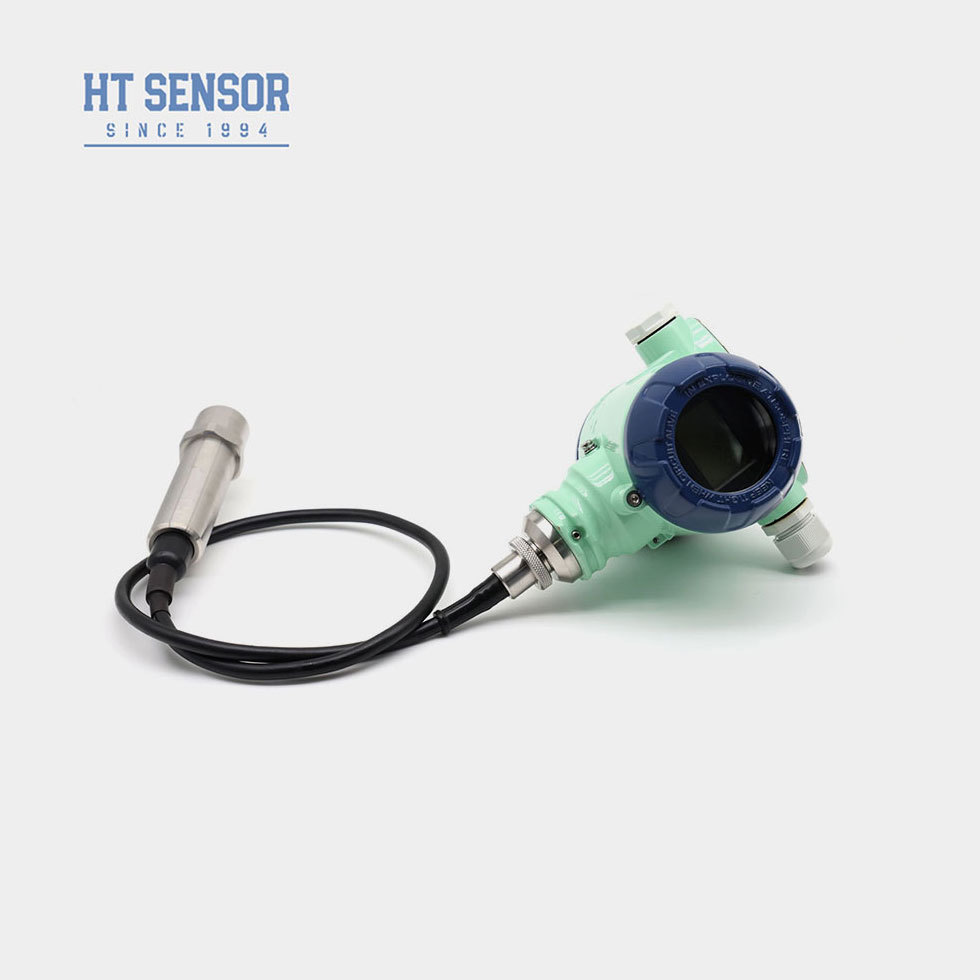

BH93420-III Advanced Water Level Transmitter for Industrial Applications
Product Details
| Model NO.: | BH93420-III | Pressure Range: | 0-1m-400 Mh2o |
|---|---|---|---|
| Display Type: | LED | Accuracy Grade: | 0.1%,0.25% |
| IP Rating: | IP68 | Net Weight: | 1.6kg |
| Diaphragm Material: | 316L Stainless Steel | Measurement Range: | 0~10m…400mH2O |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Overload: | ≤ 2X Rated Range |
| Accuracy @ 25ºC: | ±0.1% (Typ.) ±0.2% (Max.) | Operating Temperature: | -20~80ºC |
| Storage Temperature: | -30~100ºC | Housing Material: | Cast Aluminum, Stainless Steel 1Cr18Ni9Ti |
| Output Signal: | 4~20mA With Hart | ||
| Highlight |
HT Sensor water level transmitter IP68,BH93420-III water level sensor 0.1% accuracy,submersible water level transmitter with warranty |
||
Product Description
The BH93420-III insertion-type intelligent water level transmitter features a high-precision piezoresistive silicon pressure sensor for measuring static pressure proportional to liquid level. Utilizing HART communication protocol, it enables digital signal transmission and two-way communication.
- HART communication protocol output with display capability
- High accuracy (±0.1%) with excellent stability
- Explosion-proof rating: ExiaIICT6
- High protection level: IP68
- Multiple cable options: PE, PTFT, PU
- Versatile structures to meet various on-site requirements
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and oil tank level monitoring
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
Please ensure compatibility with measured medium and specify density when ordering.
