Detail Information

Output Signal:	Analog Type	Production Process:	Integration
Material:	Stainless Steel	Wiring Type:	Four-Wire
IP Rating:	IP65	Power:	1.5mA
Connection:	Gold-plated Kovar Pins Or 100mm WIRE	Thread Size:	1.5"
Diaphragm Size:	50.4mm	Input Impedance:	2.5KΩ~6KΩ
Output Impedance:	2.5KΩ~6KΩ	Operating Temperature:	-20~80°C
Storage Temperature:	-40~125°C	Diaphragm Material:	316L
Weight:	~150g
Highlight:	50.4mm big diaphragm pressure sensor , silicon piezoresistive flush sensor , high performance silicon pressure sensor

Product Description

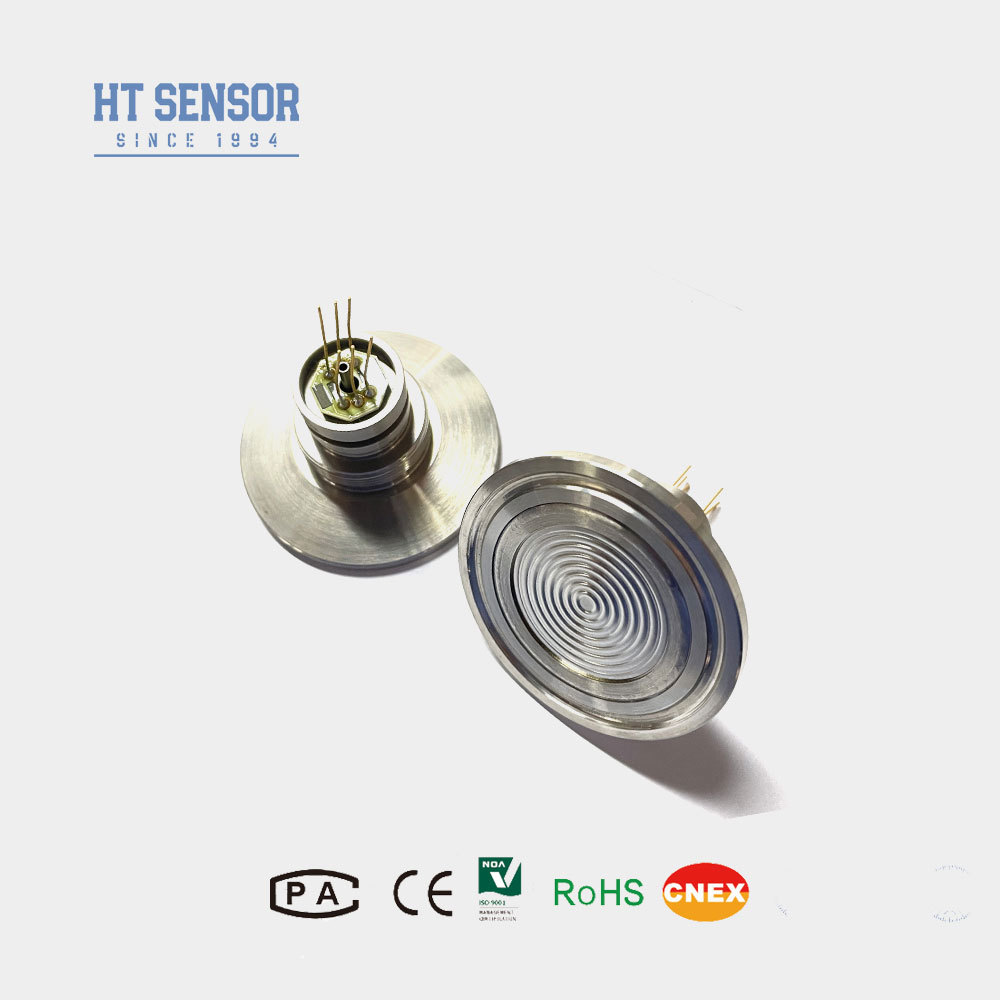

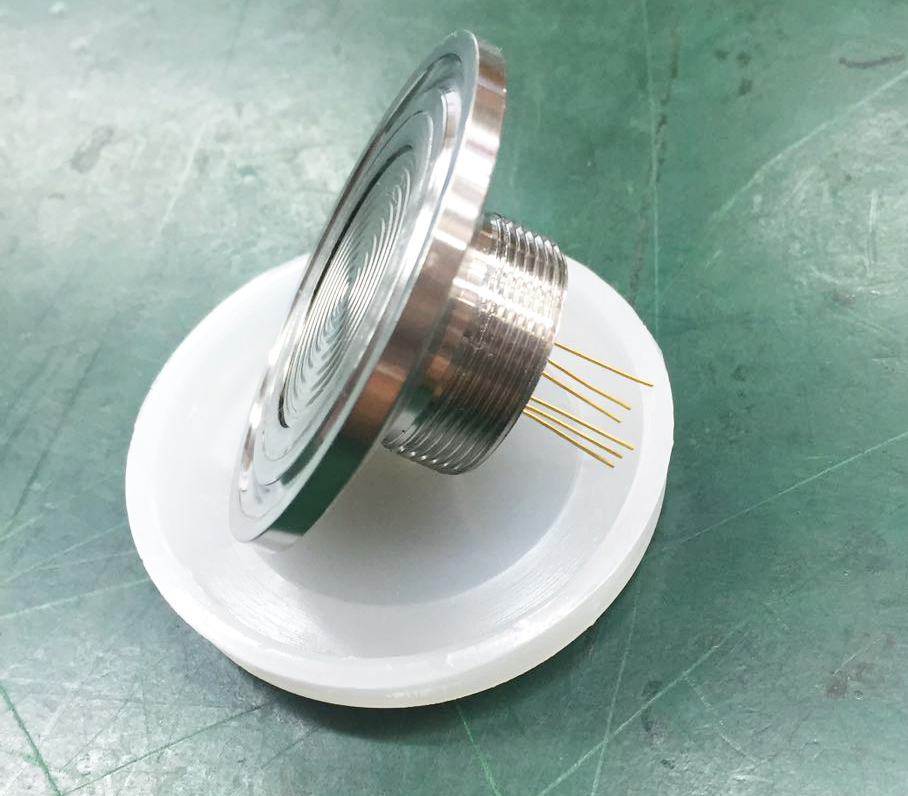

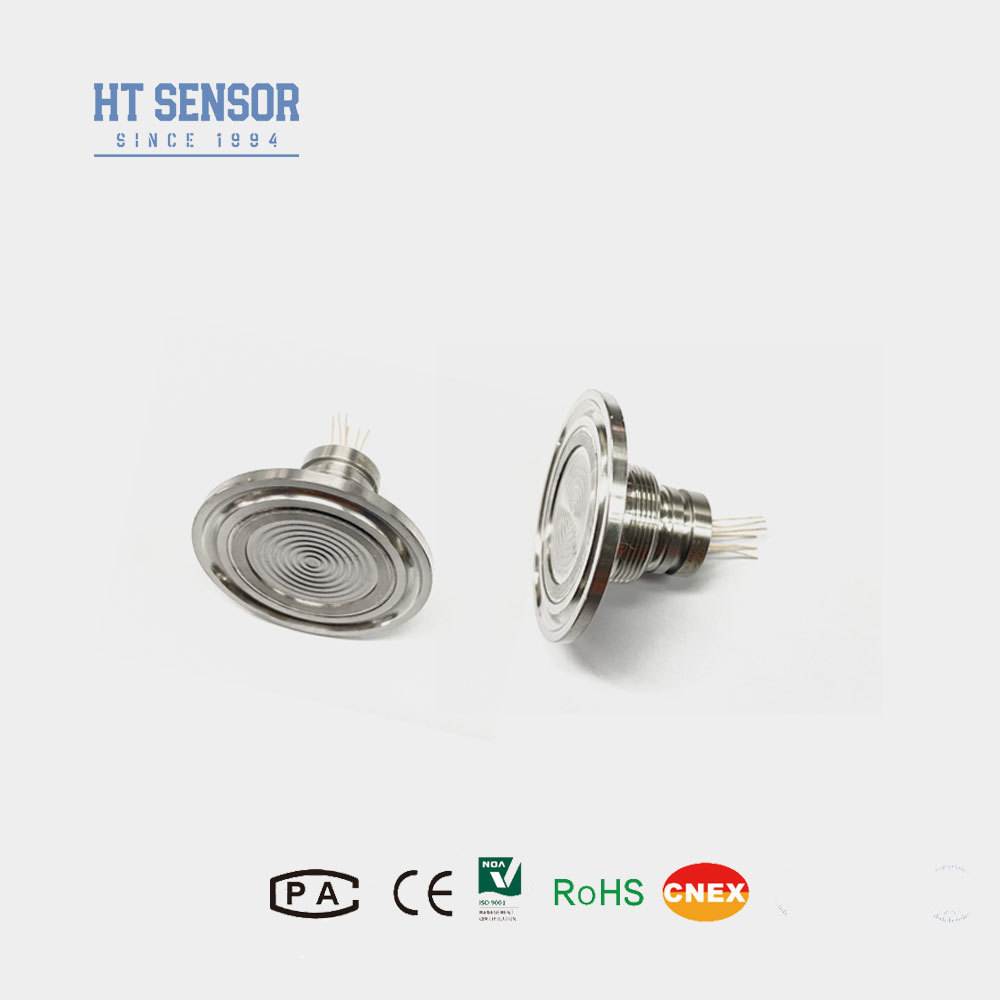

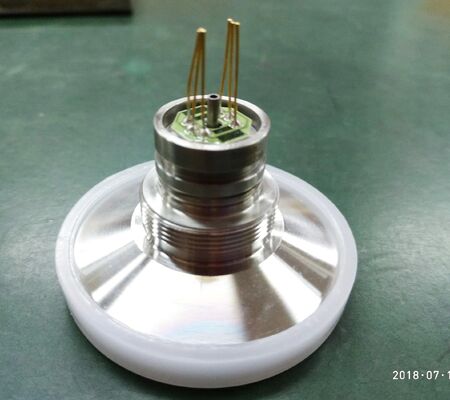

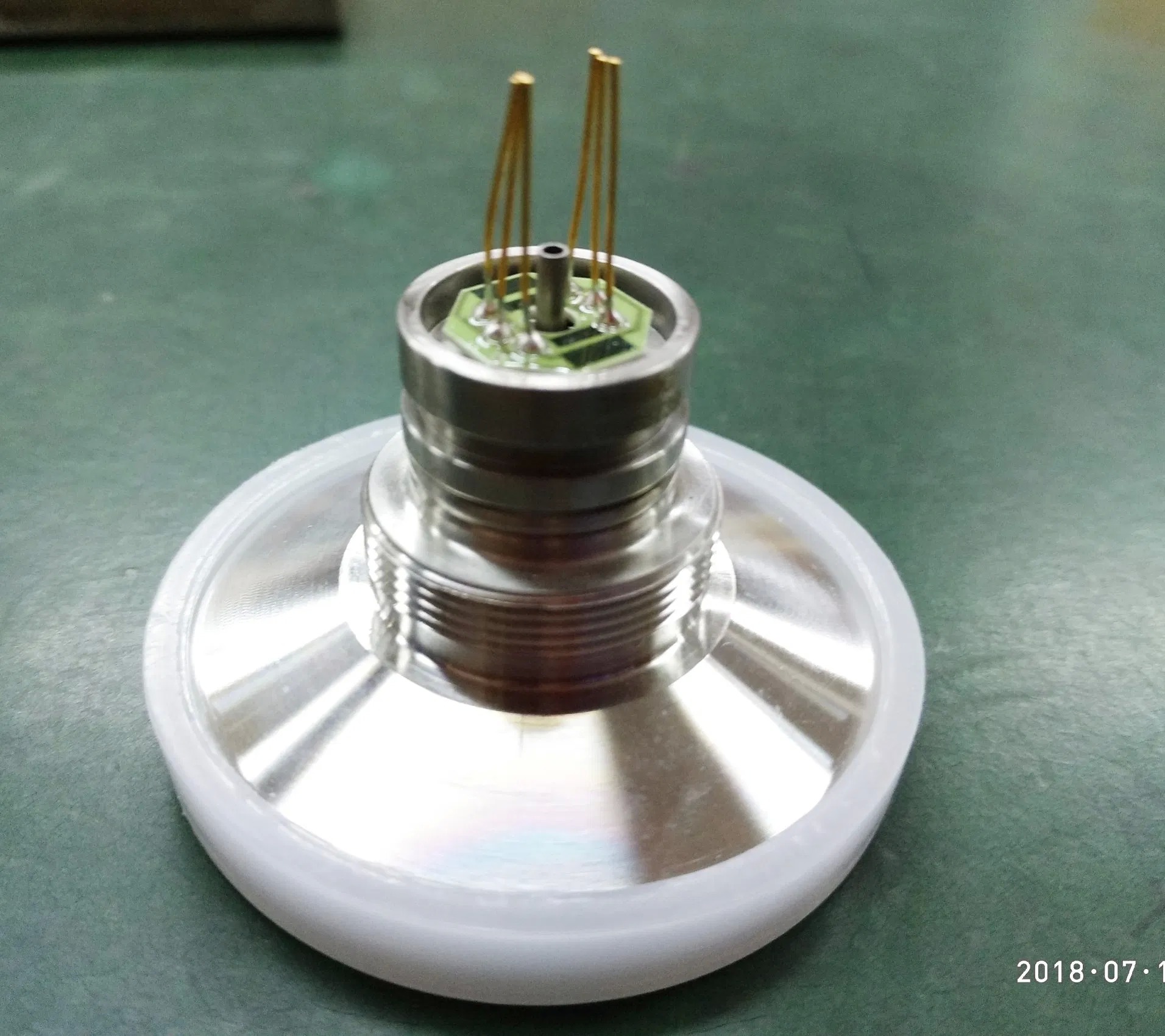

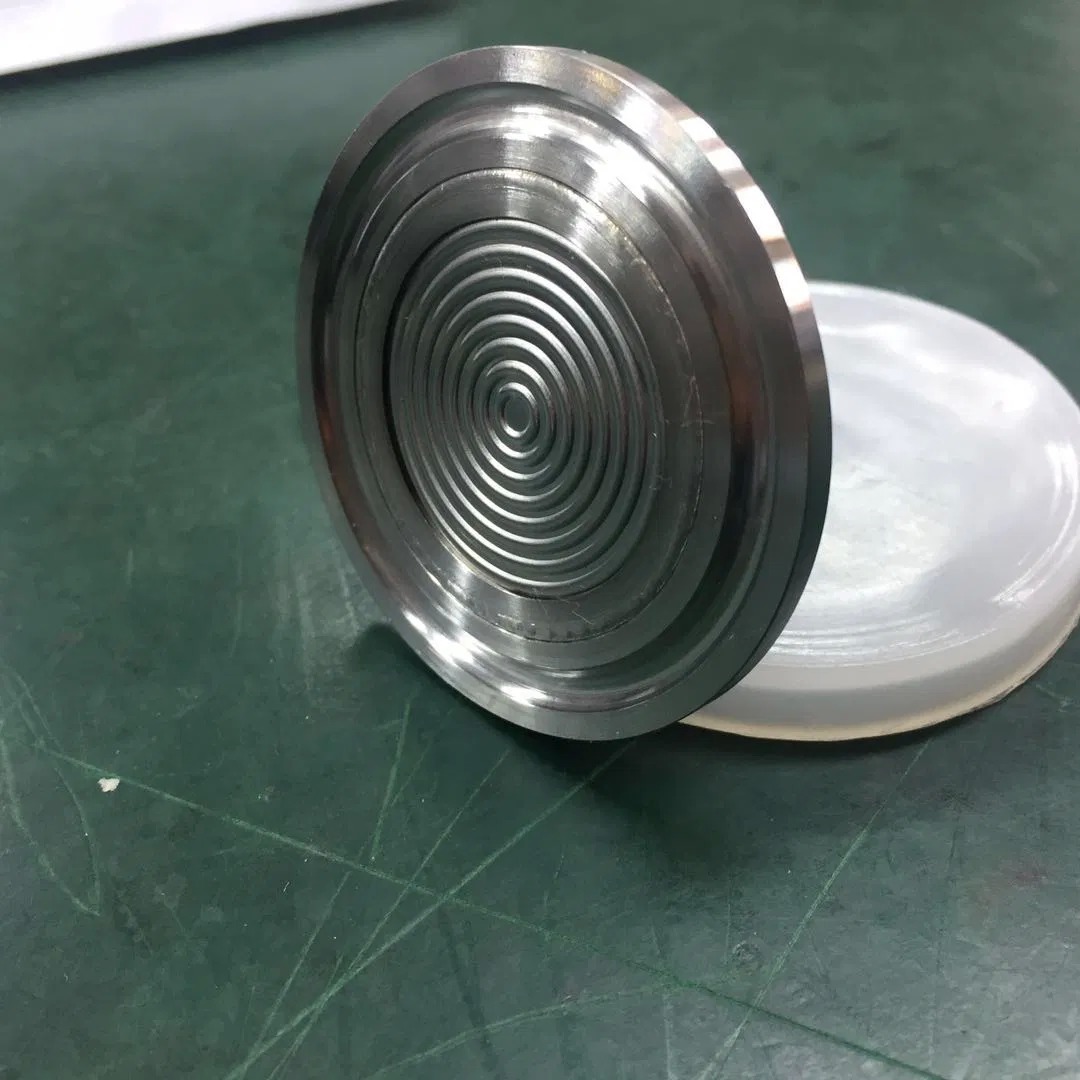

HT-IQ 50.4mm Big Diaphragm Silicon Piezoresistive Pressure Sensor

The HT-IQ is a flush diaphragm pressure sensor featuring a highly stable diffused silicon chip. Pressure is transmitted to the sensitive chip through a stainless steel diaphragm and sealed silicon oil, ensuring the sensitive chip never directly contacts the measured medium. This product's flat diaphragm structure offers easy cleaning and high reliability, making it ideal for food, beverage, pharmaceutical, and hygiene applications.

Product Features

Advanced technology with 316L stainless steel housing and premium diaphragm materials including titanium and Hastelloy
Thick-film circuits for precise temperature compensation and zero-point correction
Outstanding reliability, repeatability, and stability
Flush diaphragm structure for easy cleaning and maintenance

Applications

Measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Food and beverage processing industry
Industrial process control systems
Pharmaceutical manufacturing and processing

Electrical Performance

Power Supply: ≤2mA DC (Typical 1.5mA DC)
Input Impedance: 2.5KΩ~6KΩ
Output Impedance: 2.5KΩ~6KΩ
Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires

Performance Parameters

Parameter	Typ	Max	Unit
Measurement Range	Gauge(G)	35KPa, 100KPa, 200KPa, 350KPa, 1000KPa, 2000KPa
	Absolute(A)	100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA
	Sealed(S)	3500KPaS
NonLinearity	±0.15	±0.3	%F.S
Repeatability	0.05	0.1	%F.S
Hysteresis	0.05	0.1	%F.S
Zero Offset Output	0±1	0±2	mV
Full Scale Output (≤20KPa)	50±10	50±30	mV
Full Scale Output (≥35kPa)	100±10	100±30	mV
Zero Offset Temp. Drift (≤20KPa)	±1	±2	%F.S
Zero Offset Temp. Drift (≥35kPa)	±0.5	±1	%F.S
Full Scale Temp. Drift (≤20KPa)	±1	±2	%F.S
Full Scale Temp. Drift (≥35kPa)	±0.5	±1	%F.S
Compensated Temp. (≤20KPa)	0~50 ºC
Compensated Temp. (≥35kPa)	0~70 ºC
Operating Temperature	-20~80 ºC
Storage Temperature	-40~125 ºC
Allowable Overload	Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure	5X the full scale
Long-term Stability	0.2 % F.S/Year
Diaphragm Material	316L
Insulation Resistance	≥200MΩ 100VDC
Vibration	No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock	100g, 11ms
Response Time	≤1ms
O-ring Seal	Nitrile rubber or Fluoro rubber
Filling Medium	Silicon Oil
Weight	~150g

Parameters are tested under the following conditions: 1.5mA @25°C

Outline Construction

Electrical Connection and Compensation

Selection Examples

Ordering Tips

Ensure proper fit between core size and transmitter housing during assembly to achieve required airtightness
During housing assembly, maintain vertical alignment and apply even pressure to avoid jamming or damaging the compensation plate

If the measured medium is not compatible with the core diaphragm and housing material (316L), provide special instructions when ordering
Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage from deformation or piercing
Keep the pressure port of the gauge pressure core open to the atmosphere and prevent entry of water, water vapor, or corrosive media
Refer to the label on the actual core for any pin lead configuration changes
