Detail Information

Model NO.:	BP93420-IIIQT	Measuring Medium:	Liquid
Accuracy Grade:	0.5%	Pressure Range:	-100kpa...0kpa ~35kpa...3.5MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Frequency Response:	2.4kHz
Weight:	~1kg	Overload Capacity:	≤ 1.5 Times Of The Rated Range
Repeatability:	≤0.1%FS	Hysteresis:	≤0.1%FS
Long-Term Stability:	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)	Operating Temperature:	-20ºC~80ºC
Output Signal:	4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485
Highlight:	OEM digital pressure transmitter , 3051 BP93420-IIIQT beverage sensor , silicon pressure transmitter with warranty

Product Description

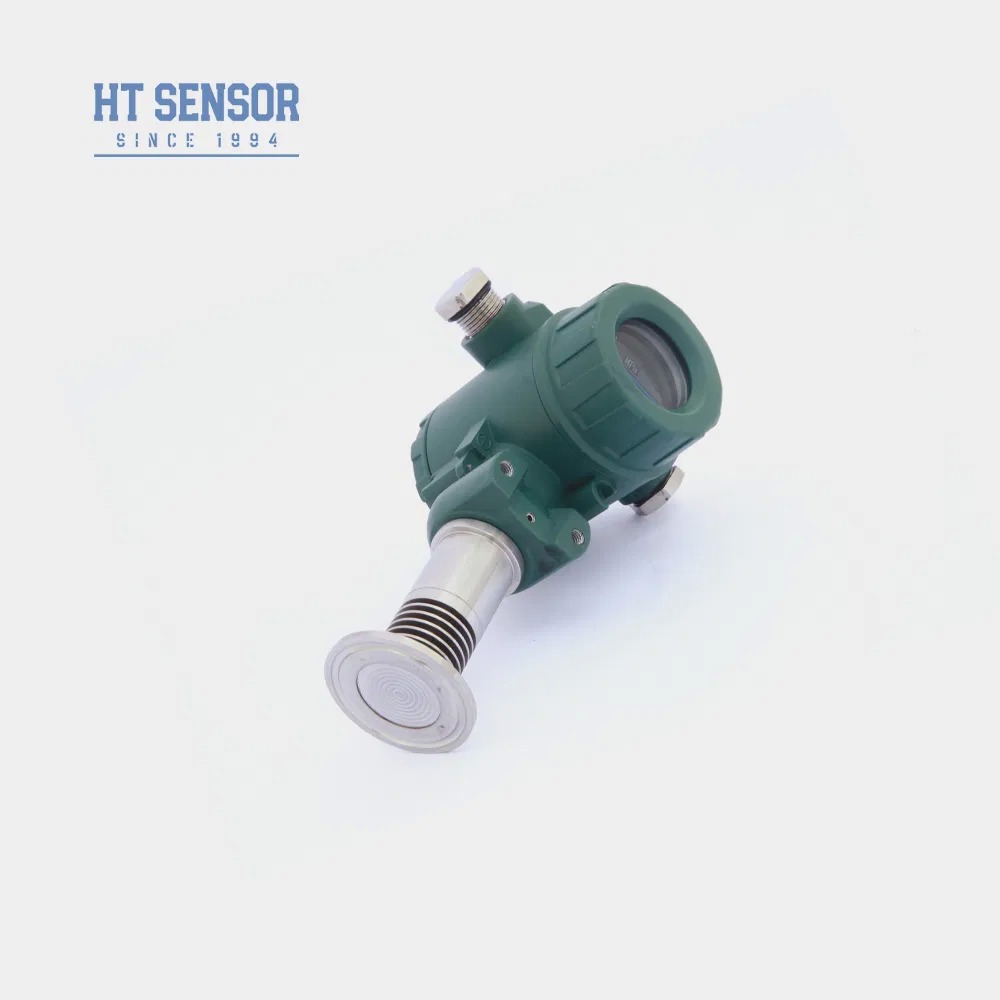

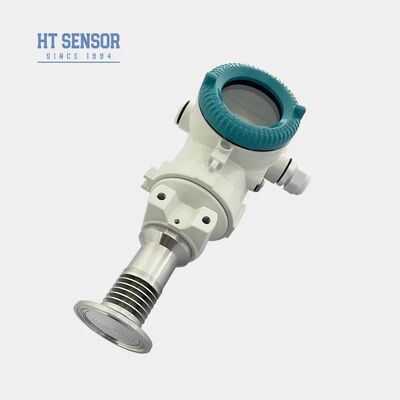

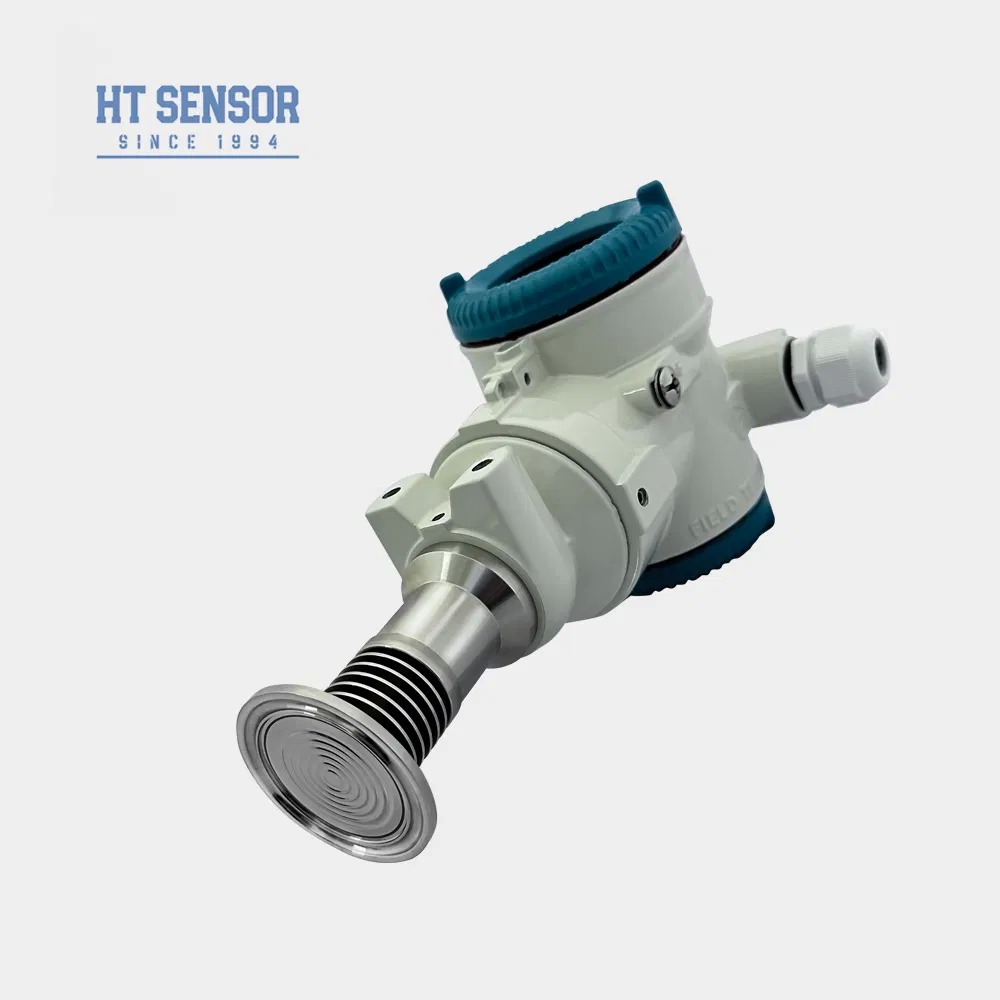

BP93420-IIIQT Pressure Transmitter

The BP93420-IIIQT pressure transmitter utilizes HT series silicon pressure-resistance isolation oil-filled core technology as the signal measuring element. It features a full metal flush diaphragm and direct welding with the process connection, ensuring precise connections between the process connection and measuring diaphragm. The entire product undergoes rigorous testing to ensure stable, reliable performance and effectively prevents pressure hole blockage caused by crystallizing media.

Product Features

Wide measurement range with various pressure interface options
Diverse output signal options
Adjustable zero and full-scale calibration
High accuracy with multiple sterile process connections

Applications

Measurement of non-corrosive gases and liquids with 316L compatibility
Medical, biopharmaceutical, and food hygiene industries for sterile processing
Paper and chemical industries, sewage level monitoring, and beverage can pressure measurements
Hydraulic and pneumatic control systems

Performance Parameters

Measurement Range	-100kPa…0kPa ~ 35kPa…3.5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	≤0.1%FS
Hysteresis	≤0.1%FS
Long-Term Stability	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.3kg

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Ordering Tips

Ensure the measured medium is compatible with the product's contact parts
Explosion-proof type products do not include digital display heads
For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
Install lightning protection devices on-site and ensure reliable grounding
For operating temperatures below -20ºC, select EPDM O-ring seal instead of Fluoro rubber
Default cable length is 1.5m with polyethylene material; specify alternative materials in order
Notify us of special requirements including strong vibration, impact force, or electromagnetic interference

Order Guide

BP93420XX | Pressure Transmitter

Code	Outline Construction
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
IE	Shock-resistant Aviation Pressure Transmitter
IIC/III	Industrial General/ Display Pressure Transmitter
IF	Moisture-proof Pressure Transmitter
IIE/IIIE	General/Display Pressure Transmitter
IN	Air Conditioning Dedicated Pressure Transmitter
IC	High-temperature Pressure Transmitter
IQ/IQT	Large Diaphragm /High-temperature Pressure Transmitter

Code	Power Supply
D1	24VDC
D2	5VDC
D3	Other

Code	Output Signal
S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC
S7	0.5~4.5VDC

Code	Pressure Connection
J1	M20×1.5
J2	G1/2
J3	G1/4
J4	7/16-20UNF
J5	Other

Code	Electrical Connection
B1	Hirschmann
B2	PG7 Plug
B3	Sealed Cable Output
B4	2088 Industrial Casing
B5	2088 Industrial Casing with Display
B6	Other

Code	Pressure Type
G	Gauge Pressure
A	Absolute Pressure
S	Sealed Reference Pressure

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts available for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.

Tag:

Certification:	CE, RoHS

Minimum Order Quantity:	1
Price:	55
