Detail Information

Model NO.:	BT93420-I	Output Signal:	Analog Type
Material:	Stainless Steel	Measuring Medium:	Temperature
IP Rating:	IP65	Measurement Range:	-55~1200ºC
Accuracy:	±0.5% (Typ.) ±1% (Max.)	Repeatability:	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis:	±0.03% (Typ.) ±0.05%FS (Max.)	Long-Term Stability:	±0.2%F.S/year (Max.)
Operating Temperature:	-30~80ºC	Storage Temperature:	-40~100ºC
Housing Material:	1Cr18Ni9Ti	Diaphragm Material:	316L Stainless Steel
Insulation Resistance:	>=100MΩ@100VDC	Maximum Temperature:	120% Of The Rated Temperature Range
Weight:	~0.5Kg
Highlight:	silicon pressure sensor with warranty , high accuracy silicon pressure sensor , industrial silicon pressure sensor

Product Description

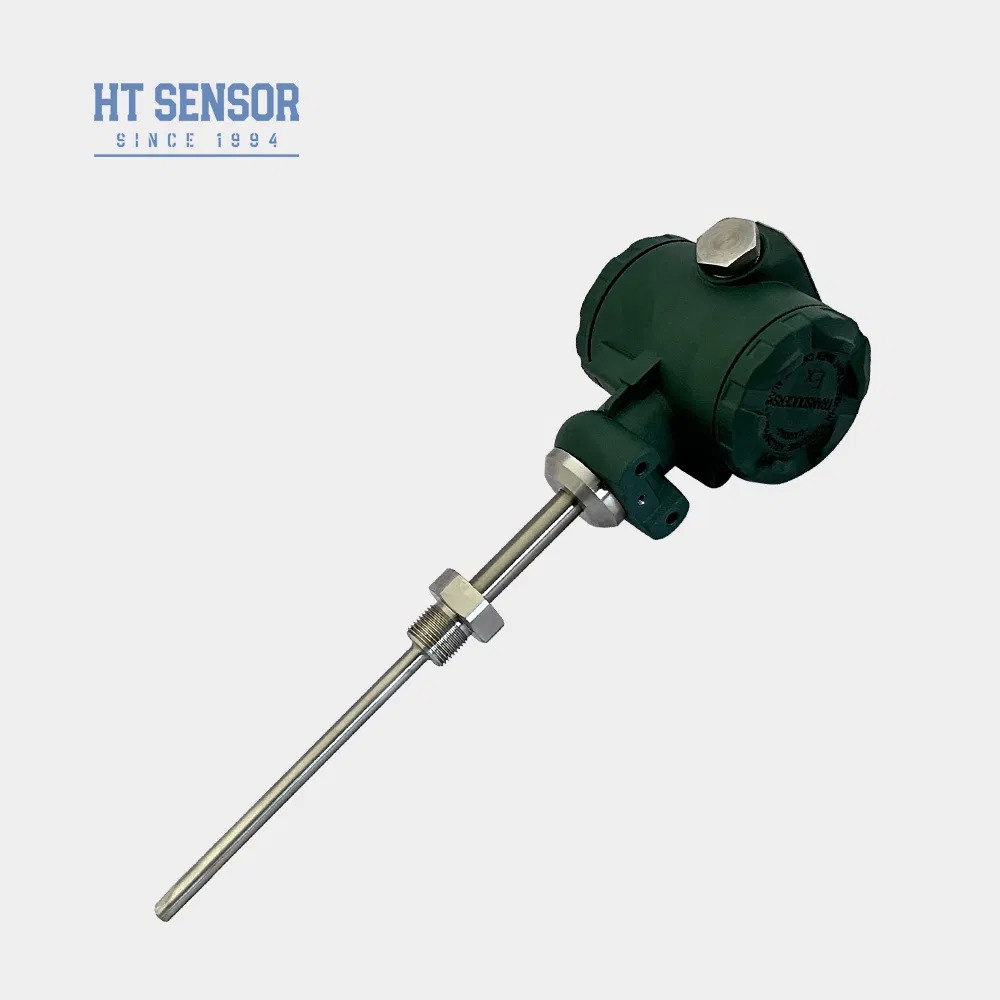

BT93420 Temperature Indicator Transmitter

The BT93420 temperature indicator transmitter utilizes a dedicated temperature module that performs linear correction on various thermocouples and resistance temperature detectors (RTDs), outputting standard analog signals. This device offers high accuracy, excellent stability, strong anti-interference capability, water resistance, explosion-proof design, high temperature resistance, and shock resistance. It integrates seamlessly with control systems for automated temperature control and monitoring.

Product Features

Full stainless steel structure with excellent corrosion resistance
Available with analog output or digital output options
Multiple display options: terminal box, 2088 LCD, or LED display

Applications

Temperature monitoring for generators, transformers, cables, and other critical equipment
Industrial automation systems
Temperature measurement of gases and liquids in pipelines across petroleum, chemical, power, and hydrology industries

Performance Parameters

Measurement Range	-55~1200ºC
Accuracy @ 25ºC	±0.5% (Typ.) ±1% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.2%F.S/year (Max.)
Operating Temperature	-30~80ºC
Storage Temperature	-40~100ºC
Housing Material	1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Maximum Temperature	120% of the rated temperature range
Protection Rating	IP65
Weight	~0.5Kg

Outline Construction

Terminal Box

Order Guide

BT93420 Temperature Indicator Transmitter

Outline Construction Codes

I	Blue Terminal Box

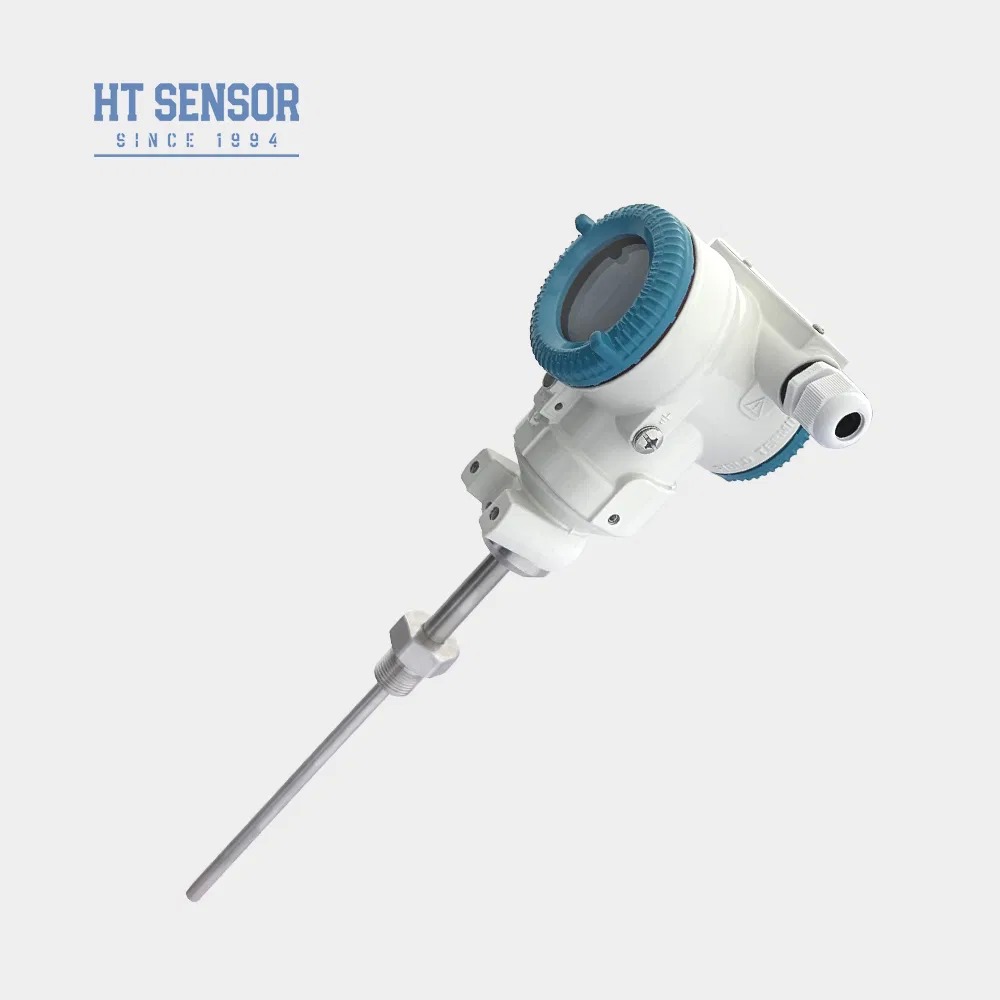

II	2088 housing
III	2088+LED
IIIA	3051+LED

Power Supply Codes

D1	24VDC
D2	Other

Output Signal Codes

S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC

Pressure Connection Codes

J1	M27X2 Male
J2	Other

Insertion Depth

L	Actual insertion depth

Company

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

What's the typical delivery period?

5~8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
