Detail Information

Model NO.:	BP156	Measuring Medium:	Liquid
Accuracy Grade:	0.2G	Pressure Range:	0kpa~10kpa...5MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Compensation Temperature:	-10℃~70℃
Operating Temperature:	-20ºC~80ºC	Storage Temperature:	-40ºC~120ºC
Diaphragm Material:	316L	Insulation Resistance:	100MΩ 100VDC
Explosion-proof Rating:	Ex Db IIC T6 Gb	O-Ring Seal:	Fluoro Rubber
Weight:	~0.05kg
Highlight:	316L stainless steel pressure sensor , 4-20mA oil gas pressure transmitter , HTsensor pressure transducer with warranty

Product Description

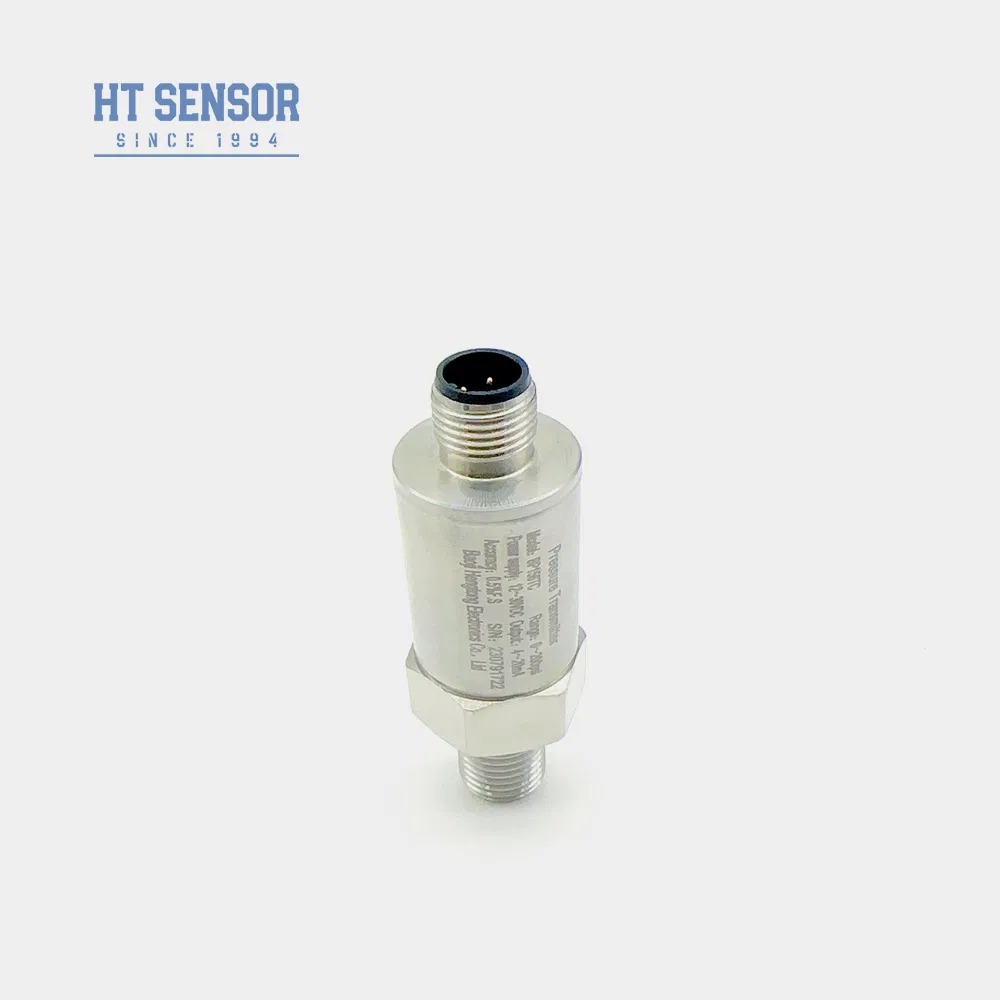

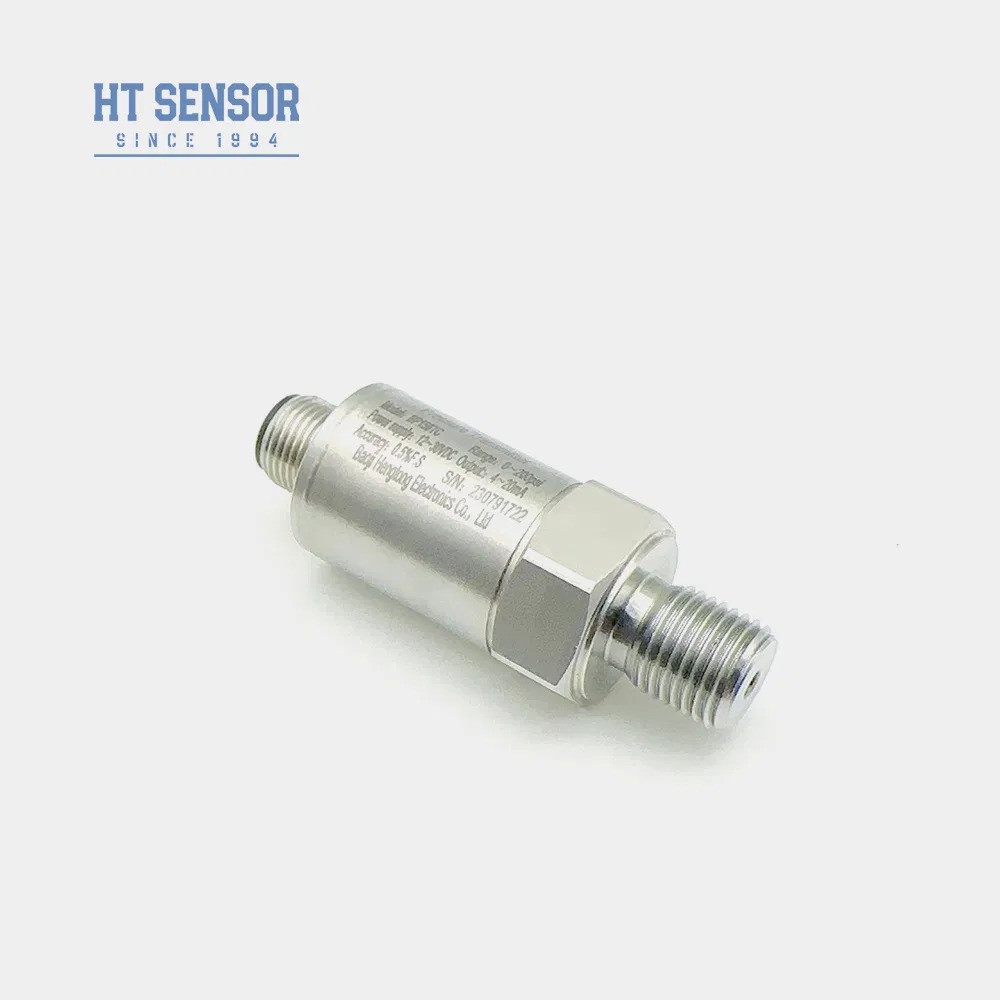

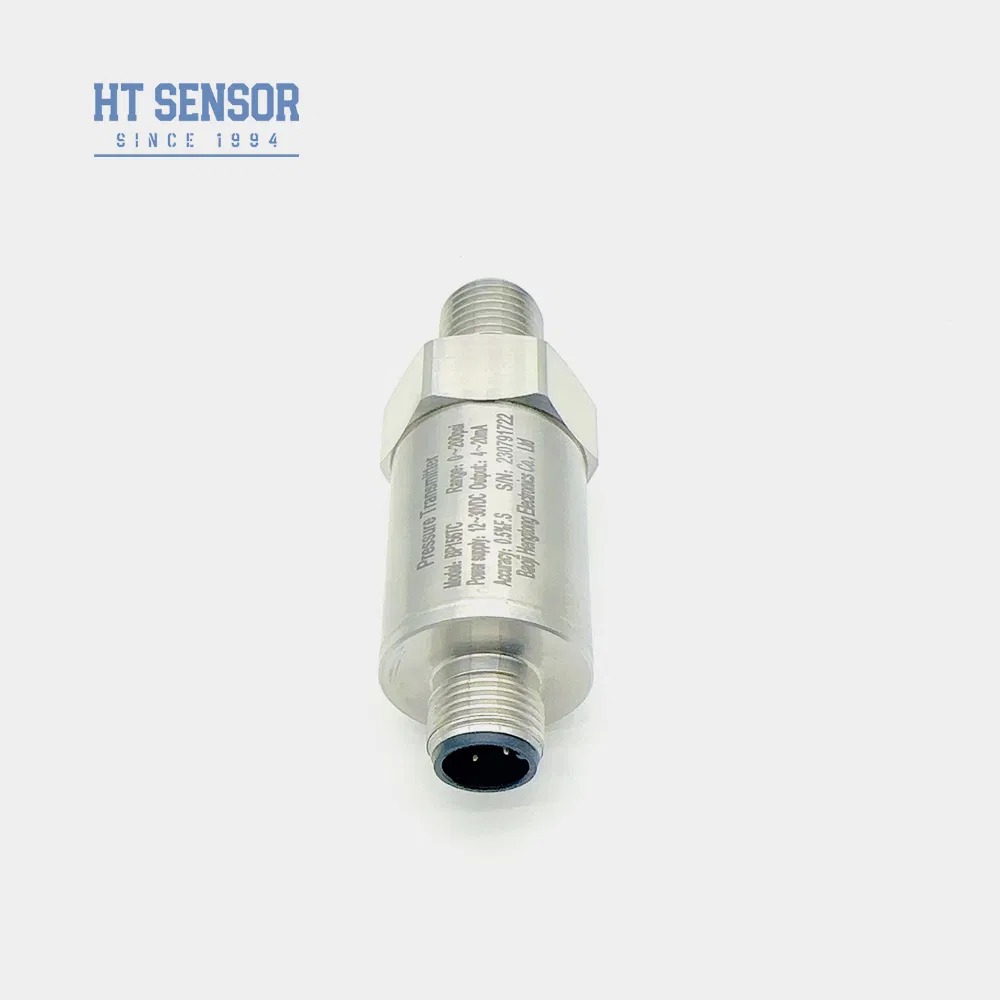

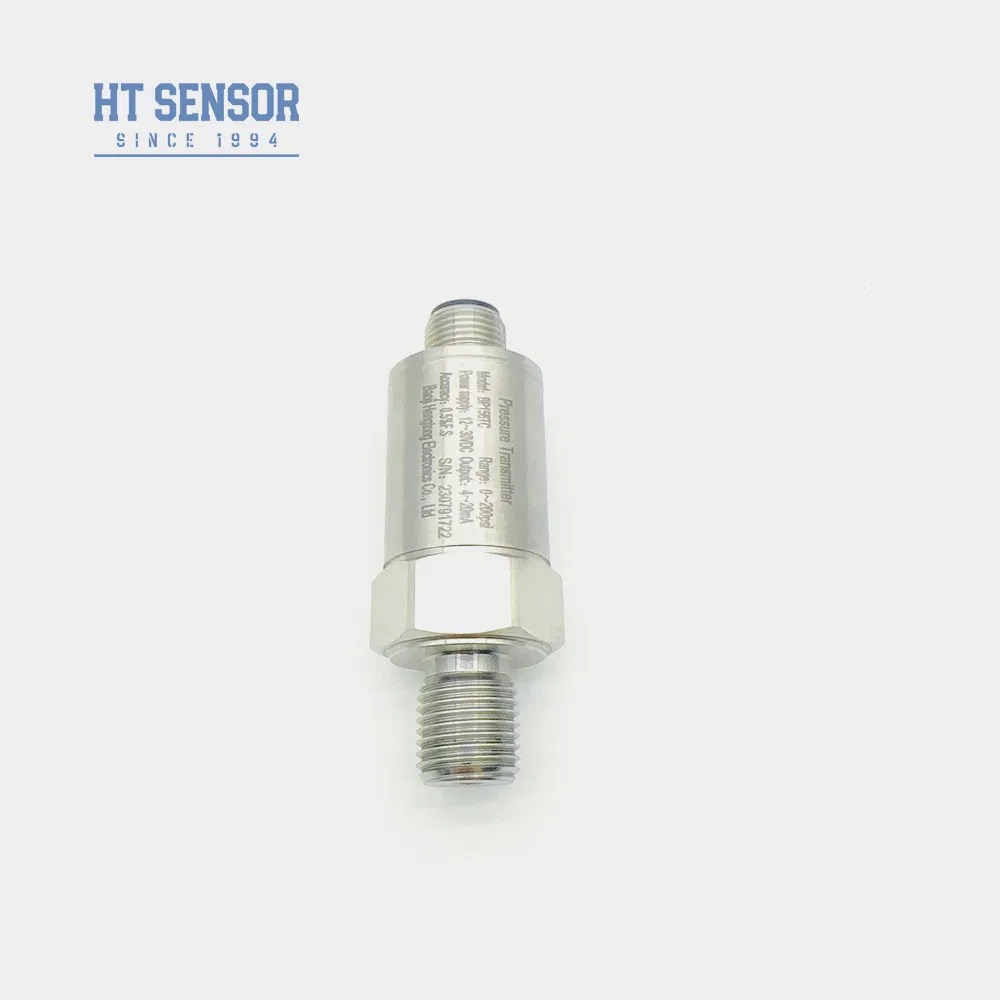

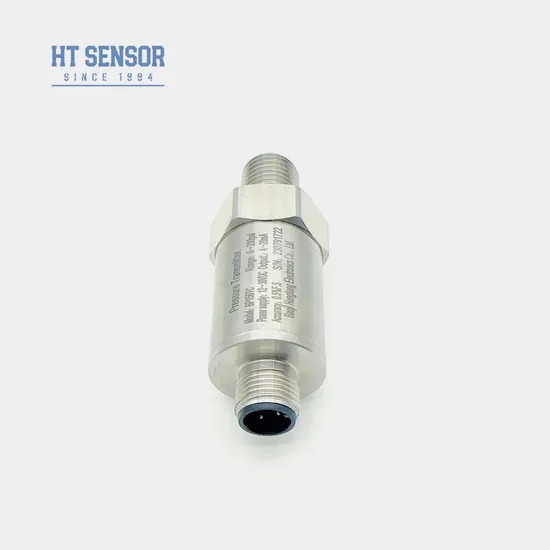

BP156 Pressure Transmitter

The BP156 pressure transmitter utilizes HT series silicon pressure-resistant isolation membrane oil-filled core technology as the signal measuring element. The signal processing circuit is housed within a durable stainless steel enclosure, converting sensor signals into standard output signals. Each unit undergoes rigorous testing and aging screening of components, semi-finished products, and finished products to ensure stable and reliable performance.

Key Features

Wide measuring range with stainless steel construction
Multiple pressure interface configurations available
IP65 protection rating for harsh environments
Zero and full-scale calibration capability
High precision measurement accuracy

Applications

Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
Marine and aviation industry applications
Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Performance Specifications

Measurement Range	0kPa ~ 10kPa…5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity	≤ 1.5 times rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10MPa, customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration Resistance	10g, 55Hz ~ 2kHz
Housing Material	304, 316L Stainless Steel
Diaphragm Material	316L Stainless Steel
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.05kg

Output Signal Configuration

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

Selection Examples

Ordering Guidelines

Ensure media compatibility with product contact materials
Explosion-proof models do not include digital display heads
Transmitters with LCD/LED display require minimum 20VDC power supply
Install lightning protection devices and ensure proper grounding for reliable operation
For temperatures below -20ºC, specify EPDM O-ring seal
Default cable length: 1.5m (polyethylene material)
Specify special requirements for vibration, impact, or electromagnetic interference

Ordering Guide

BP15X | Analog Pressure Transmitter

Code	Outline Construction
5	Packard plug
6	Sealed Direct Output Cable 1.5 meters
7	Mini Hirschmann Connector
8	Large Hirschmann Connector

Configuration Options

Measurement Range	0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa X: Indicates Actual Measuring Range
Power Supply	D1: 24VDC D2: 5VDC D3: Other
Output Signal	S1: 4~20mADC S2: 1~5VDC S3: 0~5VDC S4: 0~10mADC S5: 0~20mADC S6: 0~10VDC S7: 0.5~4.5VDC
Pressure Connection	J1: M20×1.5 J2: G1/2 J3: G1/4 J4: 7/16-20UNF J5: Others(¢50.4 Flange)
Electrical Connection	B1: Hirschmann B2: PG7 B3: Cable Sealed Outlet 1.5 meters B4: Other
Pressure Type	G: Gauge Pressure A: Absolute Pressure S: Sealed Reference Pressure

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production scheduling.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network assistance available.

Tag:

Certification:	CE, RoHS, ISO9001

Minimum Order Quantity:	1
Price:	20
