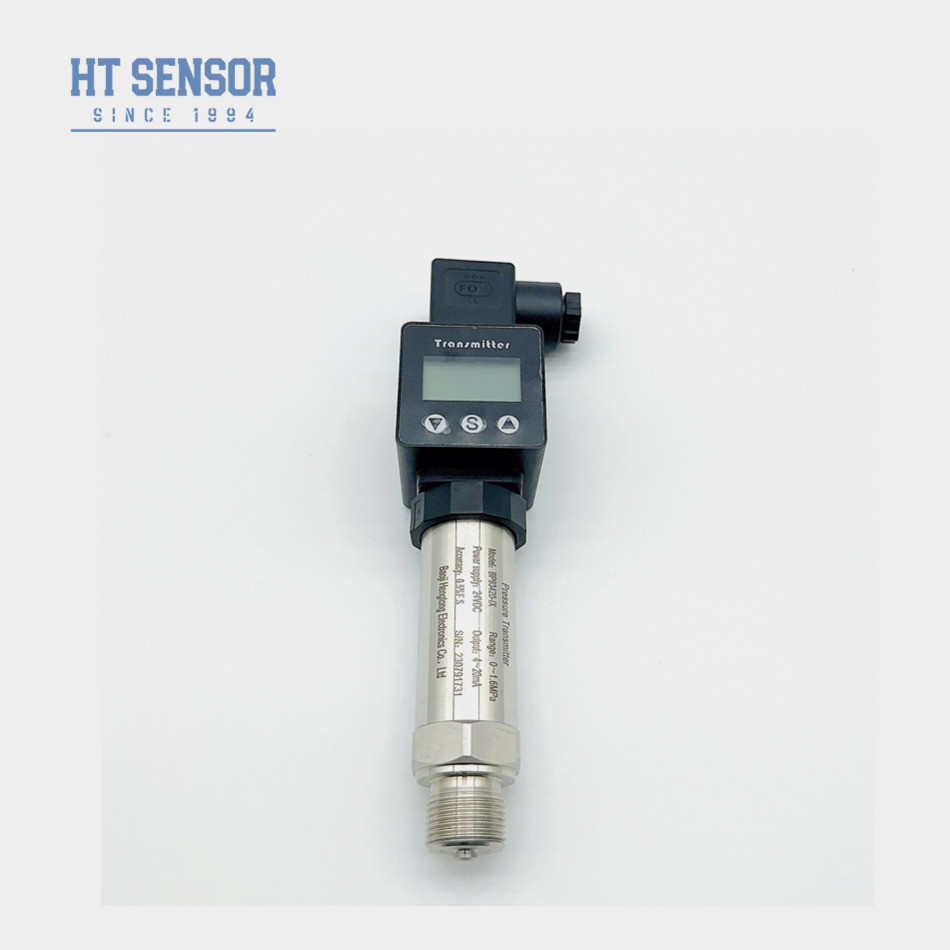

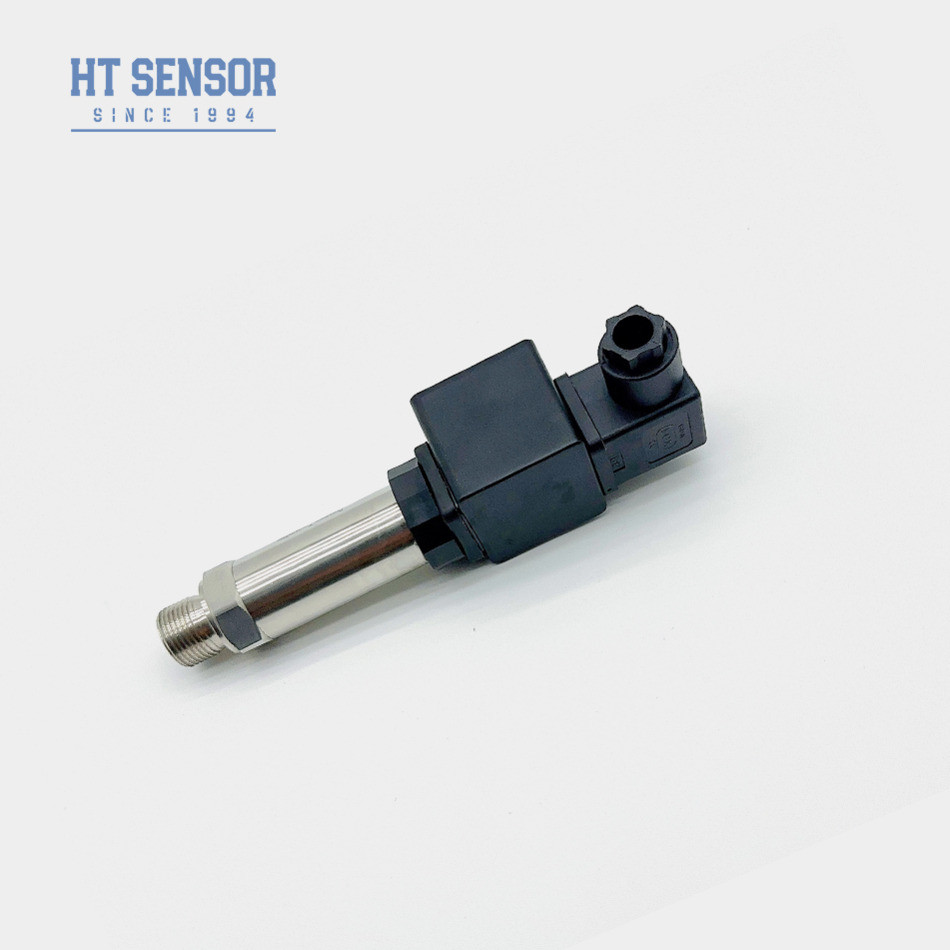

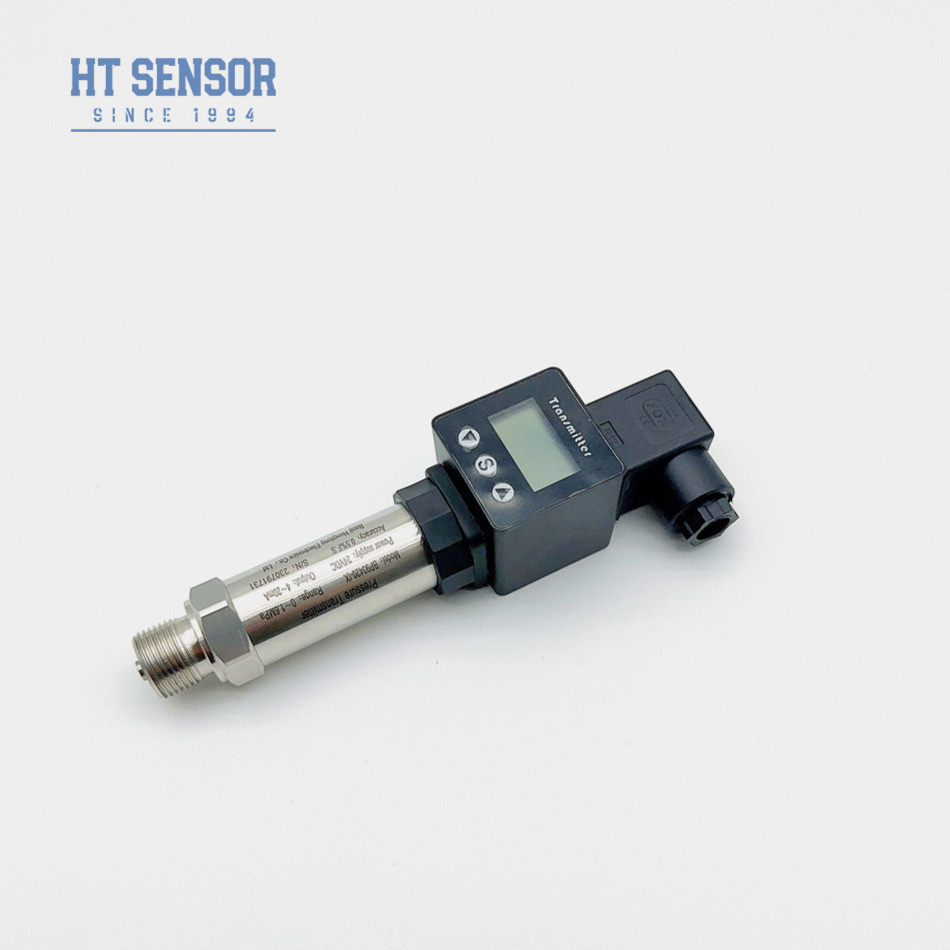

BP93420-IX Pressure Transmitter sensor
Introduction of industrial pressure sensor:
The BP93420IX pressure transmitter sensor utilizes the HT series silicon pressure sensor oil-filled core as its signal measuring element. It is a comprehensive product that combines pressure measurement, display, and output functions. This versatile pressure transmitter is widely recognized for its accuracy and reliability. With advanced technology, it ensures precise pressure measurement across a wide range of applications. The sensor's long-term stability makes it ideal for demanding industrial processes, effectively reducing maintenance and replacement expenses.
Product Features of industrial pressure sensor:
1. Wide measurement range,stainless steel structure.
2. Various pressure interface options.
3. High precision,display available.
Applications of industrial pressure sensor:
1. Suitable for scientific research.
2. petroleum, chemica.
3. Commonly employed in the marine and aviation sectors.
| Performance Parameters of pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability&Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips |
1.Please ensure that the medium to be measured is compatible with the contact parts of the BP93420-IX industrial pressure sensor transmitter when selecting the product for use.
2.Please note that explosion-proof type products do not include digital display heads when placing an order.
3.When ordering transmitters with an LCD or LED display head, it is essential to ensure that the power supply for the transmitter is not lower than 20VDC.
4.To ensure reliable operation of the BP93420-IX industrial pressure sensor transmitter, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5.The Fluoro rubber O-ring used in the BP93420-IX industrial pressure sensor transmitter has a rated working temperature range of -20ºC to 250ºC. For operating temperatures below -20ºC, it is necessary to choose an EPDM O-ring seal.
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~125 °C ?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: Hirschmann, Packard, Direct lead?
6. Order quantity: ?
