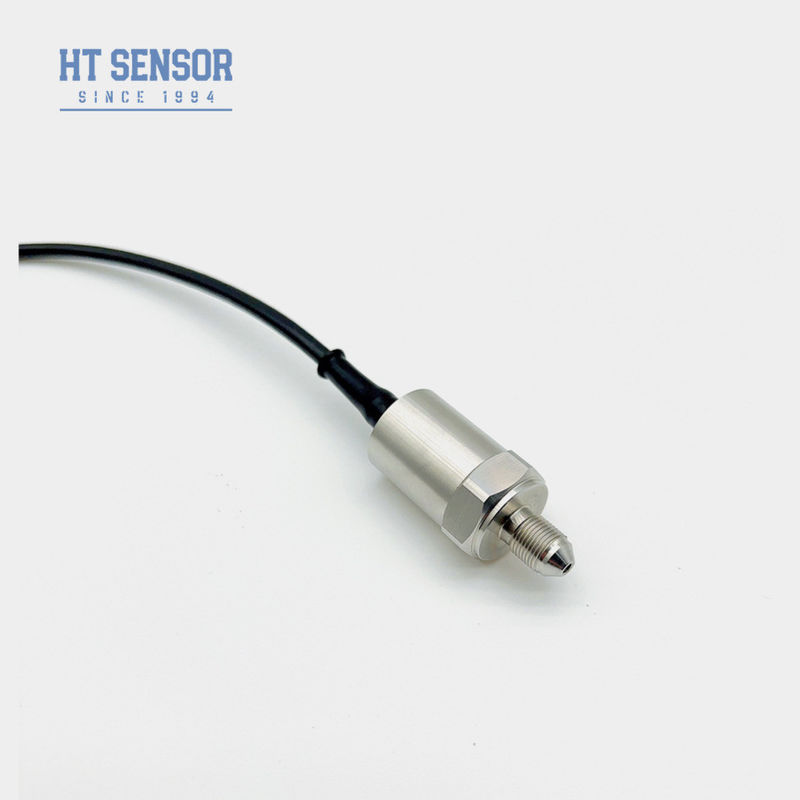

BP9325 Industrial Pressure Sensor MV Signal Silicon Piezoresistive Pressure Sensors

Basic Information
Place of Origin: Baoji,China
Brand Name: HT SENSOR
Certification: CE、RoHs、ISO9001
Model Number: BP93425
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000PCS/Month
Detail Information
Model No.: BP9325 Industrial Pressure Sensor Housing Material: Stainless Steel
Operating Temperature: -20℃ To +80℃ Power Supply: 10V/1.5mA
Pressure Range: 0-100MPa IP Rating: IP65
Signal Output: MV Connection Type: M12 Connector
Warranty: 2 Years Type: Diffused Silicon Piezoresistive
Highlight:

BP9325 Industrial Pressure Sensor

,

Industrial Pressure Sensor MV Signal 1.5mA

,

1.5mA Silicon Piezoresistive Pressure Sensors


Product Description

BP9325 MV Signal Silicon Piezoresistive Industrial Pressure Sensor

BP9325 Silicon Piezoresistive Pressure Sensor


Introduction of industrial pressure sensor:

BP9325 silicon piezoresistive pressure sensor is a highly stable diffused silicon element. The differential pressure of the measured medium is transmitted to the silicon diaphragm through a 316L isolation diaphragm and silicone oil. By utilizing the piezoresistive effect of the diffused silicon, it achieves the purpose of measuring the pressure of liquids and gases

Product Features of industrial pressure sensor:
1. Utilizes advanced technology and 316L stainless steel casing, with materials
2. such as full titanium and Hastelloy diaphragm
3. Employs thick-film circuits for temperature compensation and zero-point correction
4. High reliability, repeatability, and stability
Applications
of industrial pressure sensor:
1. Suitable for measuring the pressure of non-corrosive gases and liquids with 316L stainless steel
2. Applied in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
3. Used in the marine and aviation industries
4. Hydraulic and pneumatic control systems
5. Process control

Basic Condition of industrial pressure sensor:
1. Power Supply: ≤2mADC (typical value 1.5mADC)
2. Input Impedance: 2.5KΩ~6KΩ
3. Output Impedance:2.5KΩ~6KΩ
4. Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires

Performance Parameters:
Measurement Range Gauge(G) 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed (S) 3500KPa,7MPa,10MPa,20MPa,40MPa,60MPa,100MPa
  Typ Max Unit
Linearity ±0.15 ±0.3 %F.S
Repeatability 0.05 0.1 %F.S
Hysteresis 0.05 0.1 %F.S
Zero Offset Output 0±1 0±2 mV
Full Scale Output ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Zero Offset Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature -20~80 ºC
Storage Temperature -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 % F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
O-ring Seal Nitrile rubber or Fluoro rubber
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
Filling Medium Silicon Oil
Weight ~0.1kg
The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C

Hengtong Compact Silicon Pressure Transmitter Sensor For Air Measurement BP9325
Hengtong Compact Silicon Pressure Transmitter Sensor For Air Measurement BP9325


To recommend you the most suitable sensor, please tell us below information.

1. Working temperature: -40~125 °C ?

2. Test range?

3. Output: 4-20mA , RS485 or others?

4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?

5. Electrical connection: Hirschmann, Packard, Direct lead?

6. Order quantity: ?
