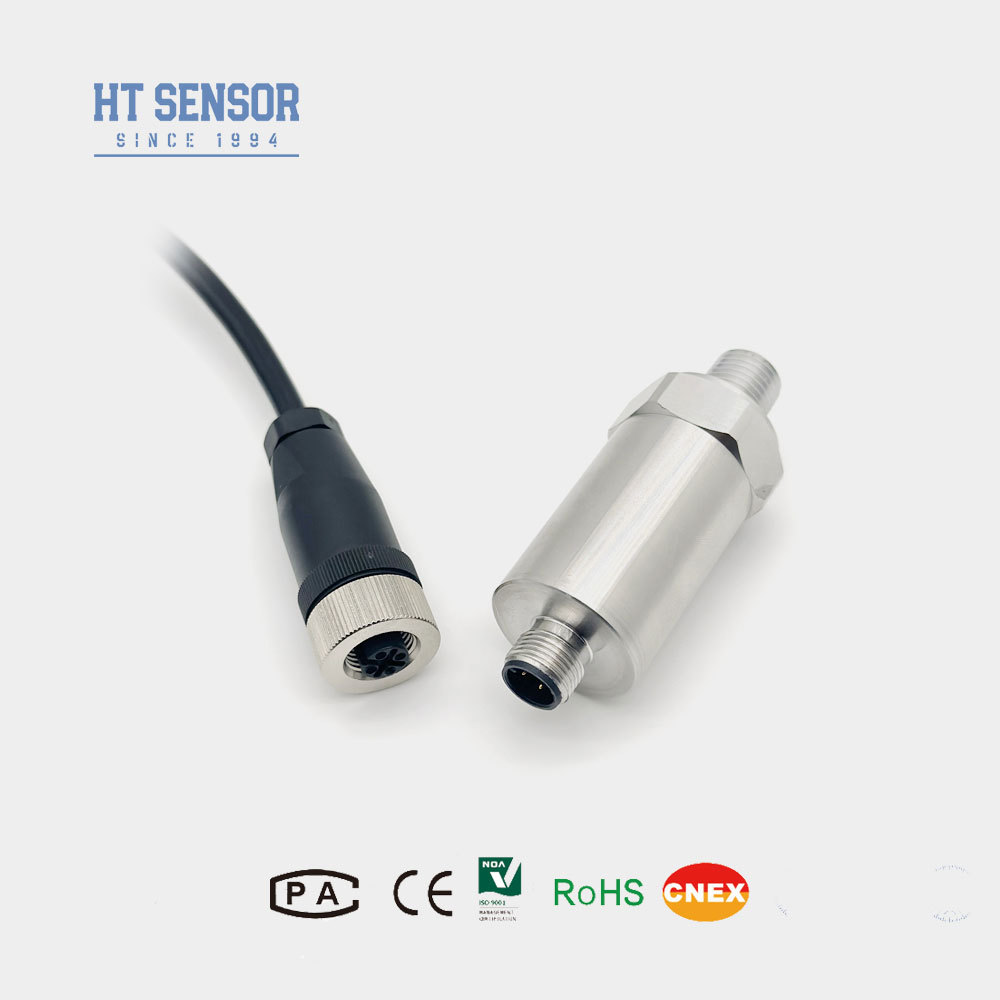

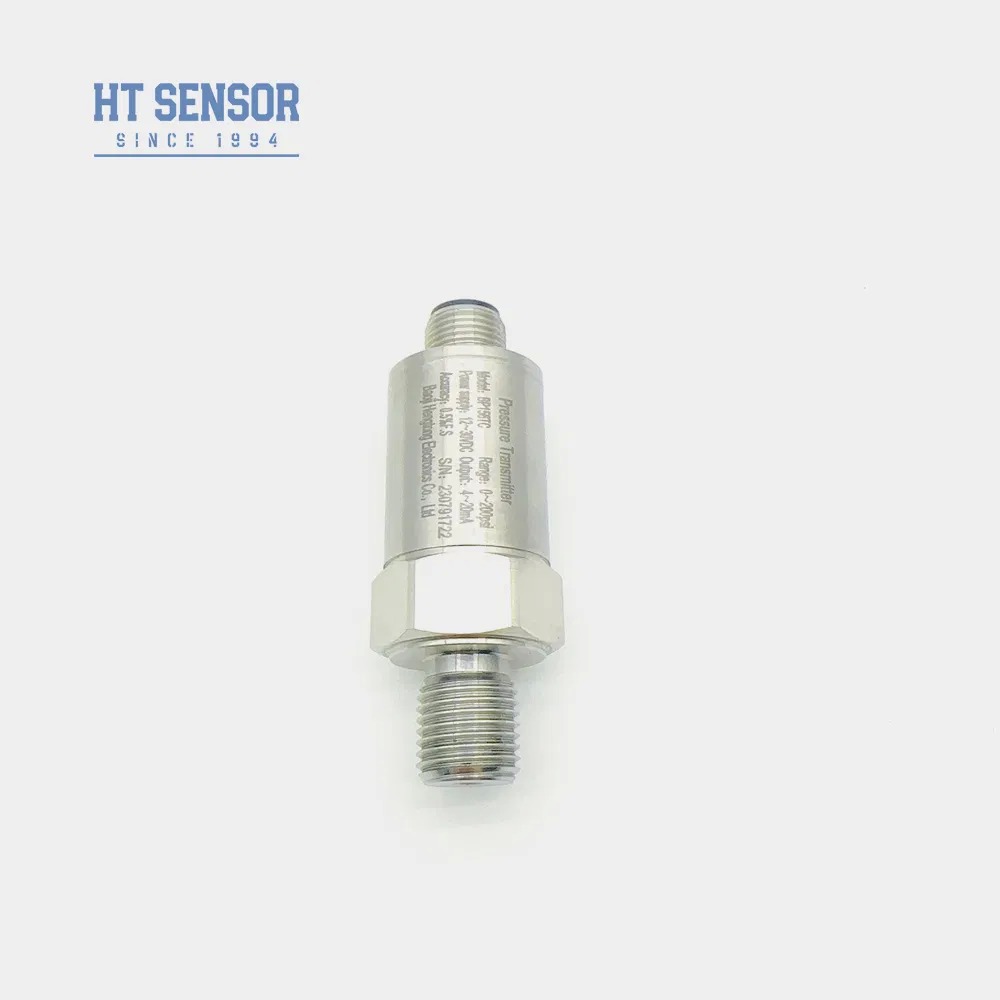

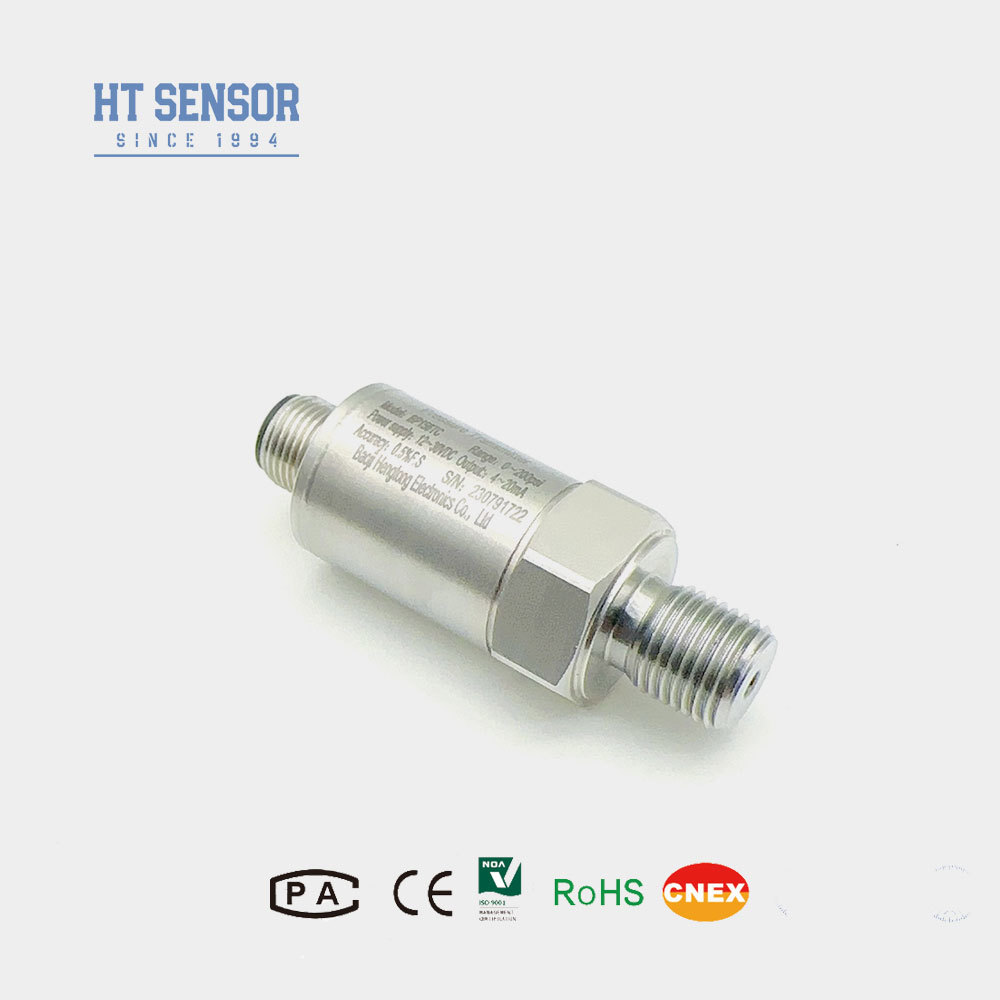

HTsensor 316L 4-20mA Pressure Transmitter Transducer Oil Gas Pressure Sensor Industrial Pressure Sensor
Product Details
| Model NO.: | BP156-M | Measuring Medium: | Liquid Air |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa...40MPa |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Compensation Temperature: | -10℃~70℃ |
| Operating Temperature: | -20ºC~80ºC | Diaphragm Material: | 316L |
| Insulation Resistance: | 100MΩ 100VDC | Explosion-proof Rating: | Ex Ia IIC T6 Ga |
| O-Ring Seal: | Fluoro Rubber | Weight: | ~0.25kg |
| Highlight |
316L stainless steel pressure sensor,4-20mA oil gas pressure transmitter,HTsensor pressure transducer with warranty |
||
Product Description
HTsensor 316L 4-20mA Pressure Transmitter Transducer Oil Gas Pressure Sensor Industrial Pressure Sensor
- Wide measuring range with stainless steel construction
- Multiple pressure interface configurations available
- IP65 protection rating for harsh environments
- Zero and full-scale calibration capability
- High precision measurement accuracy
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 10kPa…40MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration Resistance | 10g, 55Hz ~ 2kHz |
| Housing Material | 304, 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V | 5VDC |
- Ensure media compatibility with product contact materials
- Explosion-proof models do not include digital display heads
- Transmitters with LCD/LED display require minimum 20VDC power supply
- Install lightning protection devices and ensure proper grounding for reliable operation
- For temperatures below -20ºC, specify EPDM O-ring seal
- Default cable length: 1.5m (polyethylene material)
- Specify special requirements for vibration, impact, or electromagnetic interference
| Code | Outline Construction |
|---|---|
| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
| Measurement Range | 0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa X: Indicates Actual Measuring Range |
|---|---|
| Power Supply | D1: 24VDC D2: 5VDC D3: Other |
| Output Signal | S1: 4~20mADC S2: 1~5VDC S3: 0~5VDC S4: 0~10mADC S5: 0~20mADC S6: 0~10VDC S7: 0.5~4.5VDC |
| Pressure Connection | J1: M20×1.5 J2: G1/2 J3: G1/4 J4: 7/16-20UNF J5: Others(¢50.4 Flange) |
| Electrical Connection | B1: Hirschmann B2: PG7 B3: Cable Sealed Outlet 1.5 meters B4: Other |
| Pressure Type | G: Gauge Pressure A: Absolute Pressure S: Sealed Reference Pressure |
