Model NO.:	BP93420-IQ	Measuring Medium:	Air And Liquid
Accuracy Grade:	0.5%	Pressure Range:	-100kpa...0kpa ~10kpa...100MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	304s.S	Weight:	~0.3kg
Measurement Range:	0~35Kpa…~35MPa	Overload:	≤ 1.5 Times Of The Rated Range
Accuracy @ 25ºC:	±0.25% (Typical) ±0.5% (Maximum)	Repeatability:	0.1%FS
Long-Term Stability:	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)	Operating Temperature:	-20ºC~80ºC
Diaphragm Material:	316L
Highlight:	1.5mm clamp pressure transducer , large diaphragm level transmitter , silicon pressure sensor with warranty

Product Description

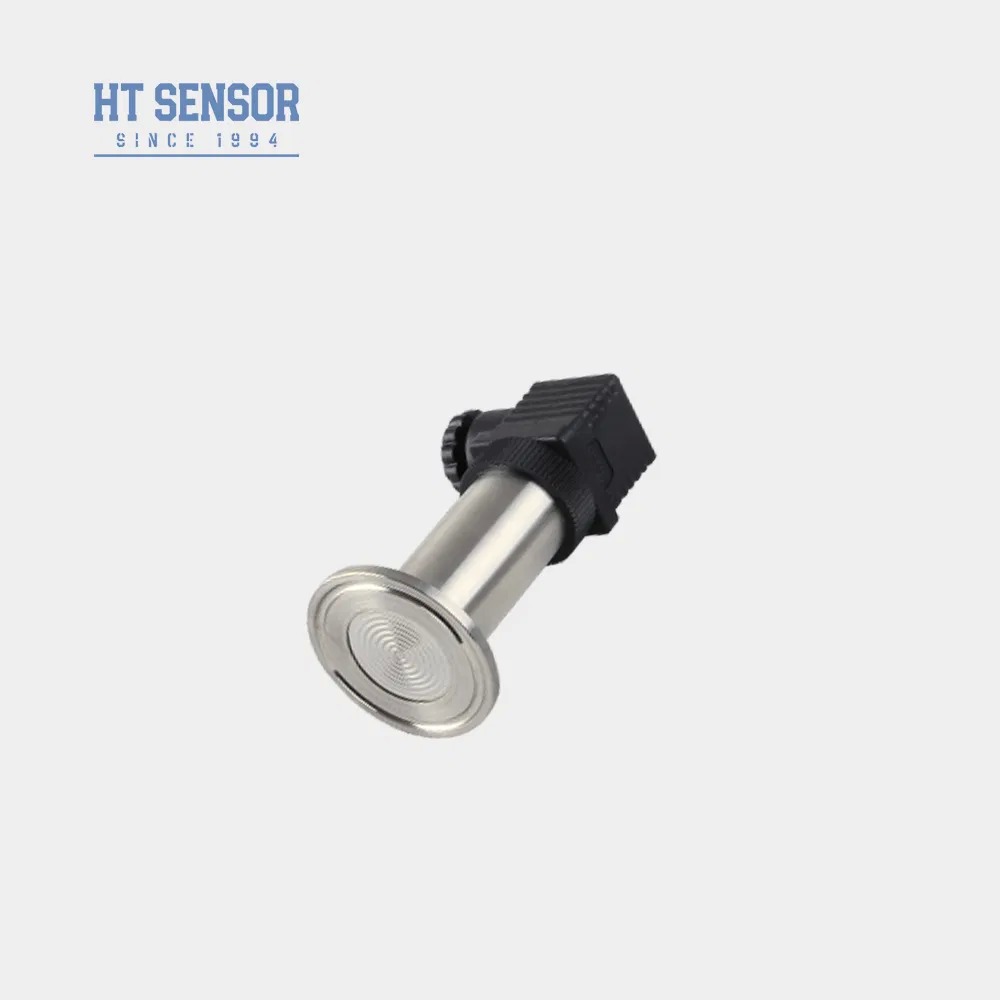

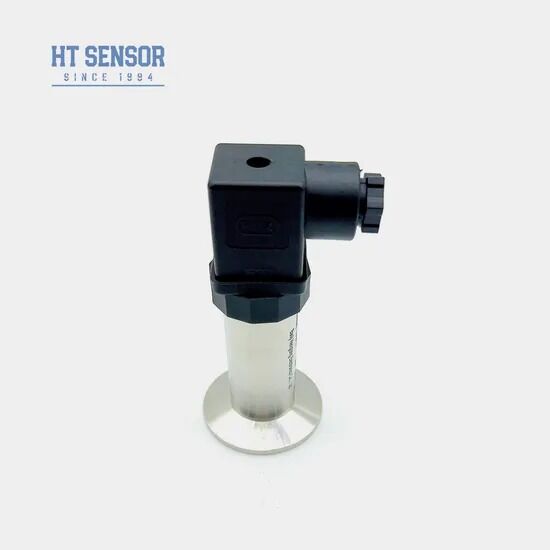

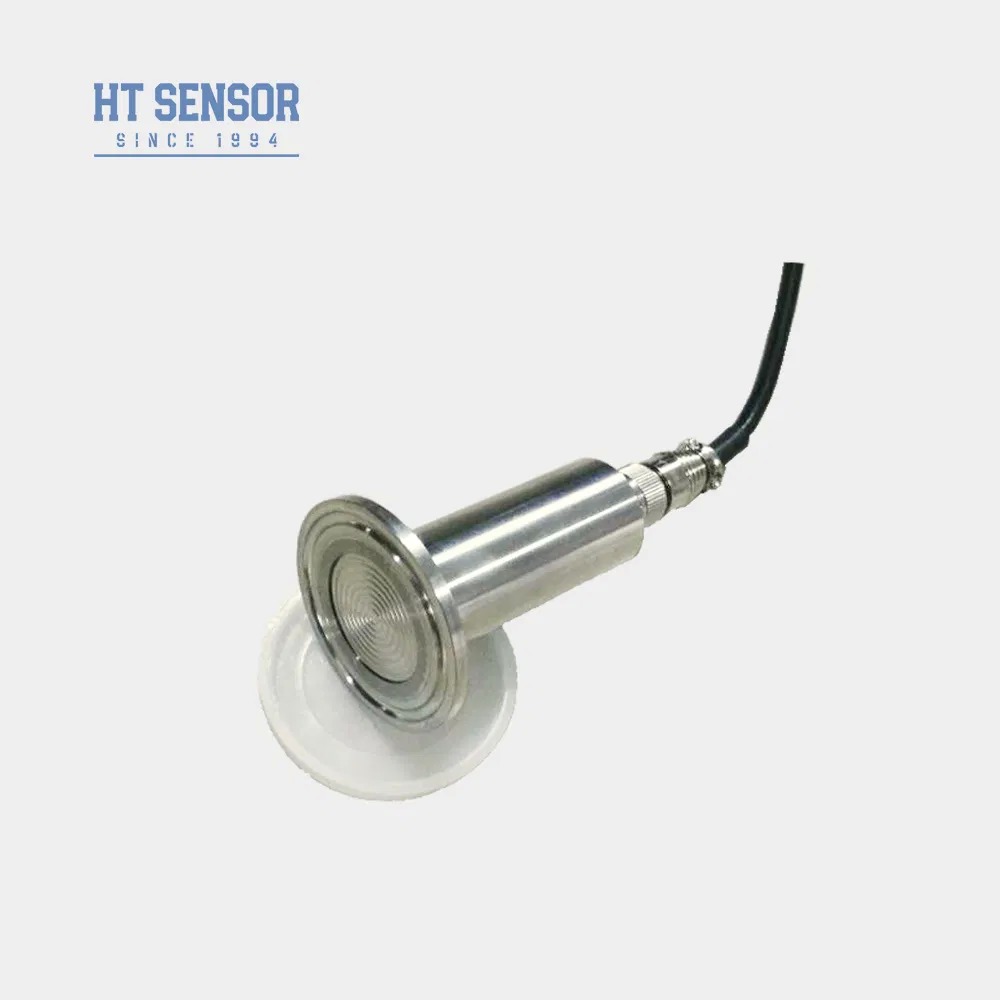

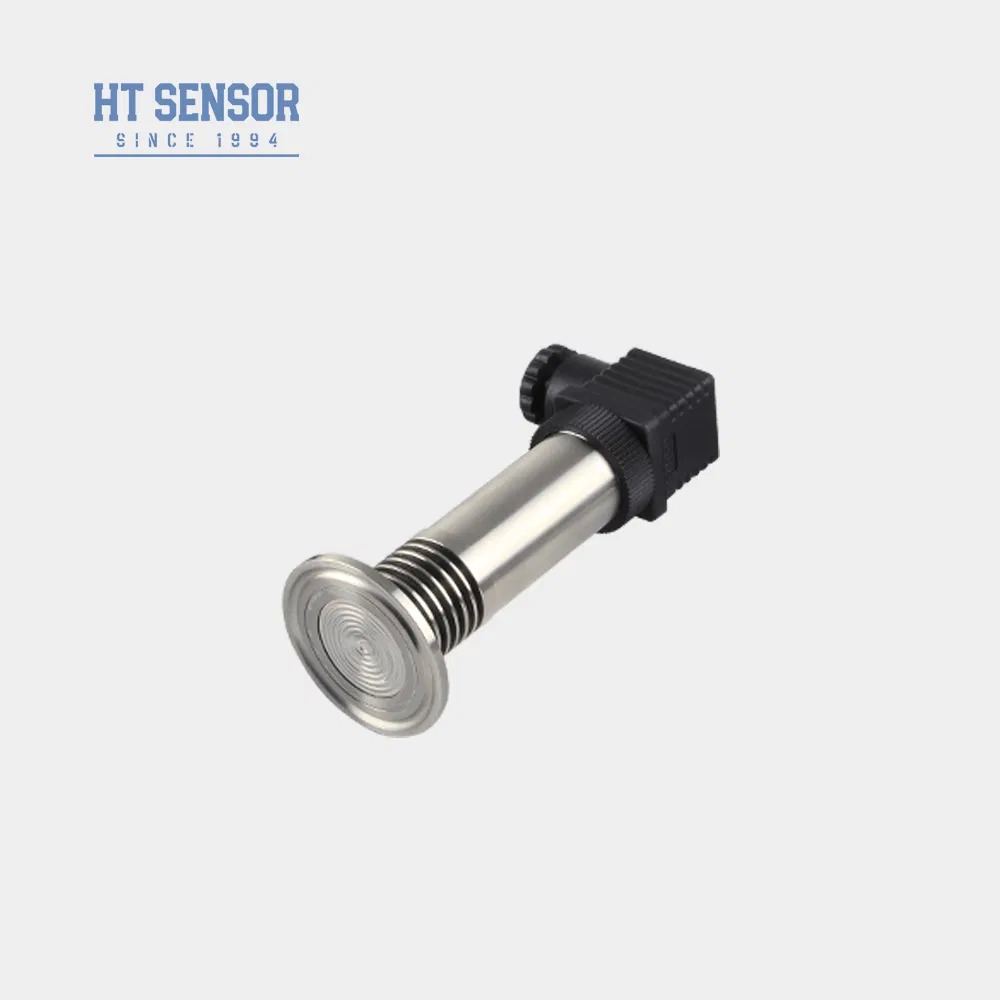

BP93420-IQ Pressure Transmitter with 1.5mm Clamp and Large Diaphragm Sensor

The BP93420-IQ pressure transmitter features a signal processing circuit housed in stainless steel, converting sensor signals into standard output signals. Designed for applications requiring high sanitary conditions, this transmitter ensures reliable and accurate pressure measurements in hygienic environments.

Product Features

Multiple pressure interface options
Specifically designed for hygienic applications to prevent medium scaling
High accuracy with fully stainless steel construction
Easy to clean design

Applications

Measurement of non-corrosive gases and liquids with 316L compatibility
Environmental protection and chemical industries
Marine and aviation industries
Medical, biopharmaceutical, and food hygiene industries

Performance Parameters

Measurement Range	0~35Kpa…~35MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	0.1%FS
Hysteresis	0.1%FS
Long-Term Stability	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	-20-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.3kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Selection Examples

Order Guide

BP93420XX | Pressure Transmitter

Code	Outline Construction
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
IE	Shock-resistant Aviation Pressure Transmitter
IIC/III	Industrial General/ Display Pressure Transmitter
IF	Moisture-proof Pressure Transmitter
IIE/IIIE	General/Display Pressure Transmitter
IN	Air Conditioning Dedicated Pressure Transmitter
IC	High-temperature Pressure Transmitter
IQ/IQT	Large Diaphragm /High-temperature Pressure Transmitter

Measurement Range

-100kPa…0kPa ~ 35kPa…3.5MPa
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range

Code	Power Supply
D1	24VDC
D2	5VDC
D3	Other

Code	Output Signal
S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC
S7	0.5~4.5VDC

Code	Electrical Connection
B1	Hirschmann
B2	PG7 Plug
B3	Sealed Cable Output
B4	2088 Industrial Casing
B5	2088 Industrial Casing with Display
B6	Other

Code	Pressure Type
G	Gauge Pressure
A	Absolute Pressure
S	Sealed Reference Pressure

Ordering Information

Ensure the measured medium is compatible with the product's contact parts
Explosion-proof type products do not include digital display heads
For transmitters with LCD or LED display, power supply should not be lower than 20VDC
Install lightning protection devices and ensure reliable grounding
Fluoro rubber O-ring rated for -20ºC to 250ºC. For temperatures below -20ºC, select EPDM O-ring seal
Default cable length is 1.5m (three material options available)
Specify special requirements (vibration, impact, electromagnetic interference) in your order

Certification:	CE, RoHS

Minimum Order Quantity:	1
Price:	45
