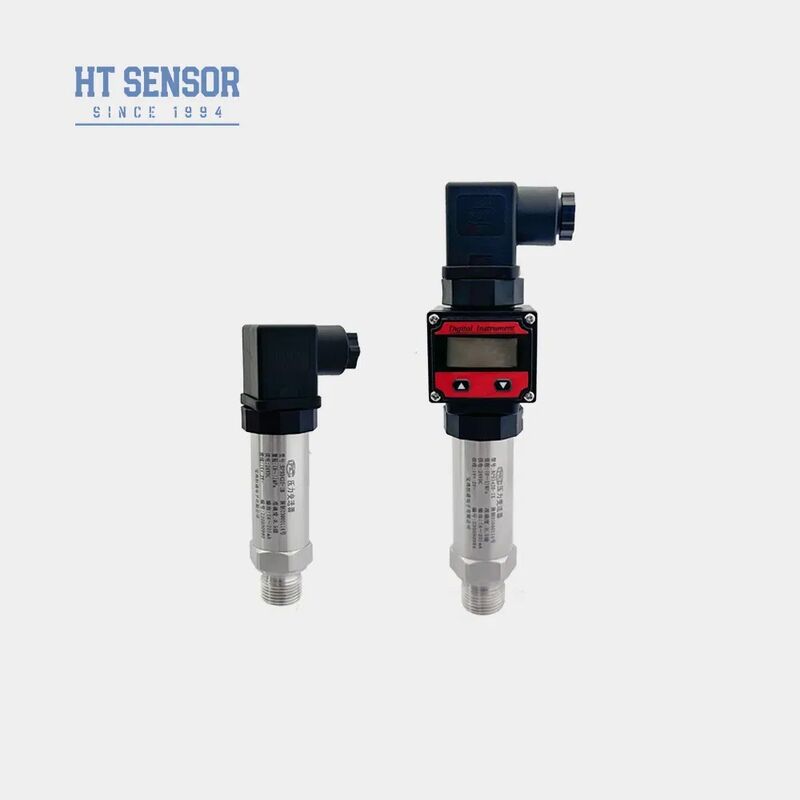

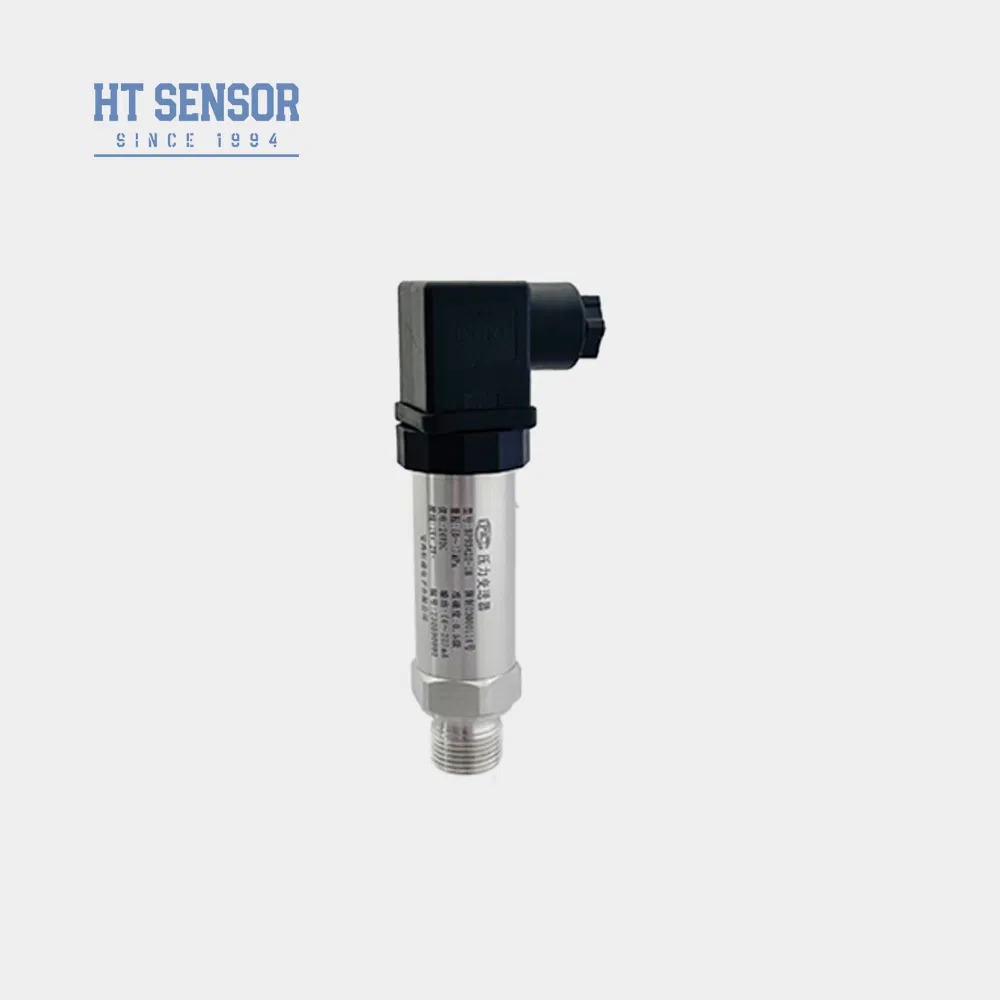

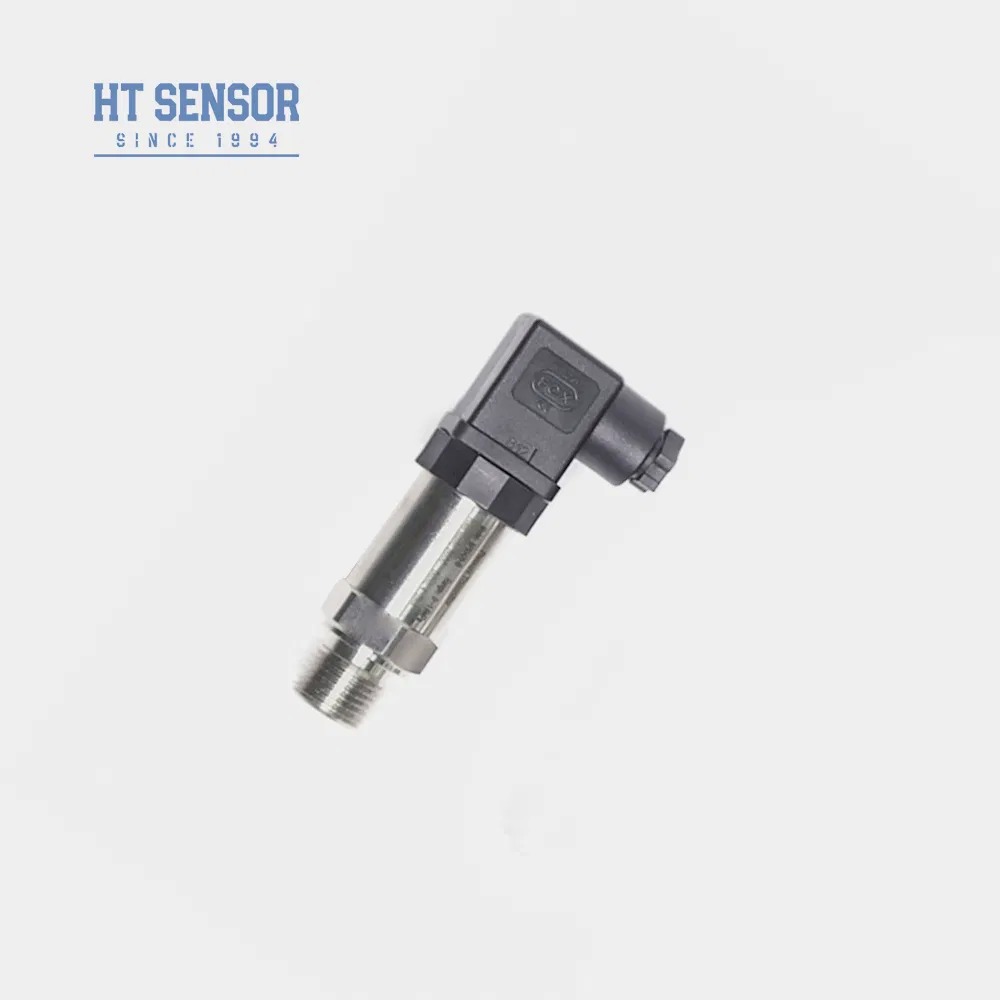

Stainless Steel DIN Connect Pressure Transmitter with 0.5-4.5VDC Output and IP65 Protection for Water Level Measurement Water Level Transmitter
Product Details
| Model NO.: | BP93420-IB | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa...100MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316LS.S. Or 304S.S. | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Output Signal: | 0.5-4.5VDC | Operating Temperature: | -20ºC~80ºC |
| Storage Temperature: | -40ºC~120ºC | Diaphragm Material: | 316L |
| Insulation Resistance: | 100MΩ 100VDC | Weight: | ~0.30kg |
| Highlight |
316L Stainless Steel Pressure Transmitter,0.5-4.5VDC Water Level Transmitter,IP65 Pressure Sensor |
||
Product Description
- Wide measuring range with stainless steel construction and diverse pressure interface options
- Compact and lightweight design for easy integration
- Adjustable zero and full-scale calibration
- High precision performance with all-stainless steel structure
- Field-adjustable zero and span settings
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V | 5VDC |
- Ensure the measured medium is compatible with the product's contact materials
- Explosion-proof type products do not include digital display heads
- Transmitters with LCD or LED display require power supply ≥20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- For operating temperatures below -20ºC, specify EPDM O-ring seal instead of standard Fluoro rubber

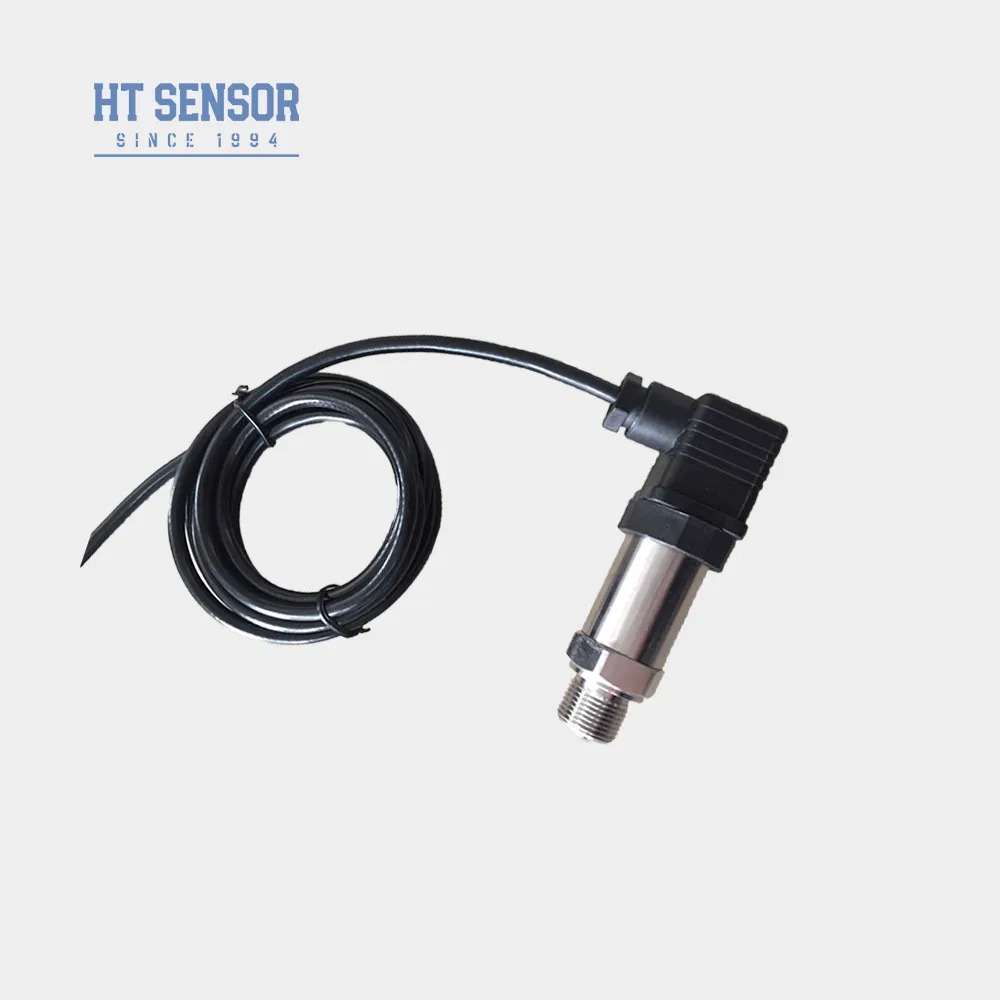

- Default cable length is 1.5m (polyethylene material); specify alternative materials if required
- Notify us of special requirements: strong vibration, impact force, electromagnetic or RF interference

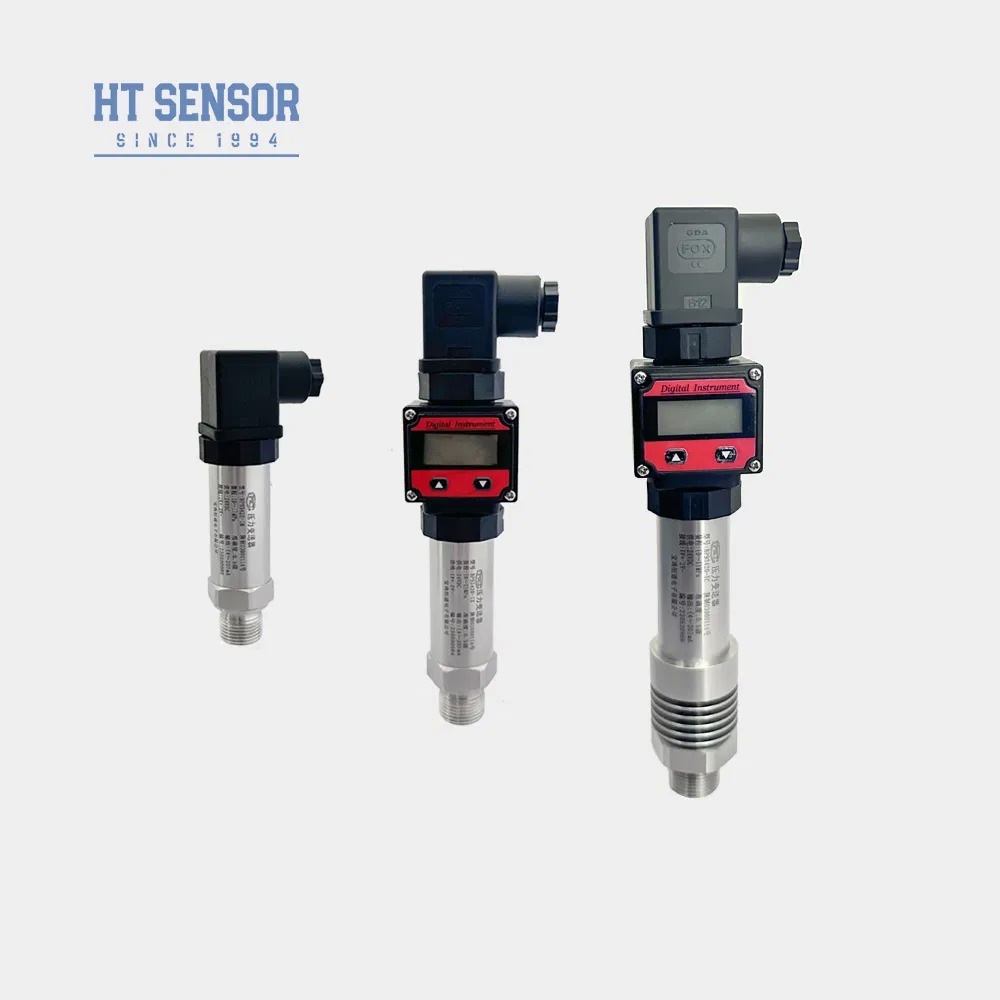

| BP93420XX | Pressure Transmitter |
|---|---|
| Code | Outline Construction |
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/ Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter |
- What are the features of your pressure sensor transmitters?
- High precision, durability, and excellent performance. Customization available.
- Can I customize special specifications?
- Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
- What is your production capacity?
- Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale order requirements. Contact our sales team in advance for production and delivery scheduling.
- What's the typical delivery period?
- 5-8 working days for standard models. Customized products may vary.
- How are the products priced? Any discounts?
- Competitive pricing with discounts available for bulk orders and long-term partners.
- What is the warranty of your products? And after-sales service?
- 24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.
Product Highlights
High-precision DIN pressure transmitter with 0.5% accuracy, IP65 rating, and 316L stainless steel construction. Features wide 0-100MPa range, multiple output signals, and custom options for industrial liquid measurement applications.
