HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing

HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing

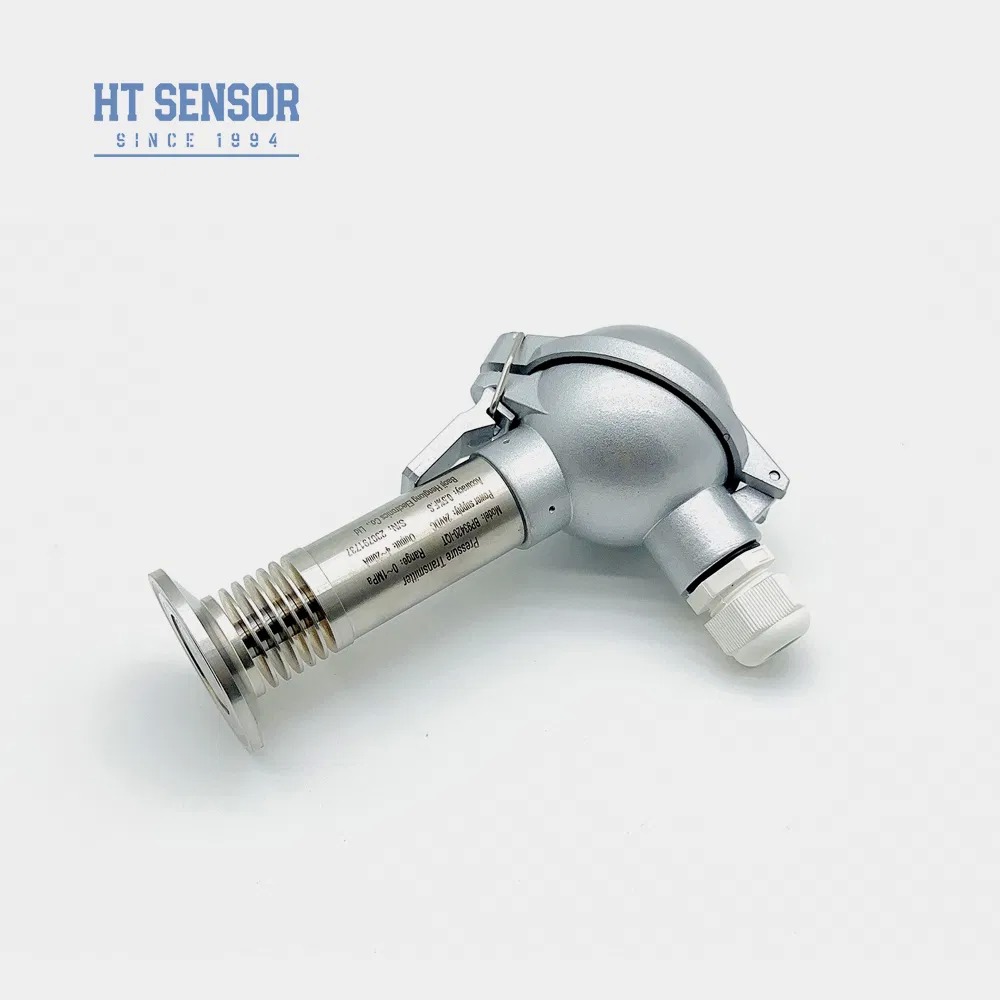

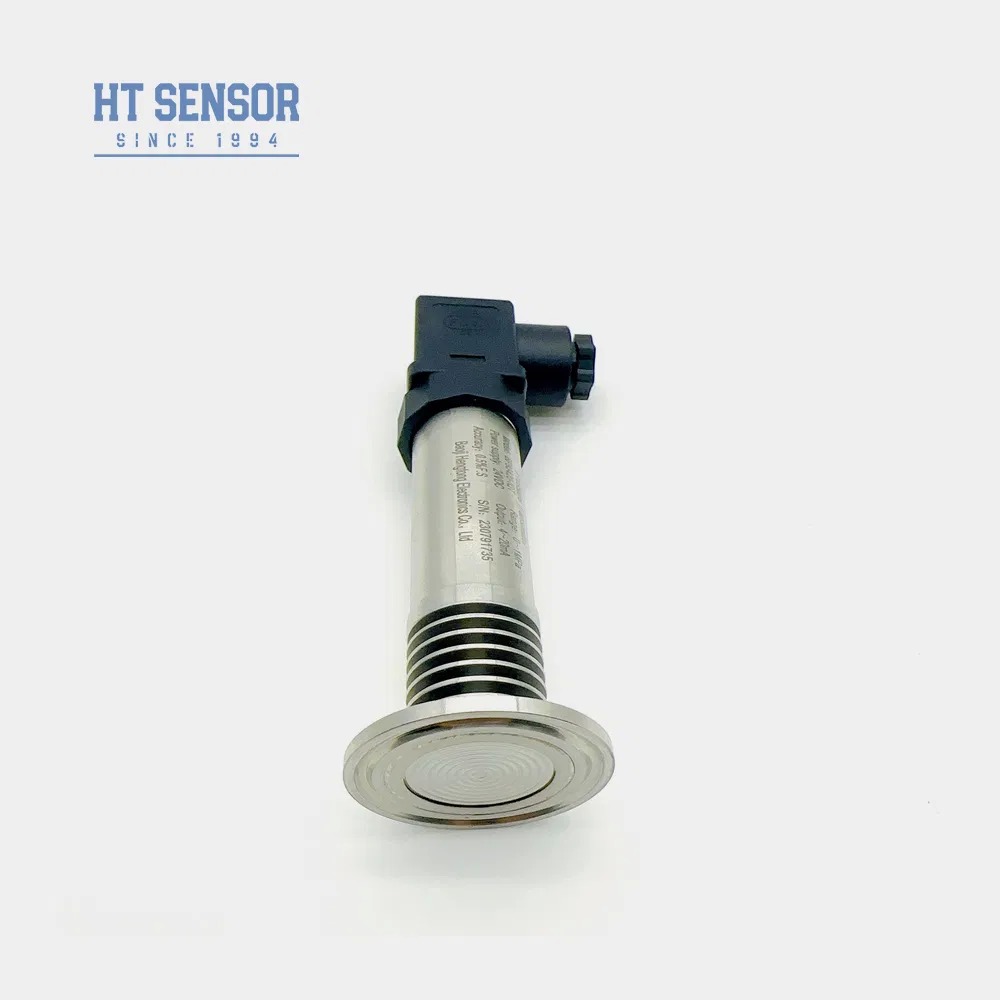

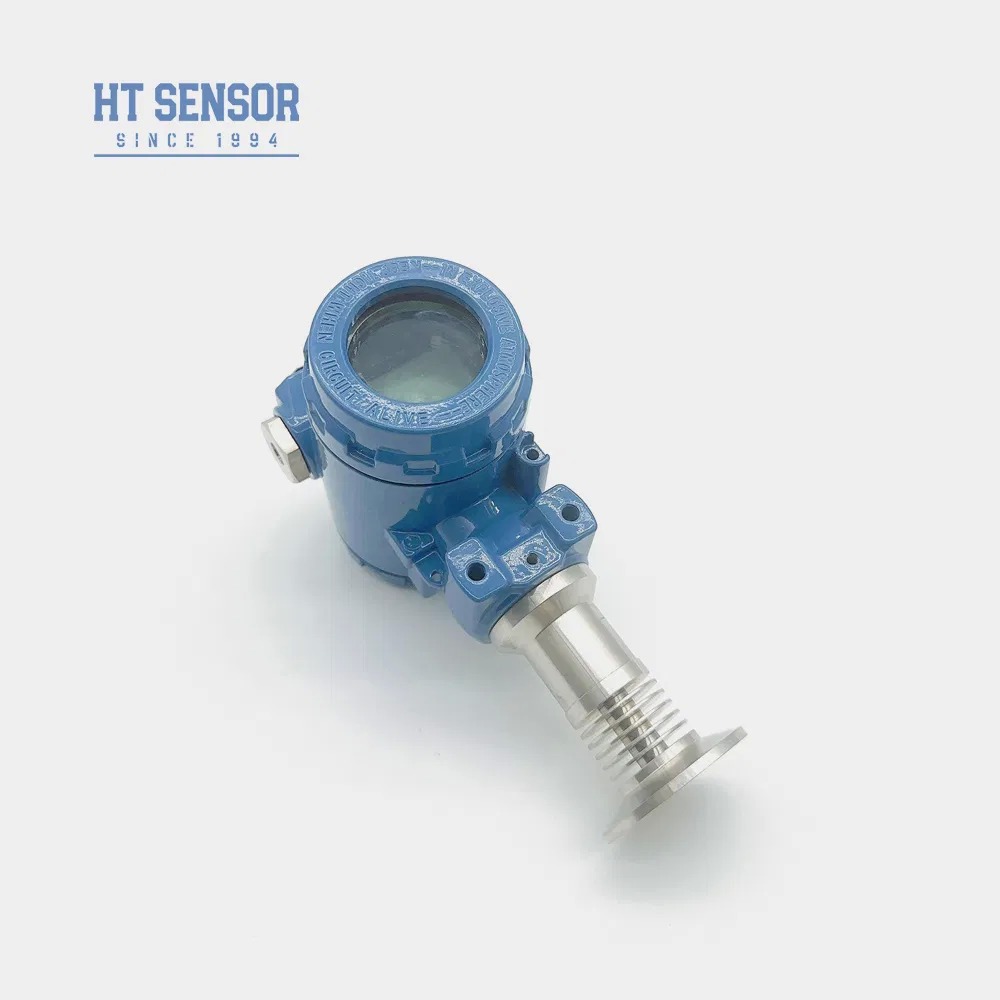

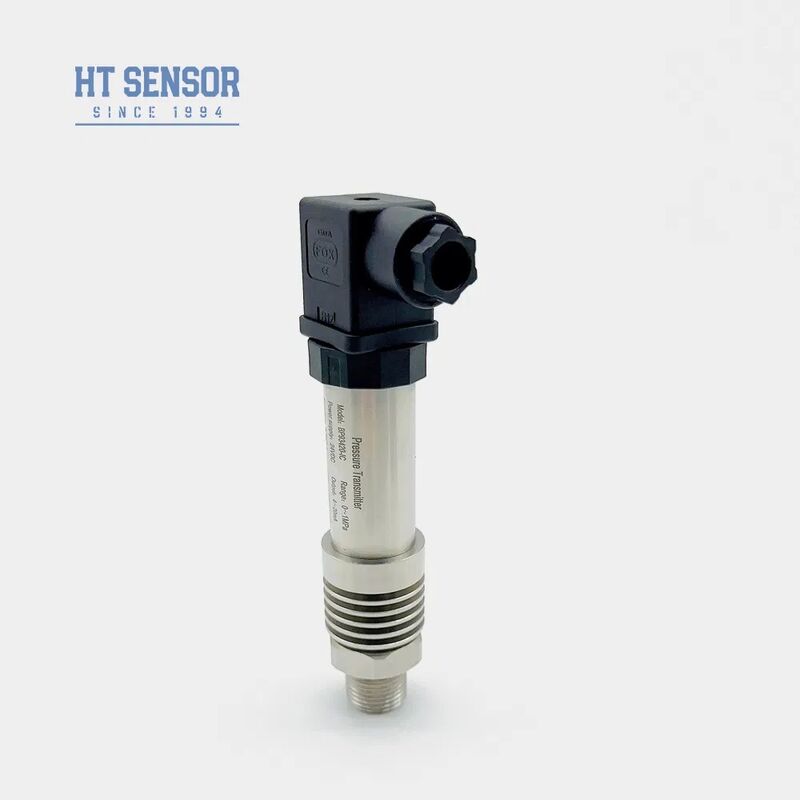

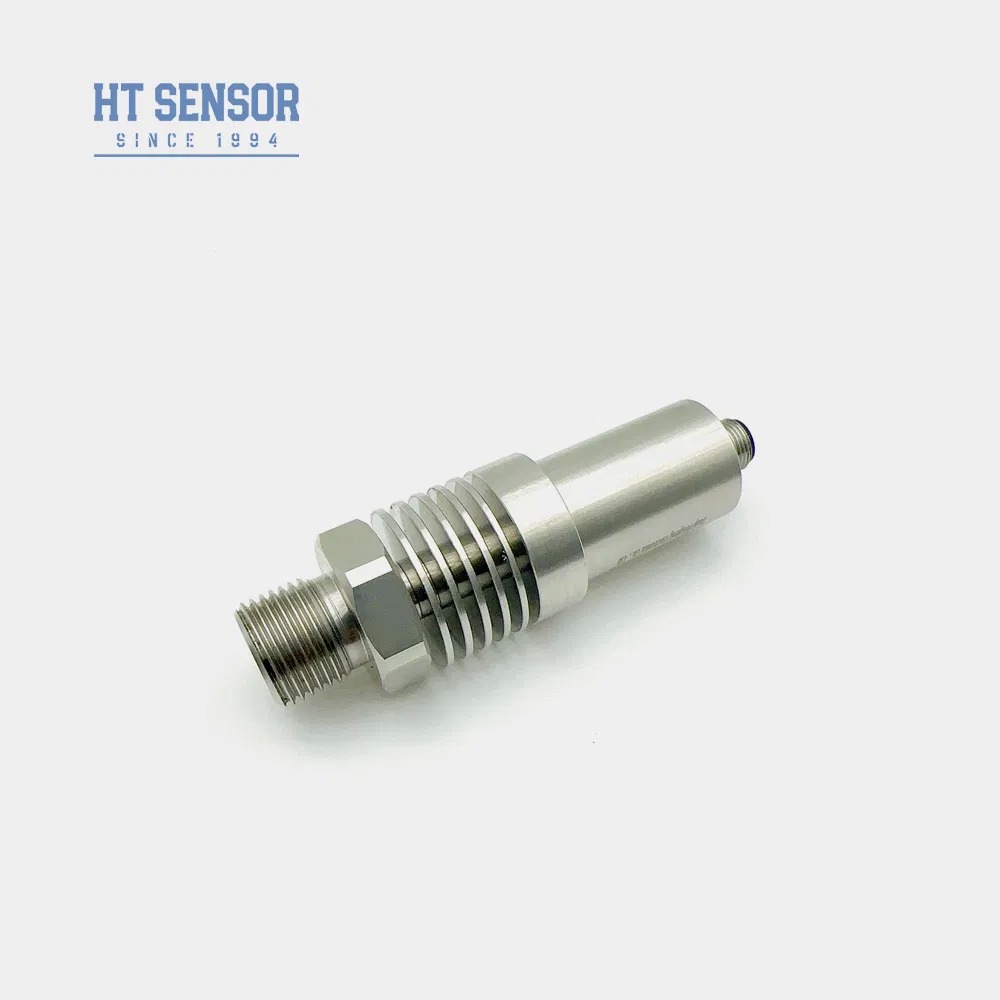

HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing
Basic Information
Certification: CE, RoHS
Minimum Order Quantity: 1
Price: 18
Get Best Price Contact Now
Detail Information
Model NO.: BP93420-IC Measuring Medium: Liquid
Accuracy Grade: 0.5% Pressure Range: -100kpa...0kpa ~10kpa...100MPa
IP Rating: IP65 Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material: 316L Long-Term Stability: +-0.1%F.S/Year(Typ.)
Overload: ≤ 1.5 Times Of The Rated Range Accuracy @ 25ºC: ±0.25% (Typical) ±0.5% (Maximum)
Repeatability: 0.1%FS Hysteresis: 0.1%FS
Zero Point Temperature Drift: ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) Full Scale Temperature Drift: ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Operating Temperature: -20ºC~150ºC
Highlight:

High-Temperature Pressure Transmitter

,

0.5% Accuracy Pressure Transducer

,

316L Stainless Steel Pressure Sensor

Product Description

HTsensor Piezoresistive Silicon Pressure Transmitter Transducer With Temperature-Resistance Sensor
HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 0
BP93420IC Pressure Transmitter
Product Overview
The BP93420-IC is a high-temperature pressure transmitter that utilizes the advanced HT series silicon pressure-resistance isolation oil-filled core as its core measuring element. The sensor efficiently captures the pressure of the measured medium through a specialized heat dissipation structure integrated into the transmitter. This exceptional design makes it perfectly suitable for demanding environments with high temperatures, making it an ideal choice for applications that involve temperature fluctuations or operate under elevated conditions.
Key Features
  • Wide measuring range with stainless steel structure
  • Diverse pressure interface forms available
  • IP65 protection rating stainless steel construction
  • Zero and full-scale adjustable calibration
  • High precision performance
  • All stainless steel structure for durability
Applications
  • Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
  • Marine and aviation industries
  • Industrial on-site processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range -100kPa…0kPa ~ 10kPa…100MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability 0.1%FS
Hysteresis 0.1%FS
Long-Term Stability ±0.1%F.S/Year (Typical) ±0.2%F.S/Year (Maximum)
Zero Point Temperature Drift ±0.02%F.S/ºC (≤100KPa) ±0.01%F.S/ºC (>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC (≤100KPa) ±0.01%F.S/ºC (>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC (≤10MPa, customizable)
Operating Temperature -20ºC~150ºC
Storage Temperature -40ºC~120ºC
Vibration 10g, 55Hz ~ 2kHz
Housing Material 304, 316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Ex db IIC T6 Gb
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.3kg
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0/1~10V
0.5~4.5V		 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire
HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 1 HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 2 HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 3 HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 4 HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 5
Ordering Guidelines
  • Ensure the measured medium is compatible with the product's contact parts
  • Explosion-proof type products do not include digital display heads
  • Transmitters with LCD or LED display require power supply ≥20VDC
  • Install lightning protection devices and ensure proper grounding
  • Fluoro rubber O-ring rated for -20ºC to 250ºC; use EPDM O-ring below -20ºC
  • Default cable length is 1.5m (polyethylene material)
  • Specify special requirements for vibration, impact, or electromagnetic interference
HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 6
Order Guide Reference
Code Outline Construction
IB General Pressure Transmitter
IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter
IIC/III Industrial General/Display Pressure Transmitter
IF Moisture-proof Pressure Transmitter
IIE/IIIE General/Display Pressure Transmitter
IN Air Conditioning Dedicated Pressure Transmitter
IC High-temperature Pressure Transmitter
IQ/IQT Large Diaphragm /High-temperature Pressure Transmitter
Additional Configuration Options
Measurement Range -0.1...0~0.01...100MPa (0-X)Kpa or MPa
Power Supply Options D1: 24VDC, D2: 5VDC, D3: Other
Output Signal Options S1: 4~20mADC, S2: 1~5VDC, S3: 0~5VDC, S4: 0~10mADC, S5: 0~20mADC, S6: 0~10VDC, S7: 0.5~4.5VDC
Pressure Connection Options J1: M20×1.5, J2: G1/2, J3: G1/4, J4: 7/16-20UNF, J5: Other
Electrical Connection Options B1: Hirschmann, B2: PG7 Plug, B3: Sealed Cable Output, B4: 2088 Industrial Casing, B5: 2088 Industrial Casing with Display, B6: Other
Pressure Type Options G: Gauge Pressure, A: Absolute Pressure, S: Sealed Reference Pressure
HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 7 HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 8 HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 9 HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 10 HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 11 HTsensor High-Temperature Pressure Transmitter with 0.5% Accuracy and 316L Stainless Steel Housing 12
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
