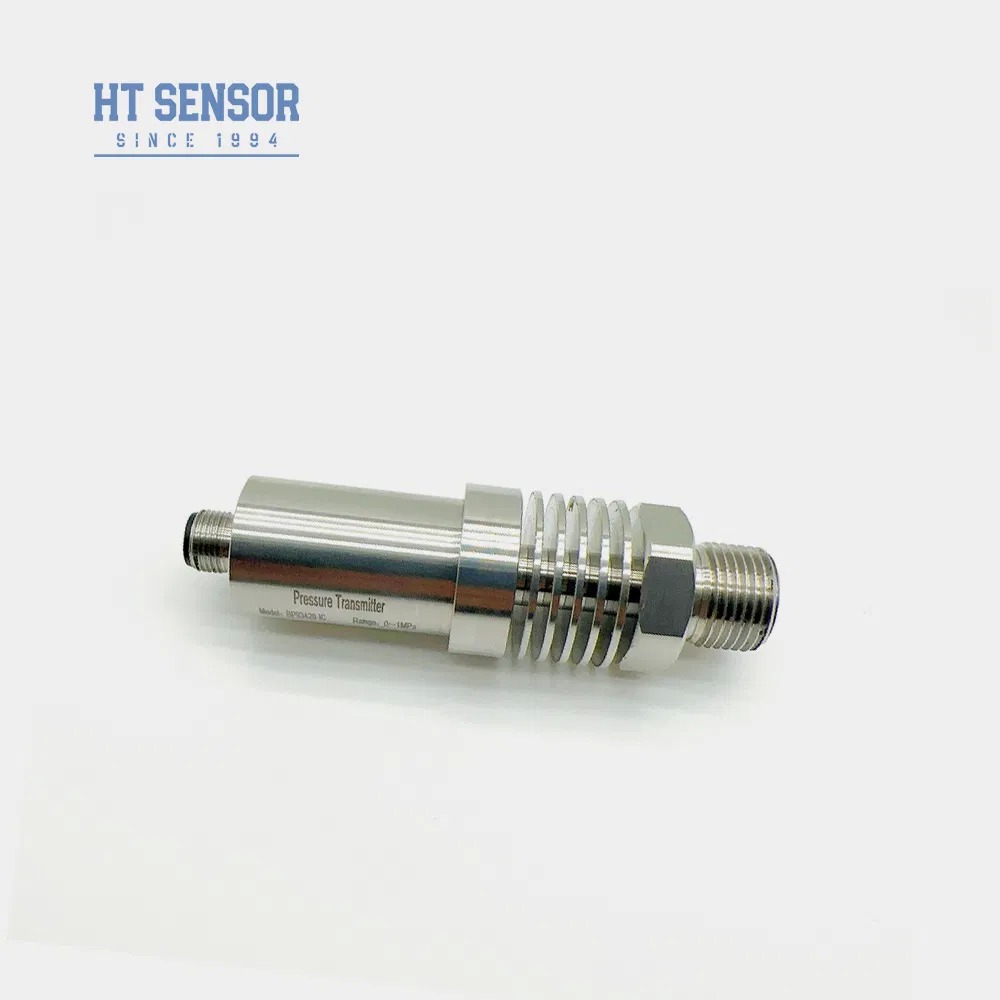

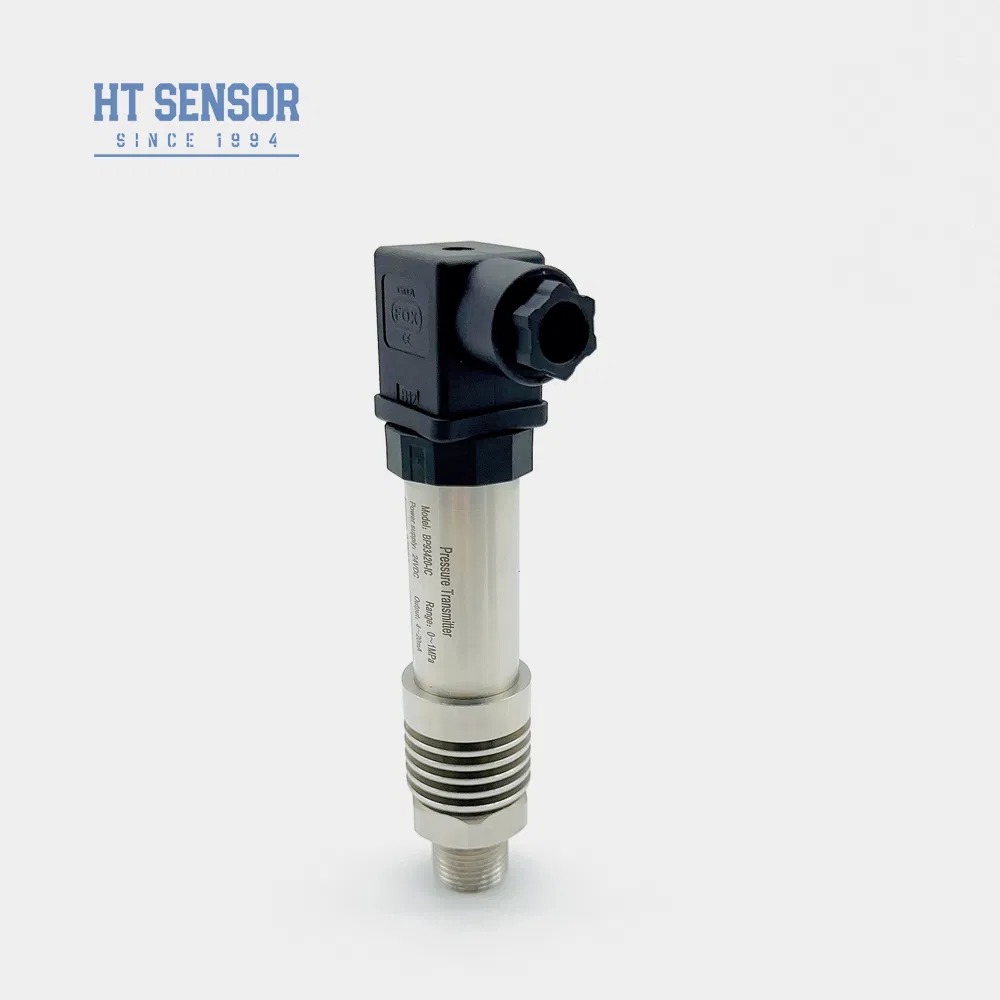

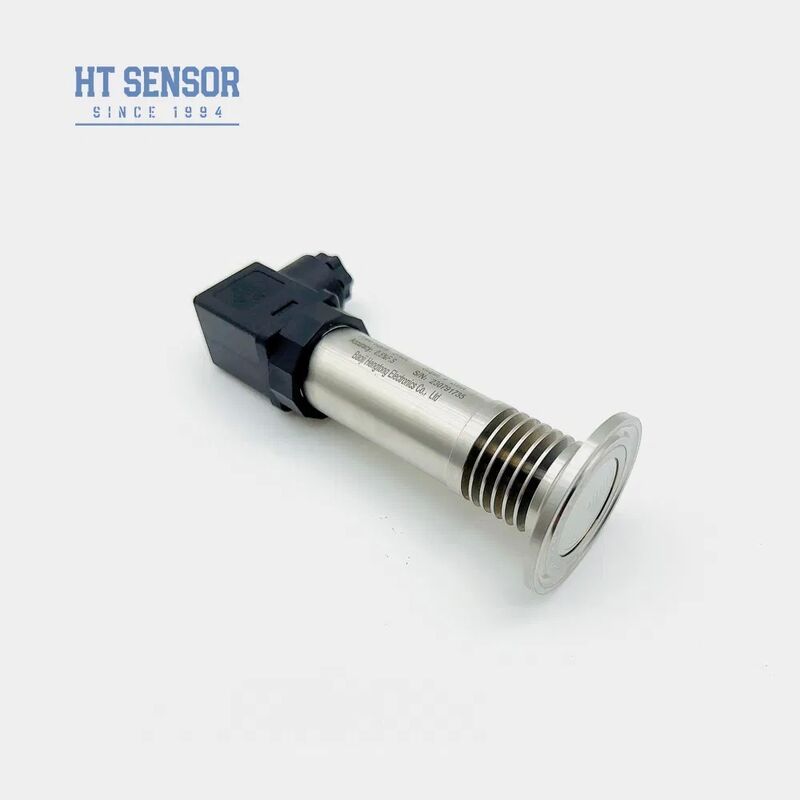

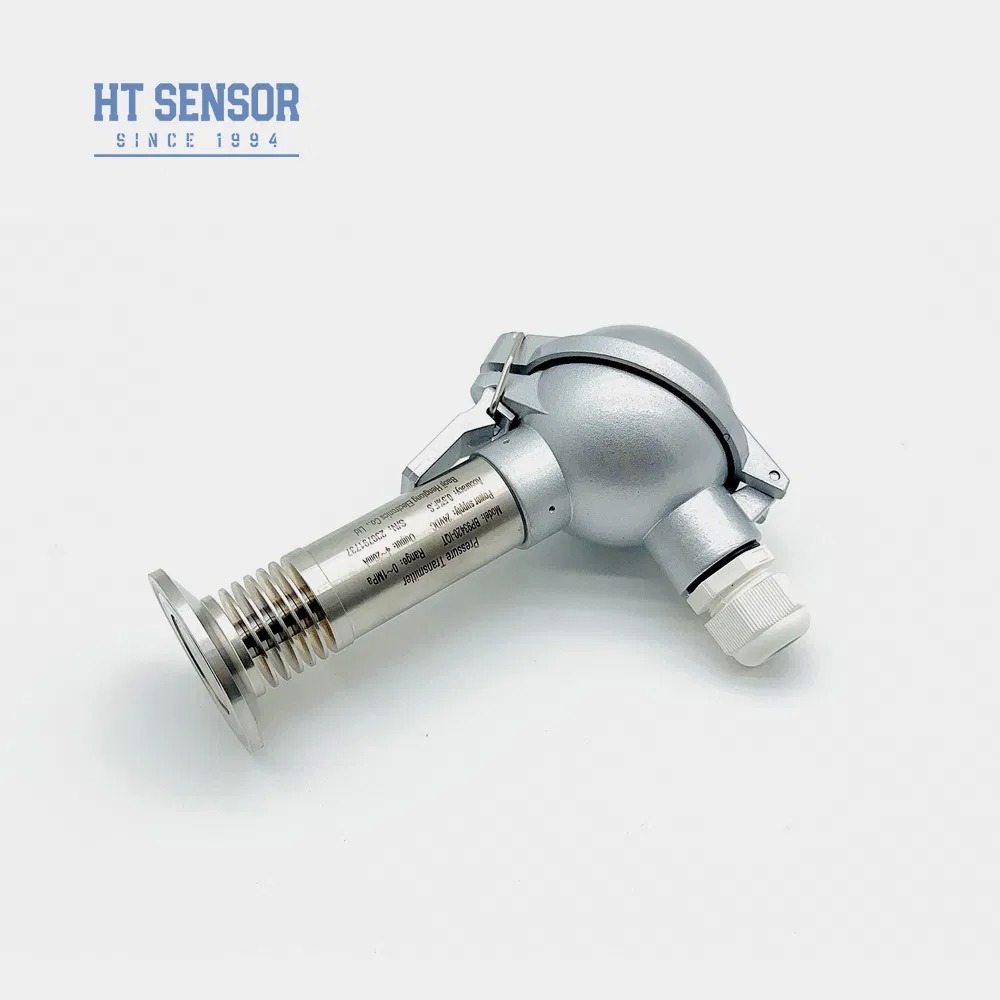

BP93420IC High-Temperature Pressure Transmitter
The BP93420-IC is a high-temperature pressure transmitter that utilizes the advanced HT series silicon pressure-resistance isolation oil-filled core as its core measuring element. The sensor efficiently captures the pressure of the measured medium through a specialized heat dissipation structure integrated into the transmitter. This exceptional design makes it perfectly suitable for demanding environments with high temperatures, making it an ideal choice for applications that involve temperature fluctuations or operate under elevated conditions.
Key Features
- Wide measuring range with stainless steel construction
- Multiple pressure interface configurations available
- IP65 protection rating with stainless steel housing
- Zero and full-scale adjustable calibration
- High precision measurement with all stainless steel structure
Applications
- Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- Marine and aviation industry applications
- Industrial on-site processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
Performance Parameters
| Measurement Range |
-100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
0.1%FS |
| Hysteresis |
0.1%FS |
| Long-Term Stability |
±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~150ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex db IIC T6 Gb |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.3kg |
Output Signal Specifications
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
0/1~5V, 0/1~10V, 0.5~4.5V |
| RS485 Communication Protocol |
5VDC, 3.6~30V / Battery |
4 wire |
Ordering Information
Important Ordering Considerations
- Ensure medium compatibility with product contact parts
- Explosion-proof type products do not include digital display heads
- Transmitters with LCD/LED display require power supply ≥20VDC
- Install lightning protection devices and ensure proper grounding
- Fluoro rubber O-ring rated for -20ºC to 250ºC (EPDM required below -20ºC)
- Default cable length: 1.5m (polyethylene material)
- Specify special requirements for vibration, impact, or electromagnetic interference
Ordering Guide
BP93420XX | Pressure Transmitter
Outline Construction
| IB |
General Pressure Transmitter |
IX |
Display Pressure Transmitter |
| IE |
Shock-resistant Aviation Pressure Transmitter |
IIC/III |
Industrial General/ Display Pressure Transmitter |
| IF |
Moisture-proof Pressure Transmitter |
IIE/IIIE |
General/Display Pressure Transmitter |
| IN |
Air Conditioning Dedicated Pressure Transmitter |
|
|
| IC |
High-temperature Pressure Transmitter |
|
|
| IQ/IQT |
Large Diaphragm /High-temperature Pressure Transmitter |
|
|
Configuration Options
| Code |
Power Supply |
Code |
Output Signal |
| D1 |
24VDC |
S1 |
4~20mADC |
| D2 |
5VDC |
S2 |
1~5VDC |
| D3 |
Other |
S3 |
0~5VDC |
|
|
S4 |
0~10mADC |
|
|
S5 |
0~20mADC |
|
|
S6 |
0~10VDC |
|
|
S7 |
0.5~4.5VDC |
| Code |
Pressure Connection |
Code |
Electrical Connection |
Code |
Pressure Type |
| J1 |
M20×1.5 |
B1 |
Hirschmann |
G |
Gauge Pressure |
| J2 |
G1/2 |
B2 |
PG7 Plug |
A |
Absolute Pressure |
| J3 |
G1/4 |
B3 |
Sealed Cable Output |
S |
Sealed Reference Pressure |
| J4 |
7/16-20UNF |
B4 |
2088 Industrial Casing |
|
|
| J5 |
Other |
B5 |
2088 Industrial Casing with Display |
|
|
|
|
B6 |
Other |
|
|
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
