4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications

4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications
4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications
Basic Information
Certification: CE
Minimum Order Quantity: 1
Price: 25
Get Best Price Contact Now
Detail Information
Model NO.: BP93420D-I Measuring Medium: Gas
Accuracy Grade: 0.25% Pressure Range: 0-10kpa...~2MPa
IP Rating: IP65 Pressure Type: Differential Pressure
Thread: M10*1 Or Customized Cable Material: Polyvinyl Chloride
Measurement Range: 0-500Pa...~200kPa Single-side Overload: ≤3 Times Of The Rated Range
Static Pressure: The Minimum Value Between 5 Times The Rated Range Or 7 MPa Operating Temperature: -30ºC~80ºC
Housing Material: 304,316L Diaphragm Material: 316L
Output Signal: 4~20mA, 0~10/20mA, 0/1~5V, 0.5~4.5V
Highlight:

4-20mA Output Differential Pressure Transmitter

,

0.25% Accuracy Pressure Sensor

,

IP65 Protection Pressure Transducer

Product Description

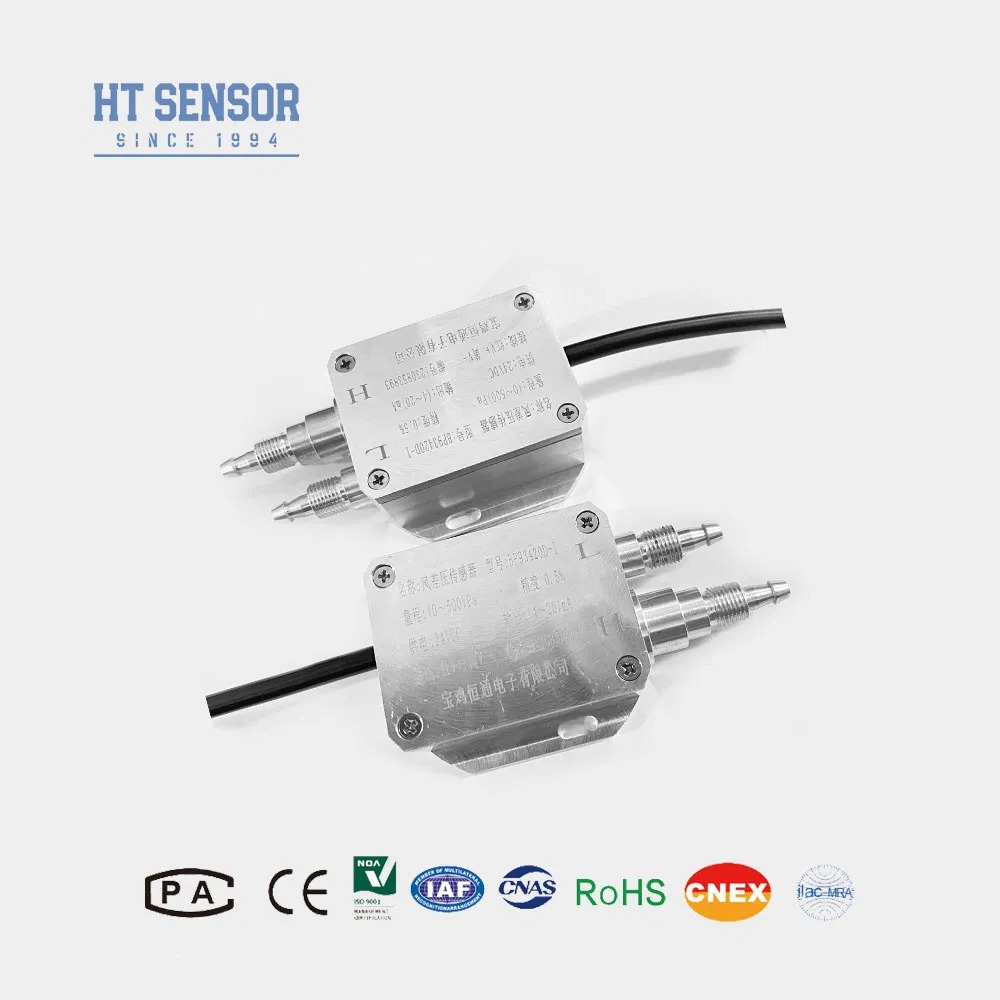

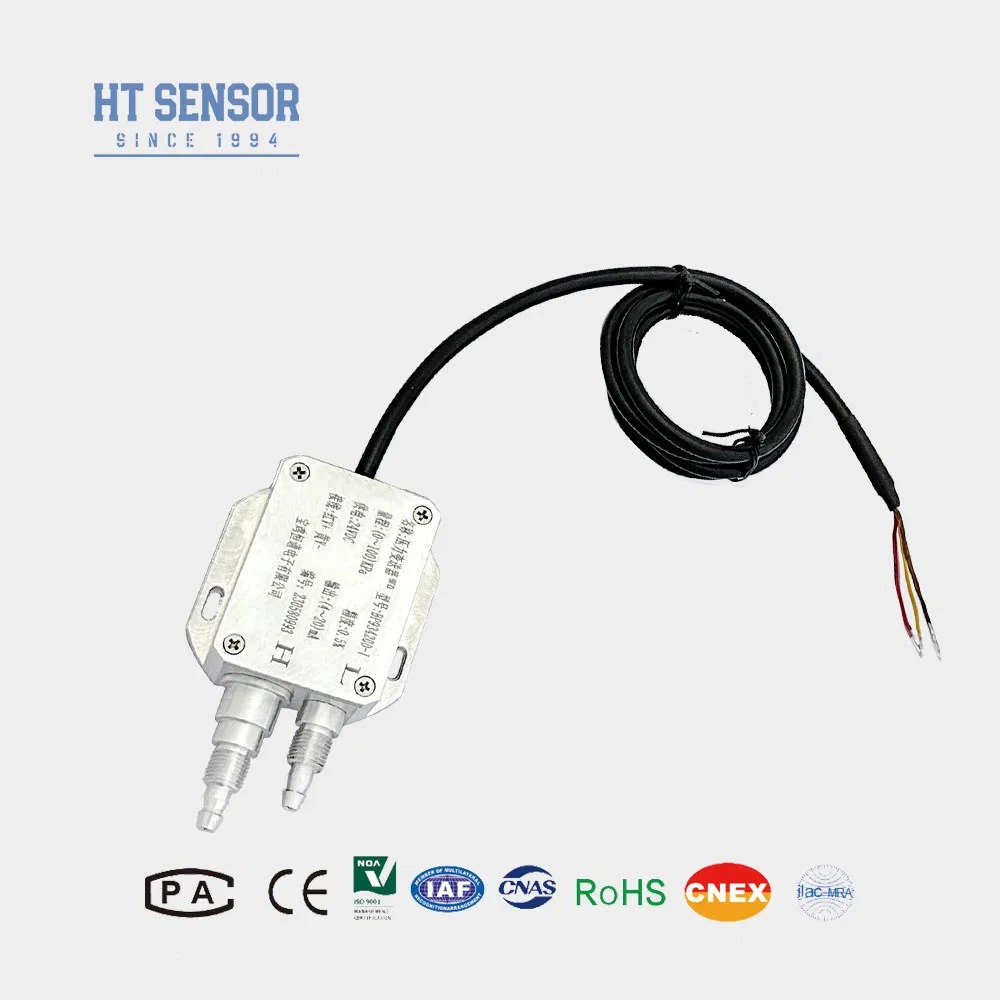

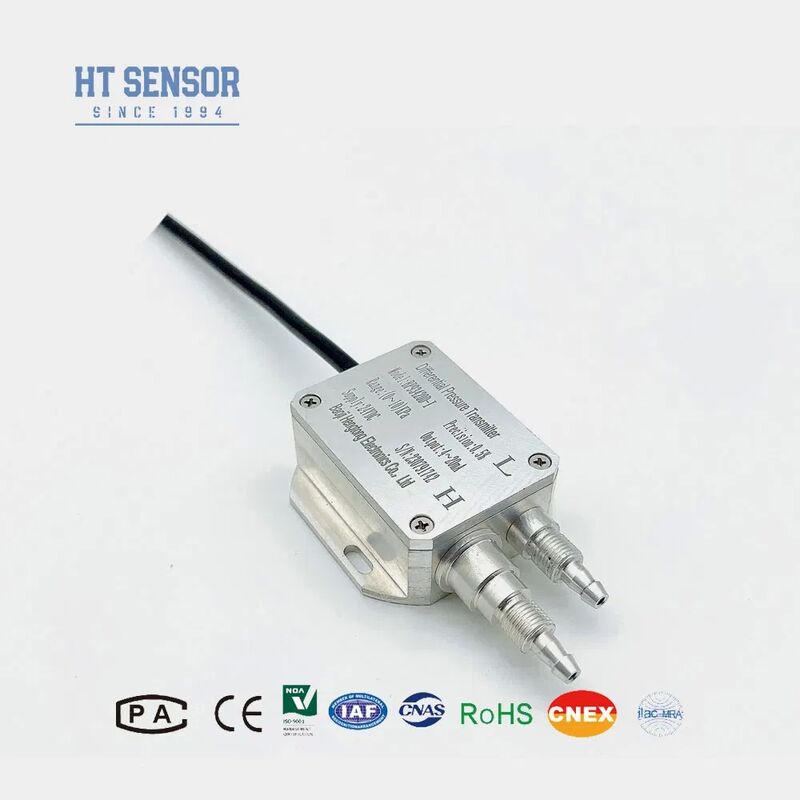

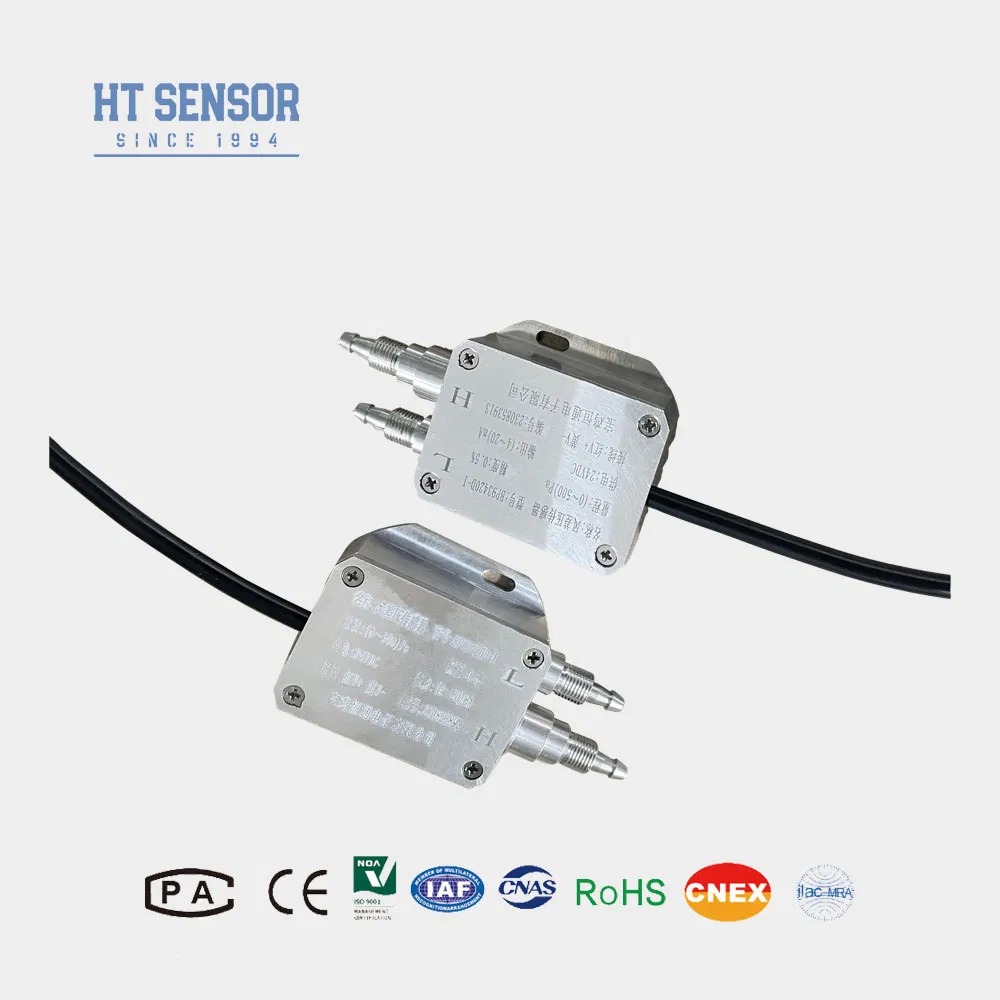

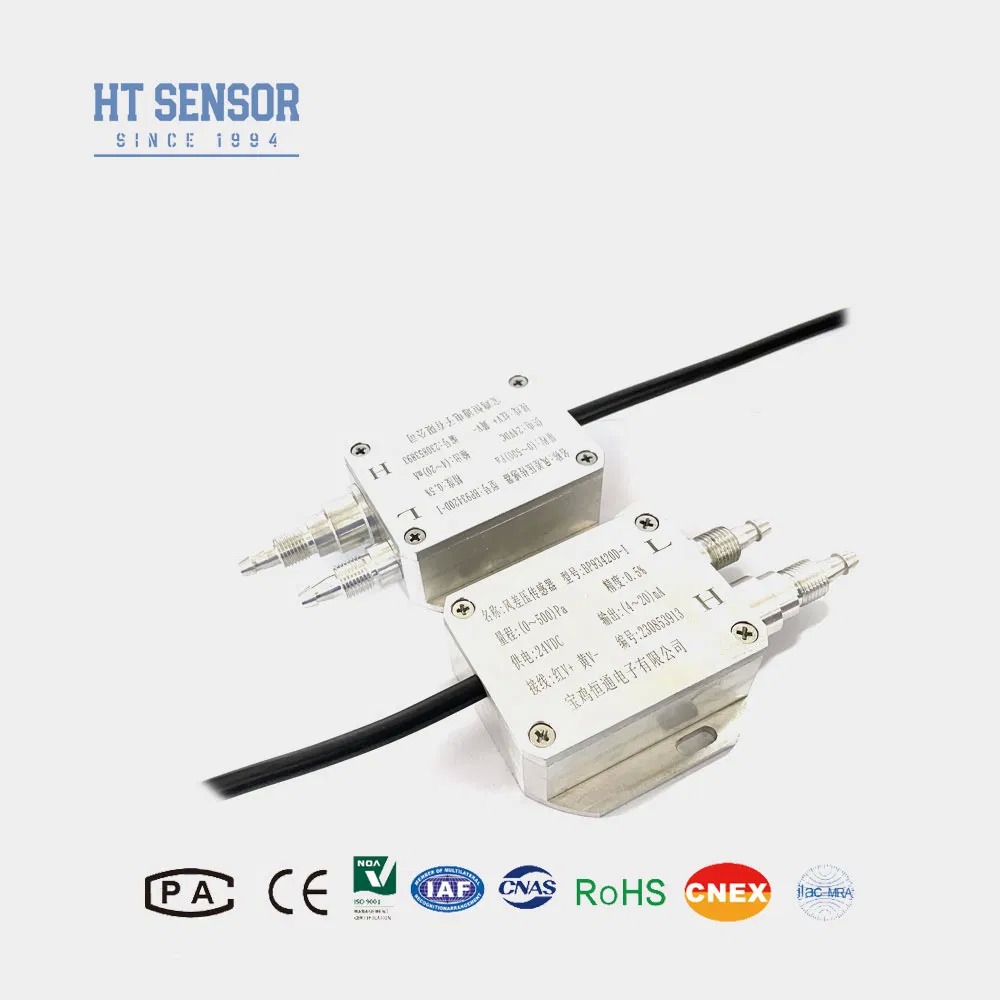

BP93420DI Differential Pressure Transmitter
4-20mA Electronic Air Differential Pressure Transmitter with aluminium case sensor transducer for industrial applications.
4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 0
Product Overview
The BP93420DI differential pressure transmitter accurately measures differential pressure through a Wheatstone bridge sensor chip. When differential pressure acts on corrugated diaphragms at both sensor ends, the output signal maintains excellent linear relationship with the pressure differential. Ideal for gas and liquid differential pressure measurements in petroleum, chemical, power, and hydrology industries.
4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 1 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 2 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 3 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 4
Key Features
  • Stainless steel structural design for compact size and easy installation
  • Rigorous temperature compensation and aging screening for stable, reliable performance
  • Flexible electrical interface options: plug-in or direct wiring
Applications
  • Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology pipelines
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
  • Pipeline and furnace chamber pressure measurement
Performance Parameters
ParameterSpecification
Measurement Range0-500Pa...~200kPa
Pressure TypeDifferential Pressure
Single-side Overload≤3 times of the rated range
Static pressureThe minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC±0.25% (Typical) ±0.5% (Maximum)
Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature-30ºC~80ºC
Storage Temperature-40ºC~100ºC
Vibration10g,55Hz ~ 2kHz
Housing Material304,316L
Diaphragm Material316L
Insulation Resistance100MΩ 100VDC
Explosion-proof RatingIntrinsically safe and explosion-proof
Protection RatingIP65
Weight~0.2kg
4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 5
Output Signal Configuration
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA3 wire
0/1~5V
0.5~4.5V		5VDC
4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 6 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 7 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection for Industrial Applications 8
Ordering Information
Selection Tips
  • Ensure measured medium compatibility with product contacting parts
  • Install three-valve manifold between measurement point and transmitter for reliable operation
  • Position pressure interfaces horizontally to minimize installation location impact
  • Specify special requirements (vibration, impact, EMI/RFI) in your order
Order Guide
CodeDescription
BP93420XXPressure Transmitter
DIIDifferential Pressure Transmitter
Measurement Range0-10KPa...~2MPa
Power Supply Codes
D124VDC
D25VDC
D3Other
Output Signal Codes
S14~20mADC
S21~5VDC
S30~5VDC
S40~10mADC
S50~20mADC
S60~10VDC
S70.5~4.5VDC
Pressure Connection Codes
J1M20×1.5 Male
J2G1/2 Male
J3G1/4 Male
J41/2 NPT Male
J5Other
Electrical Connection Codes
B1Hirschmann
B2PG7 Plug
B3Sealed Cable Output
B4Other
Pressure Type Codes
DDifferential Pressure
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
