Home > Products> Silicon Pressure Sensor> Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable

Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable

Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable
Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable
Basic Information
Certification: CE
Minimum Order Quantity: 1
Price: 25
Get Best Price Contact Now
Detail Information
Model NO.: BP93420D-I Measuring Medium: Gas
Accuracy Grade: 0.25% Pressure Range: 0-10kpa...~2MPa
IP Rating: IP65 Pressure Type: Differential Pressure
Thread: M10*1 Or Customized Cable Material: Polyvinyl Chloride
Measurement Range: 0-500Pa...~200kPa Single-side Overload: ≤3 Times Of The Rated Range
Static Pressure: The Minimum Value Between 5 Times The Rated Range Or 7 MPa Operating Temperature: -30ºC~80ºC
Housing Material: 304,316L Diaphragm Material: 316L
Weight: ~0.2kg
Highlight:

0.25% Accuracy Differential Pressure Transmitter

,

IP65 Protection Digital Air Pressure Sensor

,

Customizable HVAC Pressure Sensor

Product Description

Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter
Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 0

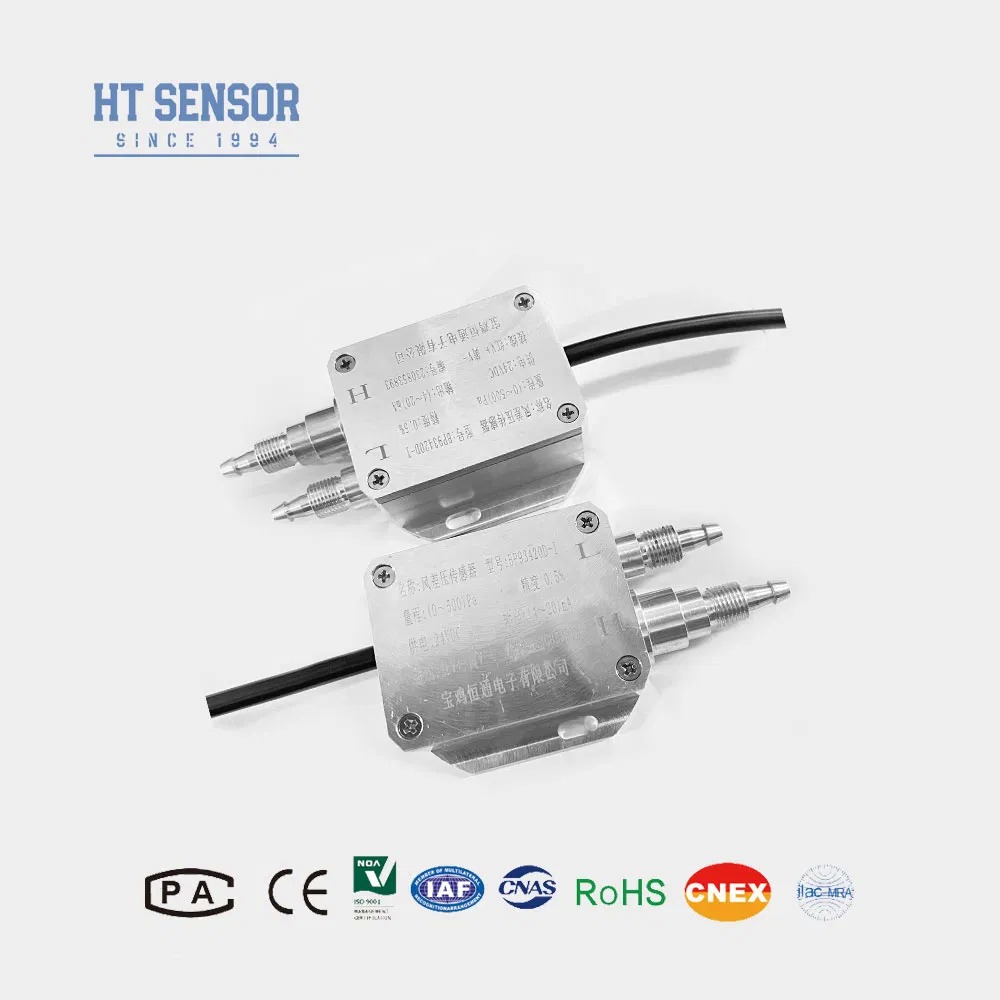

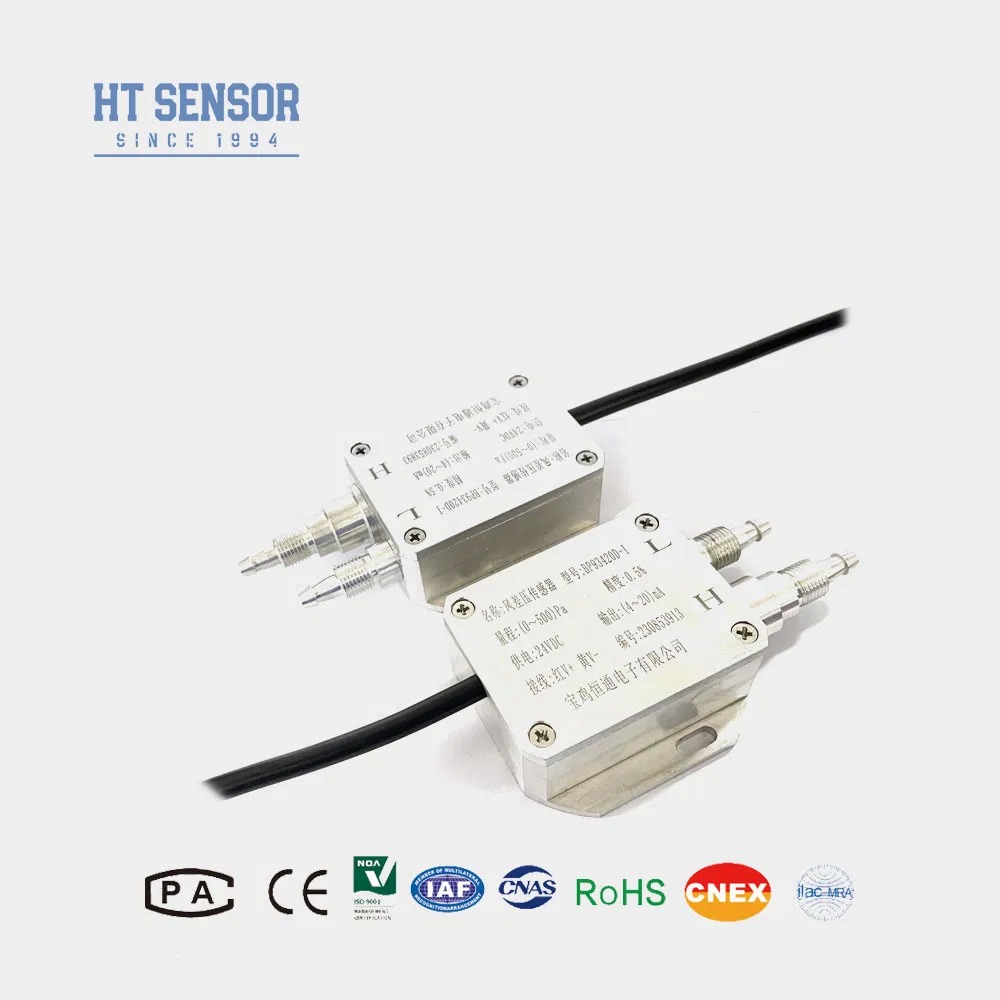

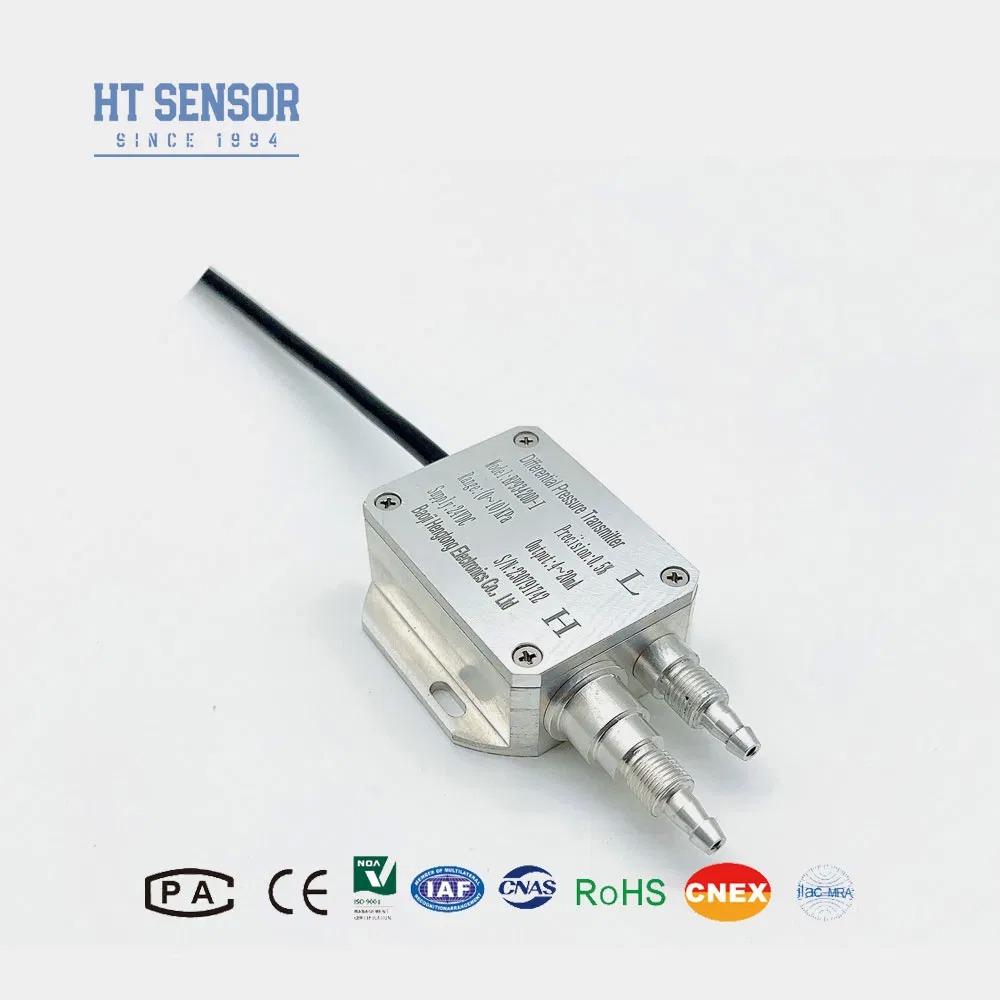

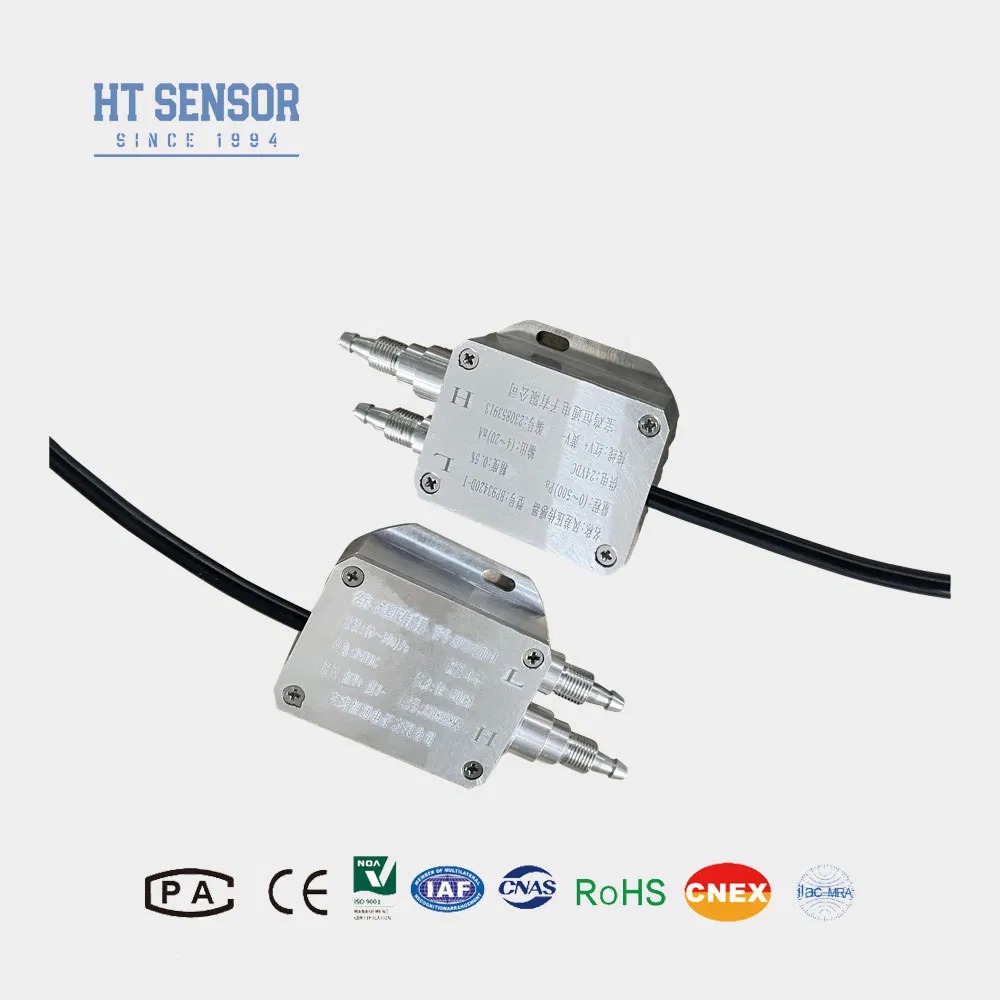

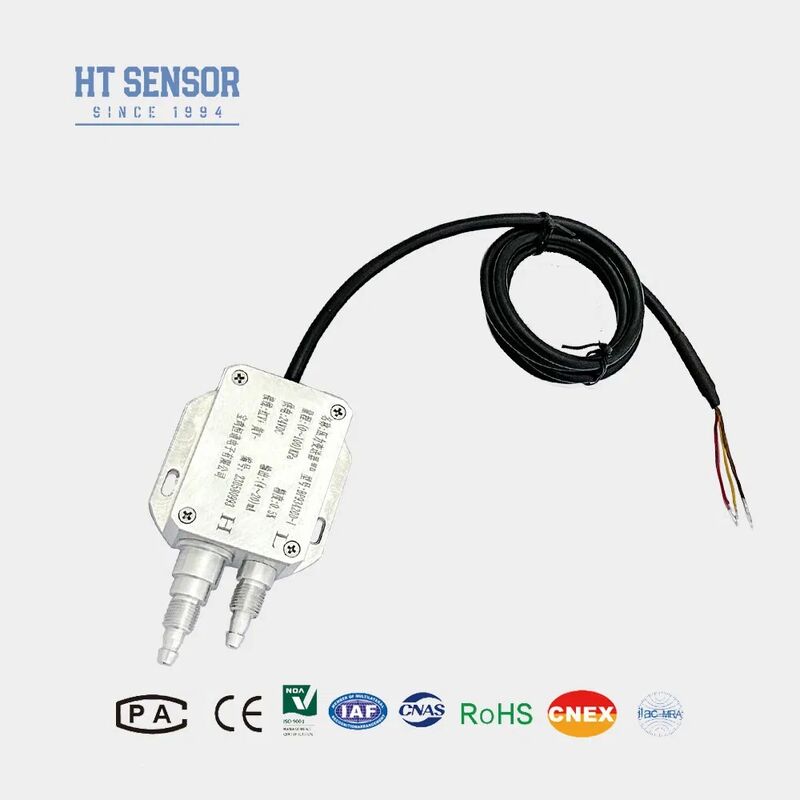

BP93420DI Differential Pressure Transmitter
The BP93420DI differential pressure transmitter accurately measures differential pressure through a Wheatstone bridge sensor chip. When differential pressure acts on the corrugated diaphragms at both ends of the sensor, the output signal exhibits excellent linear relationship with the pressure differential. This transmitter is ideal for various gas and liquid differential pressure measurements in petroleum, chemical, power, and hydrology industries for pipeline applications.
Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 1Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 2Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 3Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 4
Product Features
  • Stainless steel structural design for compact size and easy installation
  • Rigorous temperature compensation and aging screening ensure stable, reliable performance
  • Flexible electrical interface options: plug-in or direct wiring configurations
Applications
  • Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology industries
  • Industrial process applications in petroleum, chemical, metallurgy, power generation, and hydrology
  • Pressure measurement for pipelines and furnace chambers
Performance Parameters
Measurement Range0-500Pa...~200kPa
Pressure TypeDifferential Pressure
Single-side Overload≤3 times of the rated range
Static pressureThe minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC±0.25% (Typical) ±0.5% (Maximum)
Repeatability±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature-30ºC~80ºC
Storage Temperature-40ºC~100ºC
Vibration10g,55Hz ~ 2kHz
Housing Material304,316L
Diaphragm Material316L
Insulation Resistance100MΩ 100VDC
Explosion-proof RatingIntrinsically safe and explosion-proof
Protection RatingIP65
Weight~0.2kg
Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 5
Output Signal Specifications
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA3 wire
0/1~5V
0.5~4.5V		5VDC
Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 6Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 7Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 8
Ordering Guidelines
  • Ensure measured medium compatibility with product contacting parts
  • Install a three-valve manifold between measurement point and transmitter for reliable operation
  • Position pressure interfaces horizontally to minimize installation location impact
  • Specify special requirements for vibration, impact force, electromagnetic interference, or radio frequency interference
Order Guide
BP93420XXPressure Transmitter
CodeOutline Construction
DIIDifferential Pressure Transmitter
Measurement Range0-10KPa...~2MPa
CodePower Supply
D124VDC
D25VDC
D3Other
CodeOutput Signal
S14~20mADC
S21~5VDC
S30~5VDC
S40~10mADC
S50~20mADC
S60~10VDC
S70.5~4.5VDC
CodePressure Connection
J1M20×1.5 Male
J2G1/2 Male
J3G1/4 Male
J41/2 NPT Male
J5Other
CodeElectrical Connection
B1Hirschmann
B2PG7 Plug
B3Sealed Cable Output
B4Other
CodePressure Type
DDifferential Pressure
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working day for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
Company Information
Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 9Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 10Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 11Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 12Aluminium Case HVAC Differential Digital Air Pressure Sensor Transmitter with 0.25% Accuracy and IP65 Protection Customizable 13
