BP93420DI Differential Pressure Transmitter with 0.25% Accuracy IP65 Protection and Stainless Steel Structure

Basic Information

Certification:	CE

Minimum Order Quantity:	1
Price:	25

Get Best Price Contact Now

Detail Information

Model NO.:	BP93420D-I	Measuring Medium:	Gas
Accuracy Grade:	0.25%	Pressure Range:	0-10kpa...~2MPa
IP Rating:	IP65	Pressure Type:	Differential Pressure
Thread:	M10*1 Or Customized	Cable Material:	Polyvinyl Chloride
Measurement Range:	0-500Pa...~200kPa	Single-side Overload:	≤3 Times Of The Rated Range
Static Pressure:	The Minimum Value Between 5 Times The Rated Range Or 7 MPa	Operating Temperature:	-30ºC~80ºC
Housing Material:	304,316L	Diaphragm Material:	316L
Weight:	~0.2kg
Highlight:	0.25% Accuracy Differential Pressure Transmitter , IP65 Protection Silicon Pressure Sensor , Stainless Steel Structure BP93420DI

Product Description

BP93420DI Differential Pressure Transmitter with Aluminum Shell Nozzle

The BP93420DI differential pressure transmitter accurately measures differential pressure when the measured medium's pressure acts on the corrugated diaphragms at both ends of the sensor. The output signal from the Wheatstone bridge on the sensor chip exhibits excellent linear relationship with differential pressure, making it ideal for various gas and liquid differential pressure measurements in petroleum, chemical, power, and hydrology industries.

Stainless Steel Construction

Compact design with easy installation capabilities

Reliable Performance

Strict temperature compensation and aging screening ensure stable operation

Flexible Connectivity

Electrical interface options include plug-in or direct wiring

Product Applications

Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology pipelines
Industrial process applications in petroleum, chemical, metallurgy, power generation, and hydrology
Pressure measurement for pipelines and furnace chambers

Technical Specifications

Measurement Range	0-500Pa...~200kPa
Pressure Type	Differential Pressure
Single-side Overload	≤3 times of the rated range
Static Pressure	The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC
Operating Temperature	-30ºC~80ºC
Storage Temperature	-40ºC~100ºC
Vibration	10g, 55Hz ~ 2kHz
Housing Material	304, 316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Intrinsically safe and explosion-proof
Protection Rating	IP65
Weight	~0.2kg

Output Signal Configuration

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V	5VDC
0.5~4.5V	5VDC

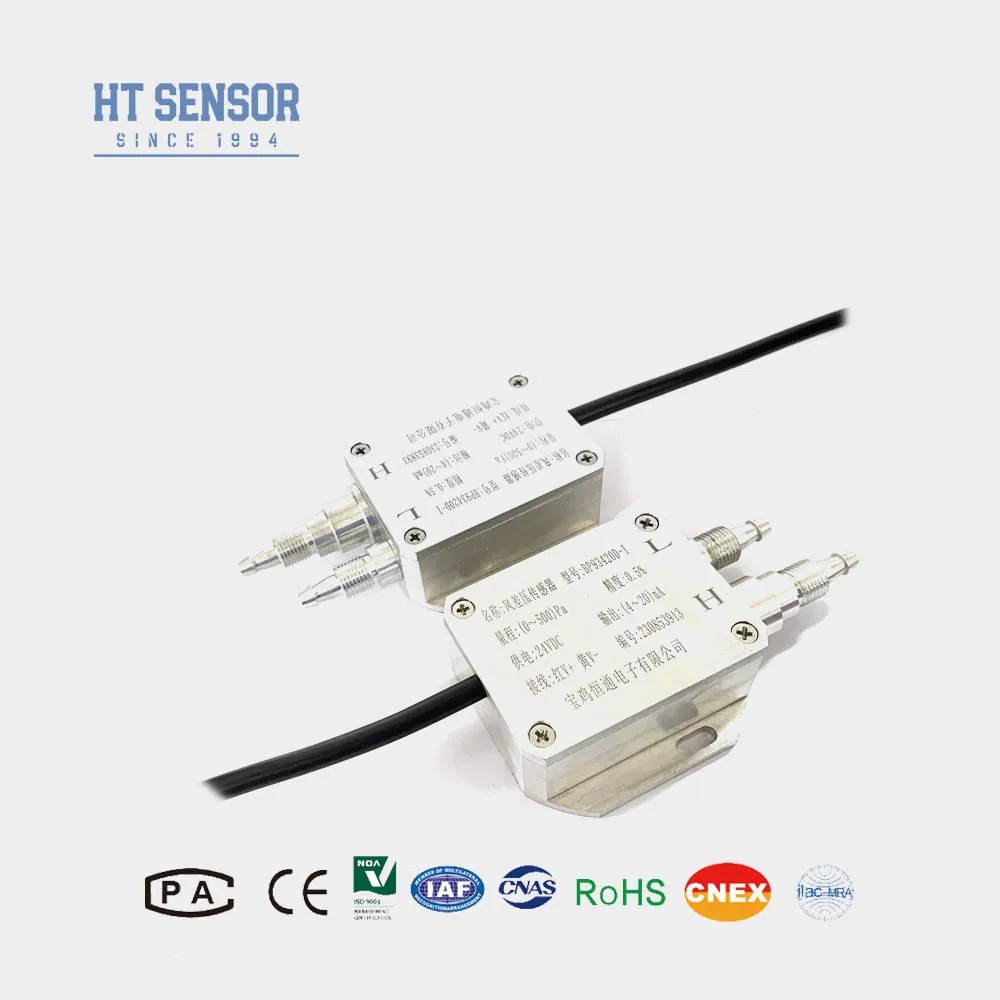

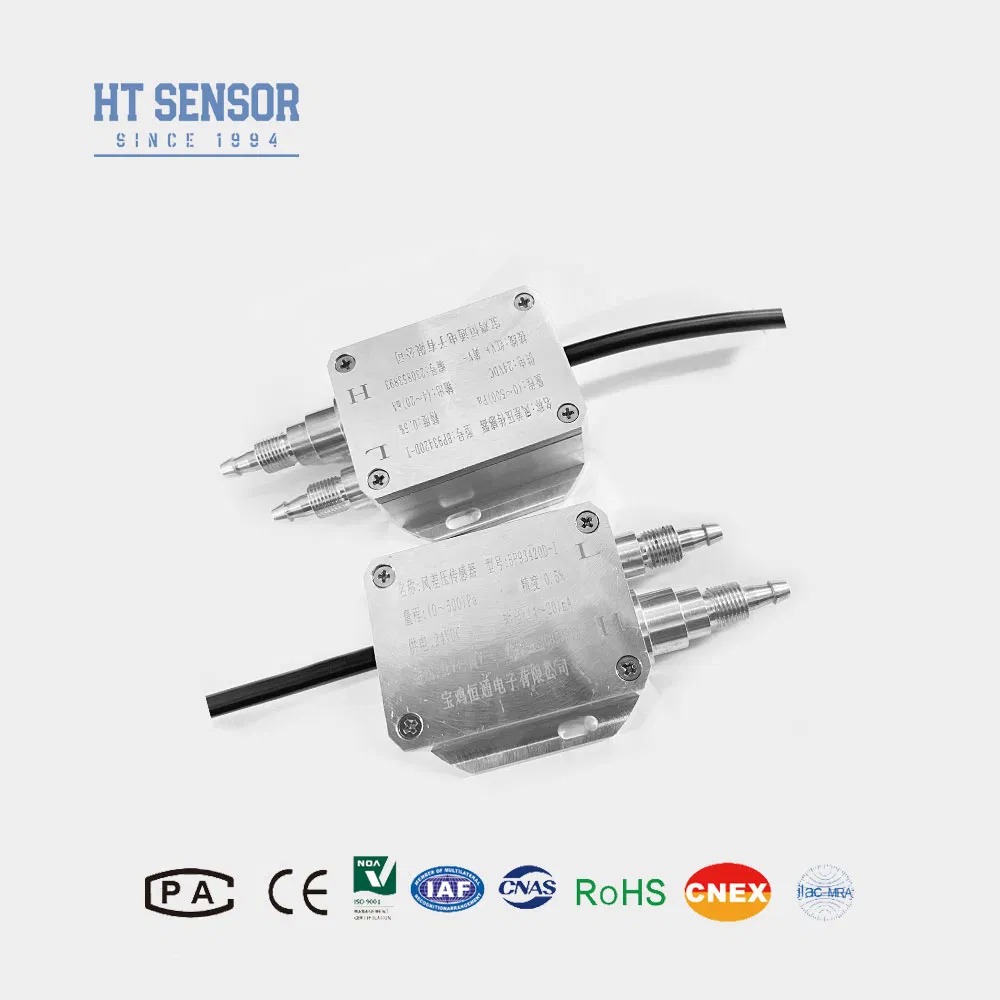

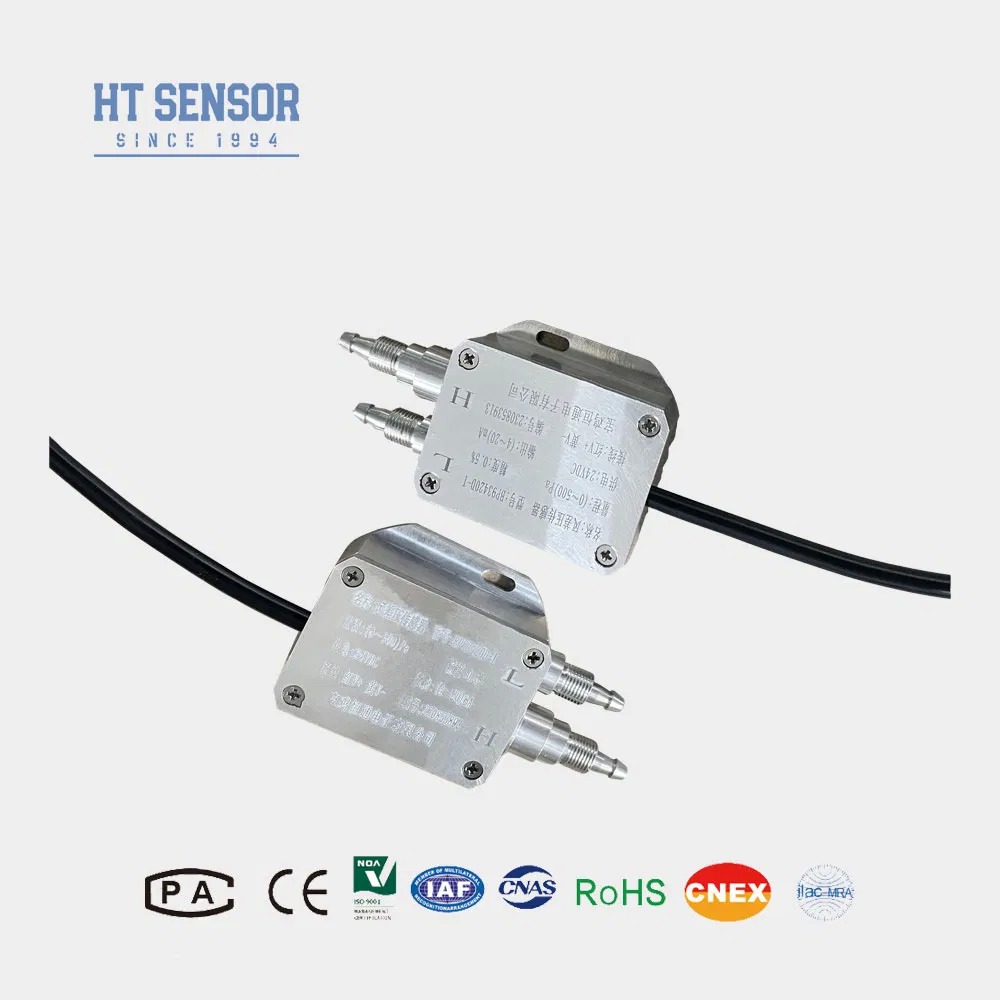

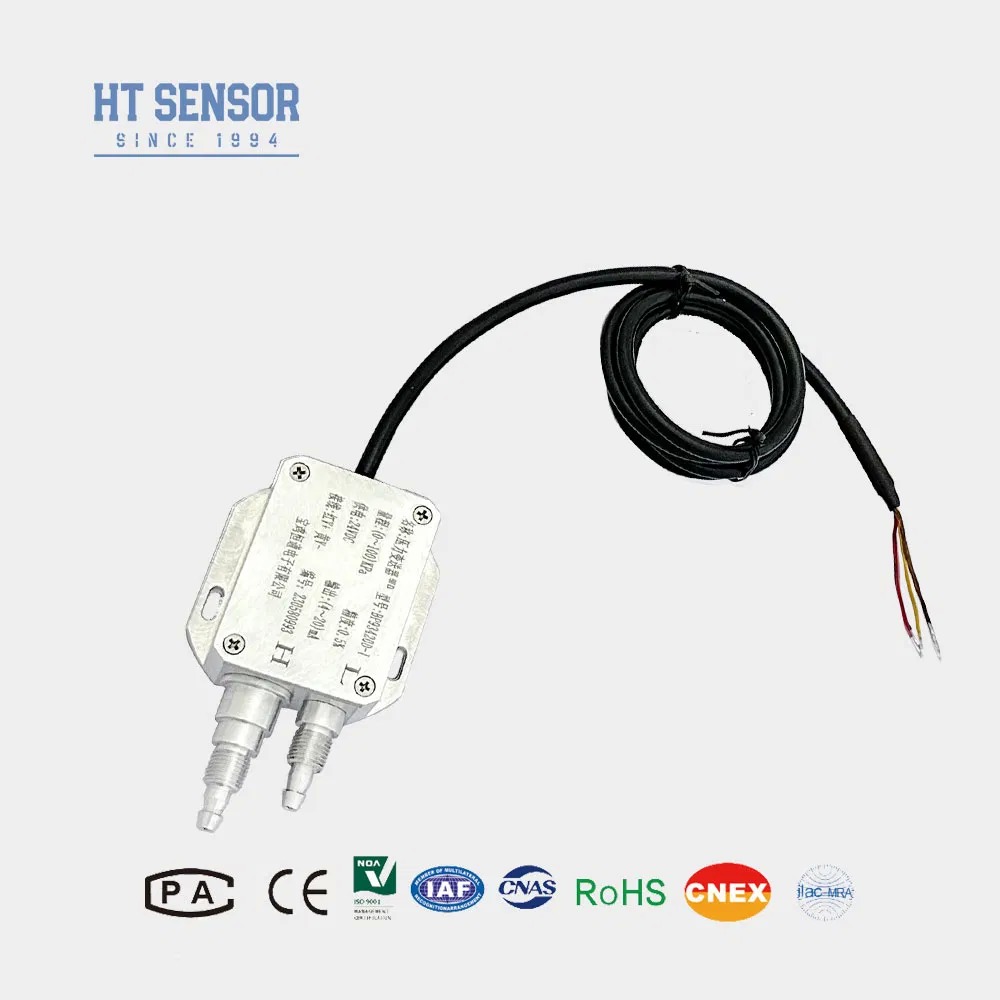

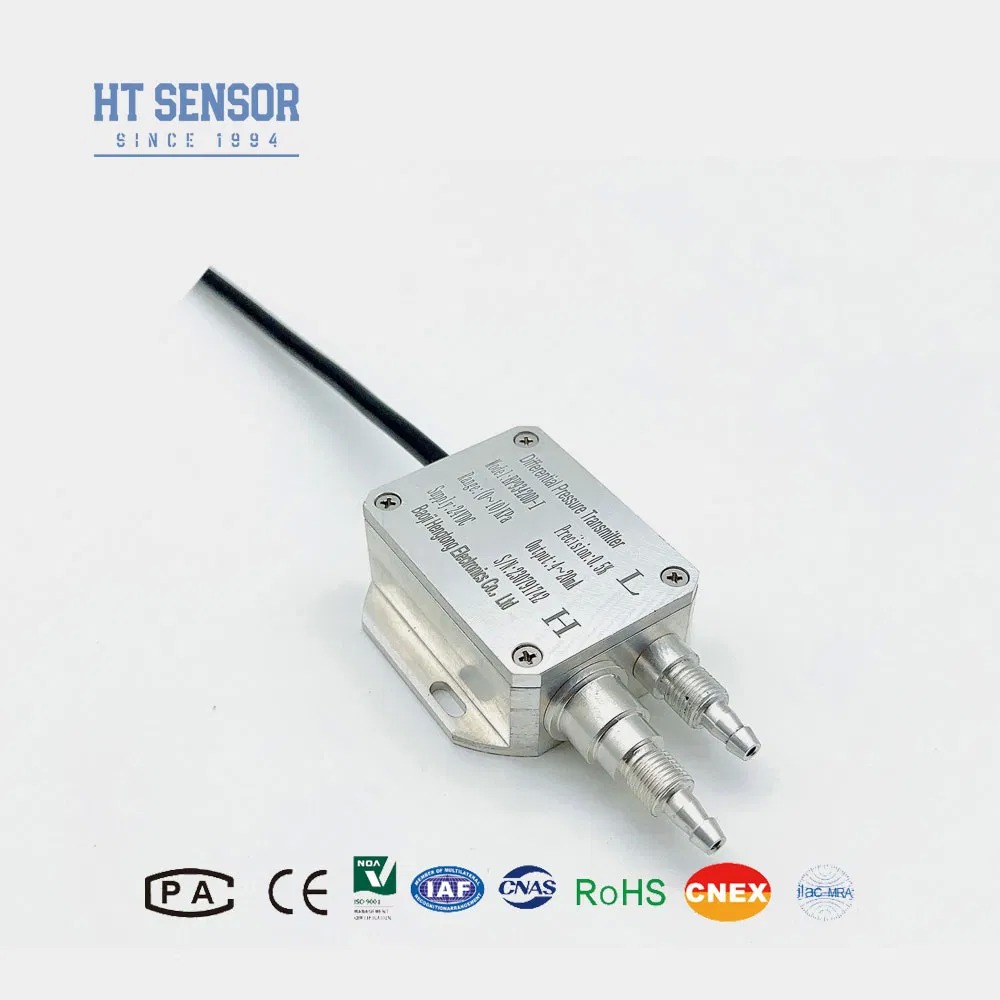

Product Images

Installation Guidelines

Important Installation Notes

Ensure measured medium compatibility with product contacting parts
Install a three-valve manifold between measurement point and transmitter for reliable operation
Position pressure interfaces horizontally to minimize installation location impact
Specify special requirements for vibration, impact force, or electromagnetic interference in your order

Ordering Information

Code	Description	Options
BP93420XX	Pressure Transmitter
DII	Differential Pressure Transmitter
Measurement Range		0-10KPa...~2MPa
Power Supply	D1	24VDC
	D2	5VDC
	D3	Other
Output Signal	S1	4~20mADC
	S2	1~5VDC
	S3	0~5VDC
	S4	0~10mADC
	S5	0~20mADC
	S6	0~10VDC
	S7	0.5~4.5VDC
Pressure Connection	J1	M20×1.5 Male
	J2	G1/2 Male
	J3	G1/4 Male
	J4	1/2 NPT Male
	J5	Other
Electrical Connection	B1	Hirschmann
	B2	PG7 Plug
	B3	Sealed Cable Output
	B4	Other
Pressure Type	D	Differential Pressure

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large-scale orders to ensure smooth production and delivery scheduling.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Customized products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

Q: What is the warranty of your products? And after-sales service?

A: 24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.
