4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection

4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection
4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection
Basic Information
Certification: CE, RoHS. ISO9001
Minimum Order Quantity: 1
Price: 60
Get Best Price Contact Now
Detail Information
Model NO.: BP93420DII Measuring Medium: Gas Or Liquid
Accuracy Grade: 0.25%, 0.5% Pressure Range: 0-10kpa...~2MPa
IP Rating: IP65 Pressure Type: Differential Pressure
Min Range: 10kpa Max Range: 2mpa
Output: 4-20mA Static Pressure: 5 Times Of Rated Pressure Or 7MPa
Operating Temperature: -30ºC~80ºC Storage Temperature: -40ºC~100ºC
Housing Material: 304,316L Diaphragm Material: 316L
Weight: ~0.45kg
Highlight:

4-20mA Output Differential Pressure Transmitter

,

0.25% Accuracy Differential Pressure Sensor

,

IP65 Protection Pressure Transducer

Product Description

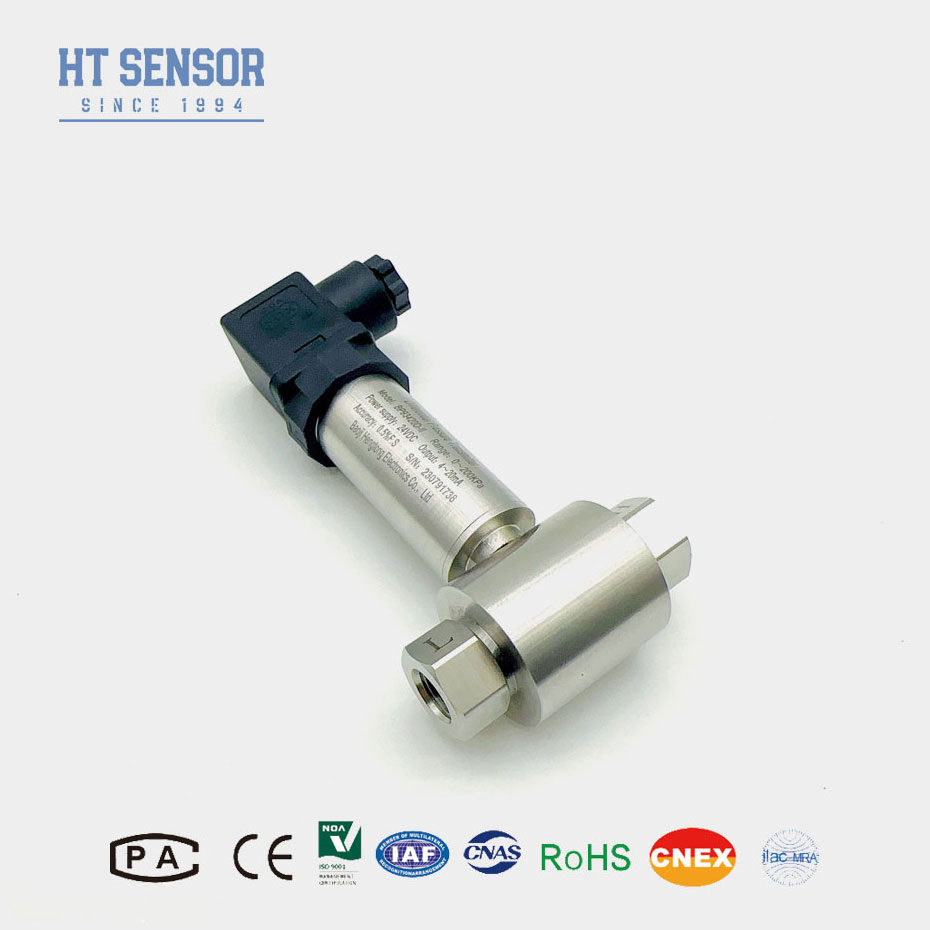

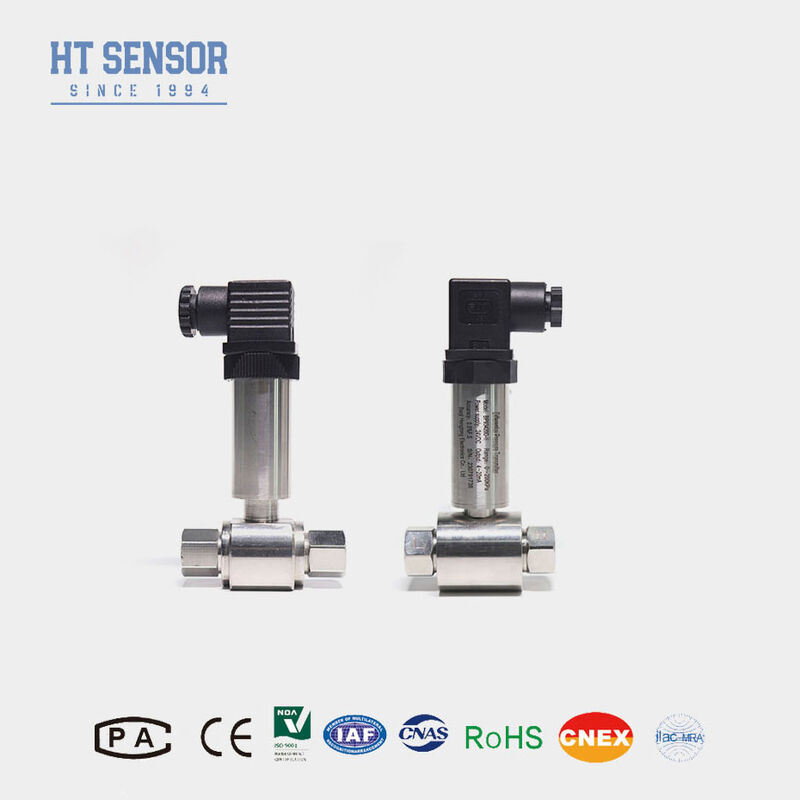

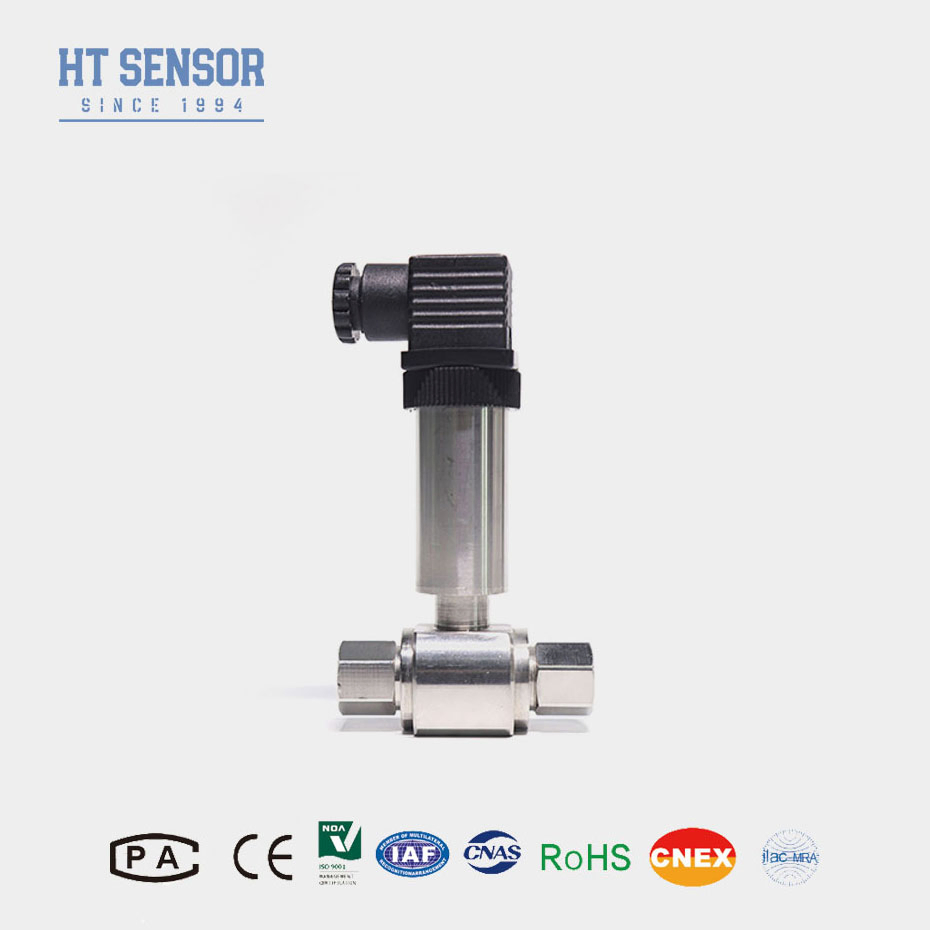

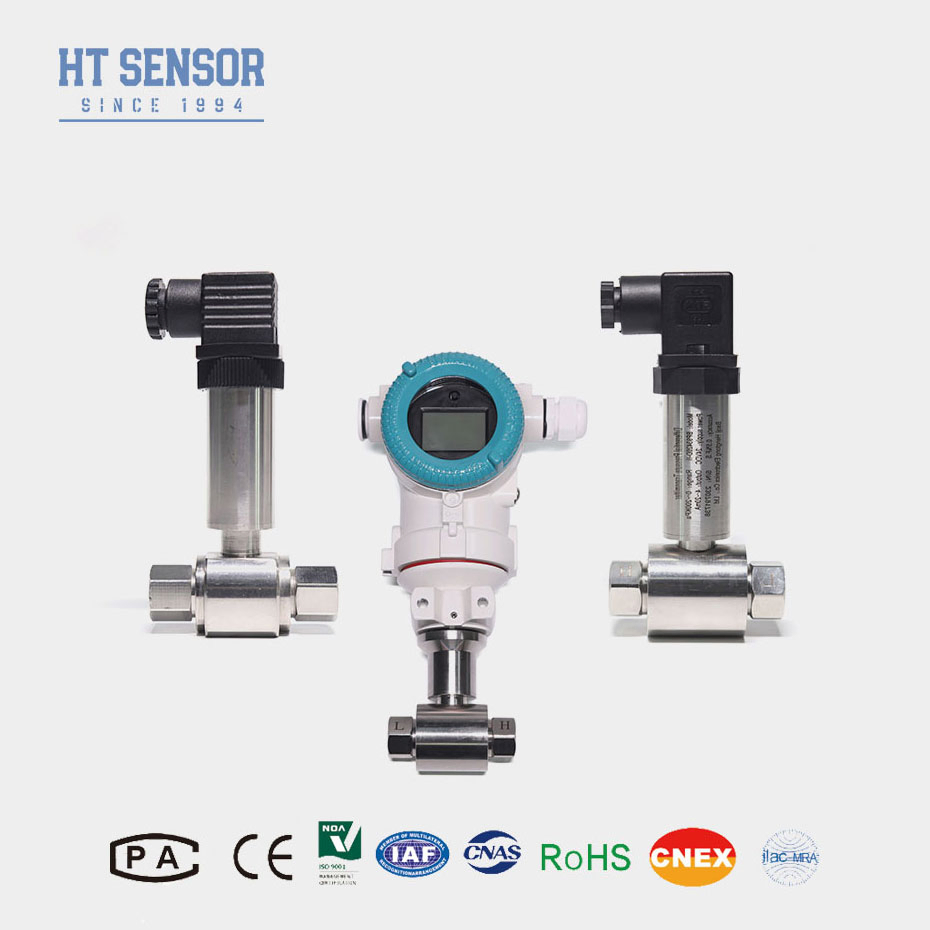

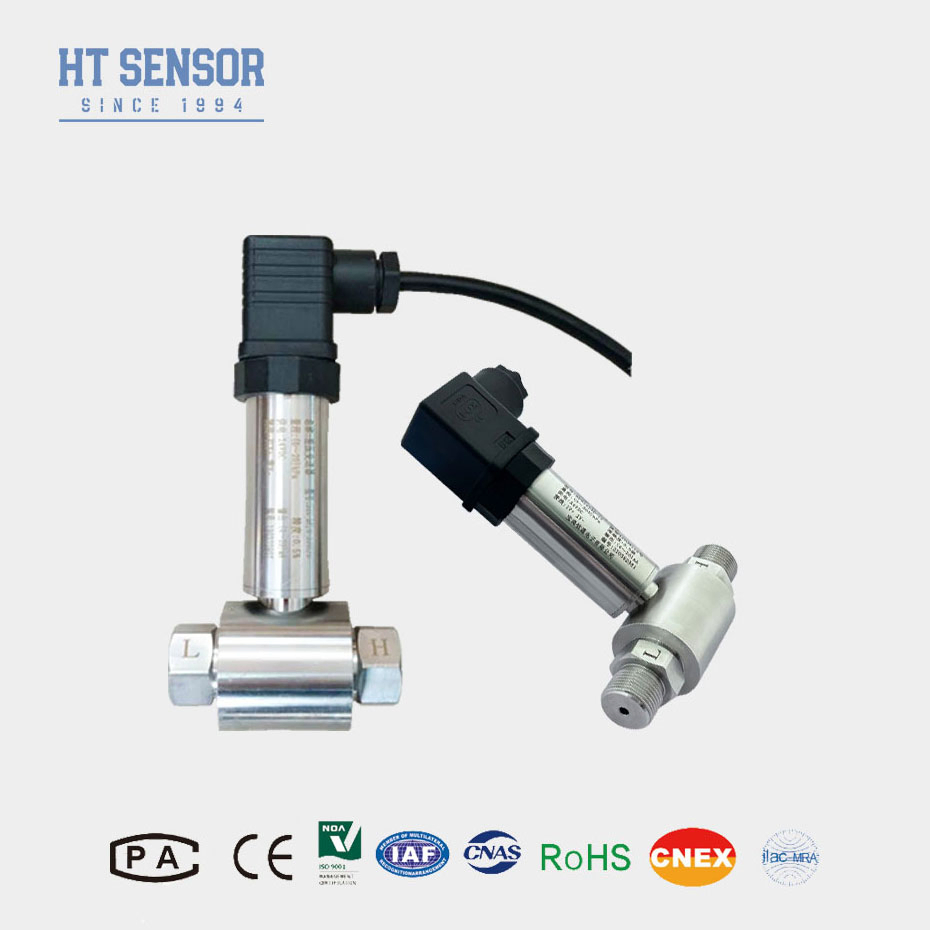

BP93420DII Differential Pressure Transmitter
The HT pressure sensor 0-35KPa BP93420DII differential pressure sensor and water pressure transducer utilizes piezoresistive diffused silicon sensor technology for precise differential pressure measurement in industrial applications.
4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 0 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 1 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 2 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 3 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 4
Product Overview
The BP93420DII differential pressure transmitter employs advanced piezoresistive diffused silicon sensor technology. When differential pressure acts on the corrugated diaphragms, the Wheatstone bridge output provides accurate linear measurement. Ideal for gas and liquid differential pressure applications in petroleum, chemical, power, and hydrology industries.
Key Features
  • Stainless steel construction for compact design and easy installation
  • Rigorous temperature compensation and aging screening for stable, reliable performance
  • Flexible electrical interface options: plug-in or direct wiring configurations
Industrial Applications
  • Differential pressure measurement for gases and liquids in pipeline systems
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
  • Pressure measurement for pipelines and furnace chambers
Technical Specifications
Measurement Range 0-10KPa...~2MPa
Pressure Type Differential Pressure
Single-side Overload ≤3 times of the rated range
Static Pressure The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC
Operating Temperature -30ºC~80ºC
Storage Temperature -40ºC~100ºC
Vibration 10g, 55Hz ~ 2kHz
Housing Material 304, 316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Intrinsically safe and explosion-proof
Protection Rating IP65
Weight ~0.45kg
Output Signal Configuration
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0.5~4.5V		 5VDC
4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 5 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 6 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 7 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 8
Ordering Information
Selection Guidelines
Important Considerations:
  • Verify measured medium compatibility with product contacting parts
  • Install three-valve manifold for reliable operation and uniform pressure application
  • Position pressure interfaces horizontally to minimize installation impact
  • Specify special requirements (vibration, EMI/RFI, impact forces) during ordering
Ordering Guide
Component Code Description
Base Model BP93420XX Pressure Transmitter
Construction DII Differential Pressure Transmitter
Measurement Range 0-10KPa...~2MPa
Power Supply D1 24VDC
Power Supply D2 5VDC
Power Supply D3 Other
Output Signal S1 4~20mADC
Output Signal S2 1~5VDC
Output Signal S3 0~5VDC
Output Signal S4 0~10mADC
Output Signal S5 0~20mADC
Output Signal S6 0~10VDC
Output Signal S7 0.5~4.5VDC
Pressure Connection J1 M20×1.5 Male
Pressure Connection J2 G1/2 Male
Pressure Connection J3 G1/4 Male
Pressure Connection J4 1/2 NPT Male
Pressure Connection J5 Other
Electrical Connection B1 Hirschmann
Electrical Connection B2 PG7 Plug
Electrical Connection B3 Sealed Cable Output
Electrical Connection B4 Other
Pressure Type D Differential Pressure
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team for production scheduling.
What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction available.
Manufacturing Excellence
4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 9 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 10 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 11 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 12 4-20mA Output Differential Pressure Transmitter with 0.25% Accuracy and IP65 Protection 13
