Detail Information

Model NO.:	BH93420-III	Output Signal:	4-20mA Or RS485
Probe Type:	Probe Type	IP Rating:	IP68
Net Weight:	0.3kg	Diaphragm Material:	316L Stainless Steel
Accuracy:	0.25%, 0.5%	Cable Material:	PE, PU, PTFE
Measurement Range:	0~10m…400m	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Operating Temperature:	-20~80ºC	Storage Temperature:	-30~100ºC
Housing Material:	Cast Aluminum, 1Cr18Ni9Ti	Explosion-proof Rating:	ExiaIICT6
Output Status:	Analog Type
Highlight:	316L Stainless Steel Water Level Sensor , IP68 Liquid Level Transmitter , 4-20mA Output Pressure Sensor

Product Description

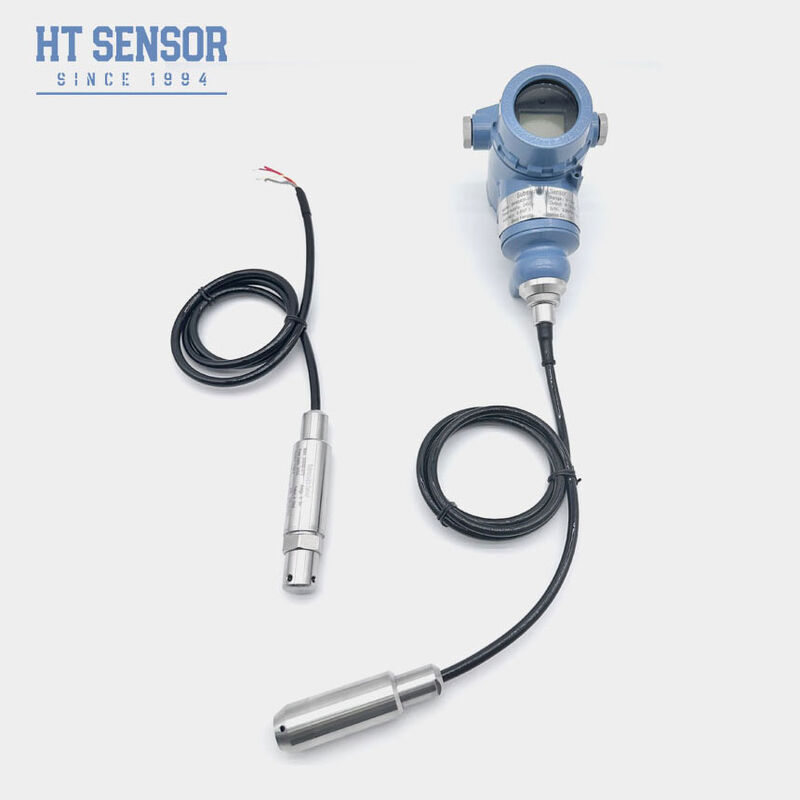

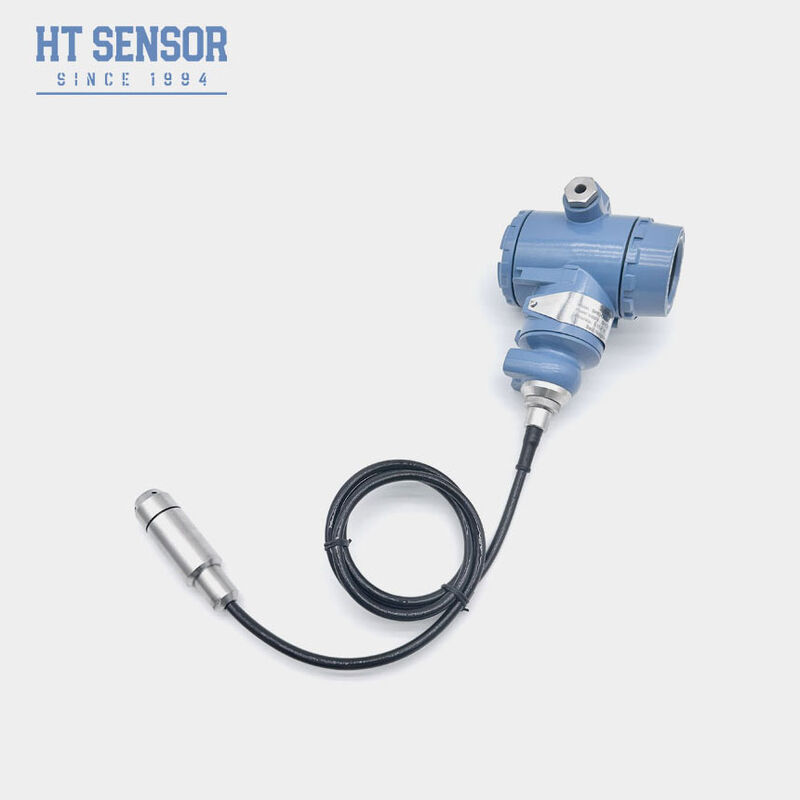

BH93420-III Liquid Level Transmitter

High-precision water leak sensor and level transmitter designed for fuel meters and pressure monitoring applications with 4-20mA output and LED display.

Product Overview

The BH93420-III liquid level sensor utilizes a highly precise Piezoresistive diffused silicon pressure sensor to measure static pressure, which directly correlates to water level. This measurement is converted into standard signal output through amplification circuitry, establishing a linear relationship between output signal and liquid level for precise and accurate water level measurement.

Key Features

Split-type design for easy on-site wiring and calibration
Integrated LED display for clear readings
Explosion-proof rating: ExiaIICT6
High protection rating: IP68
Multiple cable options: PE, PU, PTFE

Applications

Compatible with 316L stainless steel and non-corrosive liquids
Water level monitoring for sewage, industrial and municipal water systems, water tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and other oil tank level monitoring

Performance Parameters

Measurement Range	0~10m…400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature	-20~80ºC
Storage Temperature	-30~100ºC
Vibration	10g,55Hz ~ 2kHz
Shock	100g
Housing Material	Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68
O-Ring Seal	Fluoro rubber
Weight	~1.5Kg (without cable)
Cable Material	Polyethylene, Polyurethane, PTFE cable

Output Signal	Supply Voltage	Output Type
4~20mA	15~30VDC	2/3/4 wire
RS485 Communication Protocol		4 wire

Outline Construction

Electrical Connection

Selection Examples

Ordering Information

Important Ordering Considerations

Please ensure that the measured medium is compatible with the product components in contact with it during selection.

Specify the density of the measured medium.

For strong electromagnetic or radio frequency interference environments, please provide details and indicate in your order.

For reliable operation, install lightning protection devices on-site and ensure proper product and power supply grounding.

Order Guide

BH93420	Code	Outline Construction
III		Liquid level transmitter with the 2088 housing
	Measurement Range	0~10m…400m
	Code	Power Supply
	D1	24VDC
	Code	Output Signal
	S1	4~20mADC
	S2	RS485
	Code	Electrical Connection
	B5	2088 with display
	B6	3051A
	Code	Pressure Type
	G	Gauge Pressure
	A	Absolute Pressure
	S	Sealed Reference Pressure
	Code	Material
	01	304 Stainless Steel
	02	316L Stainless Steel
	Code	Cable Material
	C1	PE
	C2	PU
	C3	PTFE

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for smooth production and delivery scheduling.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.

Tag:

Certification:	CE,RoHS

Minimum Order Quantity:	1
Price:	50

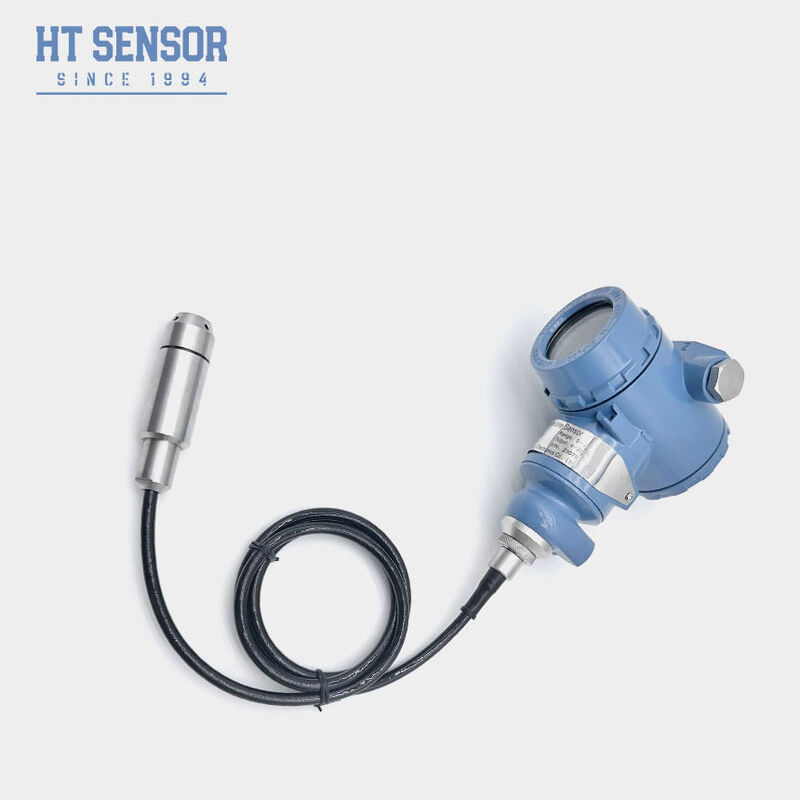

316L Stainless Steel IP68 Water Level Sensor with 4-20mA Output Liquid Level Transmitter
