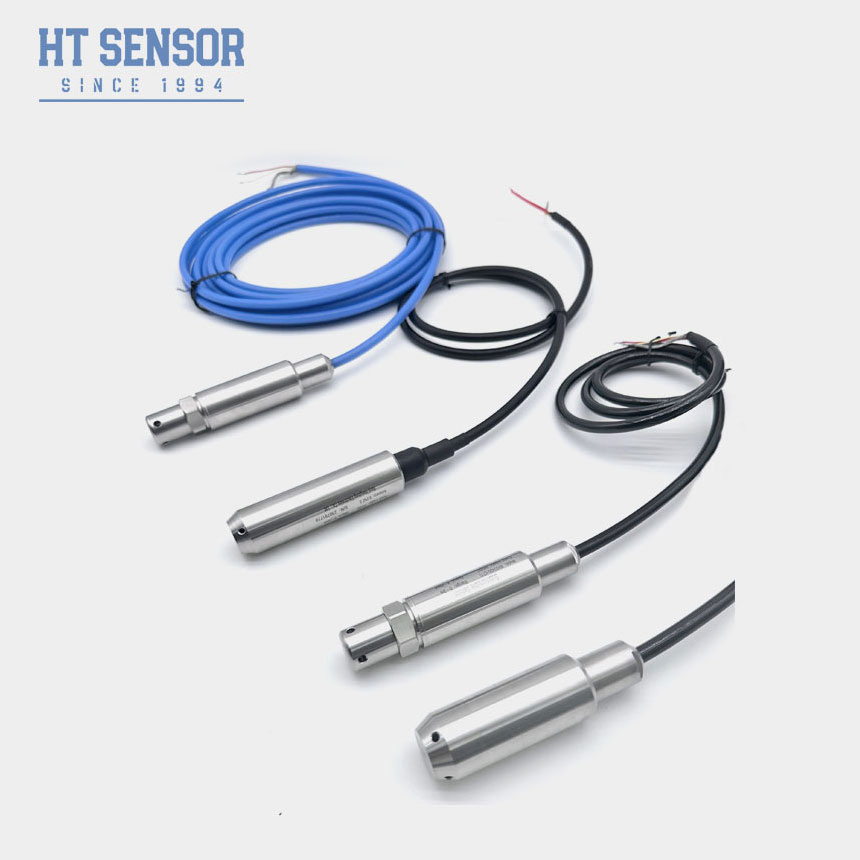

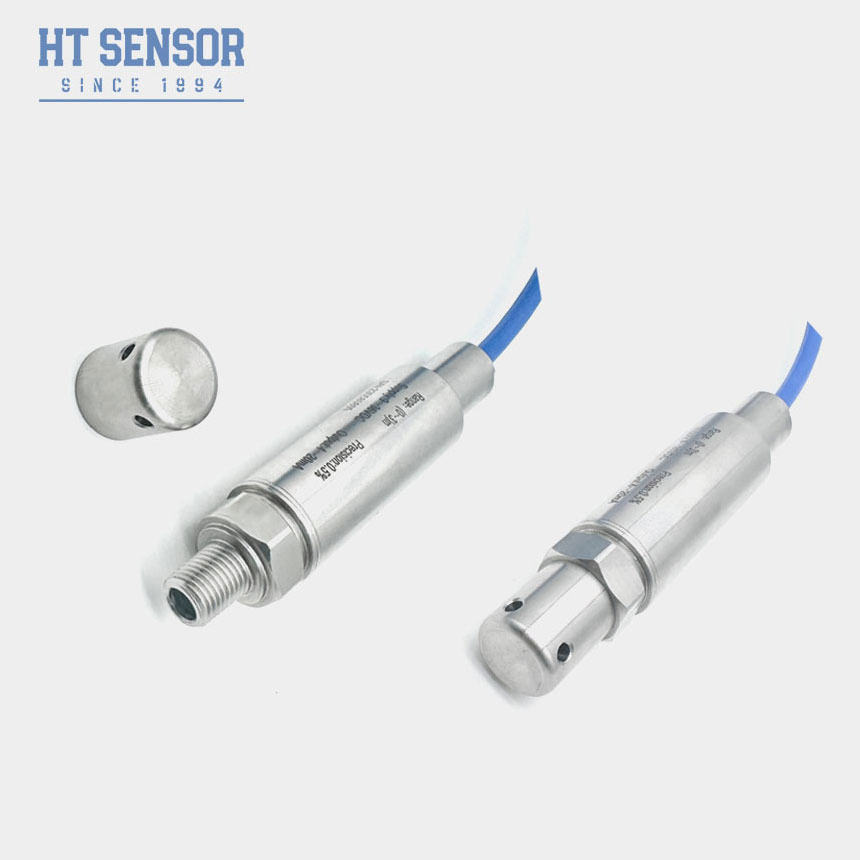

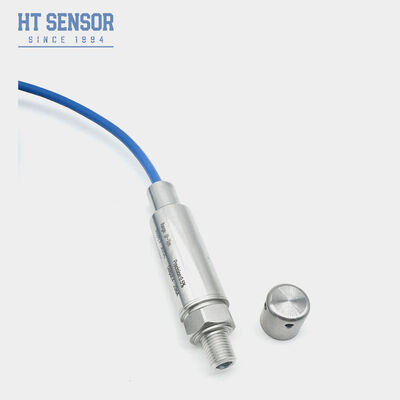

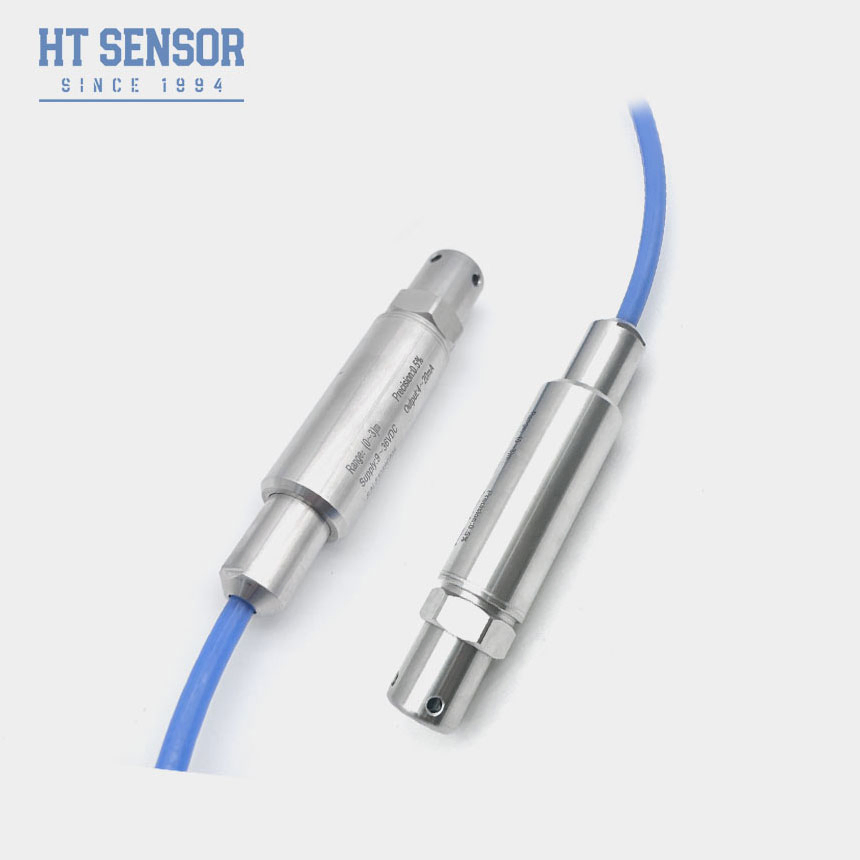

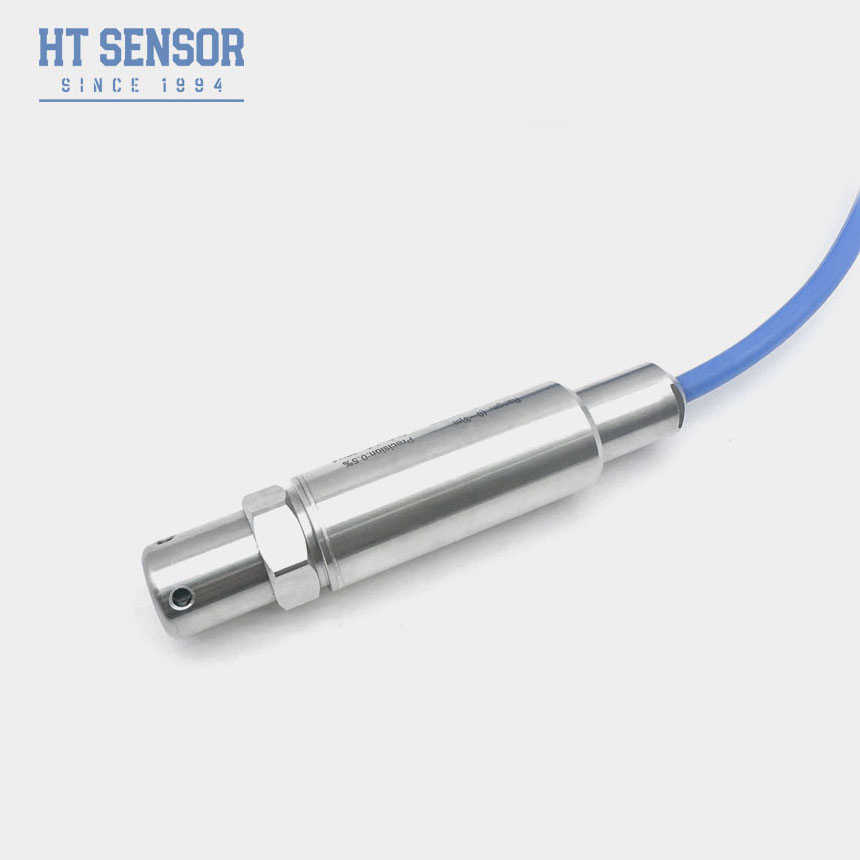

BH93420-I Water Level Transmitter
The BH93420-I water level transmitter utilizes HT series diffused silicon isolation oil-filled core technology as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, this immersion-type probe offers exceptional waterproof performance and reliability for liquid level measurement applications.
Key Features
- Full stainless steel housing for diverse testing environments
- Immersion-type probe measurement with easy installation
- Multiple output signal options available
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- PE or PU cable options
Applications
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring for sewage, industrial water, municipal water systems, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
Performance Parameters
| Measurement Range |
0~10m…400m |
| Overload |
≤ 2 X of rated range |
| Accuracy @ 25ºC |
±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability |
±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift |
±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift |
±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature |
0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature |
-20~80ºC |
| Storage Temperature |
-30~100ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
1Cr18Ni9Ti |
| Diaphragm Material |
316L Stainless Steel |
| Insulation Resistance |
>=100MΩ@100VDC |
| Explosion-proof Rating |
ExiaIICT6 |
| Protection Rating |
IP67, IP68 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.3Kg (without cable) |
| Cable Material |
Polyethylene, Polyurethane |
Output Signal Options
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
|
3 wire |
0/1~5V
0/1~10V
0.5~4.5V |
5VDC |
|
| RS485 Communication Protocol |
3.6~30V / Battery |
4 wire |
Ordering Information
Ordering Tips
• Ensure measured medium compatibility with product components
• Specify density of measured medium
• For strong electromagnetic or radio frequency interference, provide details during ordering
• Install lightning protection devices and ensure reliable grounding for optimal performance
Order Guide
| Component |
Code |
Description |
| Base Model |
BH93420 |
Pressure Transmitter |
| Measurement Range |
|
0~10m…400m |
| Power Supply |
D1
D2
D3 |
24VDC
5VDC
Other |
| Output Signal |
S1
S2
S3
S4
S5
S6
S7
S8 |
4~20mADC
1~5VDC
0~5VDC
0~10mADC
0~20mADC
0~10VDC
0.5~4.5VDC
RS485 |
| Pressure Type |
G
A
S |
Gauge Pressure
Absolute Pressure
Sealed Reference Pressure |
| Material |
01
02 |
304 Stainless Steel
316L Stainless Steel |
| Cable Material |
C1
C2 |
PE
PU |
