Detail Information

Model NO.:	BH93420-I	Pressure Range:	Negative Pressure
Display Type:	LCD	Accuracy Grade:	0.5G
IP Rating:	IP68	Net Weight:	0.5kg
Diaphragm Material:	316L Stainless Steel	Accuracy:	0.25%, 0.5%
Cable Material:	PE, PU, PTFE	Measurement Range:	0~10m…400m
Overload Capacity:	≤ 2X Rated Range	Operating Temperature:	-20~80ºC
Storage Temperature:	-30~100ºC	Housing Material:	Cast Aluminum, 1Cr18Ni9Ti
Output Signal:	4~20mA, RS485
Highlight:	316L Stainless Steel Liquid Level Transmitter , IP68 Waterproof Level Sensor , 4-20mA Output Water Level Gauge

Product Description

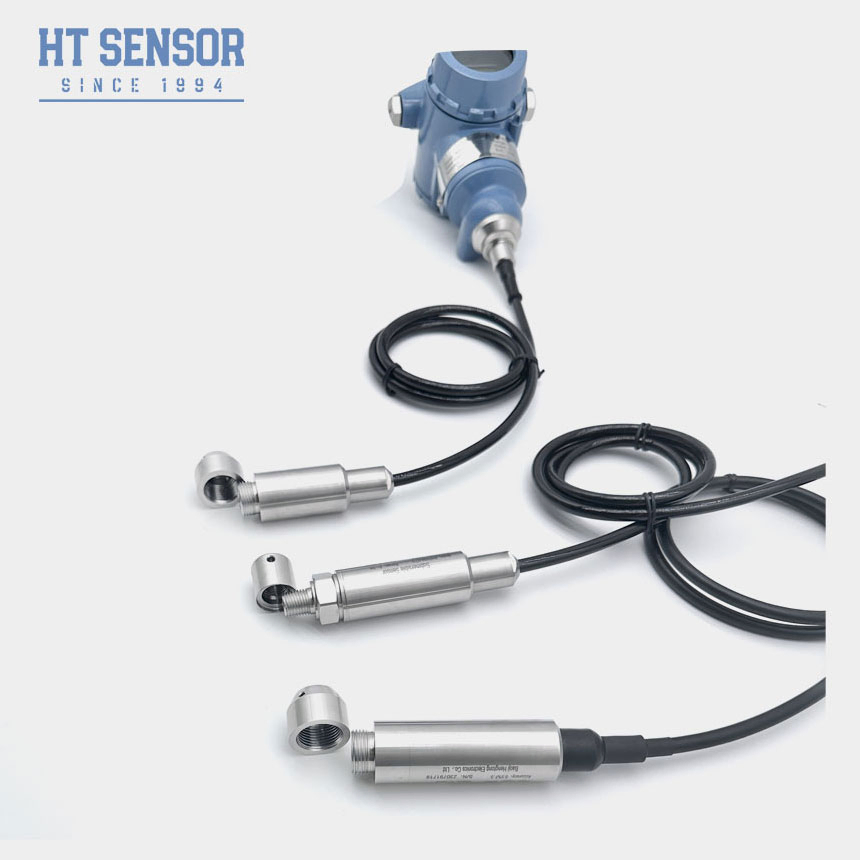

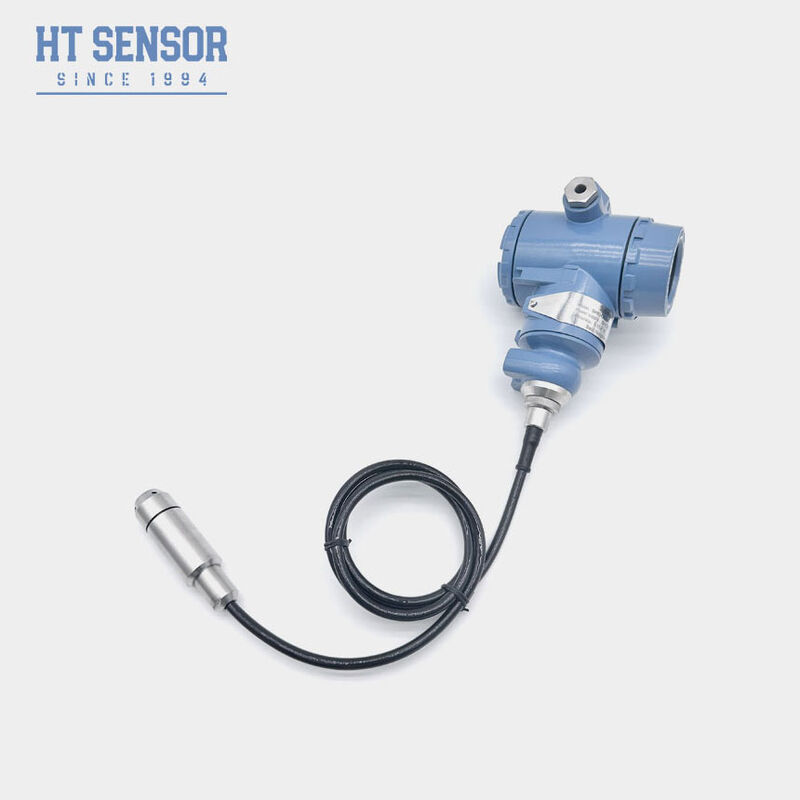

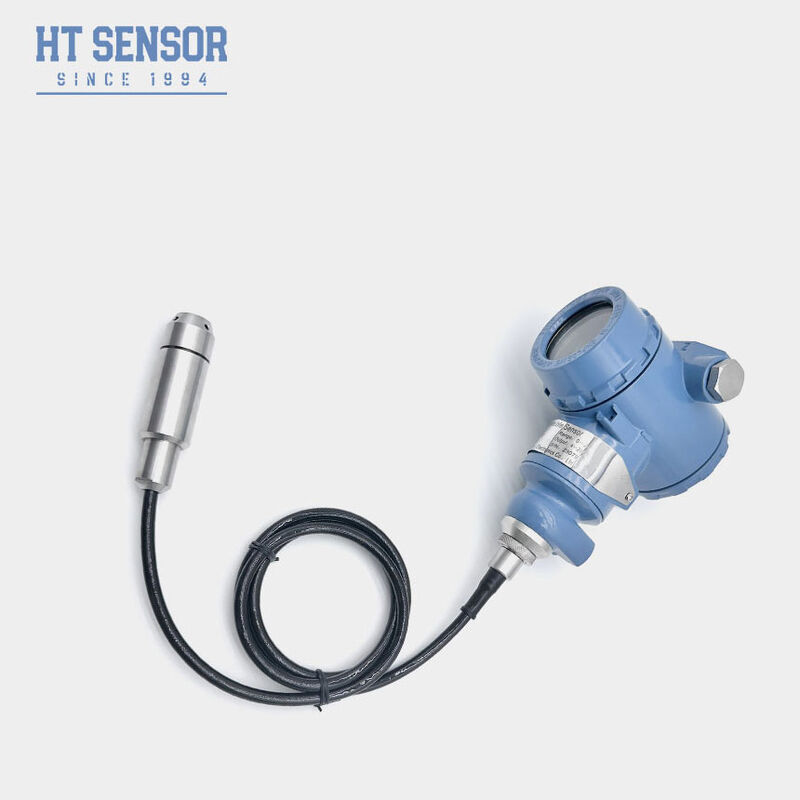

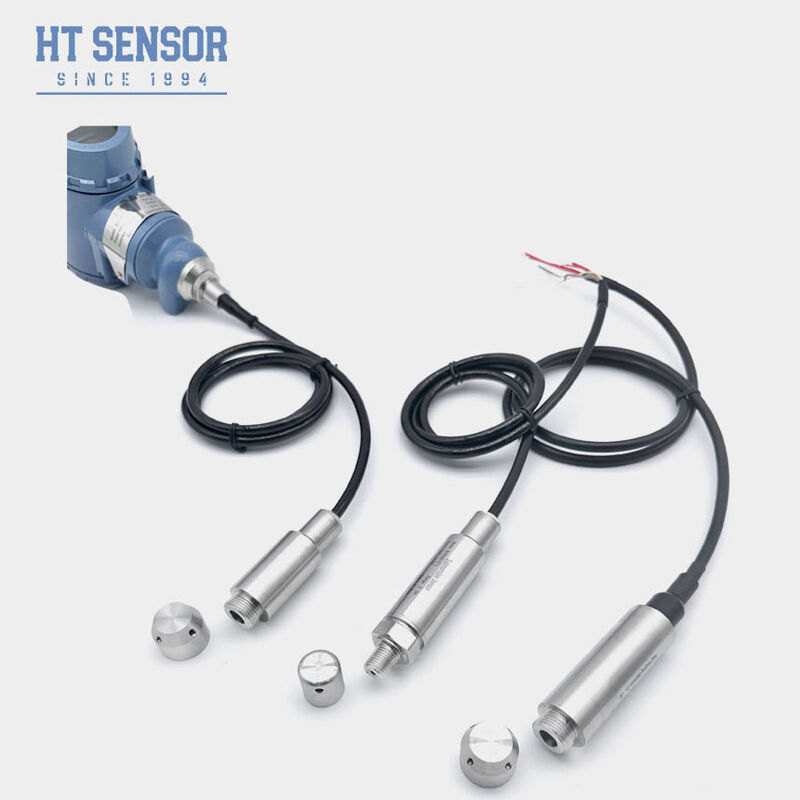

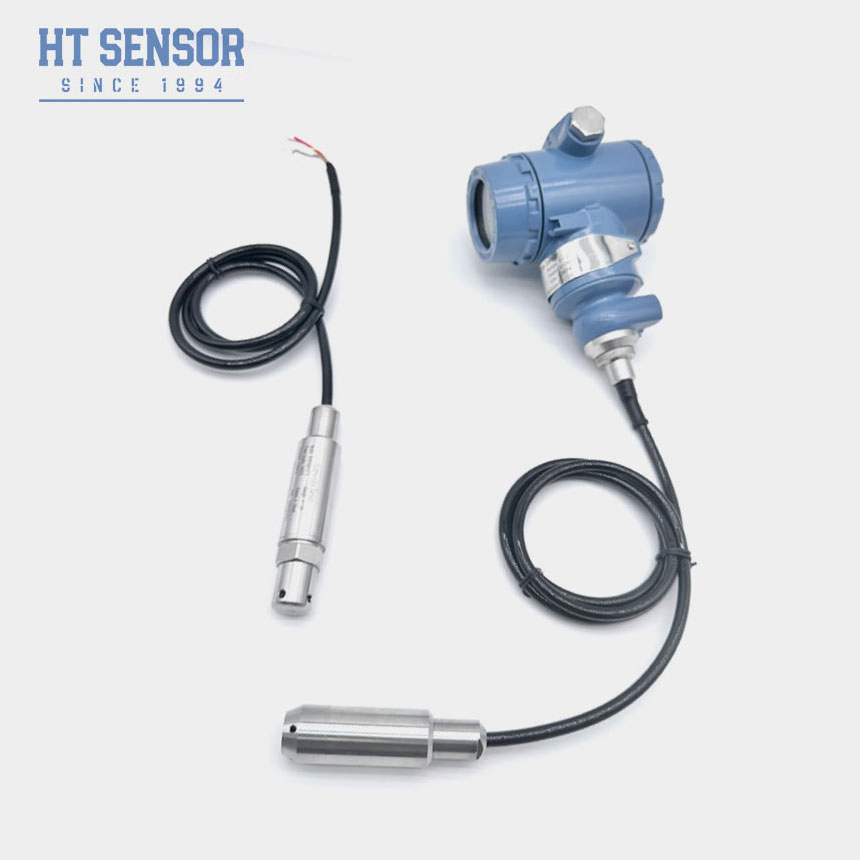

BH93420-III Split Level Transmitter Pressure Sensor

The Hengtong BH93420-III split level transmitter is a precision liquid level measurement sensor featuring 4-20mA output with LED display capability. This advanced sensor utilizes a highly precise piezoresistive diffused silicon pressure sensor to measure static pressure directly related to water level, converting it into standard signal output through amplification circuitry.

Key Features

Split-type design for easy on-site wiring and calibration
Integrated LED display for clear readings
Explosion-proof rating: ExiaIICT6
High protection rating: IP68
Multiple cable options: PE, PU, PTFE

Applications

Compatible with 316L stainless steel and non-corrosive liquids
Water level monitoring for sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and other oil tank level monitoring

Performance Parameters

Measurement Range	0~10m…400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature	-20~80ºC
Storage Temperature	-30~100ºC
Vibration	10g,55Hz ~ 2kHz
Shock	100g
Housing Material	Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68
O-Ring Seal	Fluoro rubber
Weight	~1.5Kg (without cable)
Cable Material	Polyethylene, Polyurethane, PTFE cable
Output Signal	4~20mA, RS485 Communication Protocol

Outline Construction

Electrical Connection

Selection Examples

Ordering Information

Important Ordering Tips

Ensure measured medium compatibility with product components
Specify the density of the measured medium
For strong electromagnetic or radio frequency interference, provide details during ordering
Install lightning protection devices and ensure proper grounding for reliable operation

Order Guide

Parameter	Code	Description
Outline Construction	III	Liquid level transmitter with 2088 housing
Measurement Range		0~10m…400m
Power Supply	D1	24VDC
Output Signal	S1/S2	4~20mADC / RS485
Electrical Connection	B5/B6	2088 with display / 3051A
Pressure Type	G/A/S	Gauge / Absolute / Sealed Reference Pressure
Material	01/02	304 Stainless Steel / 316L Stainless Steel
Cable Material	C1/C2/C3	PE / PU / PTFE

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Q: What is your production capacity?
A: Up to 30,000 pressure sensor transmitters per month. Contact our sales team for large-scale orders.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty and after-sales service?
A: 24-month warranty after shipment. 24-hour response time with remote PC network support available.
