Detail Information

Model NO.:	BH93420-III	Output Signal:	Analog Type
Production Process:	Piezoresistive Diffused Silicon Pressure Sensor	Material:	Stainless Steel
IP Rating:	IP68	Net Weight:	1.5kg
Diaphragm Material:	316L Stainless Steel	Accuracy:	0.25%,0.3%,0.5%
Cable Material:	PE,PU,PTFE	Measurement Range:	0~1m…400mH2O
Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure	Operating Temperature:	-20~80ºC
Storage Temperature:	-30~100ºC	Explosion-proof Rating:	ExiaIICT6
Insulation Resistance:	>=100MΩ@100VDC
Highlight:	316L Stainless Steel Liquid Level Transmitter , IP68 Waterproof Water Pressure Sensor , 0.25% Accuracy Fuel Level Sensor

Product Description

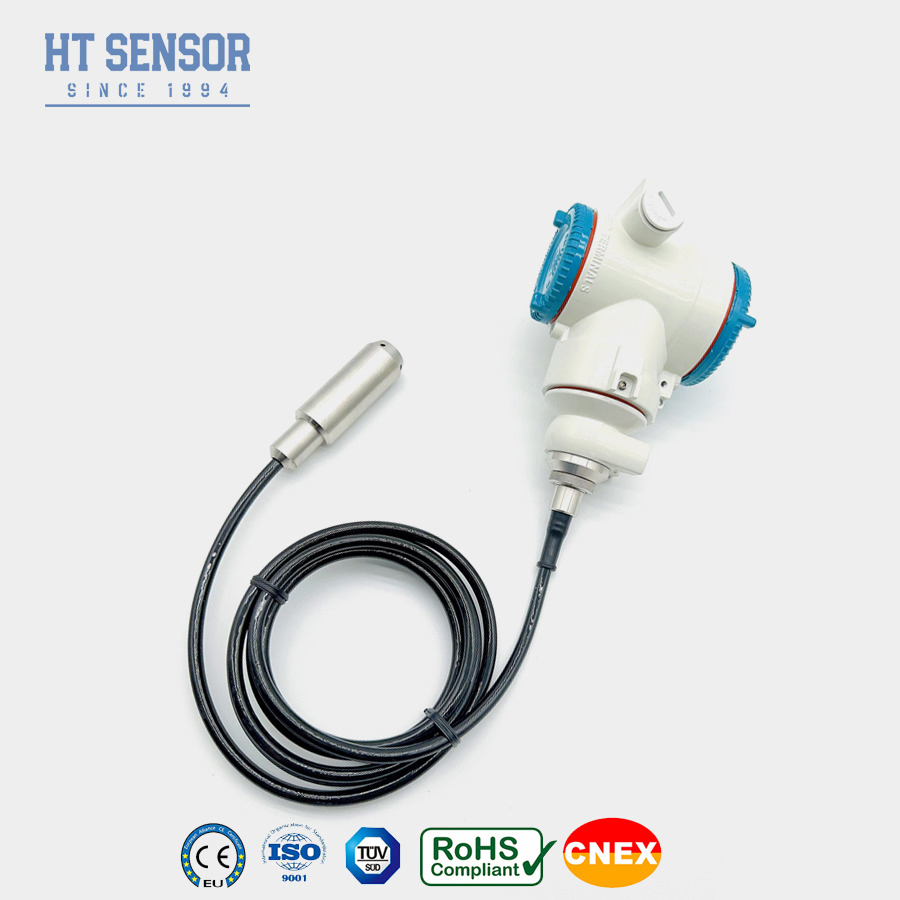

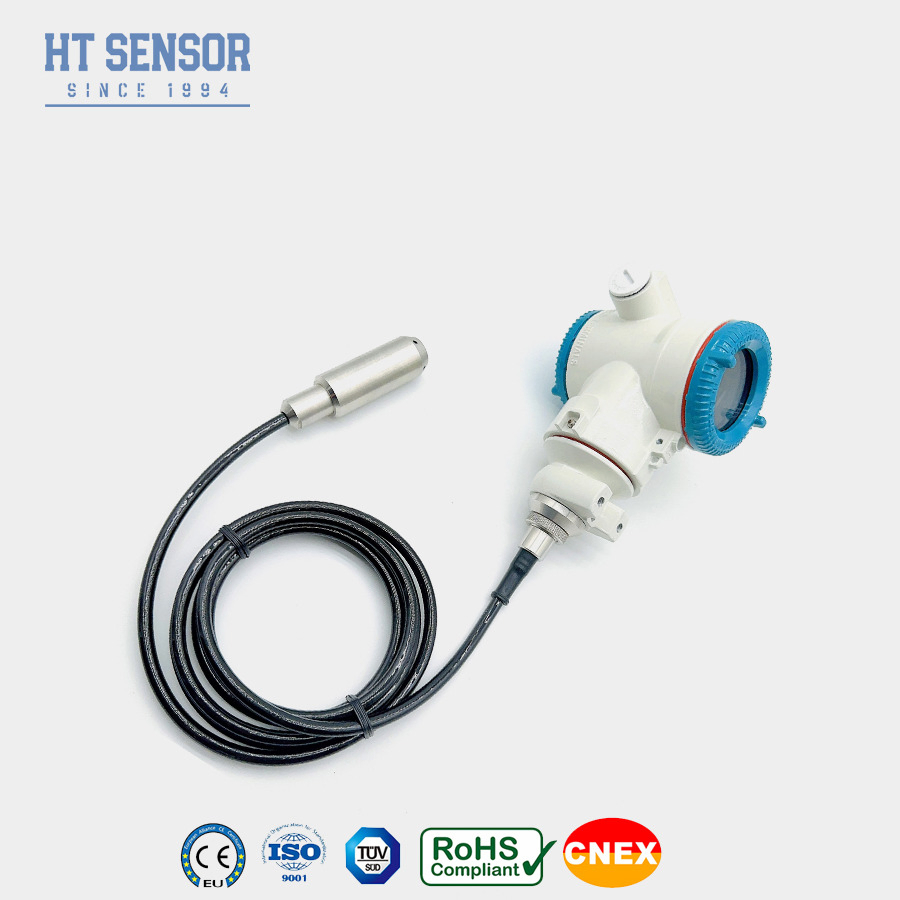

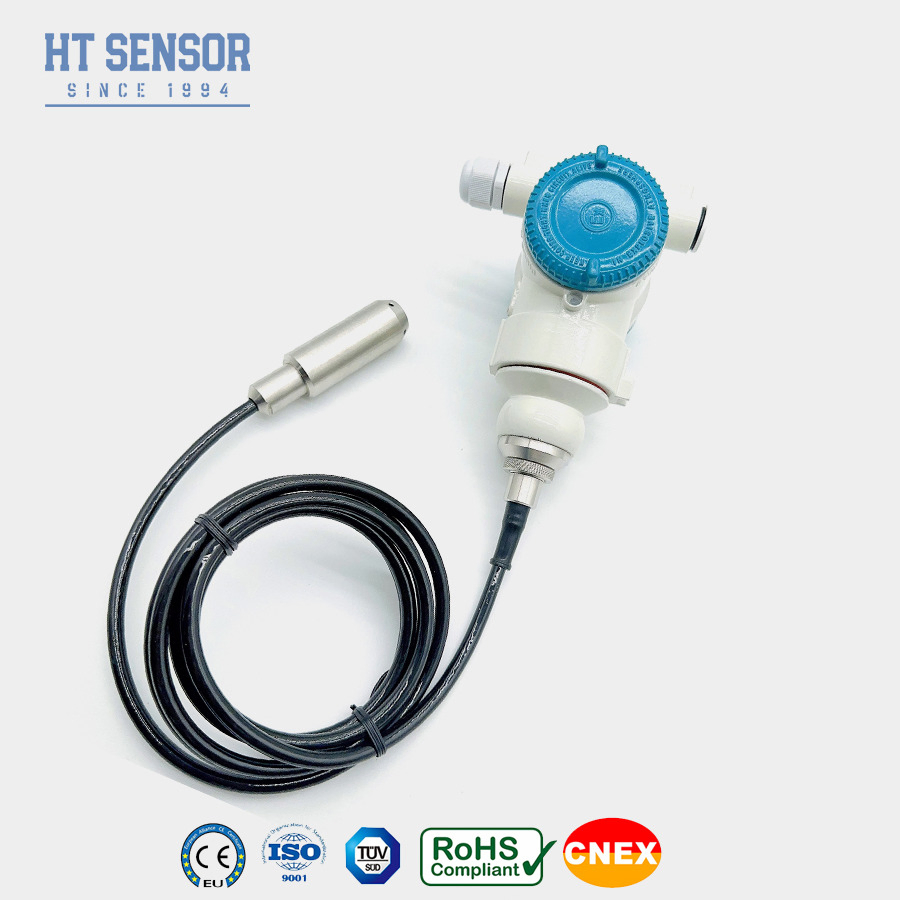

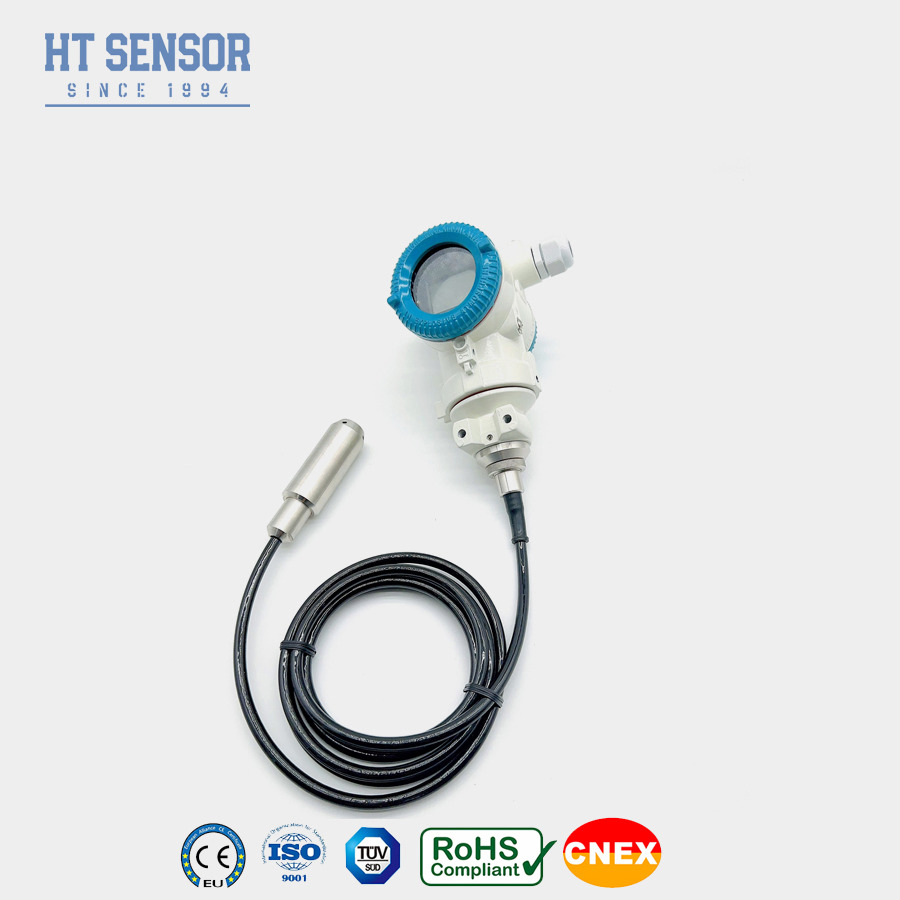

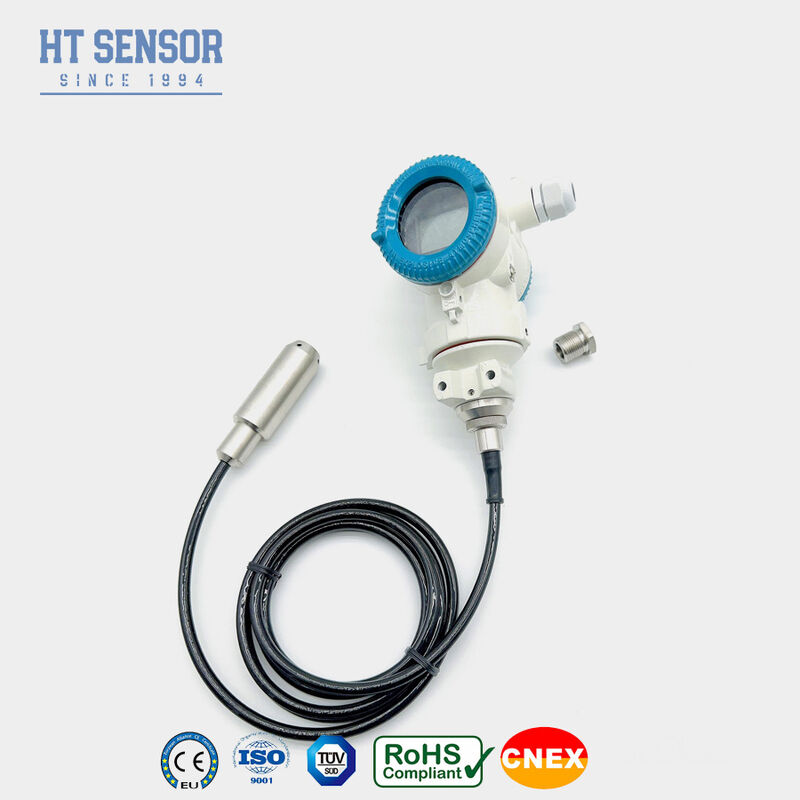

BH93420-III Liquid Level Transmitter

High-precision water pressure sensor for fuel level monitoring and industrial liquid measurement applications.

Product Overview

The BH93420-III water level transmitter utilizes a highly precise Piezoresistive diffused silicon pressure sensor to measure static pressure directly related to liquid level. This advanced sensor converts pressure into standard output signals through amplification circuitry, establishing a linear relationship for precise and accurate water level measurement.

Key Features

Split-type design for easy on-site wiring and calibration
Integrated LED display for clear readings
Explosion-proof rating: ExiaIICT6
High protection rating: IP68
Multiple cable options: PE, PU, PTFE

Applications

Compatible with 316L stainless steel and non-corrosive liquids
Water level monitoring for sewage, industrial water, municipal water systems, tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and oil tank level monitoring

Performance Parameters

Measurement Range	0~1m…400m H₂O
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature	-20~80ºC
Storage Temperature	-30~100ºC
Vibration Resistance	10g, 55Hz ~ 2kHz
Shock Resistance	100g
Housing Material	Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68
O-Ring Seal	Fluoro rubber
Weight	~1.5Kg (without cable)
Cable Material	Polyethylene, Polyurethane, PTFE cable

Output Signal Options

Output Signal	Supply Voltage	Connection Type
4~20mA	15~30VDC	2/3/4 wire
RS485 Communication Protocol		4 wire

Outline Construction

Electrical Connection

Selection Examples

Ordering Information

Important Considerations:

Verify measured medium compatibility with product components
Specify density of the measured medium
Disclose strong electromagnetic or radio frequency interference environments
Install lightning protection devices and ensure proper grounding for reliable operation

Order Guide

BH93420	Code	Outline Construction
I	Pressure Transmitter	Measurement Range: 0~10m…400m
Code	Power Supply
D1	24VDC
D2	5VDC
D3	Other
Code	Output Signal
S1	4~20mADC	S5: 0~20mADC
S2	1~5VDC	S6: 0~10VDC
S3	0~5VDC	S7: 0.5~4.5VDC
S4	0~10mADC	S8: RS485
Code	Pressure Type
G	Gauge Pressure
A	Absolute Pressure
S	Sealed Reference Pressure
Code	Material
01	304 Stainless Steel
02	316L Stainless Steel
Code	Cable Material
C1	PE
C2	PU

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty and after-sales service?

24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.

Certification:	CE, RoHS, ISO9001

Minimum Order Quantity:	1
Price:	50
