Detail Information

Model NO.:	BH93420-III	Output Signal:	Analog Type
Material:	Stainless Steel	IP Rating:	IP68
Net Weight:	1.5kg	Diaphragm Material:	316L Stainless Steel
Accuracy:	0.25%,0.3%,0.5%	Cable Material:	PE,PU,PTFE
Measurement Range:	0~1m…400mH2O	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload:	≤ 2X Rated Range	Operating Temperature:	-20~80ºC
Storage Temperature:	-30~100ºC	Explosion-proof Rating:	ExiaIICT6
Housing Material:	Cast Aluminum, 1Cr18Ni9Ti
Highlight:	316L Stainless Steel Liquid Level Transmitter , IP68 Waterproof Water Pressure Transmitter , 4-20mA Output Fuel Level Sensor

Product Description

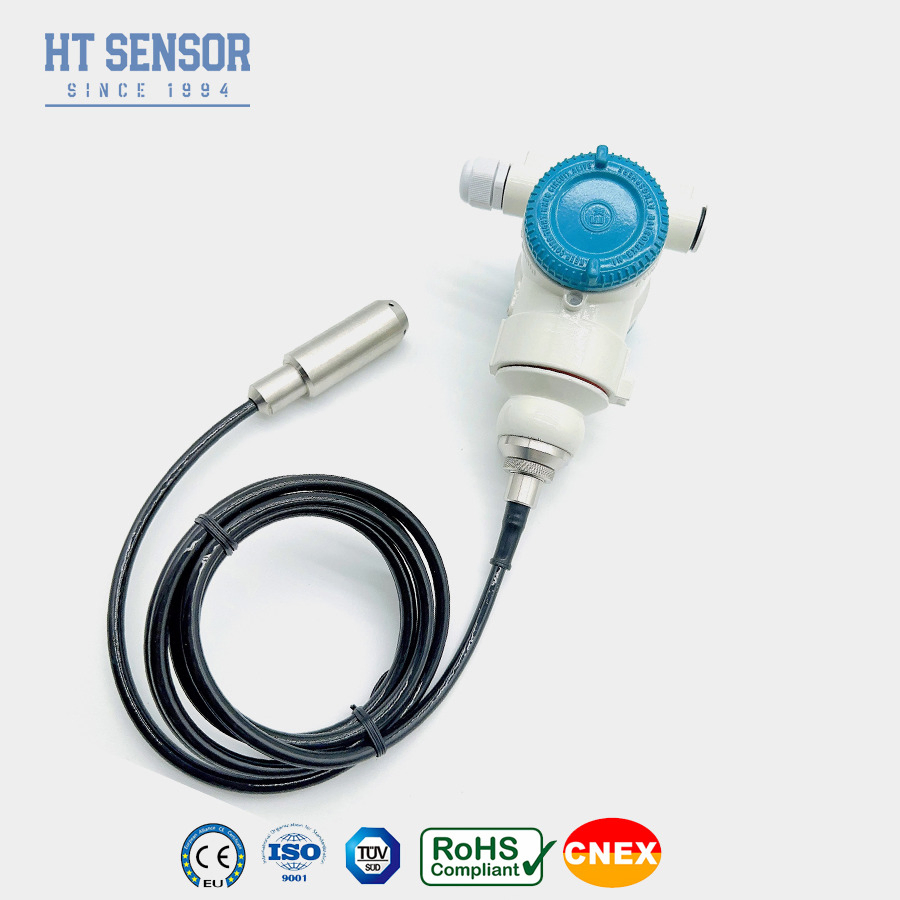

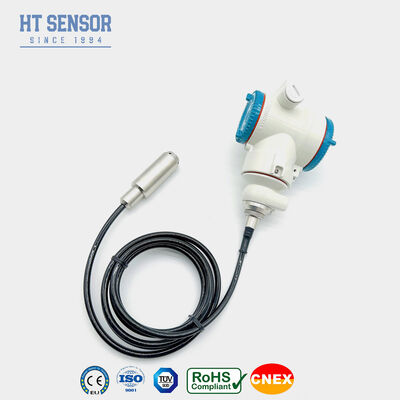

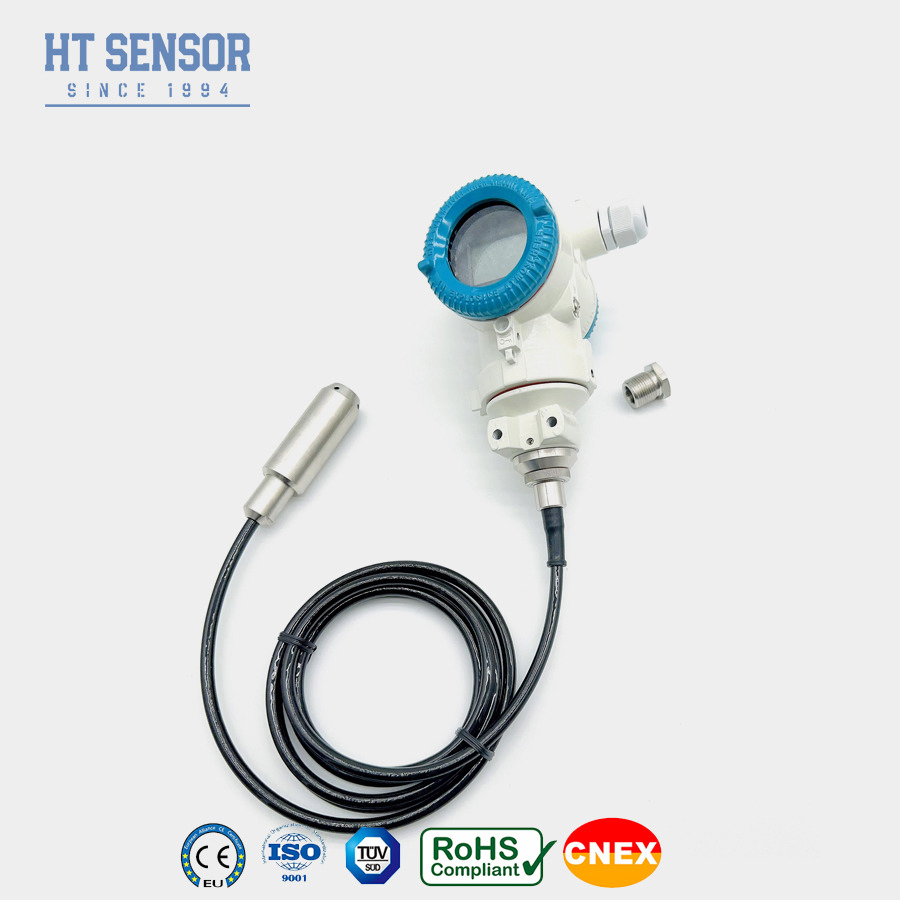

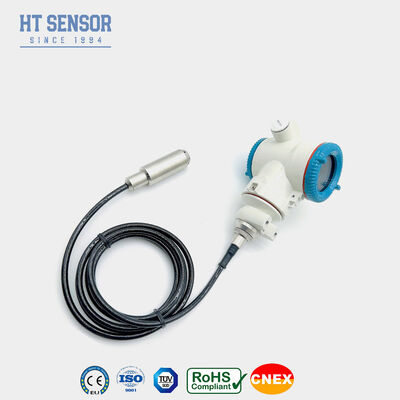

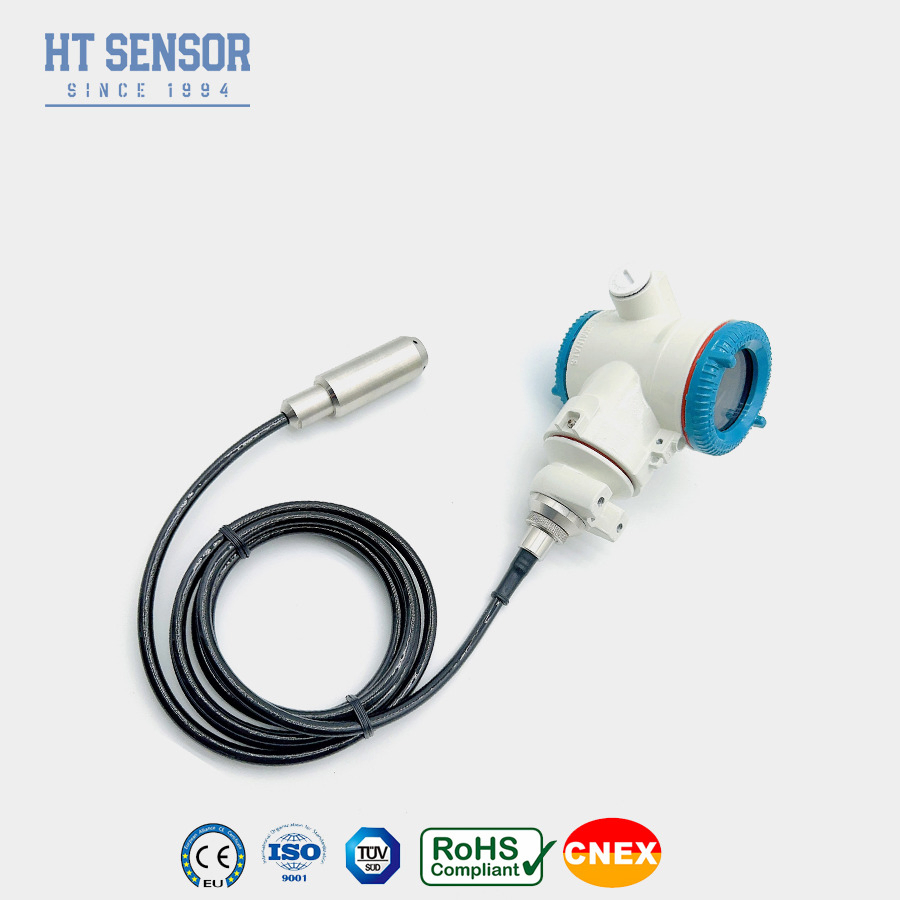

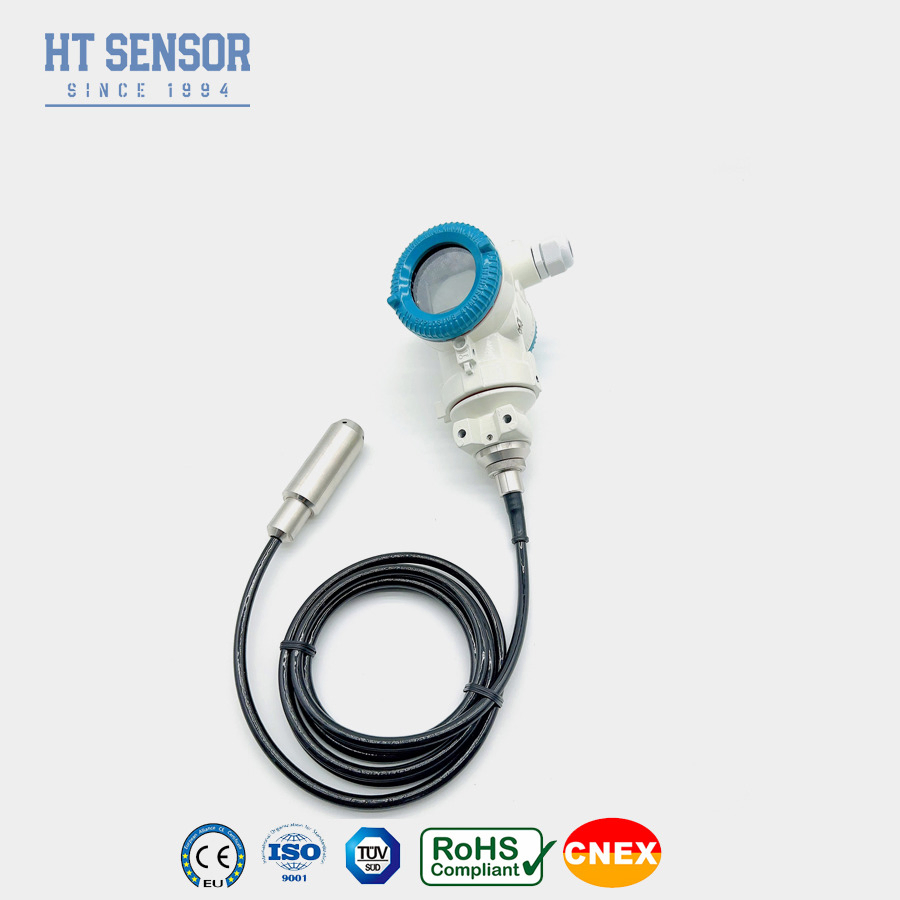

BH93420-III Water Level Transmitter

The BH93420-III water level transmitter utilizes a highly precise Piezoresistive diffused silicon pressure sensor to measure static pressure directly related to water level. This advanced sensor converts pressure into standard signal output through amplification circuitry, establishing a linear relationship between output signal and liquid level for precise and accurate water level measurement.

Key Features

Split-type design for easy on-site wiring and calibration
Clear LED display for real-time monitoring
Explosion-proof rating: ExiaIICT6 for hazardous environments
High protection rating: IP68 for complete dust and water immersion protection
Multiple cable options: PE, PU, PTFE materials available

Applications

Compatible with 316L stainless steel and non-corrosive liquids
Water level monitoring in sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and other oil tank level monitoring and control

Performance Parameters

Measurement Range	0~1m…400m H₂O
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature	-20~80ºC
Storage Temperature	-30~100ºC
Vibration Resistance	10g, 55Hz ~ 2kHz
Shock Resistance	100g
Housing Material	Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68
O-Ring Seal	Fluoro rubber
Weight	~1.5Kg (without cable)
Cable Material	Polyethylene, Polyurethane, PTFE cable

Output Signal	Supply Voltage	Output Type
4~20mA	15~30VDC	2/3/4 wire
RS485 Communication Protocol		4 wire

Outline Construction

Electrical Connection

Selection Examples

Ordering Information

Important Ordering Considerations:

• Ensure measured medium compatibility with product components

• Specify density of the measured medium

• For strong electromagnetic or RF interference environments, provide details during ordering

• Install lightning protection devices and ensure proper grounding for reliable operation

Order Guide

BH93420	Code	Outline Construction
I		Pressure Transmitter
Measurement Range		0~10m…400m
Code		Power Supply
D1		24VDC
D2		5VDC
D3		Other
Code		Output Signal
S1	4~20mADC	S5	0~20mADC
S2	1~5VDC	S6	0~10VDC
S3	0~5VDC	S7	0.5~4.5VDC
S4	0~10mADC	S8	RS485
Code		Pressure Type
G		Gauge Pressure
A		Absolute Pressure
S		Sealed Reference Pressure
Code		Material
01		304 Stainless Steel
02		316L Stainless Steel
Code		Cable Material
C1		PE
C2		PU

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Customized products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

Q: What is the warranty of your products? And after-sales service?

A: 24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.

Certification:	CE, RoHS, ISO9001

Minimum Order Quantity:	1
Price:	50
