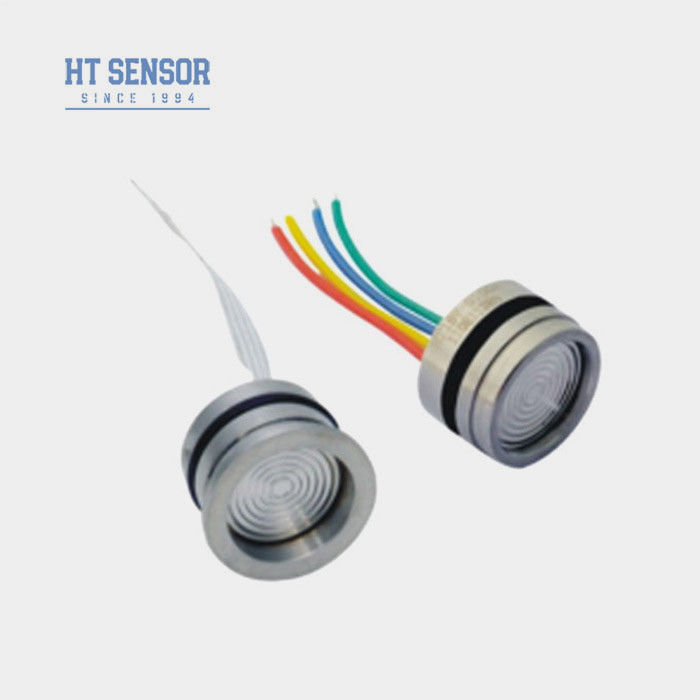

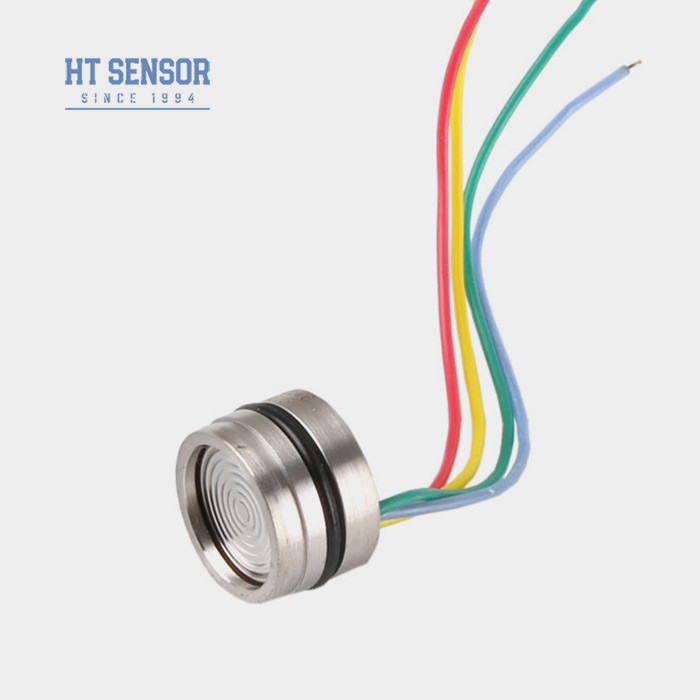

HT19V 19mm 10VDC Powered Piezoeletric Silicon Pressure Sensor for Air and Liquid

HT19V Silicon Piezoresistive Pressure Sensor

Introduction of silicon pressure sensor:


HT19V employs a highly stable diffused silicon element, making it a reliable silicon piezoresistive pressure sensor. By utilizing an isolation diaphragm and silicon oil, the sensor accurately measures the pressure of liquids and gases,offering precise results. Its extensive applications in air compressors and refrigeration systems make it a valuable asset in various industries.
Product  Features of silicon pressure sensor:

1.Utilizes thick-film circuitry for temperature compensation and zero offset correction

2.High reliability and excellent stability

3.Constant voltage power supply, standard output

Applications of silicon pressure sensor:

1.Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility

2.Used in process control systems for monitoring and controlling pressure.

3.Commonly used in refrigeration systems and air compressors for pressure measurement.

Electrical performance of silicon pressure sensor:

1.Power Supply: ≤10VDC

2.Common Mode Voltage Output: 50% of the input (typical)

3.Input Impedance:4KΩ~20KΩ

4.Output Impedance:2.5KΩ~6KΩ

5.Electrical Connection:100mm high-temperature wire,ribbon cable

Performance Parameters of silicon pressure sensor:.
Measurement Range Gauge(G) 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPaS,100MPaS
  Typ Max Unit
NonLinearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   ≤20KPa 50±1 50±2 mV
≥35kPa 100±1 100±2 mV
Zero Offset Temp. Drift ≤20KPa ±1 ±2.5 %F.S
≥35kPa ±0.8 ±1.5 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.8 ±1.5 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~28g
The parameters are tested under the following conditions:   10V @ 25ºC
Outline Construction of silicon pressure sensor
<3.5MPaS 19mm 10VDC Powered Mems Silicon Piezoeletric Pressure Sensor for Air and Liquid
19mm 10VDC Powered Mems Silicon Piezoeletric Pressure Sensor for Air and Liquid
≥40MPaS 19mm 10VDC Powered Mems Silicon Piezoeletric Pressure Sensor for Air and Liquid
Electrical connection and compensation of silicon pressure sensor
19mm 10VDC Powered Mems Silicon Piezoeletric Pressure Sensor for Air and Liquid

Selection Examples
19mm 10VDC Powered Mems Silicon Piezoeletric Pressure Sensor for Air and Liquid
Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into  the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
