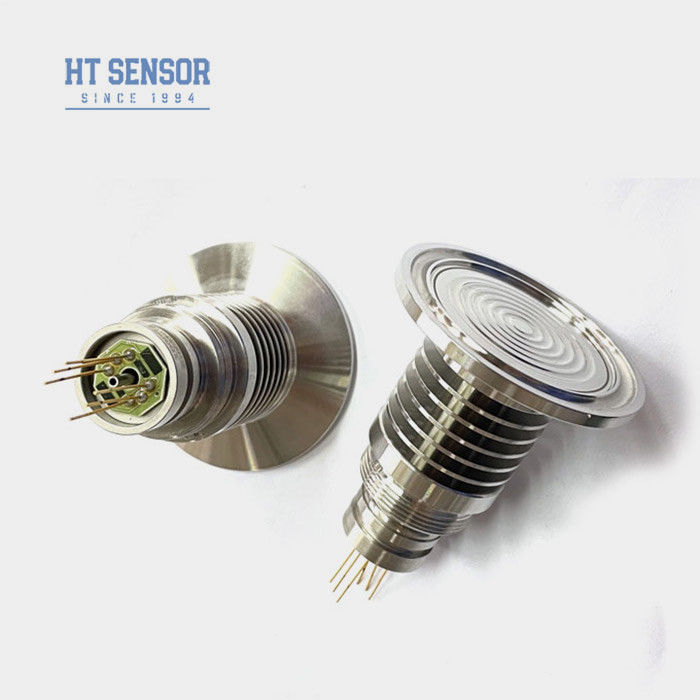

HT-IQT-B Diffused Silicon Pressure Sensor High Temperature Water Oil Pressure Sensor Cell
Product Details
| Model NO.: | HT-IQT-B | Range: | 0-35kpa~3.5Mpa |
|---|---|---|---|
| Wiring Type: | Gold-plated Kovar Pins | Measuring Medium: | AIR And Liquid Water And Oil |
| Customized: | Customized | Thread: | 50.4mm |
| Output: | Mv Signal | Power: | 1.5mA |
| Specification: | 50.4mm | Type: | Diffused Silicon Pressure Sensor |
| Output Signal Type: | Analog | Material: | 316L Stainless Steel |
| Highlight |
HT-IQT-B Diffused Silicon Pressure Sensor,Water Oil Diffused Silicon Pressure Sensor,High Temperature Water Oil Pressure Sensor |
||
Product Description
HT Sensor HT-IQT-B Diffused Silicon Pressure Sensor for High temperature water or oil
HT-IQT-B Piezoresistive Silicon Pressure Sensor
Introduction of diffused silicon pressure sensor:
HT - IQT - B silicon pressure sensor is a kind of embedded diaphragm.Pressure was transferred to the sensitive chip through a stainless steel diaphragm and sealed silicone oil. The sensor chip converts the pressure into a detectable millivolt electrical signal. Thus, we can intuitively observe the pressure value of the measured medium. This product adopts plate diaphragm structure, with high temperature heat sink, high temperature medium measurement effect is good. The bare flat diaphragm is easy to clean and has a good effect on the measurement of viscous media.Apply to food, health and other industries.
Product Features of diffused silicon pressure sensor:
- 316L stainless steel housing packaging.
- Temperature compensation and zero point correction through thick film.

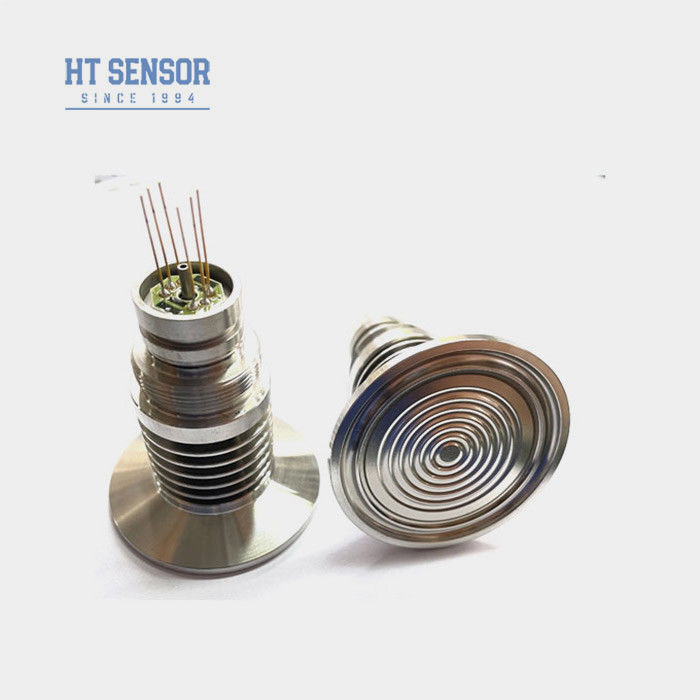

- High-temperature flush diaphragm structure for easy cleaning.
- Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility.
- Food and beverage industry.
- Industrial process control.
- Power Supply: ≤2mA DC (0.4-1.5mA DC).
- Input Impedance : 2.5KΩ~6KΩ.
- Output Impedance: 2.5KΩ~6KΩ.
- Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires.
| Performance Parameters of diffused silicon pressure sensor: | |||||
| Measurement Range | Gauge(G) | 35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | |||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS | ||||
| Typ | Max | Unit | |||
| NonLinearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | |
| ≥35kPa | 100±10 | 100±30 | mV | ||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | ||
| ≥35kPa | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 120MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~220g | ||||
| The parameters are tested under the following conditions: 1.5mA @25°C | |||||
| Outline Construction | |
| Dimension |
|
| Electrical connection and compensation |
|
| Selection Examples |
| Ordering tips |
required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
