BP9325 Water Silicon Pressure Sensor Transmitter Air Pressure Sensor Mv Output M12*1
Product Details
| Model NO.: | BP9325 | Thread Type: | G1/4 Or 1/2NPT And So On |
|---|---|---|---|
| Wiring Type: | Four-Wire | Measuring Medium: | Gas And Liquid |
| Range: | 0-10kpa | Customized: | Customized |
| Long-Term Stability: | +-0.1%F.S/Year(Typ.) | Compensation Temp.: | -10~70℃ |
| Diaphragm: | SS316L | Filling Medium: | Silicon Oil |
| Specification: | Customized | Type: | Piezoresistive Silicon Pressure Sensor |
| Output Signal Type: | Analog Type | Material: | Stainless Steel |
| Customization: | Available Can OEM | Customized Request | ||
| Highlight |
BP9325 Water Silicon Pressure Sensor,Mv Output Water Silicon Pressure Sensor Transmitter,BP9325 Air Pressure Sensor |
||
Product Description

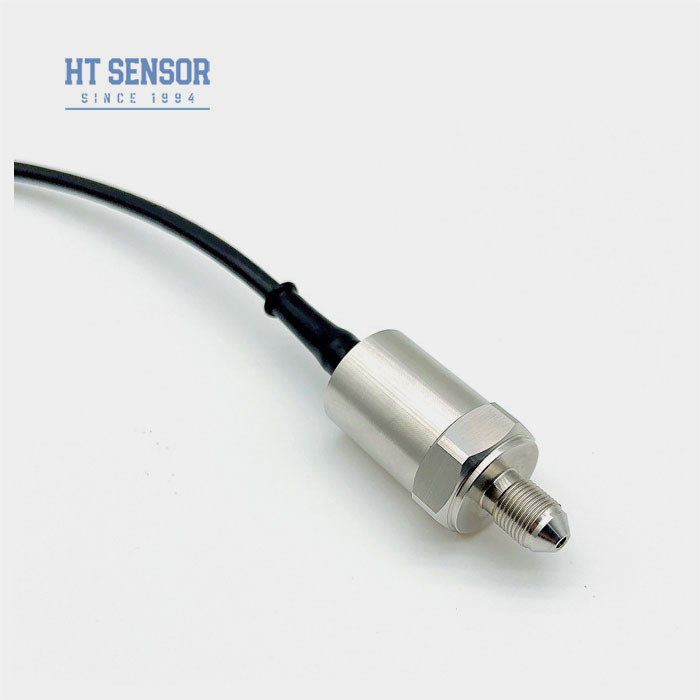

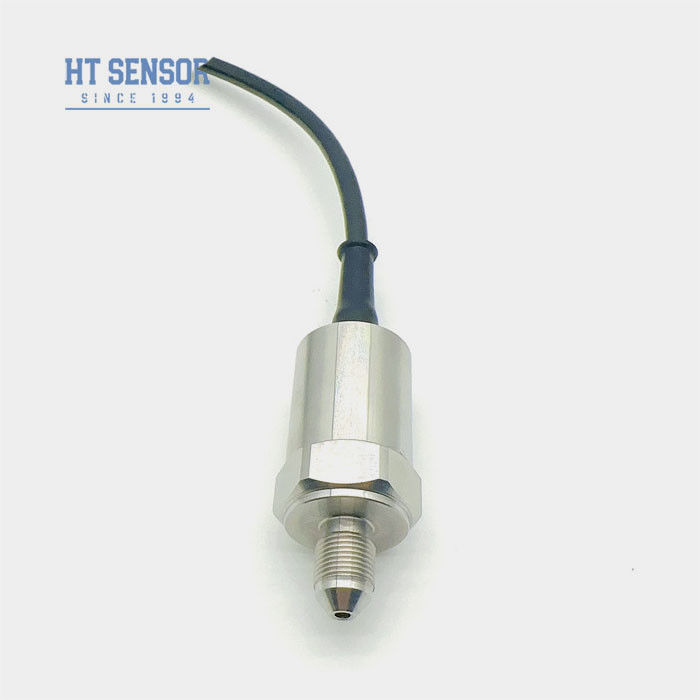

HTsensor BP9325 Air Gas Water silicon Pressure Sensor Transmitter With mv Output
Introduction of silicon pressure sensor transmitter:
BP9325 silicon piezoresistive pressure sensor is a highly stable diffused silicon element. The differential pressure of the measured medium is transmitted to the silicon diaphragm through a 316L isolation diaphragm and silicone oil. By utilizing the piezoresistive effect of the diffused silicon, it achieves the purpose of measuring the pressure of liquids and gases
Product Features of silicon pressure sensor transmitter:
- 1. Utilizes advanced technology and 316L stainless steel casing, with materials
- 2. such as full titanium and Hastelloy diaphragm
- 3. Employs thick-film circuits for temperature compensation and zero-point correction
- 5. High reliability, repeatability, and stability
Applications of silicon pressure sensor transmitter:
- 1. Suitable for measuring the pressure of non-corrosive gases and liquids with 316L stainless steel
- 2. Applied in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
- 3. Used in the marine and aviation industries
- 4. Hydraulic and pneumatic control systems
- 5. Process control
Basic Condition of silicon pressure sensor transmitter:
- 1. Power Supply: ≤2mADC (typical value 1.5mADC)
- 2. Input Impedance: 2.5KΩ~6KΩ
- 3. Output Impedance:2.5KΩ~6KΩ
- 4. Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires
| Performance Parameters of silicon pressure sensor transmitter: | |||||
| Measurement Range | Gauge(G) | 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa | |||
| Absolute(A) | 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed (S) | 3500KPa,7MPa,10MPa,20MPa,40MPa,60MPa,100MPa | ||||
| Typ | Max | Unit | |||
| Linearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | |
| ≥35kPa | 100±10 | 100±30 | mV | ||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | ||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | ||
| ≥35kPa | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 120MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~0.1kg | ||||
| The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C | |||||
