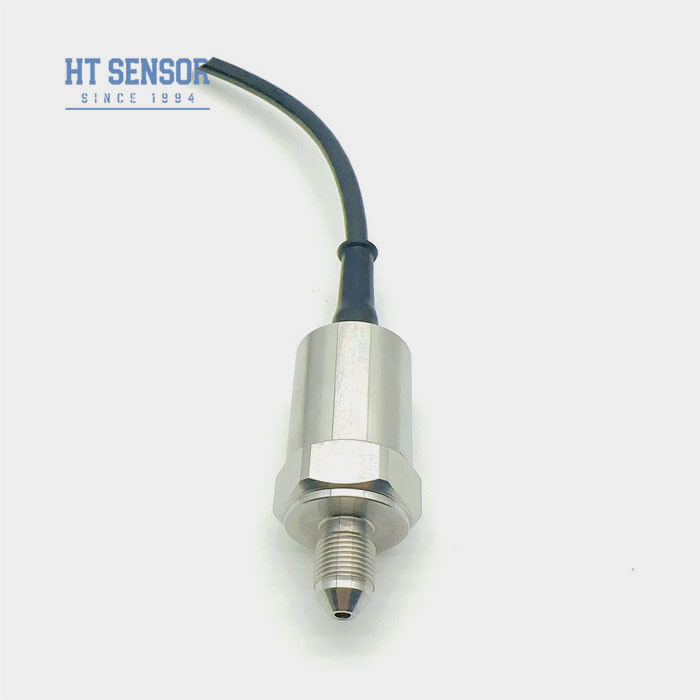

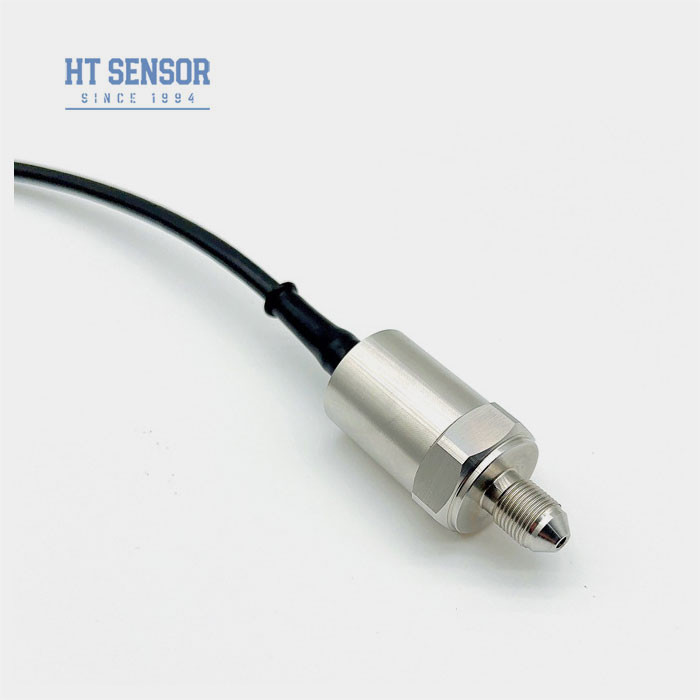

Name: BP9325 Water Silicon Pressure Sensor Transmitter Air Pressure Sensor Mv Output
Brand: Baoji Hengtong Electronics Co., LTD
SKU: BP9325
Price: 21.00 USD
Availability: InStock

Detail Information

Model NO.:	BP9325	Thread Type:	G1/4 Or 1/2NPT And So On
Wiring Type:	Four-Wire	Measuring Medium:	Gas And Liquid
Range:	0-10kpa	Customized:	Customized
Long-Term Stability:	+-0.1%F.S/Year(Typ.)	Compensation Temp.:	-10~70℃
Diaphragm:	SS316L	Filling Medium:	Silicon Oil
Specification:	Customized	Type:	Piezoresistive Silicon Pressure Sensor
Output Signal Type:	Analog Type	Material:	Stainless Steel
Customization:	Available Can OEM \| Customized Request
Highlight:	BP9325 Water Silicon Pressure Sensor , Mv Output Water Silicon Pressure Sensor Transmitter , BP9325 Air Pressure Sensor

Product Description

HTsensor BP9325 Air Gas Water silicon Pressure Sensor Transmitter With mv Output

BP9325 Silicon Piezoresistive Pressure Sensor

Introduction of silicon pressure sensor transmitter:

BP9325 silicon piezoresistive pressure sensor is a highly stable diffused silicon element. The differential pressure of the measured medium is transmitted to the silicon diaphragm through a 316L isolation diaphragm and silicone oil. By utilizing the piezoresistive effect of the diffused silicon, it achieves the purpose of measuring the pressure of liquids and gases

Product Features of silicon pressure sensor transmitter:

1. Utilizes advanced technology and 316L stainless steel casing, with materials
2. such as full titanium and Hastelloy diaphragm
3. Employs thick-film circuits for temperature compensation and zero-point correction
5. High reliability, repeatability, and stability

Applications of silicon pressure sensor transmitter:

1. Suitable for measuring the pressure of non-corrosive gases and liquids with 316L stainless steel
2. Applied in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
3. Used in the marine and aviation industries
4. Hydraulic and pneumatic control systems
5. Process control

Basic Condition of silicon pressure sensor transmitter:

1. Power Supply: ≤2mADC (typical value 1.5mADC)
2. Input Impedance: 2.5KΩ~6KΩ
3. Output Impedance:2.5KΩ~6KΩ

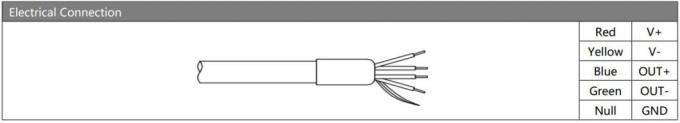

4. Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires

Performance Parameters of silicon pressure sensor transmitter:
Measurement Range		Gauge(G)	10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
		Absolute(A)	100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
		Sealed (S)	3500KPa,7MPa,10MPa,20MPa,40MPa,60MPa,100MPa
		Typ		Max	Unit
Linearity		±0.15		±0.3	%F.S
Repeatability		0.05		0.1	%F.S
Hysteresis		0.05		0.1	%F.S
Zero Offset Output		0±1		0±2	mV
Full Scale Output	≤20KPa	50±10		50±30	mV
	≥35kPa	100±10		100±30	mV
Zero Offset Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.5		±1	%F.S
Full Scale Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.5		±1	%F.S
Compensated Temp.	≤20KPa	0~50			ºC
	≥35kPa	0~70			ºC
Operating Temperature		-20~80			ºC
Storage Temperature		-40~125			ºC
Allowable Overload		Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure		5X the full scale
Long-term Stability		0.2 %			F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
O-ring Seal		Nitrile rubber or Fluoro rubber
Vibration		No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock		100g,11ms
Response Time		≤1ms
Filling Medium		Silicon Oil
Weight		~0.1kg
The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C

BP9325 Water Silicon Pressure Sensor Transmitter Air Pressure Sensor Mv Output 0

BP9325 Water Silicon Pressure Sensor Transmitter Air Pressure Sensor Mv Output 3

BP9325 Water Silicon Pressure Sensor Transmitter Air Pressure Sensor Mv Output 4

FQA

1.Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.

4.Q: What's the typical delivery period?

A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners
.

6.Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.

BP9325 Water Silicon Pressure Sensor Transmitter Air Pressure Sensor Mv Output 5

BP9325 Water Silicon Pressure Sensor Transmitter Air Pressure Sensor Mv Output 6

BP9325 Water Silicon Pressure Sensor Transmitter Air Pressure Sensor Mv Output 7

Tag:

Place of Origin:	Baoji，China
Brand Name:	HT SENSOR
Certification:	CE,RoHs,ISO9001
Model Number:	BP9325

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	5-8 work days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	5000PCS/Month
