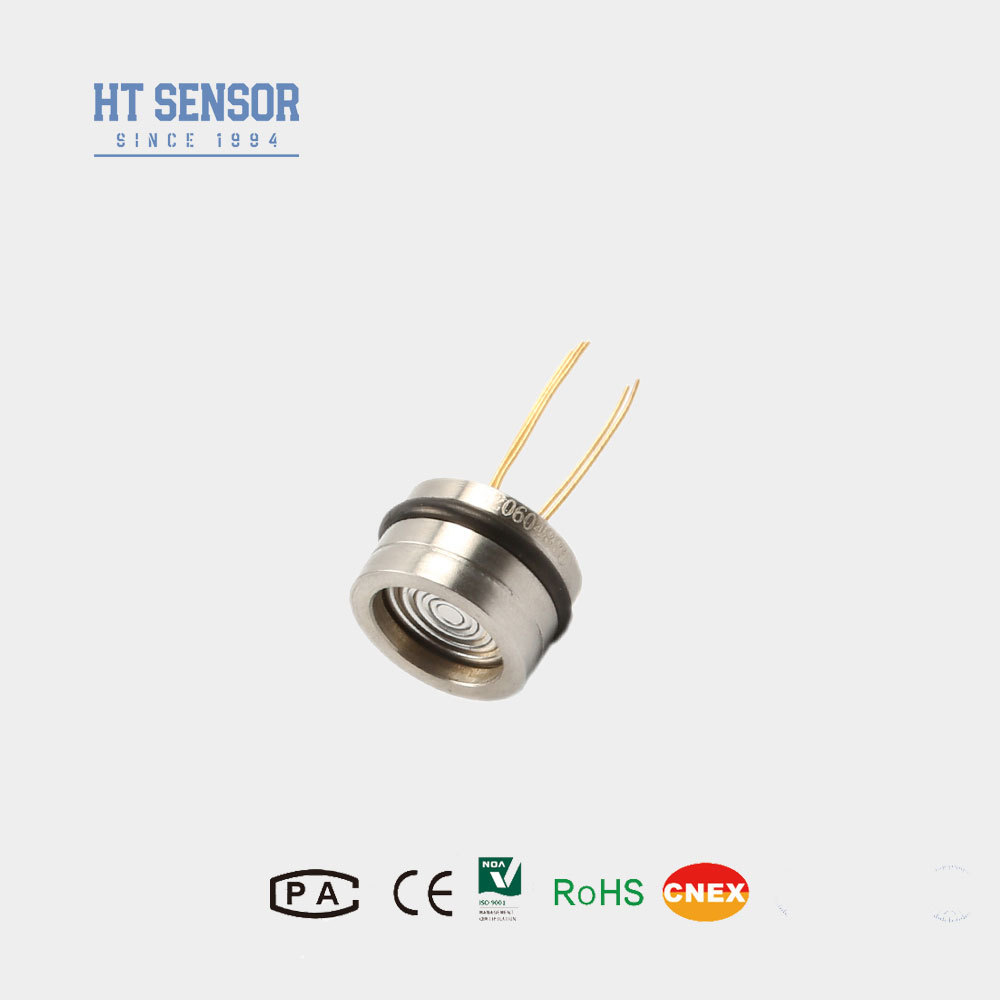

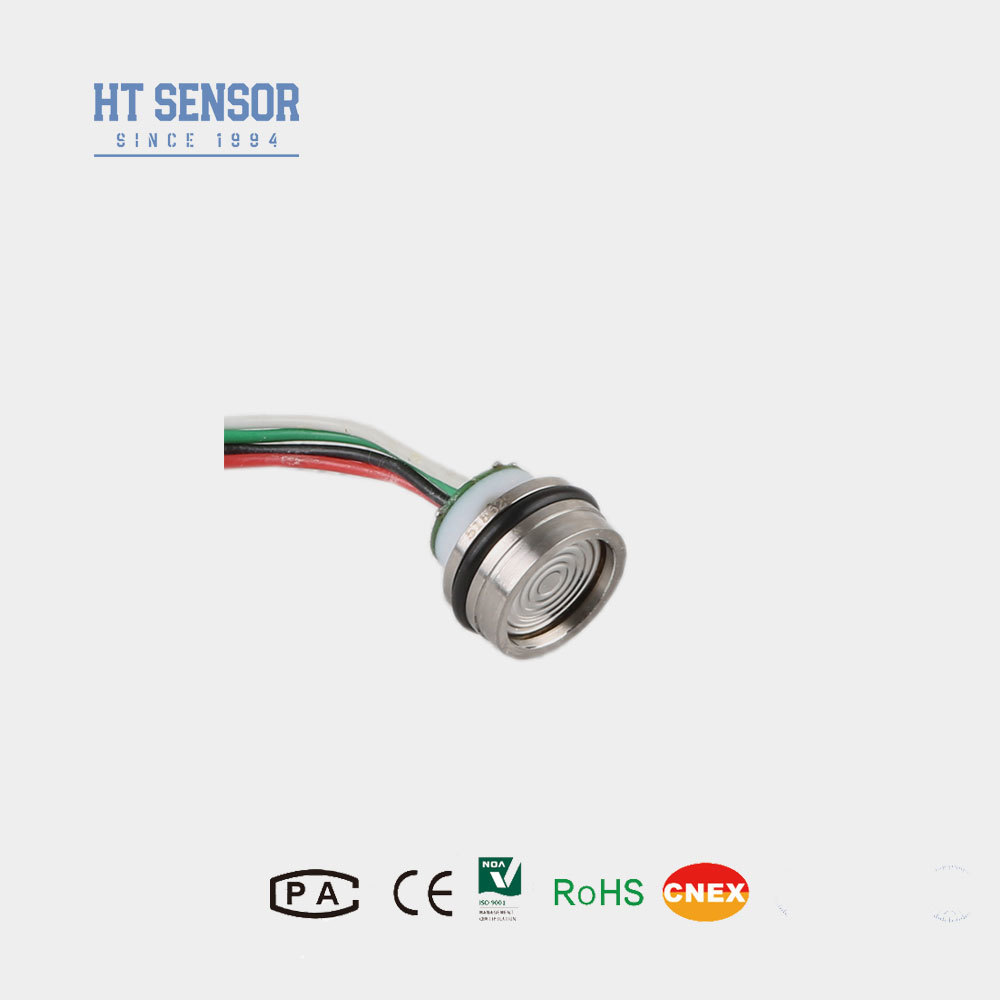

Pressure Sensor With Temperature-compensated Oil-filled Isolation Film 15mm Level Sensor Silicon Pressure Sensor
Product Details
| Model NO.: | HT15V | For: | Diffused Silicon Pressure Transmitter |
|---|---|---|---|
| Output Signal Type: | Analog Type Mv Sigal | Material: | Stainless Steel |
| Wiring Type: | Four-Wire | Measuring Medium: | Gas And Liquid |
| Customized: | Customized | Supply: | 5-10VDC |
| Wire: | 13mm Silicone Wire | Transport Package: | Carton |
| Specification: | 15mm | Trademark: | HengTong |
| Origin: | China | HS Code: | 9026209090 |
| Highlight |
temperature-compensated pressure sensor,oil-filled isolation film sensor,15mm level pressure transmitter |
||
Product Description
Introduction:
HT15V is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon element core. It employs the piezoresistive effect of diffused silicon for precise measurement of both liquid and gas pressures. This sensor finds extensive usage in various applications, including air compressors and refrigeration systems .
Product Features:
- Utilizes advanced technology and is encapsulated in a 316L stainless steel housing.
- Wide measuring range 0~300KPa~30MpaS.
- High reliability and excellent stability .
- Constant voltage supply.
- Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility.
- Compact design, ideal for applications with limited space.
- Used in process control systems for monitoring and controlling pressure.
- Commonly used in refrigeration systems and air compressors for pressure measurement.
- Power Supply: ≤10VDC.
- Common Mode Voltage Output: 50% of the input (typical).
- Input Impedance:4KΩ~20KΩ.
- Output Impedance:2.5KΩ~6KΩ.
- Electrical Connection:100mm high-temperature wire,ribbon cable.
| Performance Parameters: | |||||
|---|---|---|---|---|---|
| Measurement Range | Gauge(G) | 350KPa,1000KPa,2000Kpa | |||
| Absolute(A) | 350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS | ||||
| Typ | Max | Unit | |||
| NonLinearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | 100±1 | 100±2 | mV | ||
| Zero Offset Temp. Drift | ±0.8 | ±2 | %F.S | ||
| Full Scale Temp. Drift | ±0.8 | ±2 | %F.S | ||
| Compensated Temp. | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 80MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~20g | ||||
| The parameters are tested under the following conditions: 10V @25ºC | |||||
| Outline Construction | |
| Dimension | |
| Electrical connection and compensation |
|
| Selection Examples |
| Ordering tips |
1. Ensure proper clearance between the core and transmitter housing during assembly to meet specified airtightness requirements.
2. When assembling the housing, maintain vertical alignment and apply uniform pressure to prevent binding or damage to the compensation plate.
3. If the measured medium is incompatible with the core diaphragm or housing material (316L), please provide specific notes when ordering.
4. Do not press the sensor diaphragm with hands or sharp objects, as deformation or puncture may cause internal damage to the core.
5. Keep the gauge pressure core vented to the atmosphere and prevent moisture, vapor, or corrosive substances from entering the negative pressure chamber.
6. If pin wiring is modified, always refer to the label attached to the actual core for correct connections.
| Q&A |
1. Q: What are the key features of your pressure sensor transmitters?
A: Our transmitters are characterized by high precision, long-term durability, and reliable performance. Customization options are available to meet specific application requirements.
2. Q: Can I request special specifications?
A: Yes, we support both OEM and ODM services. Our engineering team can tailor solutions based on your technical and operational needs.
3. Q: What is your monthly production capacity?
A: We have the capacity to produce up to 30,000 units per month, which enables us to support large-volume orders. To ensure optimal scheduling, we recommend coordinating with our sales team in advance.
4. Q: What is the typical delivery lead time?
A: Standard models are typically delivered within 5–8 working days. Lead times for customized products may vary depending on specifications.
5. Q: What is your pricing structure? Are volume discounts available?
A: We offer competitive pricing with attractive discounts for bulk purchases and long-term partnership agreements.
6. Q: What are your warranty and after-sales support policies?
A: All products come with a 24-month warranty from the date of shipment. Our after-sales team guarantees a response within 24 hours and provides remote assistance via PC-based connectivity when needed.
