HT sensor Wide Measurement Range BP170 Pressure Transmitter sensor for Process Control
Product Details
| Model NO.: | BP170 | Customized: | Customized |
|---|---|---|---|
| Out Put: | 4-20mA | Housing Material: | 316L |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Specification: | Silicon Pressure Sensor |
| Trademark: | HTsensor | Origin: | China |
| Type: | BP170 Pressure Transmitter Sensor | Pressure Range: | 0kpa~10kpa...40MPa |
| Highlight |
HT pressure sensor for process control,BP170 pressure transmitter with wide range,industrial pressure sensor with warranty |
||
Product Description

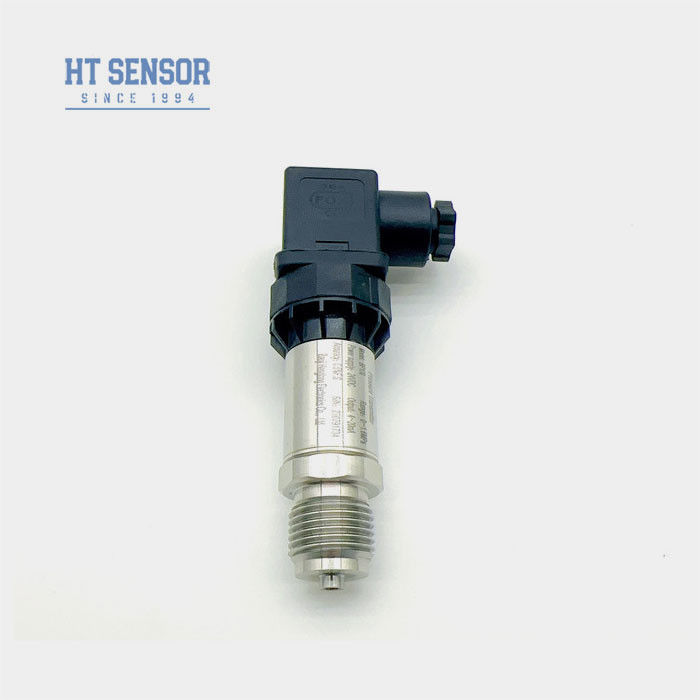

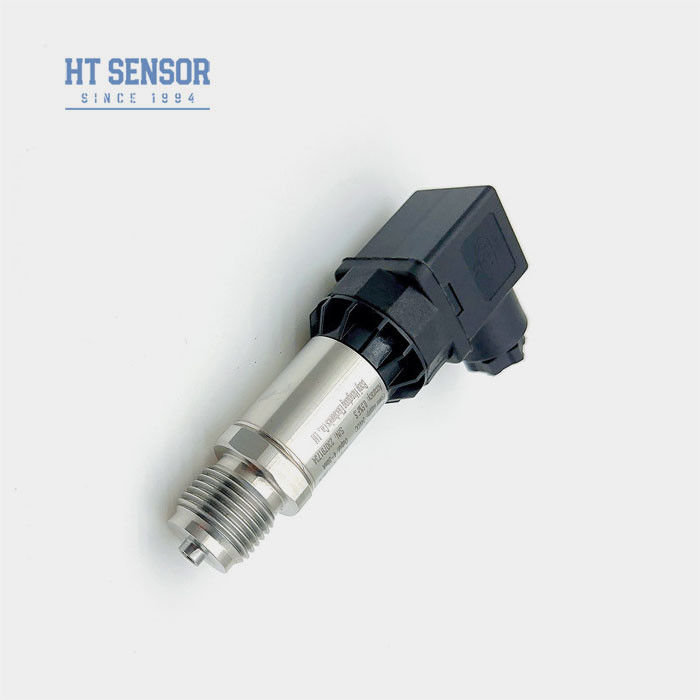

HT sensor Wide Measurement Range BP170 Pressure Transmitter sensor for Process Control
BP170 Pressure Transmitter
Introduction of pressure transmitter sensor:
BP170 pressure transmitter sensor uses the HT series silicon insulated oil-filled sensor core as the signal measuring element. Customized Hirsman (DIN) connector, using our self-developed high-precision PCB to convert the sensor signal into the standard output signal required by customers. Parts, semi-finished products, finished products are strictly tested and aging screening, stable and reliable performance, suitable for various occasions pressure testing
Product Features of pressure transmitter sensor:
- 1. Wide measuring range, stainless steel structure, diverse pressure interface forms
- 2. Compact and lightweight design
- 3. High precision, all stainless steel structure
- 4. Adjustable zero and full-scale
Applications of pressure transmitter sensor:
- 1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- 2. Applied in the marine and aviation industries
- 3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
- 4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters of pressure transmitter sensor | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of pressure transmitter sensor |
| Ordering tips |
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be less than 20VDC.
4. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
6. The default cable length is 1.5m and there are three kinds of materials to choose from. If there are no special instructions, polyethylene cable materials can be used. If you need a different cable material, please specify it in the order form.
7. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.
| Order Guide of pressure transmitter sensor | |||||||||
| BP170X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
FAQ:
1. Q: Are you manufactrade company?
A: We are manufactrader with more than 29 years of experience.
2. Q: Can I Customized Products ?
A: Yes, We provide OEM and Custom-Design services.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
