24vdc Flush Diaphragm Pressure Transmitter Liquid Hygienic Pressure Sensor
Product Details
| Model NO.: | BPHT24 | Range: | 0-10kpa~035mpa |
|---|---|---|---|
| Power: | 5vdc /24vdc | Output: | 0.5-4.5VDC /4-20mA /0-10VDC |
| Connect: | Thread：G1/2 1/2NPT M20*1.5 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Type: | Flush Diaphragm Pressure Sensor | Measuring Medium: | Liquid |
| Accuracy Grade: | 0.5%F.S 0.25%F.S | IP Rating: | IP65 |
| Highlight |
24vdc Flush Diaphragm Pressure Transmitter,Flush Diaphragm Pressure Transmitter Liquid RoHs,24vdc Liquid Hygienic Pressure Sensor |
||
Product Description

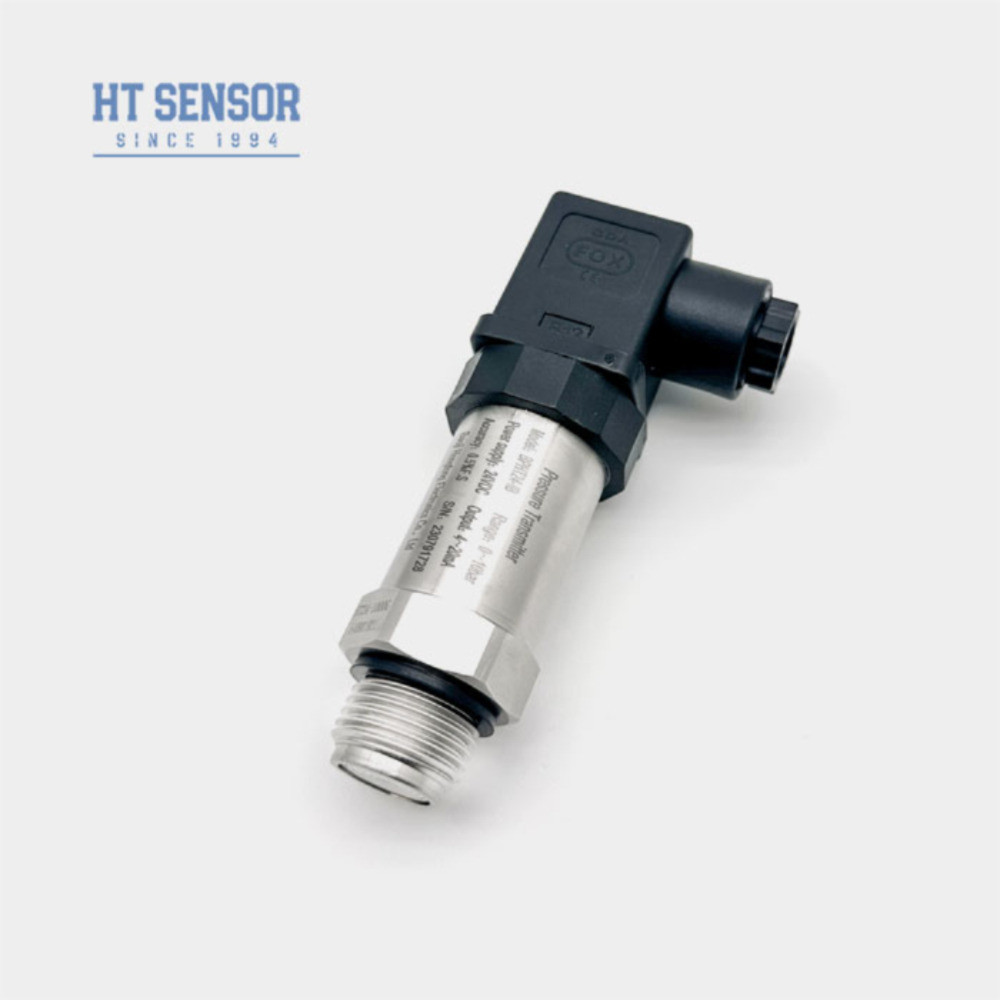

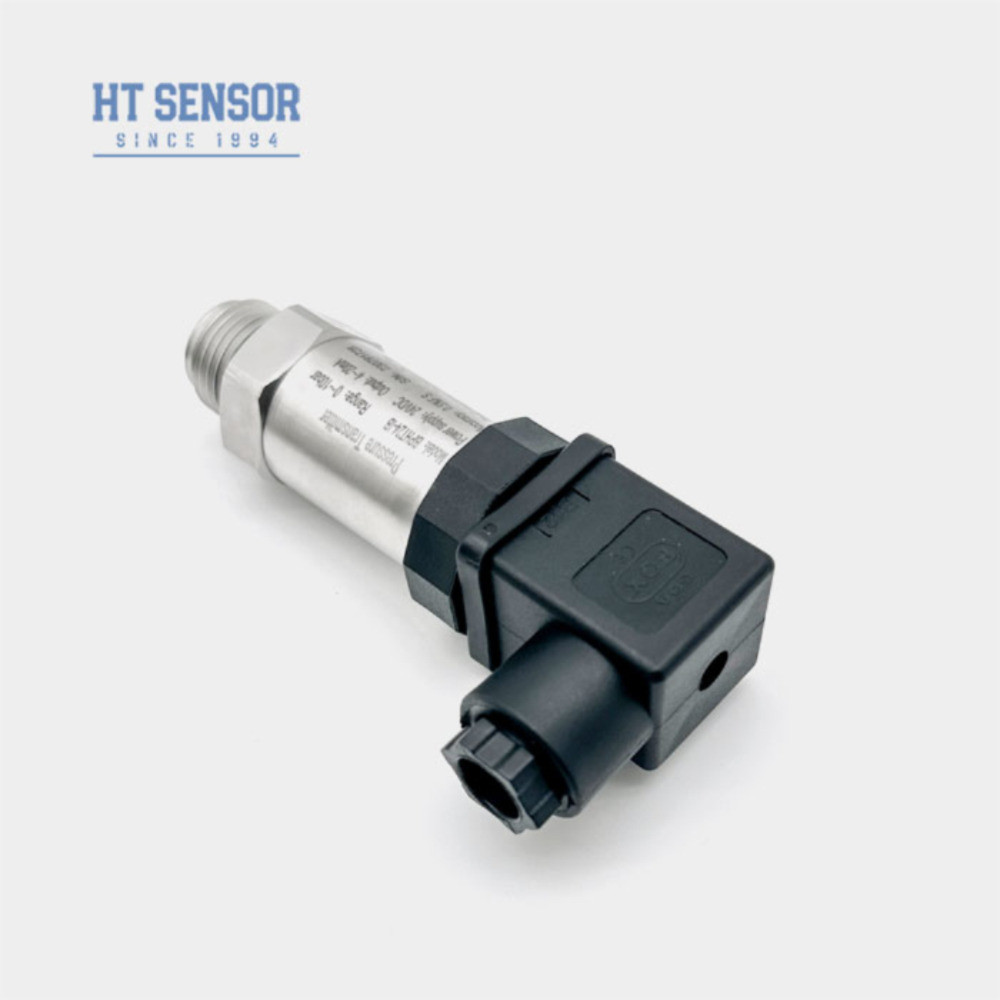

BPHT24 Flush Diaphragm pressure sensor for Hygienic Environments
BPHT24 Pressure Transmitter
Introduction of flush diaphragm pressure sensor :
BPHT24 flush diaphragm pressure sensor transmitter uses a flat membrane structure. The pressure transmitter uses a corrugated membrane to directly feel the pressure. The sensor's flat diaphragm prevents fouling, unsanitary and sticky liquid clogging. It has the characteristics of small size, light weight and good long-term stability, and is widely used in food, medicine, health and wine industry.
Flush membrane type pressure sensor elastomer adopts imported material, diaphragm isolation technology, test head without pressure hole, integrated structure design, there is no viscous medium blockage in the measurement process.
Product Features of flush diaphragm pressure sensor:
1. Various pressure interface options
2. Designed for hygienic applications to prevent medium scaling
3. High accuracy with a fully stainless steel structure
4. Easy to clean
Applications of flush diaphragm pressure sensor:
1. Suitable for measuring non-corrosive gases and liquids with 316L.
2. Ideal for environmental protection and chemical industries.
3. Used in the marine and aviation industries.
4. Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
| Performance Parameters of flush diaphragm pressure sensor | |
| Measurement Range | 0~35Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips |
1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be less than 20VDC.
4. To ensure the reliable operation of the product, it is recommended that the user in the field installation of lightning protection devices, and to ensure that products and power supply reliable grounding.
5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃.When the product operating temperature is lower than -20℃, it is necessary to choose EPDM O-type seal ring.
6. The default cable length is 1.5m and there are three kinds of materials to choose from. If there are no special instructions, polyethylene cable materials can be used.If you require a different cable material, please indicate it in the order.
7. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.
| Order Guide of flush diaphragm pressure sensor | ||||||||
| BPHT24 | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IX | Display Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| T | High-temperature resistant Pressure Transmitter | |||||||
| Measurement Range | 0~35Kpa…~20MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
