4-20mA High Precision Stainless Steel Silicon Piezoresistive Flush Diaphragm Pressure Sensor
Product Details
| Model NO.: | BPHT24-IX | Range: | 0-10kpa~35Mpa |
|---|---|---|---|
| Output: | 4-20mA /0-10VDC | Weight: | 0.2kg |
| Housing Material: | 304S.S | Pressure Type: | Can Be G /A /S |
| Trademark: | HTsensor | Measuring Medium: | Liquid |
| IP Rating: | IP65 | Customization: | Available |
| Highlight |
BPHT24-IX Flush Diaphragm Pressure Sensor,Flush Diaphragm Pressure Sensor 4-20mA,4-20mA Diffused Silicon Pressure Sensor |
||
Product Description
4-20mA High Precision Stainless Steel Silicon Piezoresistive Flush Diaphragm Pressure Sensor

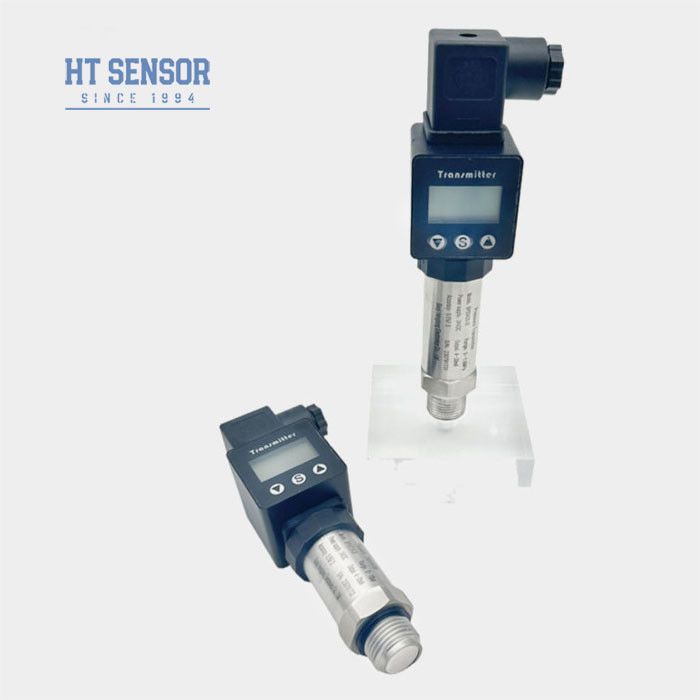

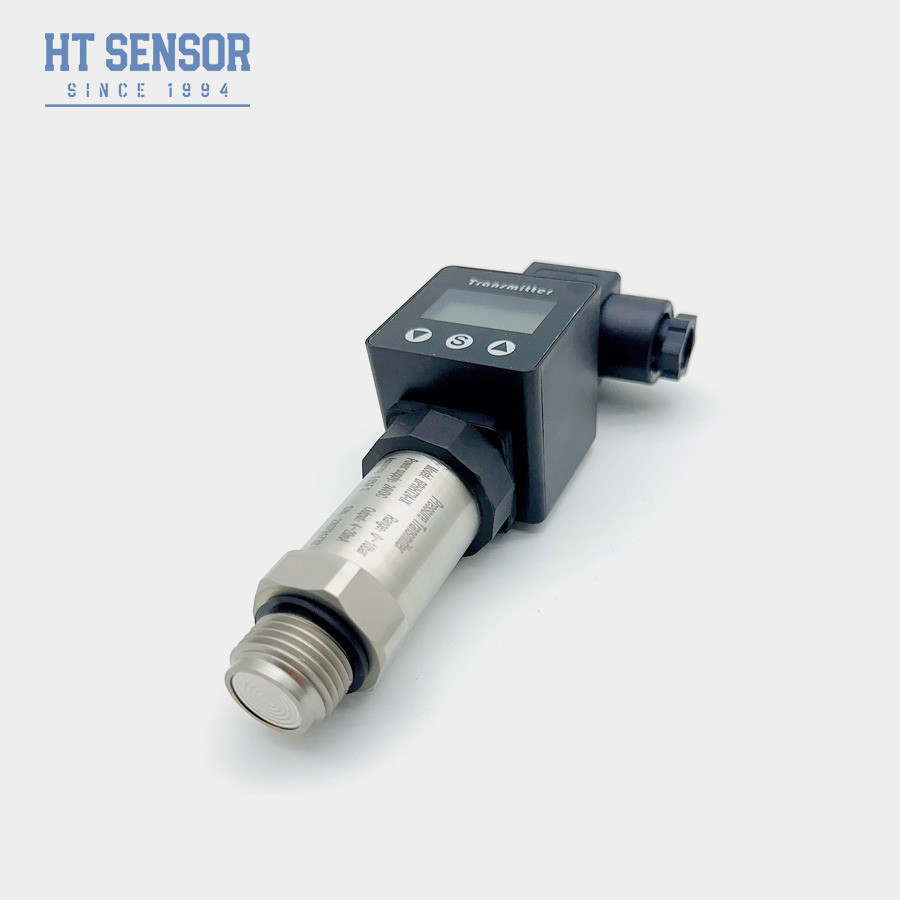

BPHT24-IX Pressure Transmitter
Introduction of flush diaphragm pressure sensor transmitter:
BPHT24 - IX flat Flush diaphragm pressure sensor transmitter feel pressure signal, using integrated circuit converts the signal to standard output signal processing. This pressure transmitter is mainly used in places with high sanitary conditions, such as food, medical and other industries, to ensure that the performance of the medium is not affected by pollution during the pressure measurement process. Can cooperate with LCD or LED field display, timely understand the field pressure situation.
Product Features of flush diaphragm pressure sensor transmitter:
1. Various pressure interface options.
2. Designed for hygienic applications to prevent medium scaling.
3. High accuracy with a fully stainless steel structure.
4. Easy to clean,display.
Applications of flush diaphragm pressure sensor transmitter:
1. Suitable for measuring non-corrosive gases and liquids with 316L.
2. Ideal for environmental protection and chemical industries.
3. Used in the marine and aviation industries.
4. Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
| Performance Parameters of flush diaphragm pressure sensor transmitter: | |
| Measurement Range | 0~35Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
| Order Guide | ||||||||
| BPHT24 | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IX | Display Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| T | High-temperature resistant Pressure Transmitter | |||||||
| Measurement Range | 0~35Kpa…~20MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
