| Model NO.: | BP157 | Range: | -100kpa~0~10kpa~40Mpa |
|---|---|---|---|
| Output: | 4-20mA /0.5-4.5Vdc/0-10VDC | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Housing Material: | 304 Stainess Steel | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Type: | Normal Pressure Transmitter | Structure Type: | Diffused Silicon Pressure Transmitter |
| Measuring Medium: | Gas | Accuracy Grade: | 0.5% |
| IP Rating: | IP65 | Customization: | Available | Customized Request |

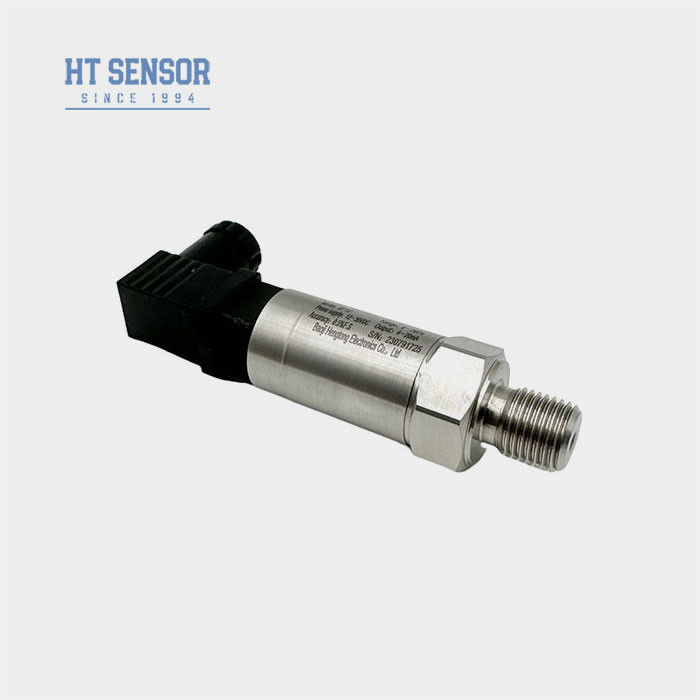

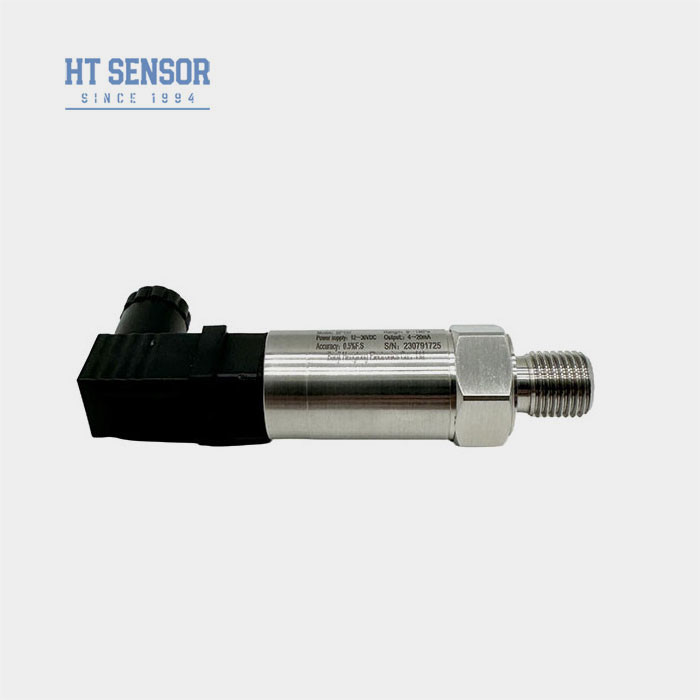

BP157 Pressure Transmitter
Introduction of mini DIN pressure transmitter sensor:
BP157 industrial pressure sensor transmitter using HT diffusion silicon pressure sensor as a signal measuring element. Our self-developed PCBS convert sensor signals into standard output signals such as 0.5-4.5VDC4-20mA. mini DIN output meets most field needs.
Product Features of mini DIN pressure transmitter sensor:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
2. Compact and lightweight design.
3. Zero and full-scale adjustable
4. High precision, all stainless steel structure.
5. Adjustable zero and full-scale.
Applications of mini DIN pressure transmitter sensor:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of mini DIN pressure transmitter sensor: | |
| Measurement Range | 0kPa ~ 10kPa…5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
| Ordering tips |
| Order Guide | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
