Model NO.: | BP93420-IB | Pressure Range: | 0kpa~10kpa...100MPa |
---|---|---|---|
Power: | 12-36VDC,24V Standard | Protection Rating: | IP65 |
Long-Term Stability: | +-0.2%F.S/Year(Typ.) | Trademark: | HTsensor |
Structure Type: | Diffused Silicon Industrial Pressure Sensor | Measuring Medium: | Liquid,Gas,Oil |
Connector: | Big DIN | Customization: | Available OEM And ODM |
Highlight: | OEM Industrial Pressure Sensor,Industrial Pressure Sensor BP93420-IB,RoHs High Accuracy Pressure Transmitter Sensor |

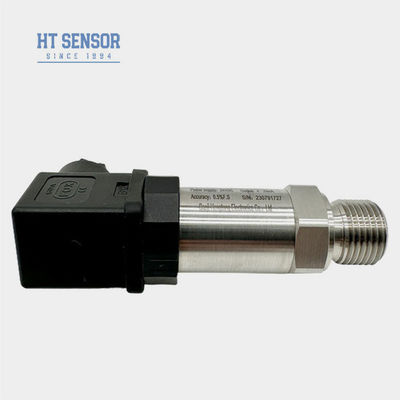

BP93420IB Pressure Transmitter
Introduction of industrial pressure sensor transmitter:
BP93420IB Industrial pressure sensor transmitter uses the HT series diffused silicon isolated oil-filled core as the signal measurement element. The signal processing circuit PCB is located in the stainless steel housing and converts the sensor signal to the standard output 4-20mA or 0-10V signals. Products undergo strict component testing and aging screening. Reliable performance.
Product Features of industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. Compact and lightweight design
3. High precision, all stainless steel structure
Applications of industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
Performance Parameters of industrial pressure sensor transmitter: | |
---|---|
Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
Overload | ≤ 1.5 times of the rated range |
Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
Repeatability | 0.1%FS |
Hysteresis | 0.1%FS |
Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
Operating Temperature | -20ºC~80ºC |
Storage Temperature | -40ºC~120ºC |
Vibration | 10g,55Hz ~ 2kHz |
Housing Material | 304,316L |
Diaphragm Material | 316L |
Insulation Resistance | 100MΩ 100VDC |
Explosion-proof Rating | Ex db IIC T6 Gb |
Protection Rating | IP65 |
O-Ring Seal | Fluoro rubber |
Weight | ~0.15kg |
Output Signal | Supply Voltage | Output Type |
4~20mA | 12~30VDC | 2/3/4 wire |
0~10/20mA | 3 wire |
|
0/1~5V | ||
0/1~10V | ||
0.5~4.5V | 5VDC |
Ordering tips |
Order Guide | ||||||||
BP93420XX | Pressure Transmitter | |||||||
Code | Outline Construction | |||||||
IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
IC | High-temperature Pressure Transmitter | |||||||
IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
Measurement Range | -0.1. . .0~0.01...100MPa | |||||||
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
Code | Power Supply | |||||||
D1 | 24VDC | |||||||
D2 | 5VDC | |||||||
D3 | Other | |||||||
Code | Output Signal | |||||||
S1 | 4~20mADC | S5 | 0~20mADC | |||||
S2 | 1~5VDC | S6 | 0~10VDC | |||||
S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
S4 | 0~10mADC | |||||||
Code | Pressure Connection | |||||||
J1 | M20×1.5 | |||||||
J2 | G1/2 | |||||||
J3 | G1/4 | |||||||
J4 | 7/16-20UNF | |||||||
J5 | Other | |||||||
Code | Electrical Connection | |||||||
B1 | Hirschmann | |||||||
B2 | PG7 Plug | |||||||
B3 | Sealed Cable Output | |||||||
B4 | 2088 Industrial Casing | |||||||
B5 | 2088 Industrial Casing with Display | |||||||
B6 | Other | |||||||
Code | Pressure Type | |||||||
G | Gauge Pressure | |||||||
A | Absolute Pressure | |||||||
S | Sealed Reference Pressure |
