| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT sensor |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BH93420-I |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BH93420-I | Output Form: | 4-20 MA Or RS485 |
|---|---|---|---|
| IP Rating: | IP68 | Customized: | Customized |
| Long-Term Stability: | +-0.2%F.S/Year | Operating Temp.: | -20~80℃ |
| Diaphragm Material: | 316L Stainess Steel | Net Weignt: | 0.3kg Without Cable |
| Transport Package: | Carton | Origin: | Shaan Xi |
| HS Code: | 90261000 | Installation Type: | Submersible Type |
| Output Signal Type: | Analog Type | Probe Type: | Probe Type |
| Model: | 1 | ||
| High Light: | 24VDC Water Level Transmitter,Water Level Transmitter Stainless Steel,Water Tank Pressure Transducer 4-20ma |
||

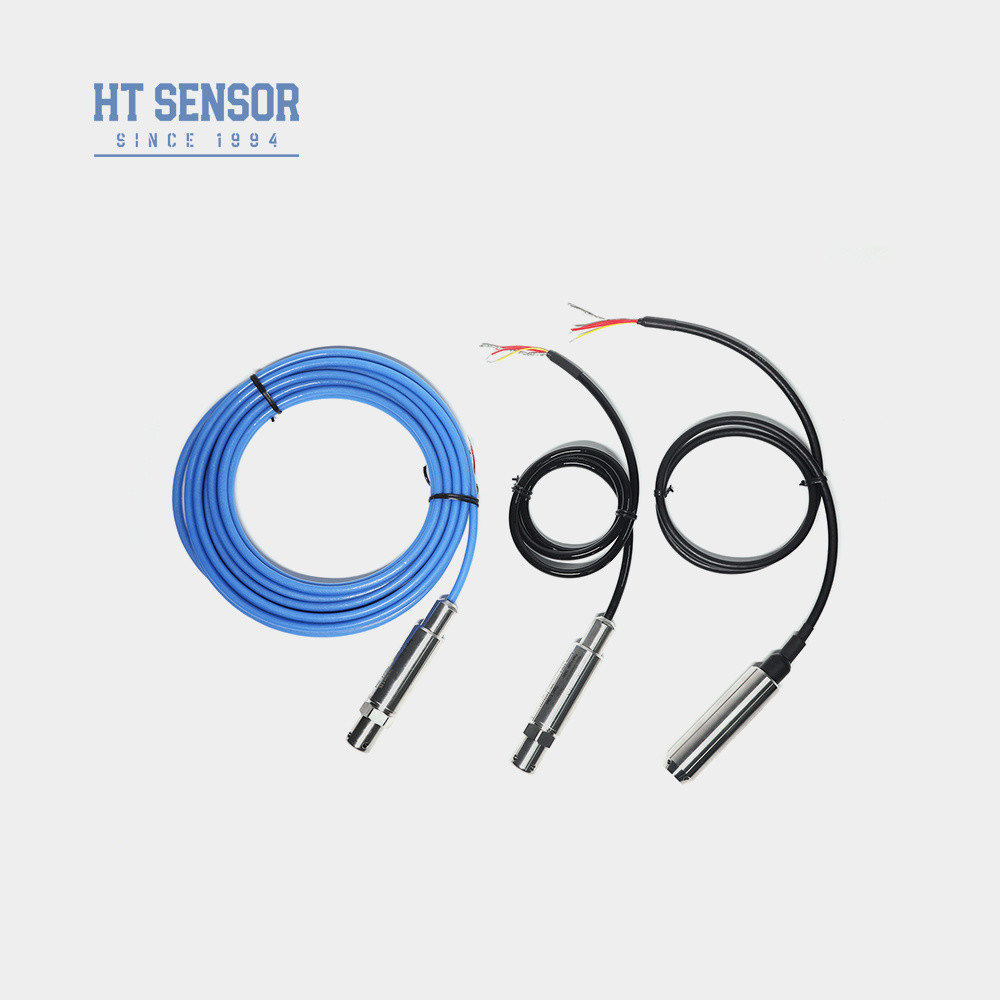

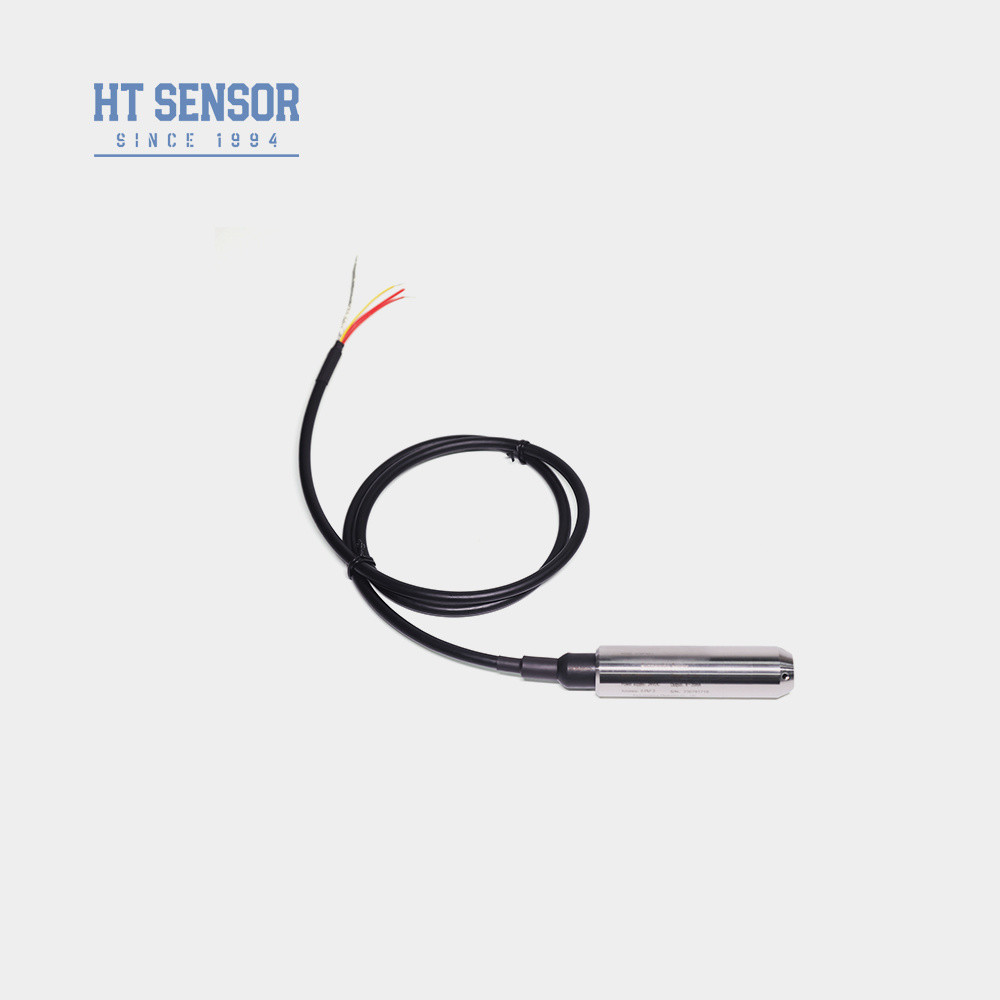

BH93420- I Water level Transmitter
Introduction of water level transmitter:
BH93420-I water level tranmitter it uses HT series diffused silicon isolation oil-filled core as its signal measuring element. It is designed with a full stainless steel housing and a compact one-piece structure. The sensing part of the transmitter that is immersed in the water is completely sew-temperature compensation and aging tests, resulting in high reliability and excellent stability.
this water level transmitter is a hydrostatic pressure level transmitter for measuring the level of liquids in various tanks and other types of vessels.
Product Features:
1. Full stainless steel housing, suitable for various testing environments
2. Immersion-type probe measurement, easy installation
3. Diverse output signal options
4. Explosion-proof marking: ExiaIICT6
5. High protection rate: IP68
6. PE or PU cable
Applications:
1. Compatible with 316LSS,noncorrosive liquids
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
3. Measuring fuel levels in diesel and fuel tanks
|
Performance Parameters:
|
|
| Measurement Range | 0~10m…400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |

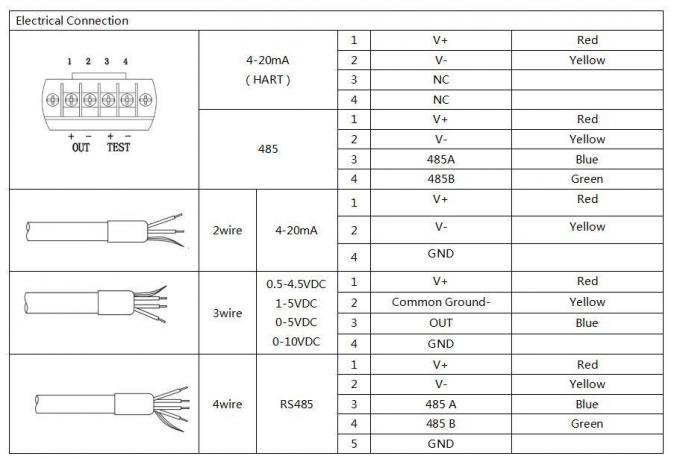

| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
|

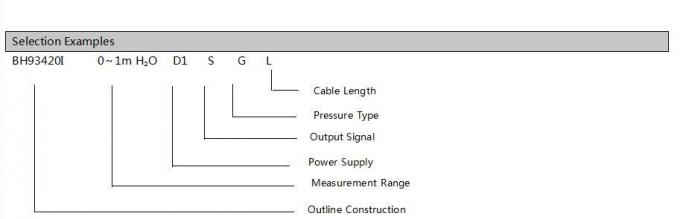

Order Guide: |
||||||||

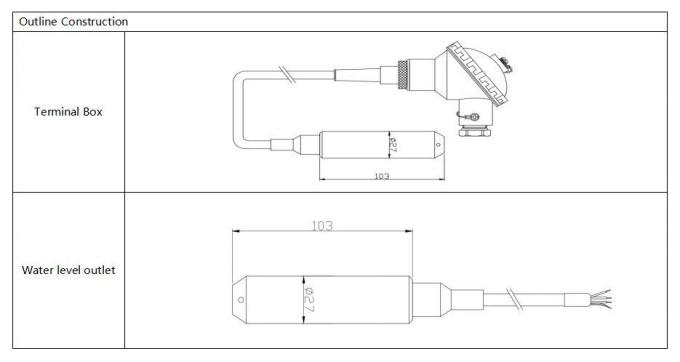

| BH93420 | Code | Outline Construction | ||||||
| I | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
