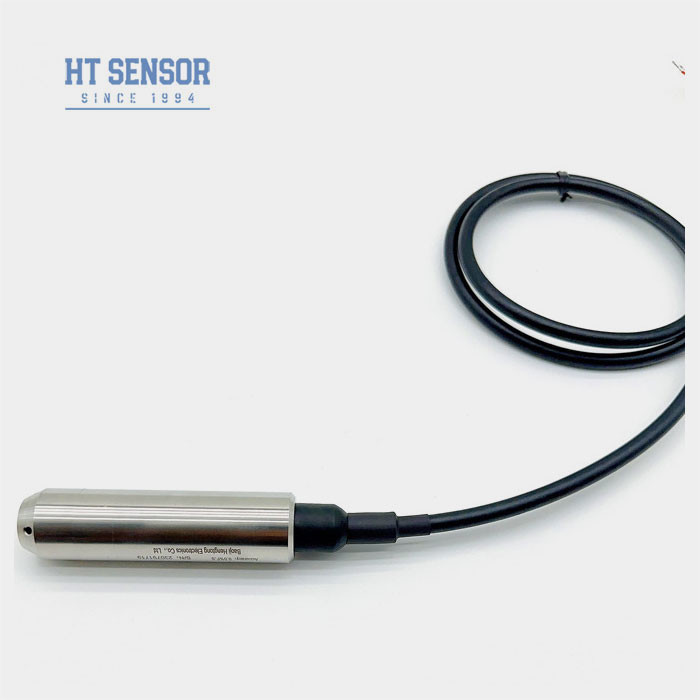

Bh93420-I Submersible Pressure Transducer 4-20ma Nbsp Water Pressure Transducer

Basic Information
Place of Origin: Baoji,China
Brand Name: HT sensor
Certification: CE,RoHs,ISO9001
Model Number: BH93420-I
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Model NO.: BH93420-I Output Form: 4-20mA Or RS485
IP Rating: IP68 Design: Accept Customized
Accuracy: 0.25%, 0.5% Diaphragm Material: 316L Stainess Stee
Net Weignt: 0.3kg Transport Package: Carton
Origin: Shaan Xi HS Code: 90261000
Supply Ability: 2000PCS/Month Installation Type: Submersible Type
Contact: Input Production Process: Diffused Silicon
Probe Type: Probe Type Customization: Available | Customized Request
High Light:

Bh93420-I Submersible Pressure Transducer

,

Submersible Pressure Transducer 4-20ma

,

4-20ma Nbsp Water Pressure Transducer


Product Description



BH93420-Water level Transitter

Introduction of water level transmitter:

BH93420-I 4-20MA  DIFFUSED SILICON 0.25%F.S  SUBMERSIBLE WATER LEVEL TRANSMITTER water level sensor that uses HT series diffused silicon isolation oil-filled core as its signal measuring element. It is designed with a  full stainless steel housing and a compact one-piece structure. The sensing part of the transmitter that is immersed in the water is completely sealed with stainless steel, ensuring excellent waterproof performance. The product has undergone rigorous high and low-temperature compensation and aging tests, resulting in high reliability and excellent stability.
Product  Features:
1. Full stainless steel housing, suitable for various testing environments
2. Immersion-type probe measurement, easy installation
3. Diverse output signal options

4. Explosion-proof marking: ExiaIICT6
5. High protection rate: IP68
6. PE or PU cable

Applications:

1. Compatible with 316LSS,noncorrosive liquids
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc

3. Measuring fuel levels in diesel and fuel tanks



Performance Parameters:

Measurement Range 0~10m…400mH2O
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 2X rated range
Accuracy @ 25ºC ±0.25% (Typ.)   ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.)  ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Zero  Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC  (0-1m. 0-2m );    0-70ºC
Operating Temperature -20~80ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 1Cr18Ni9Ti
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68
O-Ring Seal Fluoro rubber
Weight ~0.3Kg (without cable)
Cable Material Polyethylene, Polyurethane

Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire



4-20mA Diffused Silicon 0.25%F.S Submersible Water Level Sensor Transmitter Bp93420-I4-20mA Diffused Silicon 0.25%F.S Submersible Water Level Sensor Transmitter Bp93420-I4-20mA Diffused Silicon 0.25%F.S Submersible Water Level Sensor Transmitter Bp93420-I



Ordering tips:

1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.



Order Guide:

BH93420 Code Outline Construction
  I Pressure Transmitter
  Measurement Range 0~10m…400m
  Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
  Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC  S8 RS485
  Code Pressure Type
G Gauge Pressure
A Absolute Pressure
  S Sealed Reference Pressure
  Code Material
01 304 Stainless Steel
02  316L Stainless Steel
  Code  Cable Material
C1 PE
C2 PU
4-20mA Diffused Silicon 0.25%F.S Submersible Water Level Sensor Transmitter Bp93420-I
4-20mA Diffused Silicon 0.25%F.S Submersible Water Level Sensor Transmitter Bp93420-I4-20mA Diffused Silicon 0.25%F.S Submersible Water Level Sensor Transmitter Bp93420-I
FAQ:
1. Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
