| Model NO.: | BH93420-III | IP Rating: | IP68 |
|---|---|---|---|
| Design: | Accept Customized | Cable: | PE,PU,PTFE |
| Accuracy: | 0.25%, 0.5% | Diaphragm Material: | 316L Stainess Steel |
| Net Weignt: | 0.3kg | Trademark: | HT Sensor |
| HS Code: | 90261000 | Display: | LED Or LCD |
| Output Signal Type: | Analog Type | Probe Type: | Probe Type |
| High Light: | BH93420-III Analog Water Level Sensor,Analog Water Level Sensor Piezoresistive,Piezoresistive Liquid Level Transmitter With Display |
||

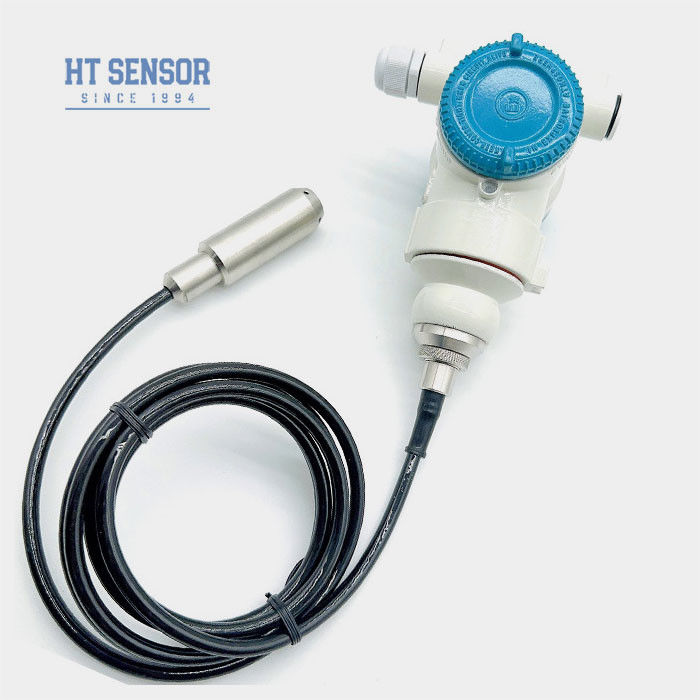

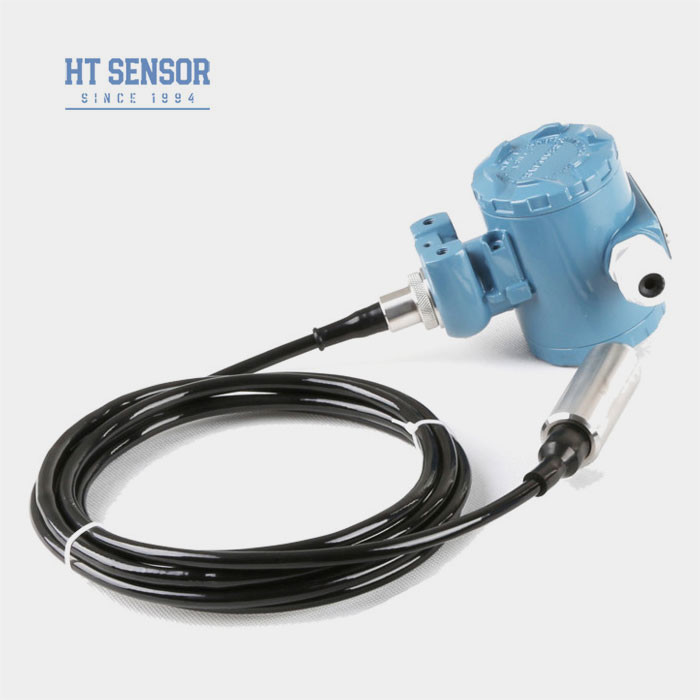

BH93420 III Water level Transmitter
Introduction of water level transmitter:
BH93420-III water level transmitter is equipped with a highly precise Piezoresistive diffused silicon pressure sensor as its signal measuring element.It measures the static pressure, which is directly related to the water level, and converts it into a standard signal output using amplification circuitry. By establishing a linear relationship between the output signal and the liquid level,it ensures precise and accurate measurement of the water level.
BH93420-III water level transmitter is designed with LCD or LED display to display the pressure or height of the measured media.
Product Features:
Performance Parameters:
| Measurement Range | 0~10m…400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, l1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |

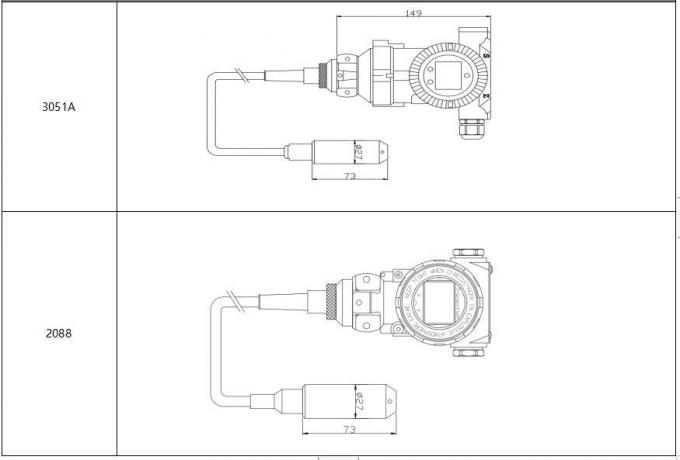

Outline Construction:
|

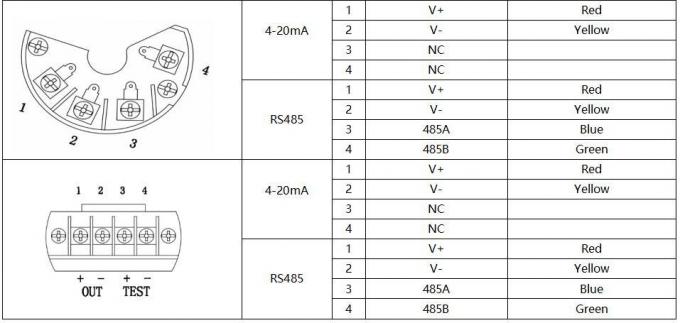

Electrical Connection: |
|
Selection Examples: |
|

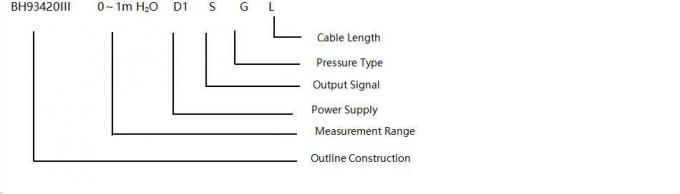

Ordering tips:
|
| Order Guide: | ||||||||||
| BH93420 | Code | Outline Construction | ||||||||
| III | Liquid level transmitter with the 2088 housing | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | RS485 | |||||||
| Code | Electrical Connection | |||||||||
| B5 | 2088 with display | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Material | |||||||||
| 01 | 304 Stainless Steel | |||||||||
| 02 | 316L Stainless Steel | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
