| Model NO.: | BH93420-III | IP Rating: | IP68 |
|---|---|---|---|
| Customized: | Customized | Cable: | PE,PU,PTFE |
| Accuracy: | 0.25%,0.3% , 0.5% | Diaphragm Material: | 316L Stainess Steel |
| Net Weignt: | 0.6kg | Transport Package: | Carton |
| Trademark: | HT Sensor | Origin: | Shaan Xi |
| HS Code: | 90261000 | Supply Ability: | 1000-3000 |
| Installation Type: | Submersible Type | Probe Type: | Probe Type |
| High Light: | HT Sreies Water Level Sensor,Water Level Sensor ISO9001,Liquid Pressure Transmitter With Led Display |
||

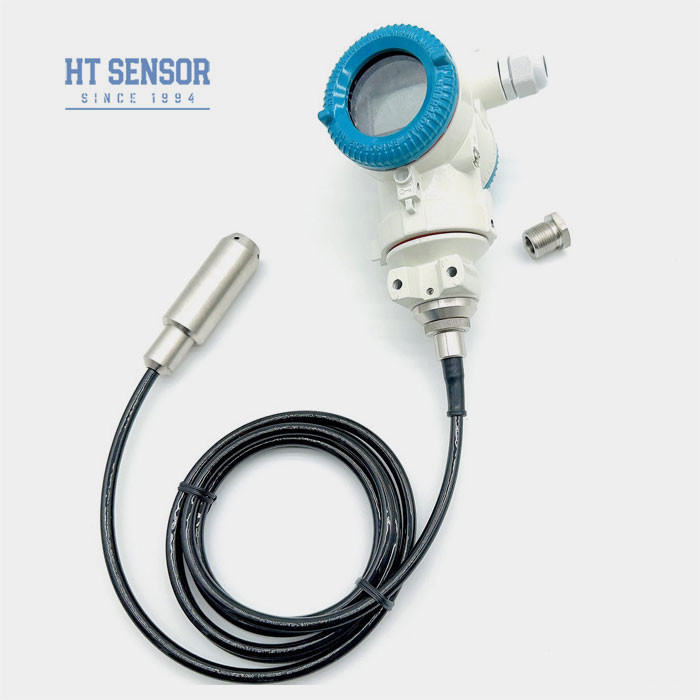

BH93420 III Water level Transmitter
Introduction of water level sensor:
BH93420-III water level transmitter is equipped with a highly precise Piezoresistive diffused silicon pressure sensor as its signal measuring element.It measures the static pressure, which is directly related to the water level, and converts it into a standard signal output using amplification circuitry. By establishing a linear relationship between the output signal and the liquid level,it ensures precise and accurate measurement of the water level.
Product Features:
1. It uses a high-precision diffused silicon sensor to accurately measure the liquid level or pressure.
2. It has stable performance and a long lifespan, making it suitable for harsh environmental conditions.
3. It has a high-precision measurement range and adjustable measurement range to meet different application requirements.
4. The device utilizes advanced digital signal processing technology to achieve high-precision measurement output.
5. The diffused silicon immersion-type liquid level transmitter has excellent anti-interference capability, allowing it to function properly in complex industrial environments.
6.The liquid level transmitter supports a variety of communication interfaces, allowing data interaction with other devices
Applications:
1. Compatible with 316LSS,noncorrosive liquids
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
3. Diesel, fuel, and other oil tank level monitoring
Performance Parameters:

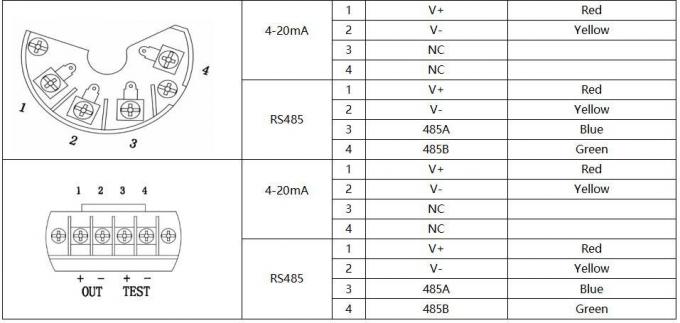

| Measurement Range | 0~10m…400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, l1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |

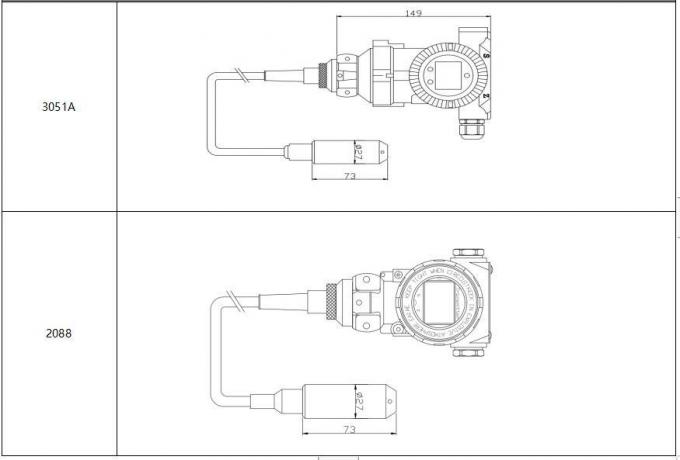

Outline Construction:
Ordering tips:
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.

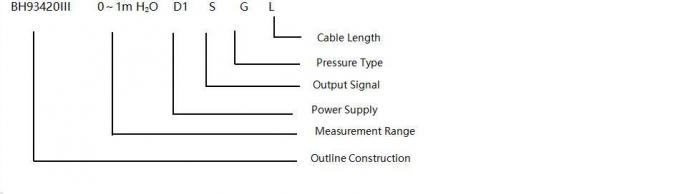

Order Guide:

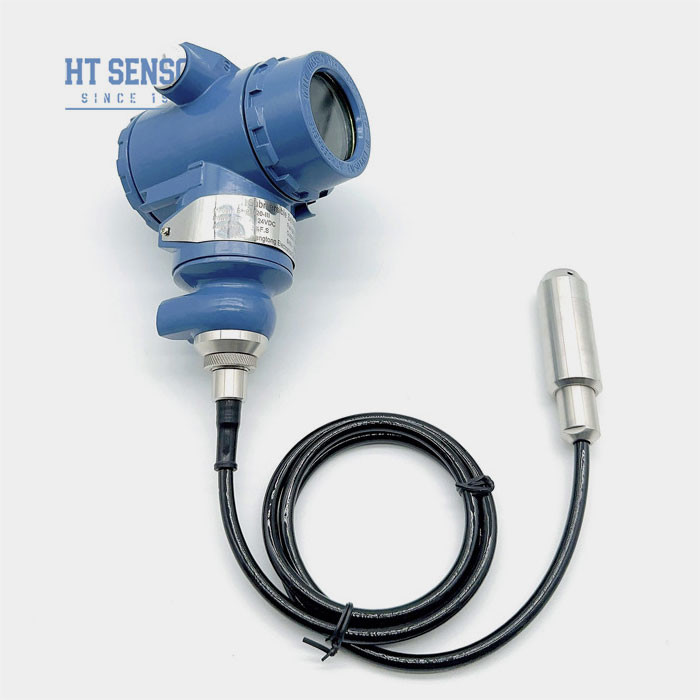

| BH93420 | Code | Outline Construction | ||||||||
| III | Liquid level transmitter with the 2088 housing | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | RS485 | |||||||
| Code | Electrical Connection | |||||||||
| B5 | 2088 with display | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Material | |||||||||
| 01 | 304 Stainless Steel | |||||||||
| 02 | 316L Stainless Steel | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
