| Model NO.: | BH93420-IT | Customized: | Customized |
|---|---|---|---|
| Stability: | ±0.1%F.S/Year(Typ.) | Compensation Temp.: | 0~70 ℃ |
| Diaphragm Material: | 316L Stainess Steel | Net Weignt: | 0.3kg |
| Origin: | Shaan Xi | HS Code: | 90261000 |
| Type: | Silicon Piezoresistive Type | Structure Design: | Thread Type |
| Accuracy Grade: | 0.25%,0.5% | IP Rating: | IP68 |
| High Light: | BH93420-IT Water Tank Level Pressure Sensor,Water Tank Level Pressure Sensor SS304,SS304 Water Pressure Level Sensor |
||

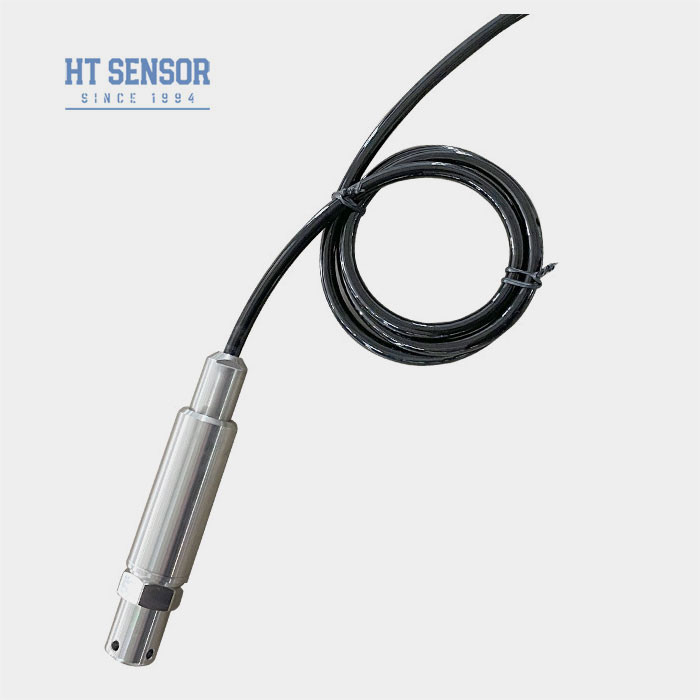

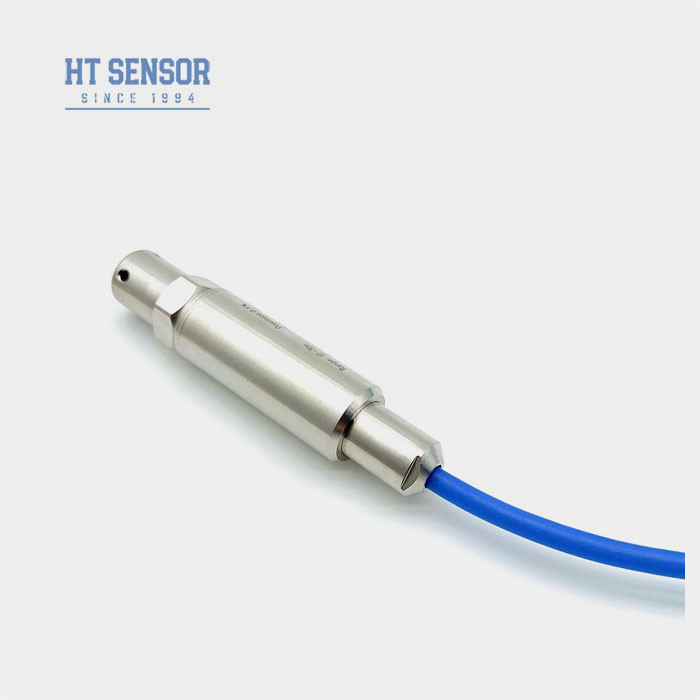

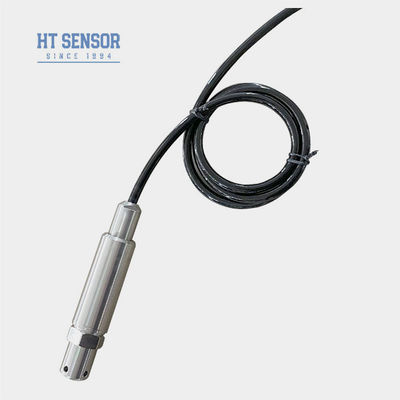

BH93420 IT water level transmitter
Introduction of water level transmitter:
BH93420-IT water level transmitter utilizes the HT series high-precisionPiezoresistive diffused silicon pressure sensor. It features a fully welded stainless steel housing, equipped with a hexagonal and water guide head design, and employs waterproof sealing technology. This design enables it to meet various customer installation requirements and adapt to different application scenarios.
This submersible piezoresistive silicon level transmitter, water liquid oil level sensor, 4-20mA level sensor . CE certified, with 4-20mA and 0.5-4.5VDC ,1-5V signal option. It is applicable to level measurement of liquid tanks, sewage, industrial and urban water, pools, wells, rivers, seawater, lakes, etc.
Product Features:
Performance Parameters:
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti,316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5VDC | 5VDC |

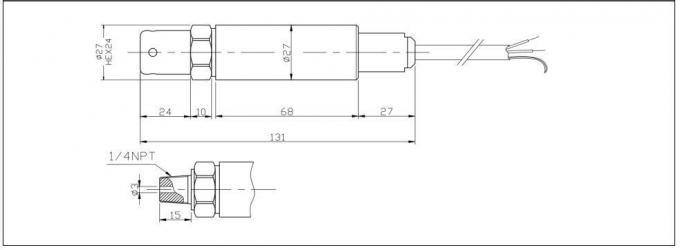

Outline Construction:

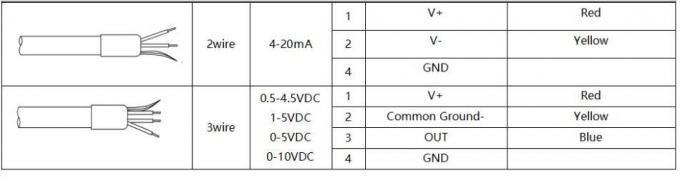

Electrical Connection:
Ordering tips:
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.

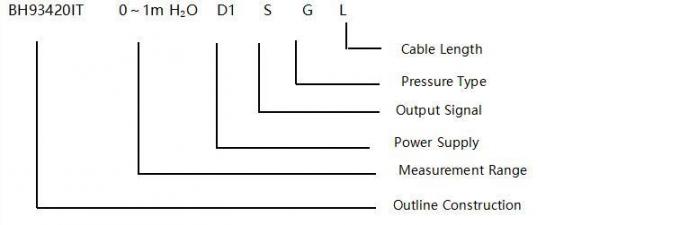

Order Guide:
| BH93420 | Code | Outline Construction | ||||||
| IT | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PU | |||||||
| C2 | PTFE | |||||||
