| Model NO.: | BH93420IIIK | Customized: | Customized |
|---|---|---|---|
| Stability: | ±0.1%F.S/Year(Typ.) | Compensation Temp.: | -10~70℃ |
| Diaphragm Material: | 316L Stainess Steel | Net Weignt: | 0.6kg |
| Transport Package: | Carton | Trademark: | HT Sensor |
| Origin: | Shaan Xi | HS Code: | 90261000 |
| Supply Ability: | 2000PCS/Month | Type: | Silicon Piezoresistive Type |
| Structure Design: | Input Type | Pressure Range: | 0-4m |
| Display Type: | LED | Accuracy Grade: | 0.25%,0.5% |
| IP Rating: | IP68 | Customization: | Available | Customized Request |
| Highlight: | Bh93420-IIIK Underwater Pressure Sensor,Underwater Pressure Sensor Armored Insertion 4m,Armored Insertion Water Pressure Transmitter |
||

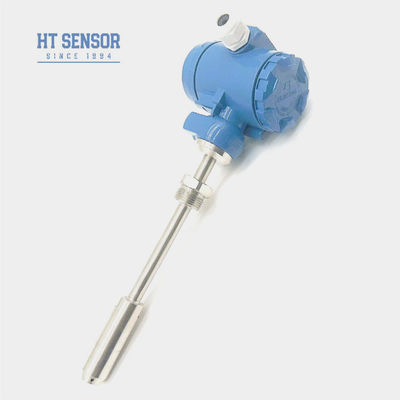

HT BH93420-IIIK ARMORED INSERTION WATER LEVEL TRANSMITTER
BH93420 IIIK Water level Transmitter
Introduction of water leveltransmitter:
BH93420-IIK/IIIK armored insertion water level transmitter utilizes a highly accurate piezoresistive diffused silicon pressure sensor as its signal measuring element. It is designed for measuring the liquid level in open containers, and it is suitable for corrosive media. The transmitter features a high-strength stainless steel tube and a stainless steel measuring probe, which are welded together using a standard flange installation process. This armored construction ensures the transmitter's durability and reliability, making it well-suited for challenging environments with corrosive substances
Product Features:
Performance Parameters:
| Measurement Range | 0~10m…4m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2 X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Stainless steel 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.1Kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 15~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| RS485 Communication Protocol | 4 wire |
Outline Construction:
Electrical Connection:
1. please ensure that the measured medium is compatible with the contacting parts of the product.
2. The density of the measured medium should be specified.
3. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
5. When equipped with an LED or LCD display head, the transmitter power supply voltage should not be lower than 15VDC
Order Guide:
| BH93420 | Code | Outline Construction | ||||||||
| II/III | Armored water level transmitter | |||||||||
| Measurement Range | 0~10m…4m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | |||||||||
| Code | Flange or interface size | |||||||||
| F1 | Stainless steel DN25 | |||||||||
| F2 | Stainless steel DN32 | |||||||||
| F3 | Stainless steel DN40 | |||||||||
| F4 | Stainless steel DN50 | |||||||||
| M1 | M27X2 | |||||||||
| M2 | M30X2 | |||||||||
| M3 | Other special threads | |||||||||
| Code | Electrical Connection | |||||||||
| B4 | 2088 industrial housing | |||||||||
| B5 | 2088 with display | |||||||||
| B6 | 3051A housing | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Material | |||||||||
| 01 | 304 Stainless Steel | |||||||||
| 02 | 316L Stainless Steel | |||||||||
| Code | Steel pipe length | |||||||||
| L | X m | |||||||||
