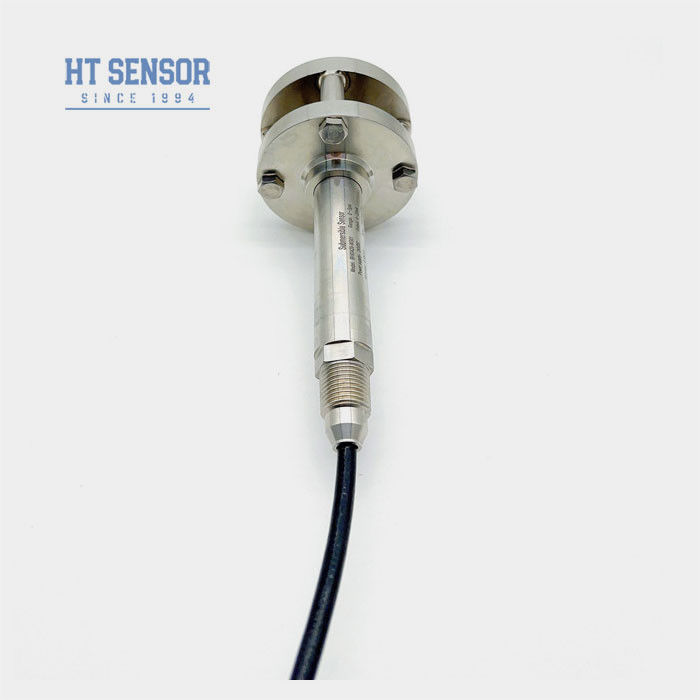

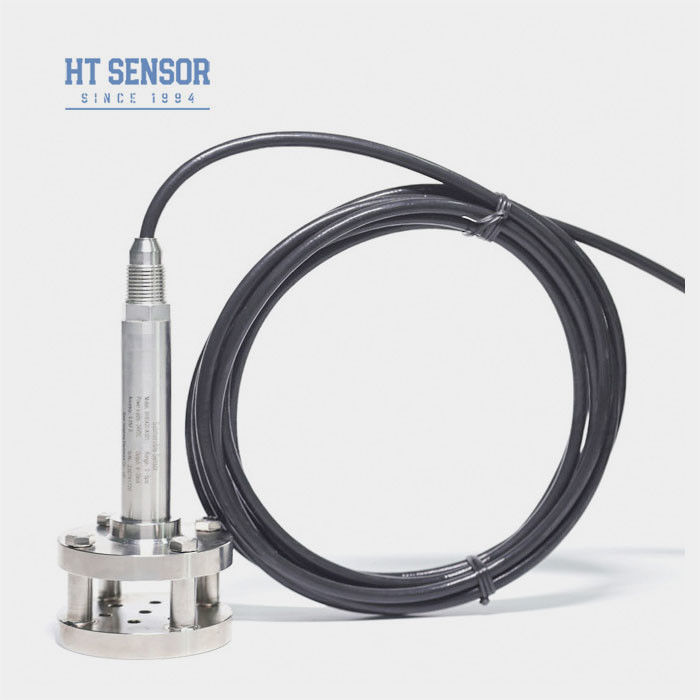

Harsh Environment Liquid Pressure Transmitter 316L Piezoresistive Silicon Pressure Sensor

Basic Information
Place of Origin: Baoji,China
Brand Name: HT sensor
Certification: CE,RoHs,ISO9001
Model Number: BH-WH
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Model NO.: BH-WS Customized: Customized
Houing Material: 316L Stainess Steel Stability: ±0.1%F.S/Year(Typ.)
Net Weignt: 2.1kg Transport Package: Carton
Trademark: HT Sensor Origin: Shaan Xi
HS Code: 90261000 Supply Ability: 300-500pieces
Type: Silicon Piezoresistive Type Structure Design: Flange Type
Display Type: Without Display Accuracy Grade: 0.2%,0.5%
IP Rating: IP68
High Light:

Harsh Environment Liquid Pressure Transmitter


Liquid Pressure Transmitter 316L


316L Piezoresistive Silicon Pressure Sensor

Product Description





Introduction of BH-WS water level transmitter:

BH-WS water level transmitter utilizes a high-precision piezoresistive silicon pressure sensor as the sensitive measuring element. It features a robust and durable design with a full 316L stainless steel construction. There may be suspended solids, sediments and other impurities in the sewage, and the input level transmitter usually adopts an anti-clogging design to ensure that the probe of the sensor is not easy to be blocked and maintain accurate level measurement.This transmitter is suitable for measuring liquid levels in environments with contaminated liquids,such as sludge tanks,  clarifiers,  digester, alum tanks, chemical storage tanks, oil tanks, lime slurry, sewage pits, and water reservoirs

Product  Features:

  1. Specially designed for harsh environments
  2. Explosion-proof marking : ExiaIICT6
  3. High protection :  IP68
  4. Full 316L stainless steel structure with excellent corrosion resistance
  5. High precision and good stability


  1. Compatible with 316LSS,noncorrosive liquids
  2. Monitoring of oil level in diesel tanks, fuel tanks, and other fuel containers
  3. Level measurement in polluted liquids, such as sludge tanks, clarifiers, digesters, alum tanks, chemical storage tanks, sewage pits, and water reservoirs


Performance Parameters:


Measurement Range 0~10m…400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 2X rated range
Accuracy @ 25ºC ±0.25% (Typ.)   ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.)  ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Zero  Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature -10-80ºC
Operating Temperature -20~100ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 316L Stainless Steel
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68
O-Ring Seal Fluoro rubber
Weight ~2.1Kg (without cable)
Cable Material Polyethylene, Polyurethane,PTFE

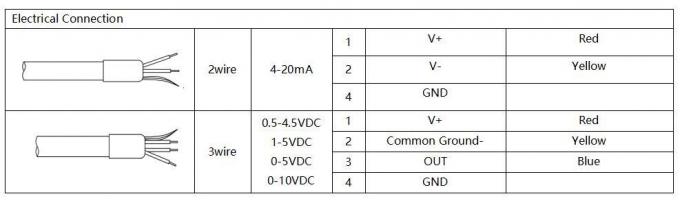

Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
3 wire
0.5~4.5V 5VDC

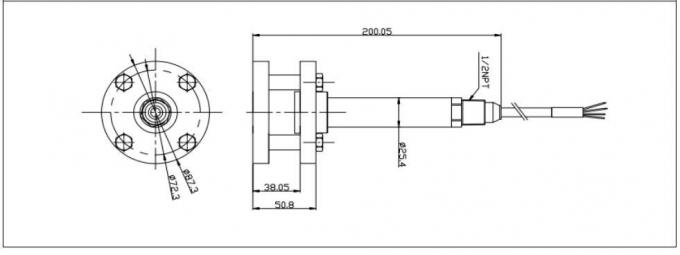

Outline Construction:

Ht Series Bh-Ws Sewage Level Sensor for Harsh Environments
Ht Series Bh-Ws Sewage Level Sensor for Harsh Environments

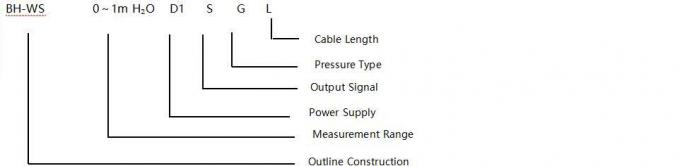

Selection Examples:


Ht Series Bh-Ws Sewage Level Sensor for Harsh Environments

Ordering tips:


1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.


Order Guide:


BH Code Outline Construction
  WS Pressure Transmitter
  Measurement Range 0~10m…400m
  Code Power Supply
D1 24VDC
D3 Other
  Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
  Code Pressure Type
G Gauge Pressure
A Absolute Pressure
  S Sealed Reference Pressure
    Code  Cable Material

Ht Series Bh-Ws Sewage Level Sensor for Harsh Environments

1. Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
