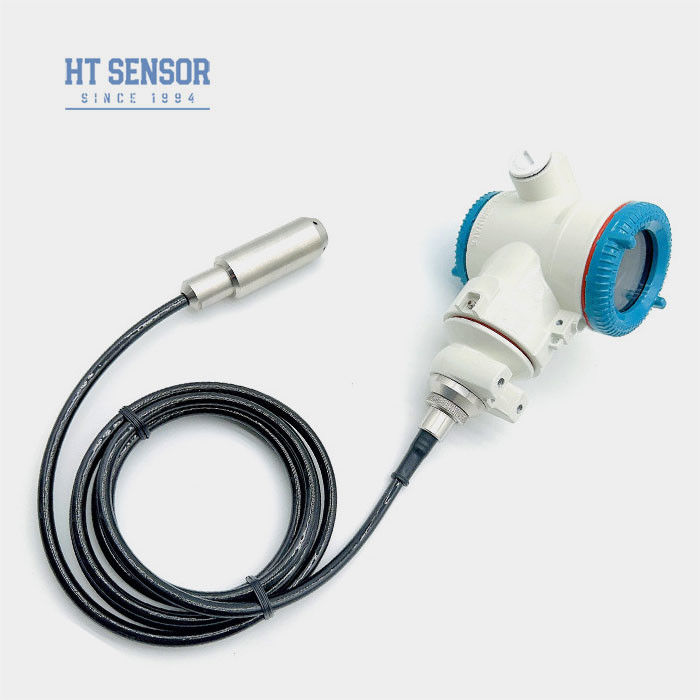

BHZ93420 III Intelligent Liquid Level Transmitter
Introduction:
BHZ93420-III insertion-type intelligent liquid level transmitter is equipped with a high-precision piezoresistive silicon pressure sensor as its signal measuring element. It measures the static pressure, which is directly proportional to the liquid level. The transmitter utilizes HART communication protocol to achieve digital signal transmission and two-way communication
The intelligent liquid level transmitter has built-in data processing and analysis function, which can process, calculate and analyze the liquid level data. For example, liquid level trend analysis, alarm Settings and anomaly detection can be performed
Product Features:
Performance Parameters:
| Measurement Range | 0~1m…400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.6Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA with Hart | 15~30VDC | 2 wire |

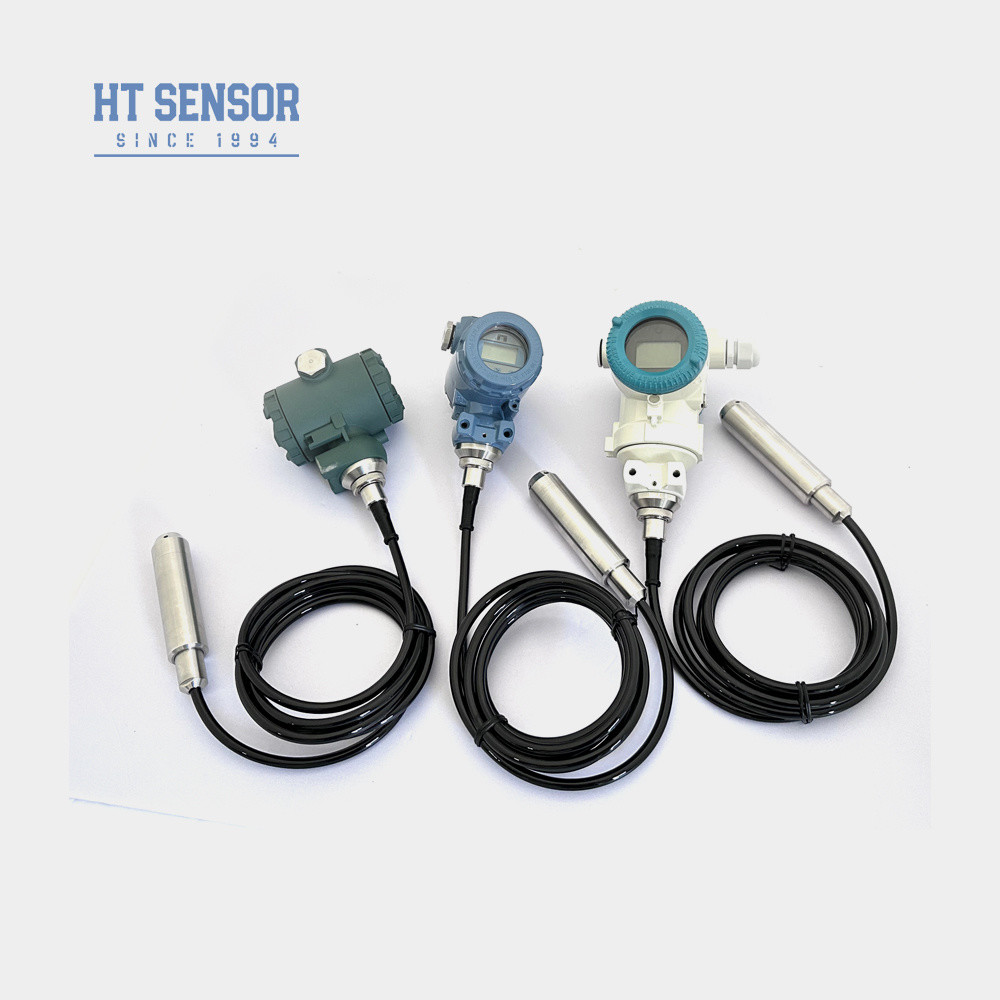

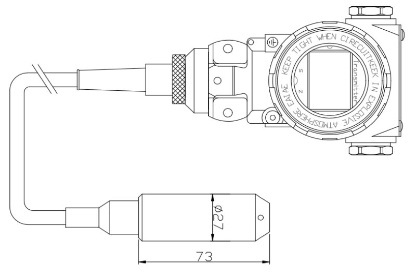

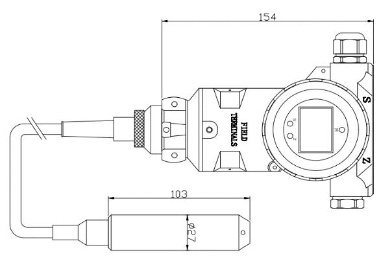

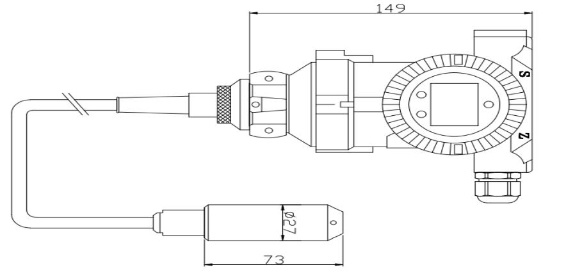

| Outline Construction: | |
| 2088 |
 |
| 3051A |  |
| 3051 |  |
| Electrical Connection: | ||||
 |
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
 |
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
 |
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | GND | |||
| 4 | NC | |||
| Selection Examples: |
Ordering tips:
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.

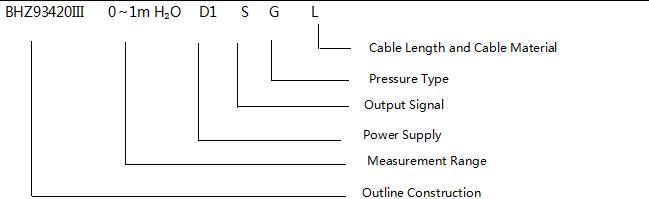

Order Guide:
| BHZ93420 | Code | Outline Construction | ||||||||
| III | Intelligent liquid level transmitter | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | 4~20mADC with Hart | |||||||
| Code | Electrical Connection | |||||||||
| B4 | 2088 with display | |||||||||
| B5 | 3051 | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
