Silicon Liquid Level Transmitter Liquid Level Gasoline Level Sensor Piezoresistive

Basic Information
Place of Origin: Baoji,China
Brand Name: HT sensor
Certification: CE,RoHs,ISO9001
Model Number: BH93420-IT
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Model NO.: BH93420-IT Diaphragm Material: 316L Stainess Steel
Net Weignt: 0.3kg Transport Package: Carton
Origin: Shaan Xi HS Code: 90261000
Type: Silicon Piezoresistive Type Structure Design: Thread Type
Accuracy Grade: 0.25%,0.5% IP Rating: IP68
Customization: Available | Customized Request
High Light:

Silicon Liquid Level Transmitter RoHs


Liquid Level Transmitter For Gasoline


Piezoresistive Gasoline Level Sensor

Product Description

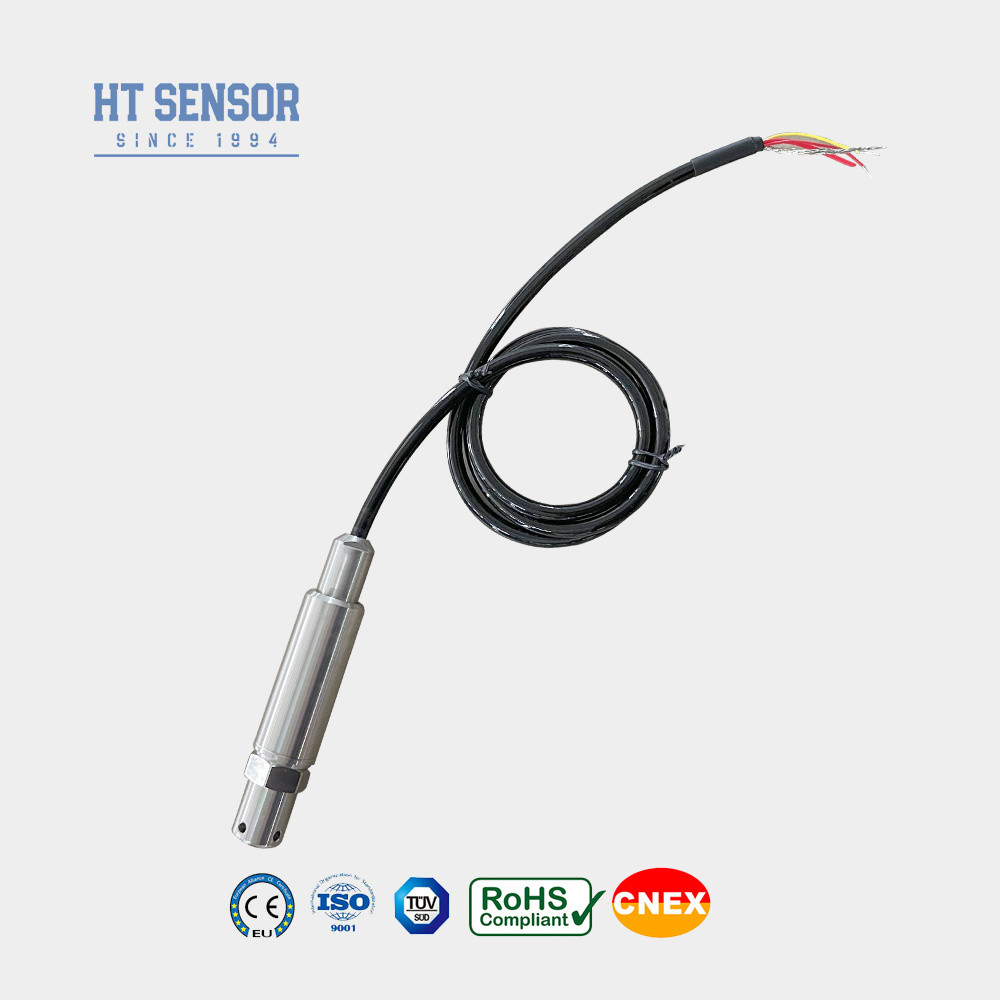

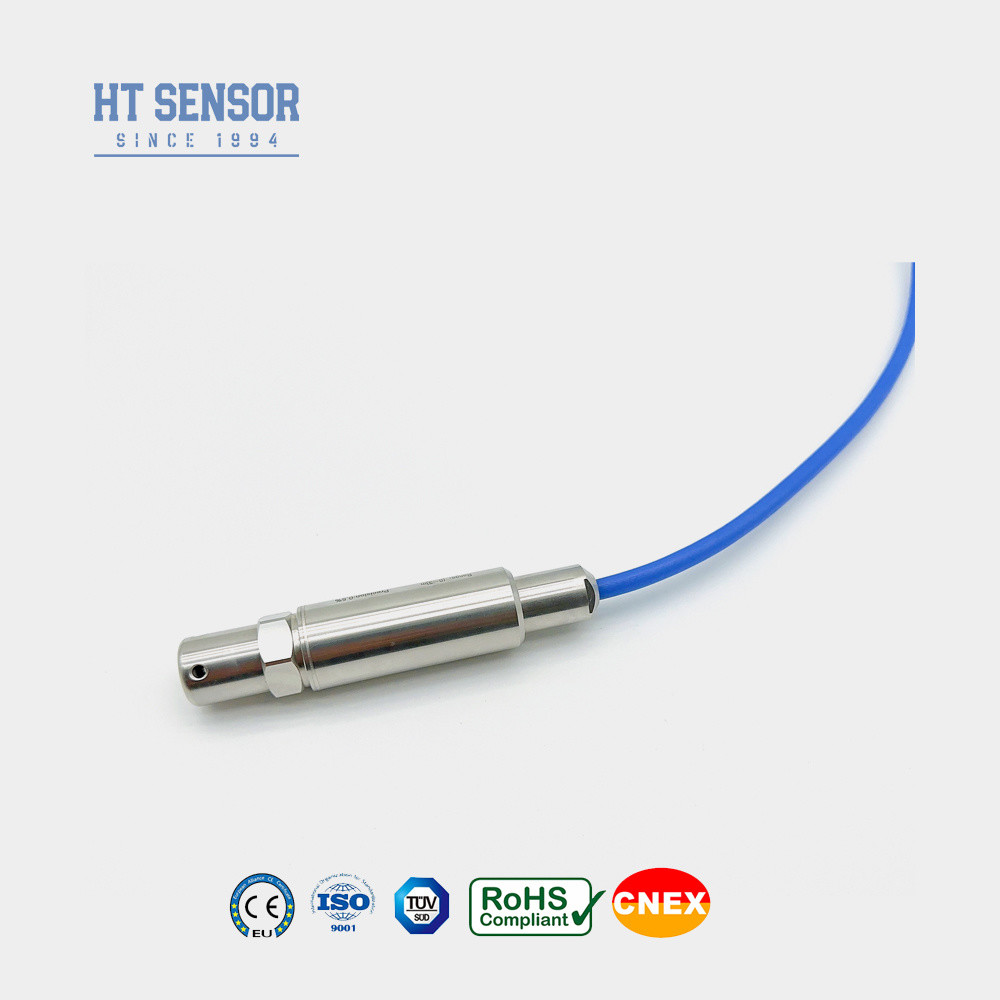

BH93420 IT Liquild Level Transmitter


BH93420-IT liquid level transmitter utilizes the HT series high-precisionPiezoresistive  diffused silicon  pressure sensor. It features a fully welded stainless steel housing, equipped with a hexagonal and water guide head design, and employs waterproof sealing technology. This design enables it to meet various customer installation requirements and adapt to different application scenarios.

The installation of the Liquid  level transmitter is very convenient and only requires the probe part of the device to be submerged in the liquid to be measured. The installation process is simple and fast, and no modification or disassembly of the container is required


Product  Features:
  1. Fully welded design, ensuring safety and reliability
  2. Dual options for probe insertion and threaded installation, meeting various on-site installation needs
  3. Rigorously tested for high and low temperatures, suitable for a wide temperature range of applications
  4. Explosion-proof marking: ExiaIICT6
  5. PTFT, PU cable
  6. The plund-type liquid level transmitter has the advantages of high precision, strong reliability, easy installation, low maintenance cost and wide application range. It is a very practical liquid level measuring equipment
  1. Compatible with 316LSS,noncorrosive liquids
  2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
  3. Measuring fuel levels in diesel and fuel tanks
Performance Parameters:
Measurement Range 0~10m…400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 2X rated range
Accuracy @ 25ºC ±0.25% (Typ.)   ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.)  ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Zero  Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC  (0-1m . 0-2m );    0-70ºC
Operating Temperature -20~80ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Shock 100g
Housing Material 1Cr18Ni9Ti,316L Stainless Steel
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68
O-Ring Seal Fluoro rubber
Weight ~0.3Kg (without cable)
Cable Material Polyethylene, Polyurethane
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
3 wire
0.5~4.5V 5VDC

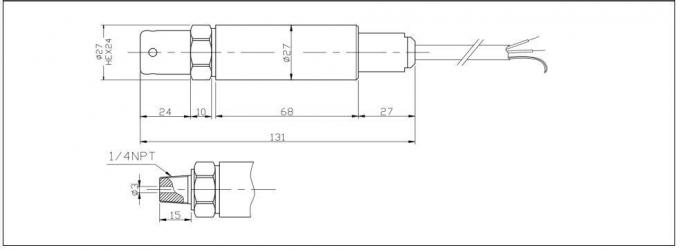

Outline Construction :
Special Liquid Level Transmitter for Gasoline Liquid Level Testing

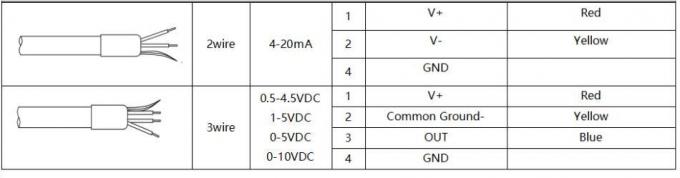

Electrical Connection:

Special Liquid Level Transmitter for Gasoline Liquid Level Testing

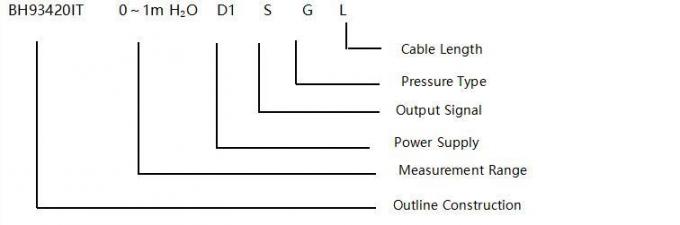

Selection Examples:

Special Liquid Level Transmitter for Gasoline Liquid Level Testing
Ordering tips:
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.


Order Guide:


BH93420 Code Outline Construction
  IT Pressure Transmitter
  Measurement Range 0~10m…400m
  Code Power Supply
D1 24VDC
D3 Other
  Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC  S8 RS485
  Code Pressure Type
G Gauge Pressure
A Absolute Pressure
  S Sealed Reference Pressure
  Code Material
01 304 Stainless Steel
02  316L Stainless Steel
  Code  Cable Material

1. Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
