| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BH-WS |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BH93420-WS Water Level Transmitter | Accuracy Grade: | ≤0.5%F.S |
|---|---|---|---|
| Pressure Range: | 0~1m...~200m | Customized: | Customized |
| Stability: | ±0.1%F.S/Year(Typ.) | Diaphragm Material: | 316L Stainess Steel |
| Net Weignt: | 2.1kg | Structure Design: | Flange Type |
| IP Rating: | IP68 | Warranty: | 2 Years |
| High Light: | OEM Analog Water Level Sensor,Analog Water Level Sensor Stainless Steel,IP68 Flange Piezoresistive Pressure Transducer |
||

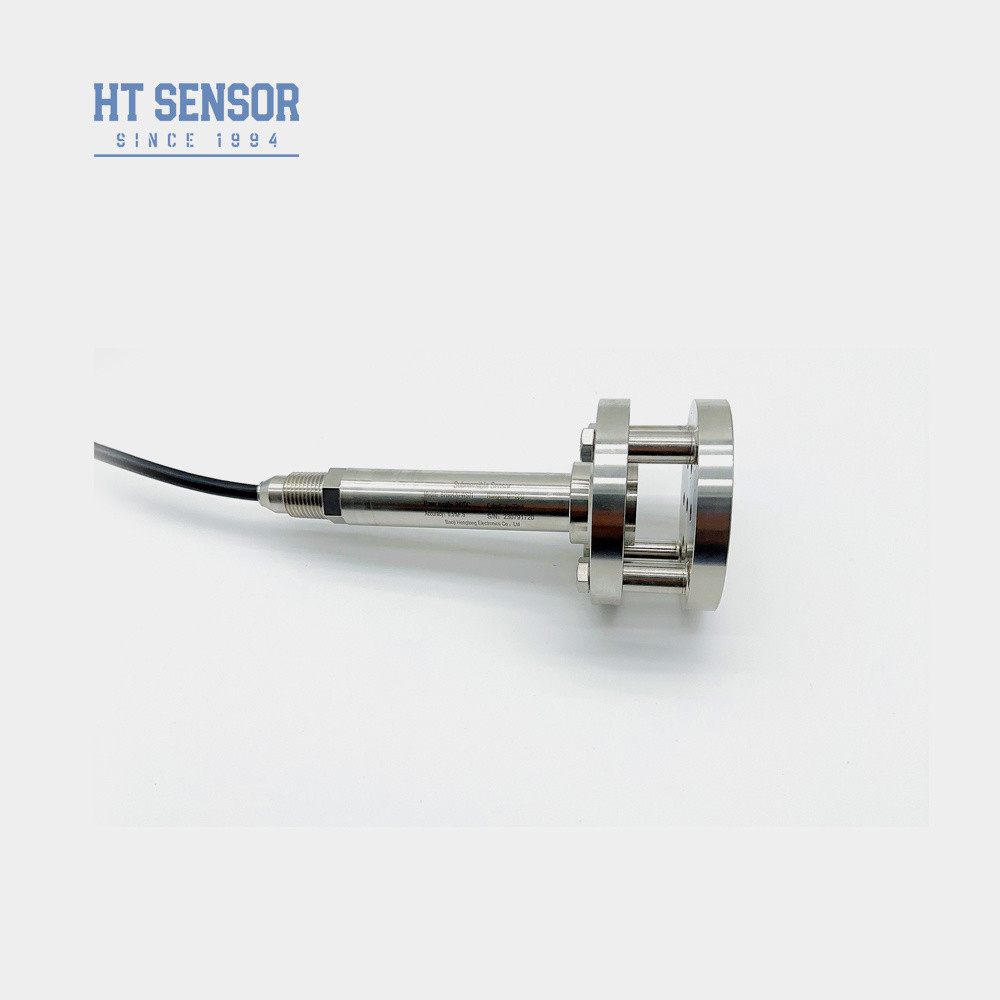

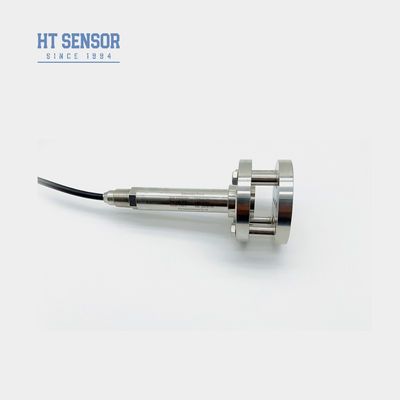

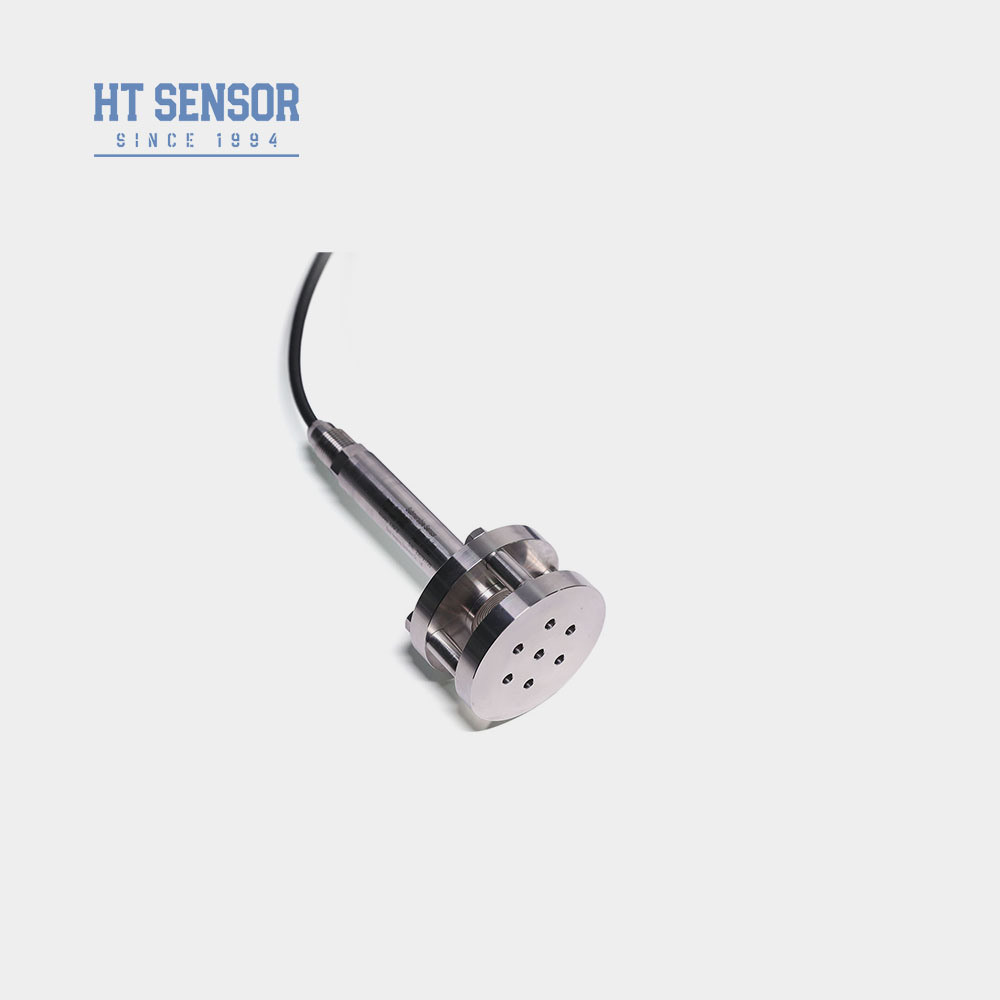

BH93420-WS Sewage Level Sensor
Introduction of water level transmitter:
BH-WS sewage level sensor utilizes a high-precision piezoresistive silicon pressure sensor as the sensitive measuring element. It features a robust and durable design with a full 316L stainless steel construction. This transmitter is suitable for measuring liquid levels in environments with contaminated liquids, such as sludge tanks, clarifiers, digester, alum tanks, chemical storage tanks, oil tanks, lime slurry, sewage pits, and water reservoirs.It has high reliability, stability, high measurement accuracy and wide application range.
Product Features of water level transmitter:
|
Performance Parameters:
|
|
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | -10-80ºC |
| Operating Temperature | -20~100ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~2.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane,PTFE |

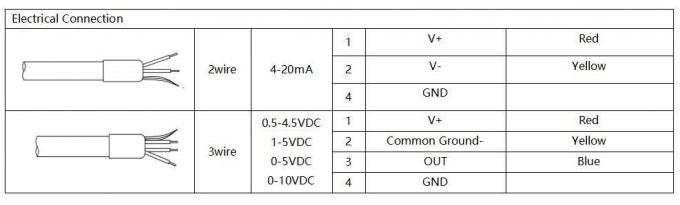

| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
|

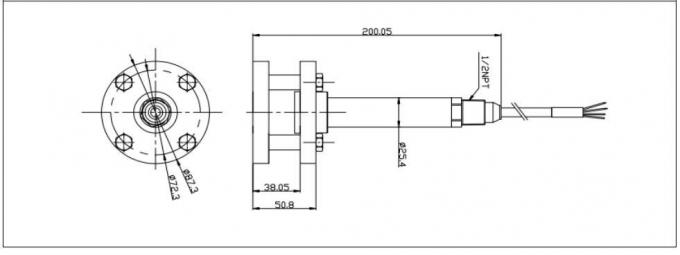

Outline Construction: |

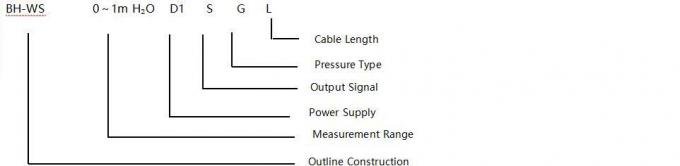

| Selection Examples: |
Ordering tips:
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
Order Guide:
| BH | Code | Outline Construction | ||||||
| WS | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
| C3 | PTFE | |||||||
