BH93420-IT Water Level Transmitter
Introduction of :

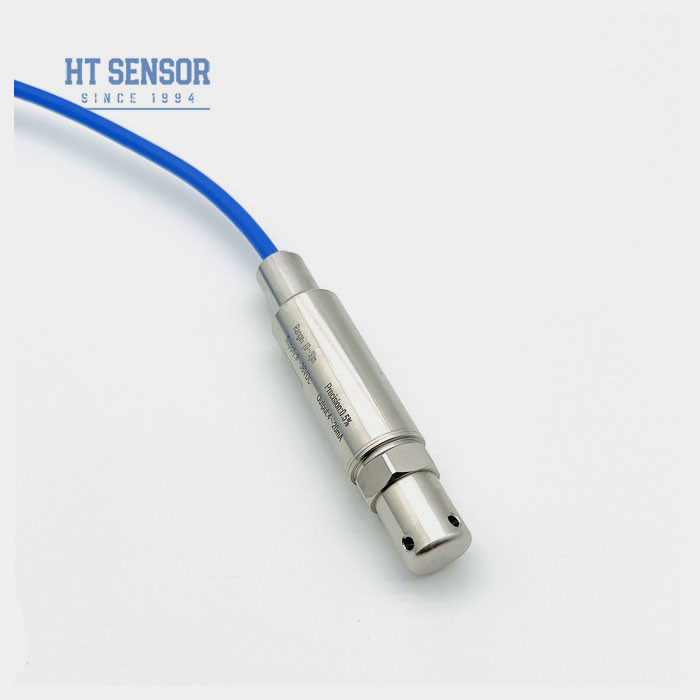

BH93420-IT STAINLESS STEEL DIFFUSED SILICON WATER LEVEL TRANSMITTER WATER LEVEL SENSOR utilizes the HT series high-precisionPiezoresistive diffused silicon pressure sensor. It features a fully welded stainless steel housing, equipped with a hexagonal and water guide head design, and employs waterproof sealing technology. This design enables it to meet various customer installation requirements and adapt to different application scenarios.
Product Features:
| Performance Parameters: | |
| Measurement Range | 0~10m…400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti,316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
|
Outline Construction :
|
|
Electrical Connection: |
|
Selection Examples:
|
|
Ordering tips: |
|
Order Guide:
|
||||||||
| BH93420 | Code | Outline Construction | ||||||
| IT | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400mH2O | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PU | |||||||
| C2 | PTFE | |||||||
