BH93420-WS Water Level Transmitter 4-20mA OEM Liquid Level Sensor With Flange Fixed

Basic Information
Place of Origin: Baoji,China
Brand Name: HT SENSOR
Certification: CE,RoHs,ISO9001
Model Number: BH93420-WS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Model NO.: BH93420-WS Range: 0-1m~200m
Houing Material: Stainess SteeL Stability: ±0.2%F.S/Year(Typ.)
Diaphragm Material: Stainess Steel Transport Package: Carton
Origin: Shaan Xi ,China Structure Design: Flange Type
Pressure Range: Gauge Pressure, Absolute Pressure Customization: Available Can OEM And ODM | Customized Request
High Light:

BH93420-WS Water Level Transmitter


Water Level Transmitter 4-20mA OEM


Liquid Level Sensor With Flange Fixed

Product Description

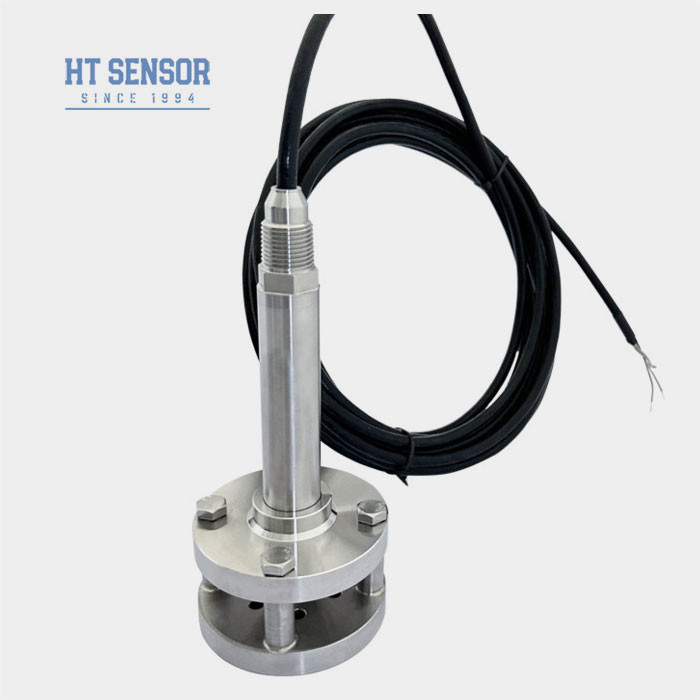

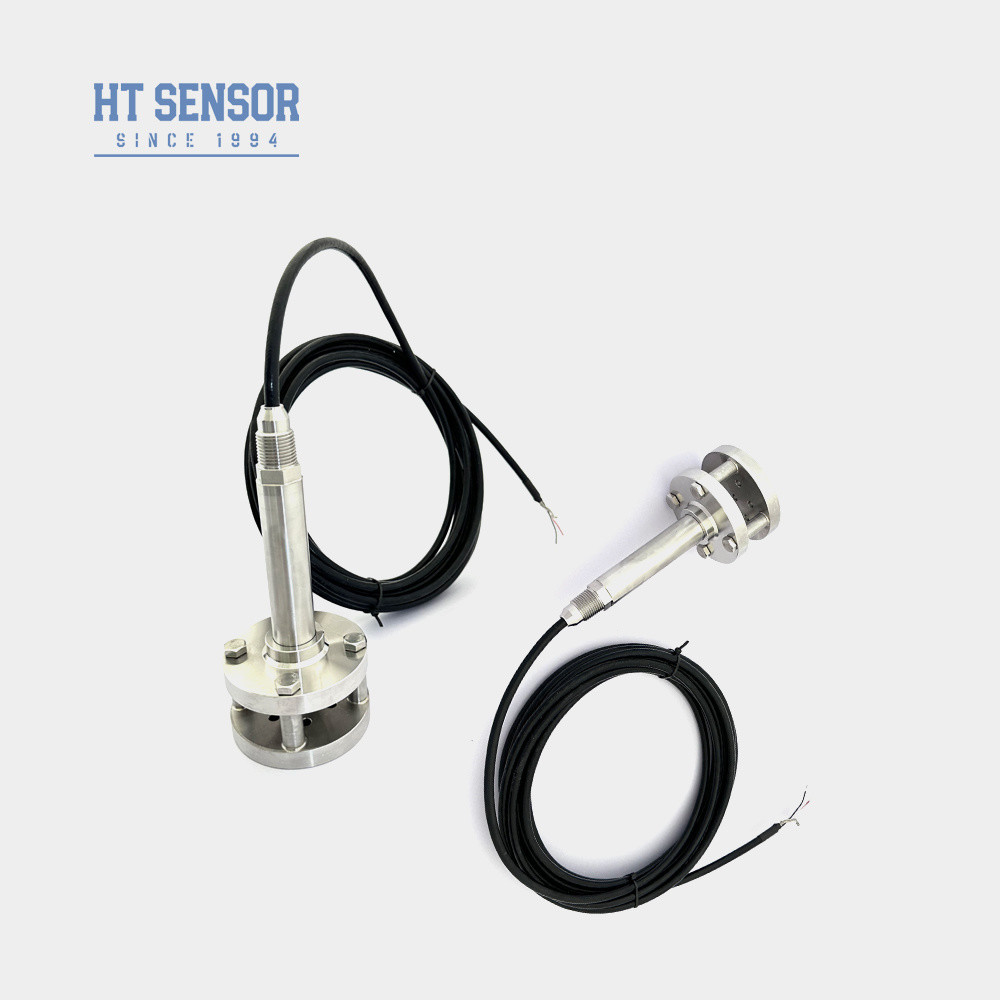

BH93420-WS OEM 4-20mA Liquid Water Level Transmitter With Flange Fixed

BH93420-WS Sewage Level Sensor

Introduction of water level  transmitter:

BH93420-WS sewage level sensor can convert the physical pressure parameters such as gas and liquid sensed by the pressure measuring element sensor into standard electrical signals, and provide secondary instruments such as alarm, recorder and regulator for measurement, indication and process adjustment. To ensure that the product long-term work without leakage, high stability. The input liquid level transmitter is used in petroleum, metallurgy, water conservancy, urban water supply, hydrologic exploration and other liquid level measurement.
Product  Features of water level transmitter:
  1. Specially designed for harsh environments
  2. Explosion-proof marking : ExiaIICT6
  3. High protection :  IP68
  4. Full 316L stainless steel structure with excellent corrosion resistance
  5. High precision and good stability
Applications of water level transmitter:
  1. Compatible with 316LSS,noncorrosive liquids
  2. Monitoring of oil level in diesel tanks, fuel tanks, and other fuel containers
  3. Level measurement in polluted liquids, such as sludge tanks, clarifiers, digesters, alum tanks, chemical storage tanks, sewage pits, and water reservoirs
Performance Parameters of sewage level sensor transmitter
Measurement Range 0~10m…400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 2X rated range
Accuracy @ 25ºC ±0.25% (Typ.)   ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.)  ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Zero  Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature -10-80ºC
Operating Temperature -20~100ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 316L Stainless Steel
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68
O-Ring Seal Fluoro rubber
Weight ~2.1Kg (without cable)
Cable Material Polyethylene, Polyurethane,PTFE
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
3 wire
0.5~4.5V 5VDC
Outline Construction of sewage level sensor transmitter
BH-WS liquid level tansmitter with flange fixedBH93420-WS Water Level Transmitter 4-20mA OEM Liquid Level Sensor With Flange Fixed 1
BH-WS liquid level tansmitter with flange fixed

Selection Examples
BH-WS liquid level tansmitter with flange fixed

Ordering tips

1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.

Order Guide of sewage level sensor transmitter
BH Code Outline Construction
  WS Pressure Transmitter
  Measurement Range 0~10m…400m
  Code Power Supply
D1 24VDC
D3 Other
  Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
  Code Pressure Type
G Gauge Pressure
A Absolute Pressure
  S Sealed Reference Pressure
    Code  Cable Material

BH93420-WS Water Level Transmitter 4-20mA OEM Liquid Level Sensor With Flange Fixed 4BH-WS liquid level tansmitter with flange fixed

1. Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.

5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.


6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
