Fuel Sensor Water Level Transmitter Piezoresistive Level Sensor With Flange
Product Details
| Model NO.: | BH93420-WS | Houing Material: | 316L Stainess Steel |
|---|---|---|---|
| Stability: | ±0.1%F.S/Year(Typ.) | Diaphragm Material: | 316L Stainess Steel |
| Transport Package: | Carton | Trademark: | HT Sensor |
| Origin: | Shaan Xi | Type: | Silicon Piezoresistive Type Water Level Transmitter |
| Structure Design: | Flange Type | IP Rating: | IP68 |
| Highlight |
Fuel Sensor Water Level Transmitter,Water Level Transmitter Piezoresistive,Piezoresistive Level Sensor With Flange |
||
Product Description

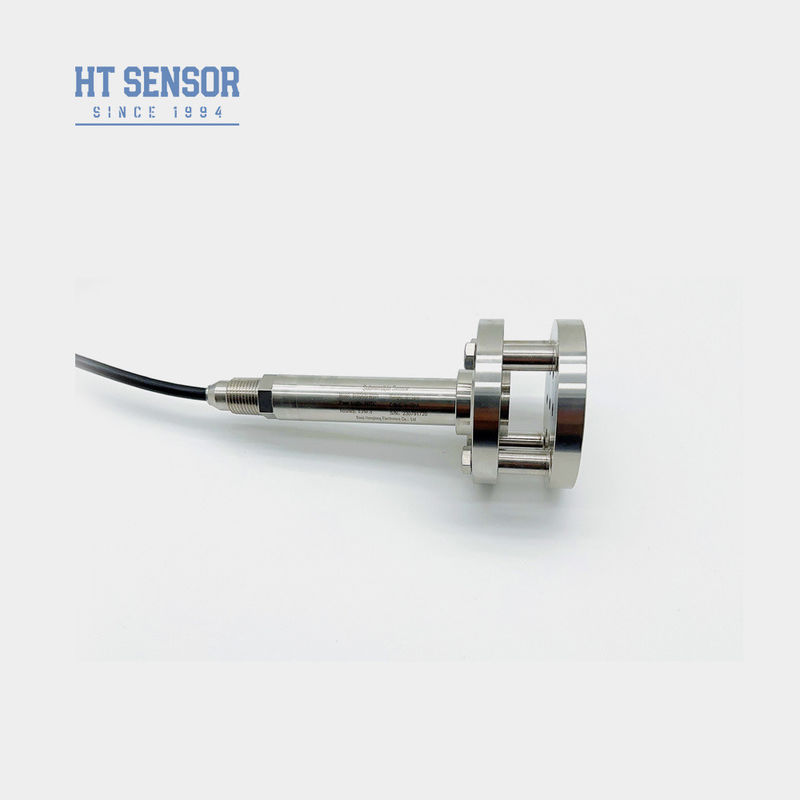

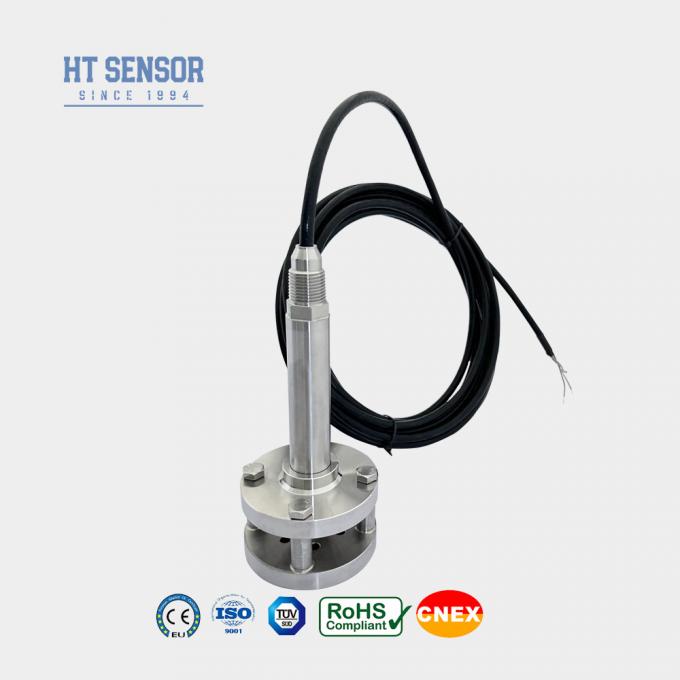

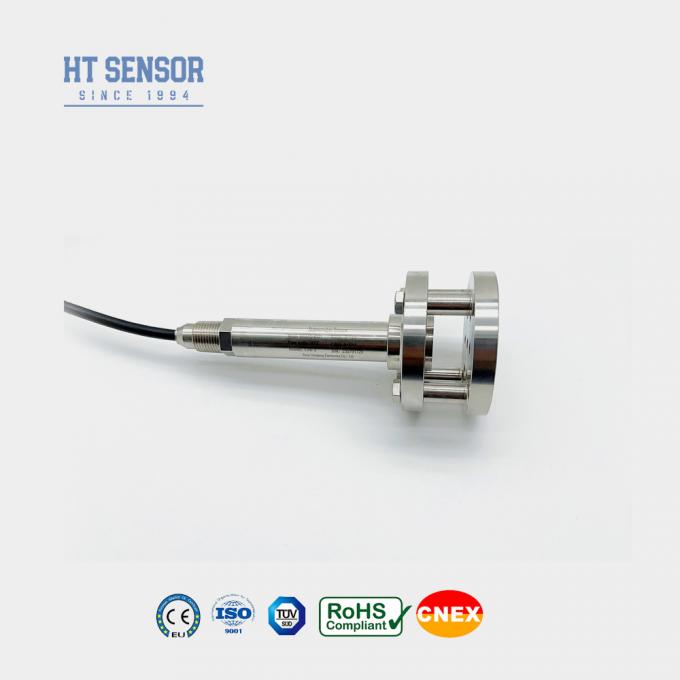

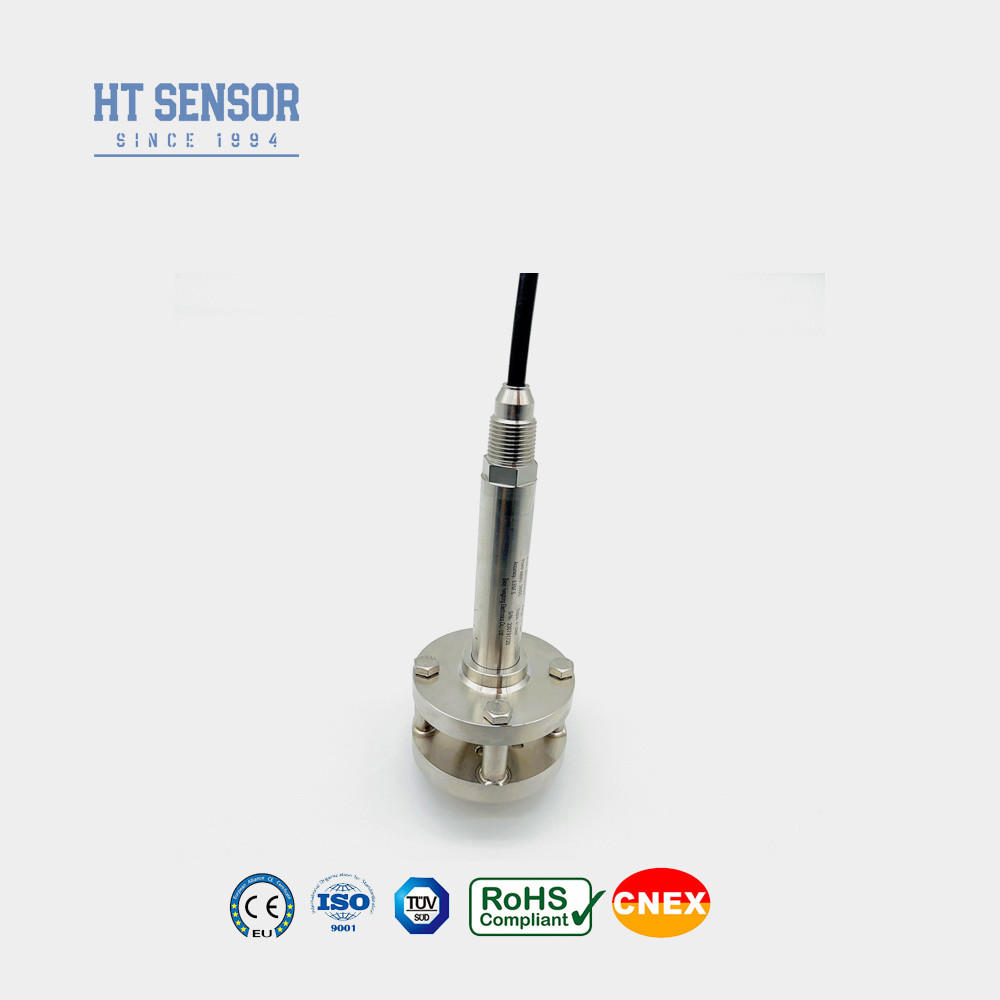

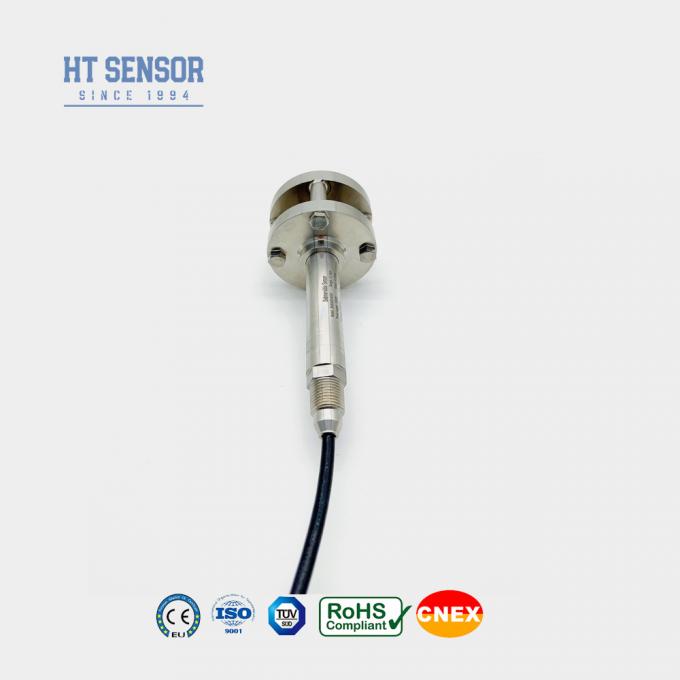

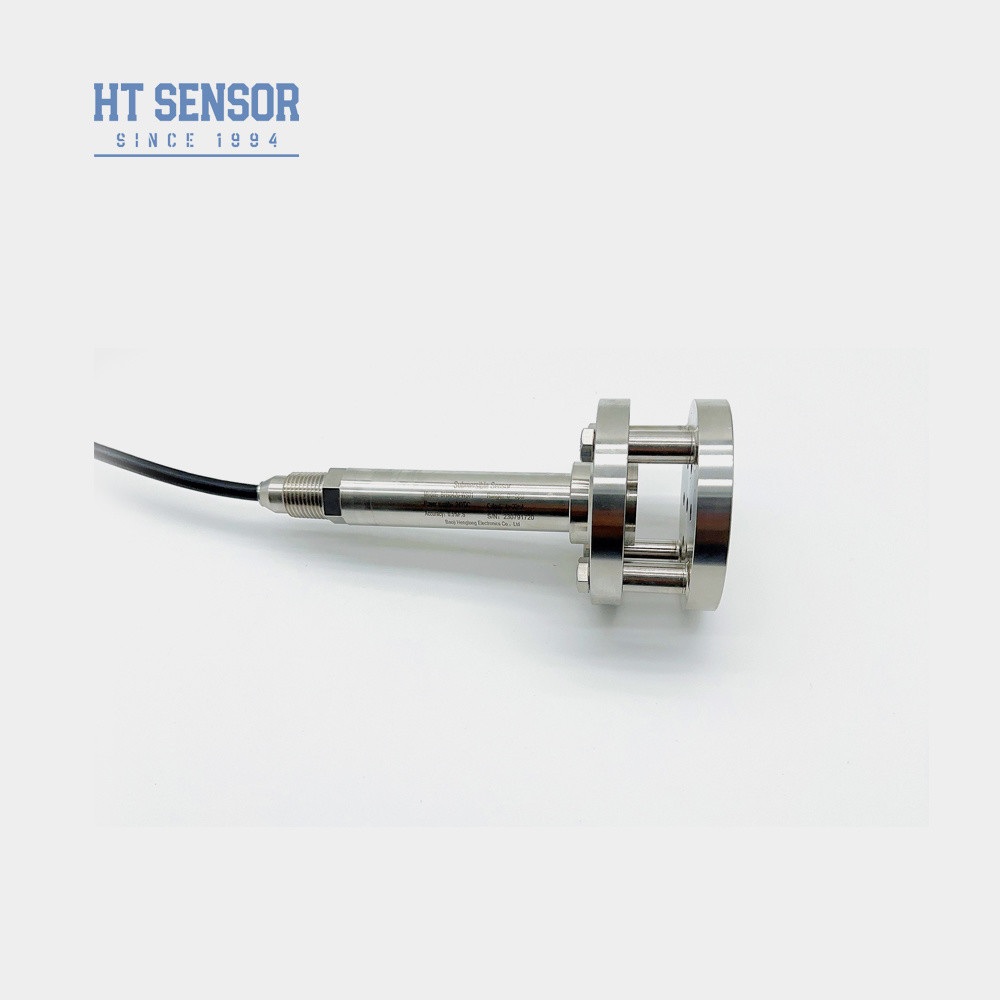

BH93420-WS water level transmitter sensor fuel sensor with Flange
BH93420-WS Sewage Level SensorIntroduction of water level pressure transmitter sensor:
BH93420 - WS water pressure transmitter with high precision piezoresistive silicon pressure sensor is sensitive to as measuring element.It has a strong design and the whole structure of 316 l stainless steel. This diffused silicon pressure sensor offers excellent long-term stability and resistance to harsh environments, making it ideal for use in mining and construction equipment applications. The transmitter is suitable for measuring liquid levels in contaminated liquid environments.Such as sludge tank, clarifying tank, digesters, alum tank, chemical storage tanks, tank, lime, sumps and reservoirs.Shell top with 1/2 NPT thread and can be used for a wider range of environmental applications.
Product Features of water level pressure transmitter sensor:
- Specially designed for harsh environments.
- Explosion-proof .
- High protection : IP68
- Full 316L stainless steel structure with excellent corrosion resistance.
- High precision and good stability.
| Performance Parameters of water level pressure transmitter sensor | |
|---|---|
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | -10-80ºC |
| Operating Temperature | -20~100ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~2.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane,PTFE |

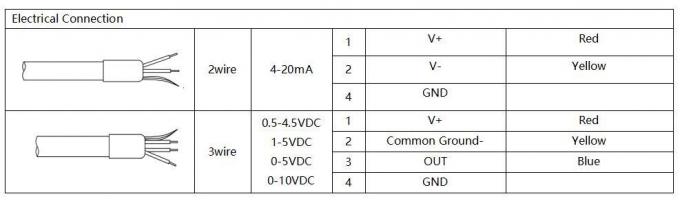

| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Outline Construction |

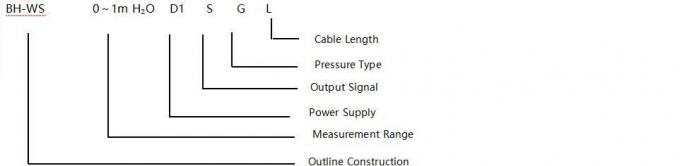

| Selection Examples |
| Ordering tips |
1. When selecting, please ensure that the tested medium is compatible with the product parts in contact with it.
2. The default medium is water and the density is 1000kg/m3. If the measuring medium is other liquid or water with different density, the density of the measured medium should be provided for more accurate measurement.
3. For strong electromagnetic or radio frequency interference, please provide us with detailed information and indicate in the order.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
| Order Guide of water level pressure transmitter sensor | ||||||||
| BH | Code | Outline Construction | ||||||
| WS | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
| C3 | PTFE | |||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
