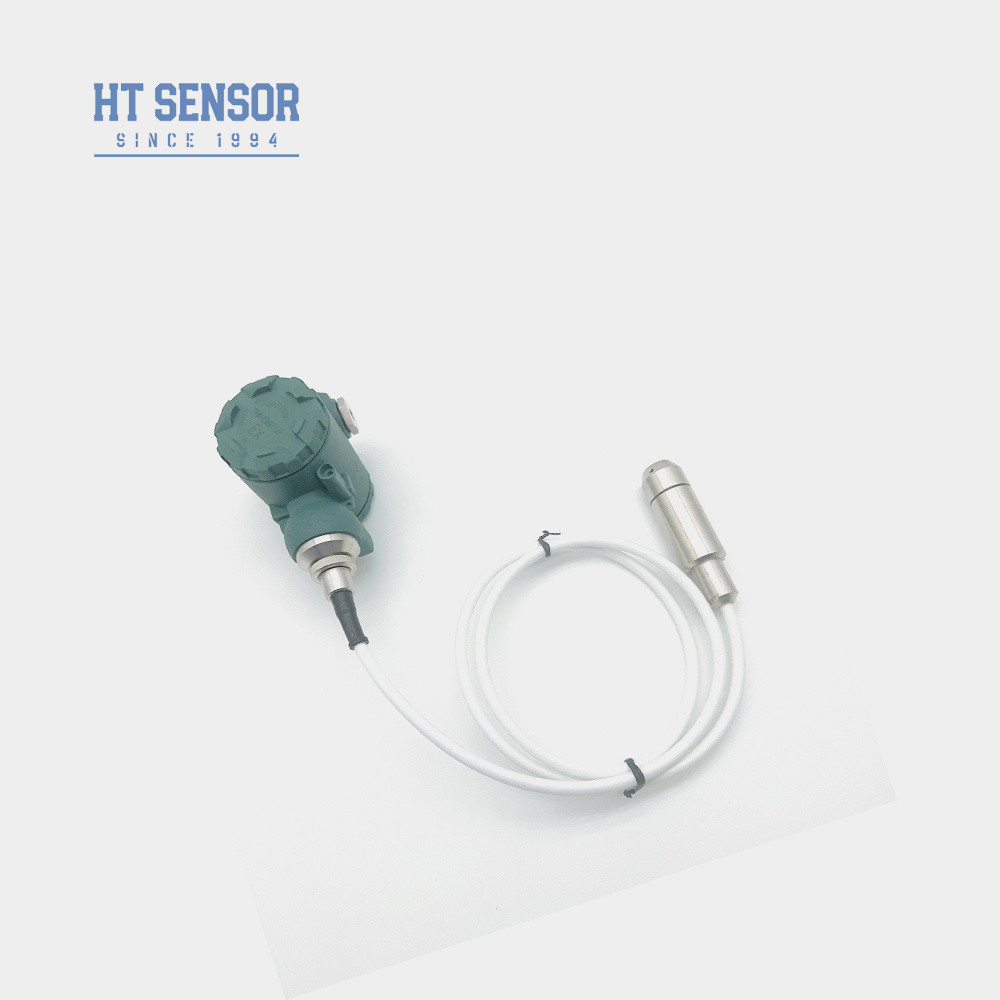

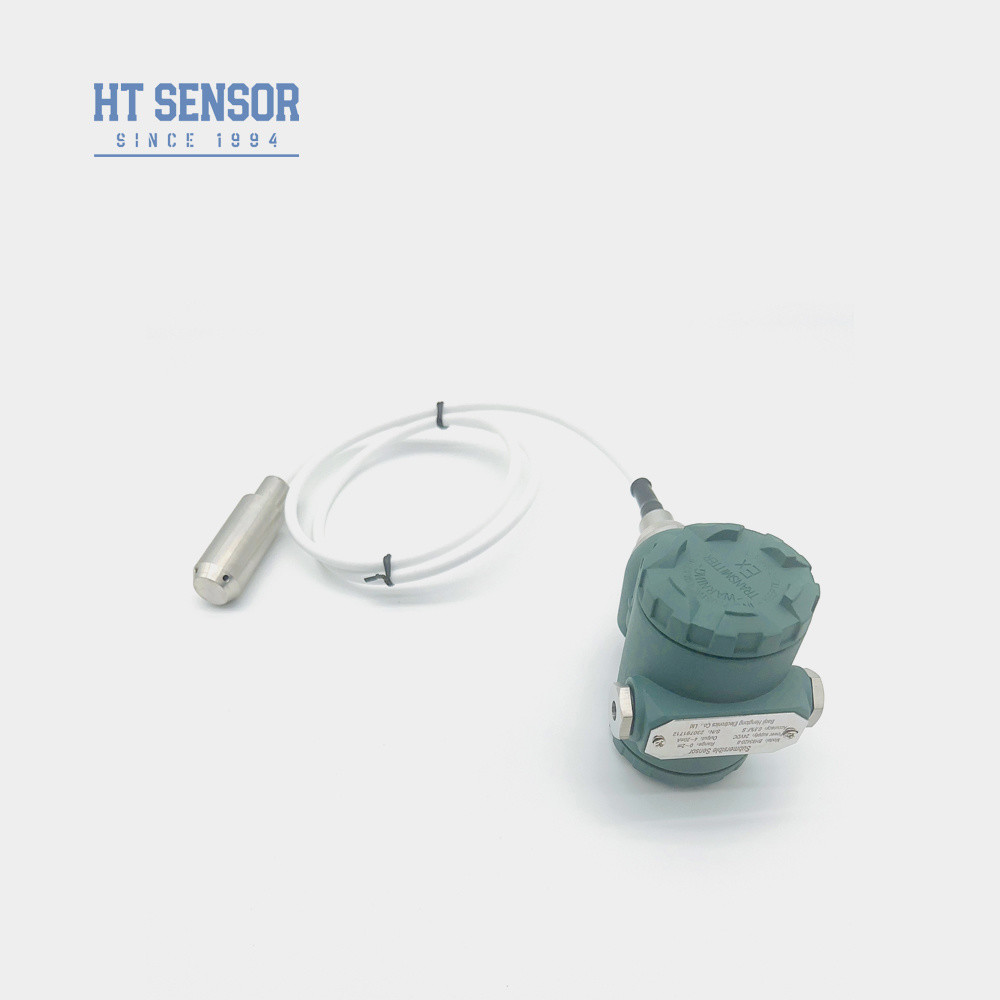

BH93420-II Water Depth Pressure Sensor Corrosion Resistant Sewage Level Sensor
Product Details
| Model NO.: | BH93420-II | Range: | 0-1m---200m |
|---|---|---|---|
| Probe Type: | Probe Type | Output Form: | 4-20mA Can Be With Hart Or RS485 |
| Design: | Accept Customized | Cable: | PTFE |
| Accuracy: | 0.5% | Diaphragm Material: | 316L Stainess Steel |
| Trademark: | HT Sensor | Customization: | OEM And ODM | Customized Request |
| Highlight |
BH93420-II Water Depth Pressure Sensor,Water Depth Pressure Sensor Corrosion Resistant,Corrosion Resistant Sewage Level Sensor 200m |
||
Product Description

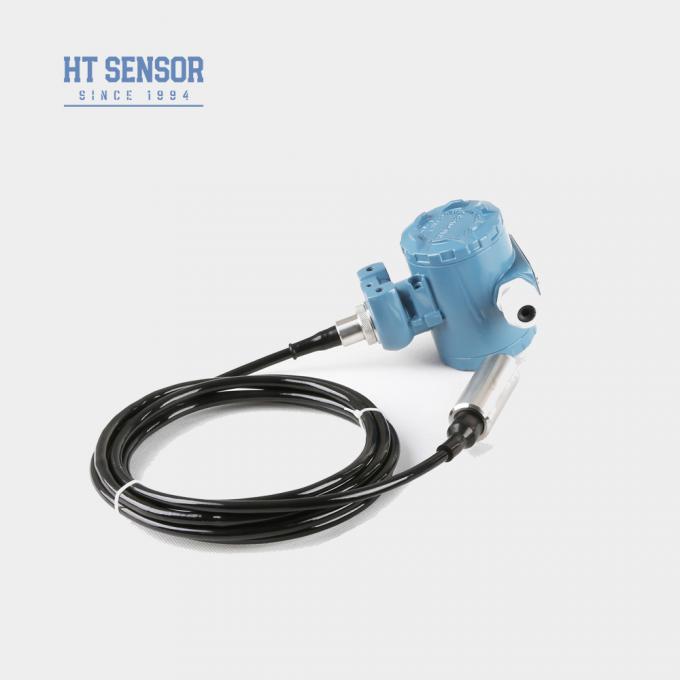

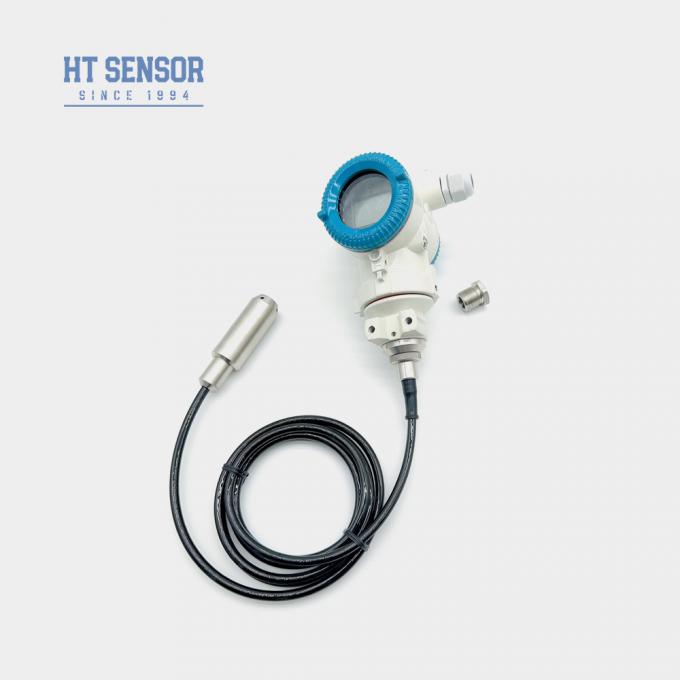

BH93420-II Corrosion Resistant Special Medium Water Level Transmitter Sensor
BH93420 II Water level Transmitter
Introduction of sewage level sensor gauge:
BH93420-III water level transmitter is a type of sensor commonly used in industrial practice, which is an instrument that accepts pressure variables in proportion to the standard output signal. It can convert the physical pressure parameters such as gas and liquid sensed by the pressure measuring element sensor into a standard electrical signal to supply the indicator, recorder, regulator, etc. Used in various industrial automatic control environment, involving water conservancy and hydropower, agricultural irrigation pumping station, water supply company, sewage treatment plant, water supply and drainage company and other industries.
Product Features of sewage level sensor gauge:
- Split-type design, facilitating on-site wiring and calibration
- LED or LCD display
- Explosion-proof rating : ExiaIICT6
- High protection : IP68
- Cable : PE,PU.PTFE Can be choose.
- Compatible with 316LSS,noncorrosive liquids
- Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
- Diesel, fuel, and other oil tank level monitoring
| Performance Parameters of sewage level sensor gauge | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, l1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
| Outline Construction |
| Electrical Connection |
| Selection Examples |
| Ordering tips |
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
| Order Guide | ||||||||||
| BH93420 | Code | Outline Construction | ||||||||
| III | Liquid level transmitter with the 2088 housing | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | RS485 | |||||||
| Code | Electrical Connection | |||||||||
| B5 | 2088 with display | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Material | |||||||||
| 01 | 304 Stainless Steel | |||||||||
| 02 | 316L Stainless Steel | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
Q&A
Q1:Areyou manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
